Angled Rear, Vertical Baffle

A wedge enclosure is cut so the back of the cabinet slopes away at 20 degrees while the front stays upright. It tucks against a seat back or a rear wall and recovers the triangle of space a square box wastes, without asking the driver to fire at an angle. The line runs sealed and ported side by side, and the enclosure type filter splits them.

Every cabinet here is CNC-cut in Tullahoma, Tennessee from Langboard Elite MDF on our own ShopSabre routers, to the published parameters of the driver it is built for. We run the machines.

Wedge cabinets in stock today | sealed and ported | 8, 10, 11, 12, 13, 15 and 18 inch | single, dual and triple | cut to the driver you own

Cut, assembled, carpeted and shipped from our own shop in Tullahoma, Tennessee. Stock counts on every card are shelf counts. Warranty runs by series: one year on Performance and Performance Optimized, from the original date of purchase.

Specified and written by Scott Welch, IASCA National and MECA World Champion, who runs the CNCs these are cut on. Figures come from our own build sheets and the driver manufacturers' published parameters.

Shop the Lineup

←
→

Wedge Series Comparison

A wedge is a cabinet shape, so the same taper appears at two build standards and in both alignments. Baffle thickness and joinery differ because the cabinets are made differently, not because one is a better version of another.

Every active wedge cabinet in stock, sealed and ported.
SeriesFront baffleAlignmentsConstructionWarranty
Performance Optimized1.5 in doubleSealed and portedCut to one driver's published alignment1 year limited
Performance0.75 in singleSealedV-groove and dado joinery1 year limited

Shared across both: Langboard Elite MDF at 48.5 lbs per cubic foot, 200 psi internal bond and 410,000 psi MOE, cut on ShopSabre routers. A vertical front baffle with the taper on the rear panel. Plush black carpet. A Proline X ABS and carbon fibre composite terminal cup with stainless hardware and copper ring terminals, pre-wired in 12-gauge OFC. Polyfill pre-installed on every sealed build.

Sealed Wedge or Ported Wedge

Same taper, same vertical baffle, same driver. The alignment is the one decision the shape does not make for you.

What changesSealed wedgePorted wedge
Cabinet size for the same driverThe smaller box. Net volume set by the driver's sealed alignment.The deeper box. Net volume plus the port's own displacement, tuned to the driver.
Low endDamped, gradual roll-off. Forgiving of the vehicle it lands in.More output around the tuning frequency, steeper roll-off below it.
Driver countSingle, dual and triple.Single.
PolyfillInstalled on every sealed build.Not used in a ported alignment.

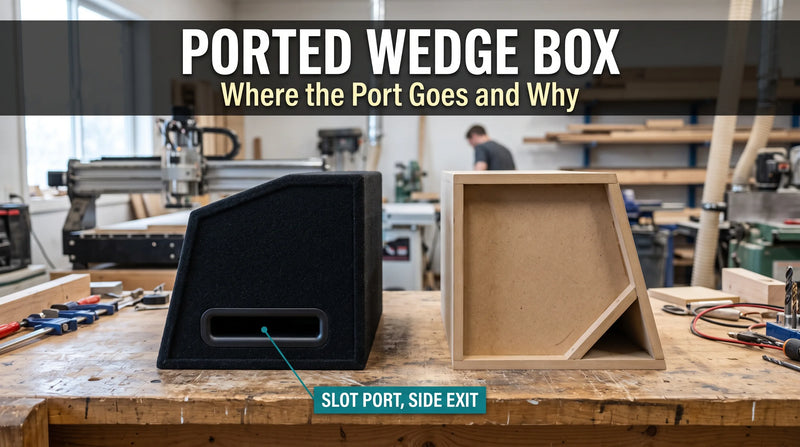

PortNone.Slot in the bottom rear corner, full width, exiting through the side. Air speed held under 17 meters per second so it does not chuff at full excursion.
Pick it whenSpace behind the seat is the limit, or accuracy matters more than output.The cabinet has room for the extra depth and output per watt matters more.

The Baffle Is Vertical. The Taper Is on the Back.

This is the part most wedge boxes get wrong, and it is the whole reason to buy ours. On a Proline X wedge the front baffle stands upright and square to the listener. The angle is cut into the rear panel, where it does the fitment work without touching the acoustics.

An angled-baffle box does the opposite. It tips the driver back so the cone aims at the headliner, which changes where the output goes and how the cabinet couples to the cabin. That may be what you want, but it is a different product and it should be a decision rather than a side effect of the shape.

Keeping the baffle vertical also keeps the mounting geometry honest. The cutout, the depth behind it and the clearance the driver needs are all measured square, the way the driver manufacturer published them.

How to Choose a Wedge Enclosure

Start from the driver

Every cabinet here is cut to one driver's published parameters. Pick the driver first and the enclosure follows. The brand filter shows every driver line we cut this shape for.

Sealed or ported

Sealed is the smaller cabinet for the same driver and the more damped low end. Ported gives more output around its tuning frequency from a deeper box. If the space behind the seat is tight, the sealed wedge usually wins on fit alone. If the cabinet has room for the extra depth and output per watt matters more than the last word in accuracy, look at the ported build for your driver. The comparison further down sets the two against each other.

Decide what the taper is for

A wedge earns its keep when it is going against something angled: a seat back, a rear wall, a hatch. Against a flat bulkhead a square box gives you the same volume in less depth, and the taper buys you nothing.

Match the series to the build

Performance Optimized for a double-baffle cabinet cut to one driver, sealed or ported, which is most of the line. Performance for a single-baffle sealed cabinet at the lowest entry point.

Count the drivers before the inches

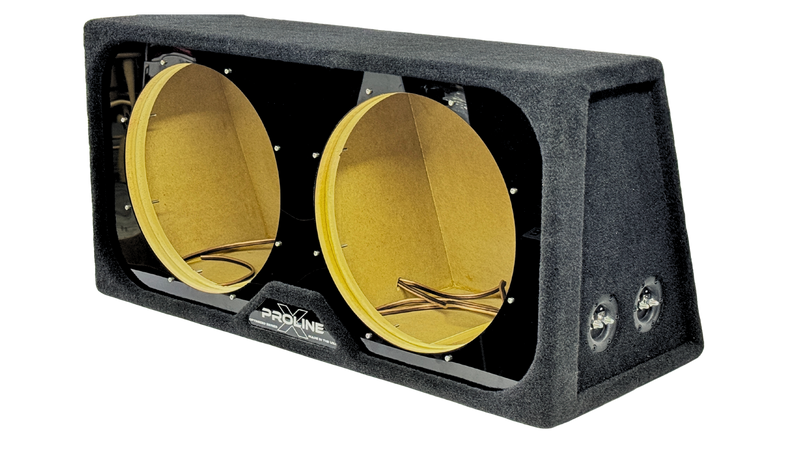

Most of these are singles, with duals through the middle of the range and a triple at the top, and the multi-driver builds are sealed. A dual wedge is not two single wedges: the chambers share the taper, so each one is cut to a volume the single version does not use.

Do not shop on volume alone

A published net volume only means something against the driver the cabinet was cut for. The same driver gets a different volume as a single than it does as a dual, and a ported build gets a different volume again. That is deliberate.

Measuring for a Wedge

A wedge is bought on three numbers, and the taper means two of them are not what people expect.

Both depths, not one

A wedge has a deep edge and a shallow edge. The deep edge is what has to clear whatever sits behind the cabinet; the shallow edge is what determines how far the box intrudes at the top. A single depth figure tells you nothing about a tapered cabinet, so measure the space at both heights.

The seat angle you actually have

Seat backs are not all raked the same, and a folding seat changes angle through its travel. Measure with the seat in the position it will live in, not upright, and remember that a seat which reclines will close the gap you just measured.

Width at the widest point

Wheel wells narrow a trunk as you move back. A wedge that fits at the opening can foul at the rear, so take the width where the cabinet will finally sit rather than where it goes in.

If you are unsure, send us the space and the driver and we will tell you whether anything in the line fits before you order.

Two Series, Two Alignments, One Shape

A wedge is a cabinet shape rather than a series, so the taper turns up at more than one build standard. Performance Optimized is the bulk of the line, each cabinet cut to a single driver on a double 1.5 inch front baffle, and it is where every ported wedge lives. Performance is the smaller group, on a single 3/4 inch baffle with V-groove and dado joinery, and it is where the line starts.

Sealed and ported sit side by side. Every sealed cabinet ships with polyfill already installed. The ported wedges carry a slot port in the bottom rear corner, tuned to the driver, and are single-driver builds; the duals and the triple are sealed. Sizes run from 8 inch through 18.

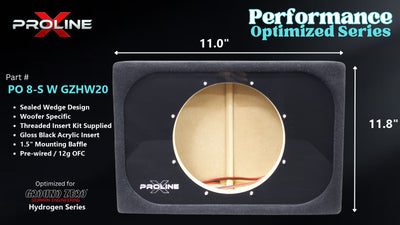

Most of the line

Performance Optimized, 1.5 inch double baffle

Sealed and ported

The bulk of the line, each cabinet cut to one driver's published alignment on a double 1.5 inch front baffle, with the taper on the rear panel. Sealed and ported both live here, and this is where the widest driver choice sits.

1 year limited warranty

Where the line starts

Performance, single 3/4 inch baffle

Sealed

A single 3/4 inch baffle with V-groove and dado joinery. The same wedge geometry at the lowest entry point in the range, sealed only.

1 year limited warranty

Counts are shelf counts from our own inventory, not a supplier feed. A wedge is a cabinet shape, not a series, so the same taper appears across more than one Proline X series and in both alignments.

Categories

Keep Reading

Supporting guides to help you design, build, and tune your system.

Wedge Subwoofer Box Questions

What is a wedge subwoofer box?

A wedge subwoofer box is an enclosure cut so the rear panel slopes while the front baffle stays upright. The taper lets the cabinet sit flush against a seat back or a rear wall and recovers space a square box would waste, while the driver continues to fire straight ahead rather than at an angle.

Does a wedge box angle the subwoofer?

Not on these. The front baffle is vertical and square to the listener; the angle is cut into the back of the cabinet. A box that tips the baffle back is an angled-baffle enclosure, which aims the cone toward the headliner. That is a different product with different behaviour, and it should be chosen deliberately rather than inherited from the shape.

Does the wedge shape hurt sound quality?

No. The internal volume is cut to the driver's published alignment the same way a square cabinet would be, and non-parallel walls arguably help by breaking up internal standing waves. What matters acoustically is the net volume, the bracing and the seal, and the taper changes none of them.

How do I measure for a wedge enclosure?

Take both depths, not one. A wedge has a deep edge and a shallow edge, and a single depth figure tells you nothing about a tapered cabinet. Measure the seat at the angle it will actually sit at, and take the width where the box will finally rest rather than at the trunk opening, because wheel wells narrow the space toward the back.

Are these sealed or ported?

Both. The line runs sealed and ported side by side, and the enclosure type filter splits them. Every sealed cabinet ships with polyfill already installed. On a ported wedge the slot port sits in the bottom rear corner, where the floor meets the raked back panel; it runs the full width of the cabinet, exits through the side, and is sized to the driver with the air speed held under 17 meters per second so it does not chuff at full excursion. Ported wedges are single-driver builds; the duals and the triple are sealed.

Do you sell the subwoofers too?

For some brands, not all. Several of the driver brands on this page are ones we are not a dealer for; we cut the cabinet to the published parameters and you source the driver yourself. Where we do stock the driver you will find it linked from the product page.
