When depth is the constraint

Shallow Mount Subwoofer Boxes

Proline X Micro Series: sealed, driver-matched shallow cabinets, stack-fabricated in Tullahoma, Tennessee.

Proline X Micro Series - Audio Intensity

When depth is the constraint

Shallow mount subwoofer boxes for the spaces a standard box will not fit: behind the rear seat of a crew cab or extended cab truck, under a seat, or in a cargo well with a false floor above it. The depth there is set by the vehicle, and every cabinet on this page is built around that number.

These are Proline X Micro Series cabinets: sealed, cut to one shallow-mount driver's published parameters, and stack-fabricated from layered CNC-cut panels with dowels between the layers, so the walls stay rigid at a footprint a conventional box cannot reach. Measure your depth first, then choose the driver that clears it.

Shallow-mount cabinets in stock | stack-fab with dowel reinforcement | all sealed | ships with feet, so down-fire or upright | 2 year warranty

Cut, assembled and finished in Tullahoma, Tennessee, on ShopSabre routers from Langboard Elite MDF.

Net volume for a driver-matched cabinet is calculated from the parameters the driver manufacturer publishes for that model. Universal-cutout cabinets are cut to a standard cutout and a stated volume range instead.

Decision Shortcut

Find Your Match

Curated picks matched to common build goals

Best Micro for Wavtech thinPRO

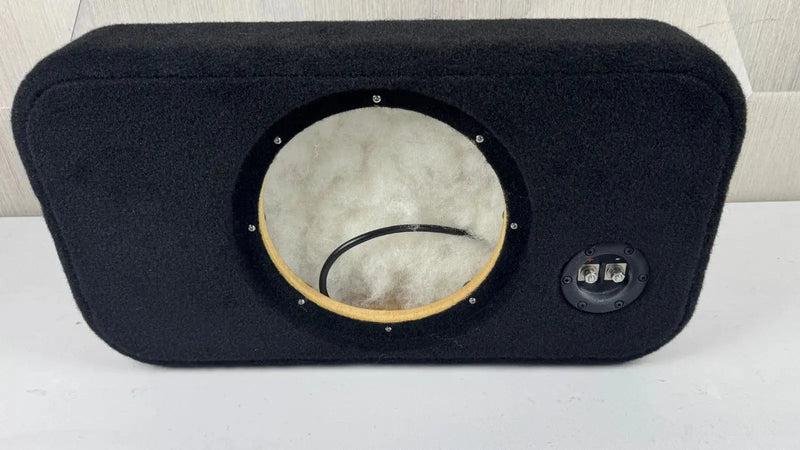

M10-S WAV front

Proline X

Wavtech thinPRO10 Box: Sealed 10" Shallow Micro Series Enclosure

Sealed compact enclosure tuned for the Wavtech thinPRO 10. 750W RMS handling in 2.9 inch mounting depth. The benchmark thinPRO pairing.

$ 219.99

View Details

Best Micro for JL Audio TW3

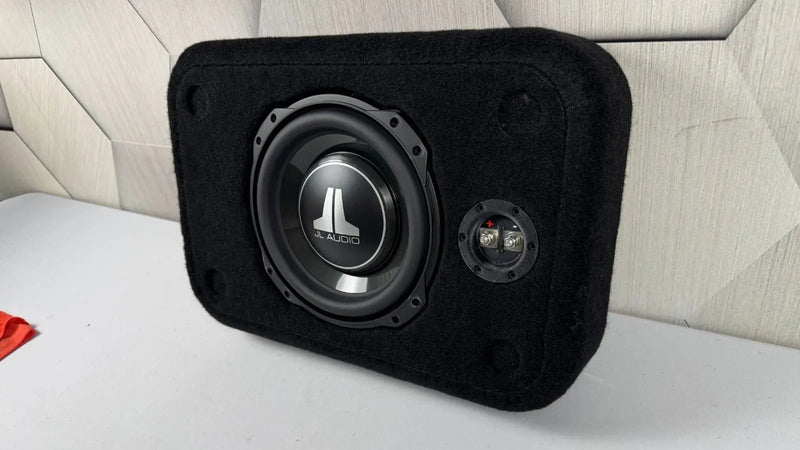

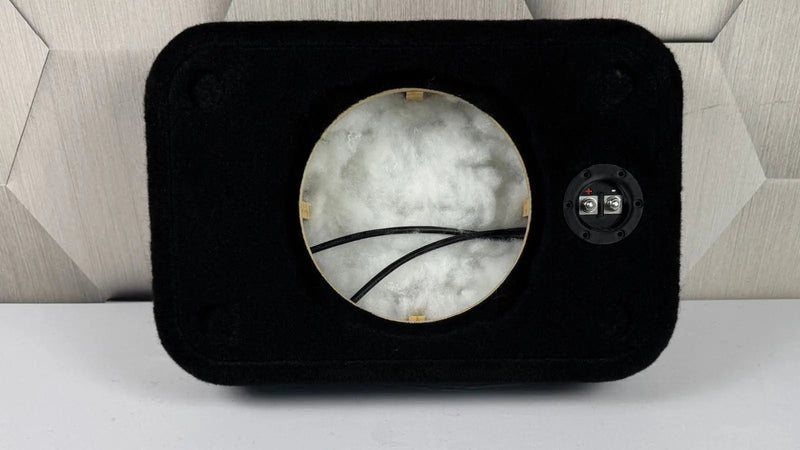

JL Audio 10TW3-D4 in Proline X Micro Series Enclosure

Proline X

JL Audio 10TW3 Box: Sealed 10" Shallow Micro Series Enclosure

Compact sealed enclosure tuned for the JL Audio 10TW3-D4. The reference shallow-mount sub in the right size box for it.

$ 249.99

View Details

Best Micro for Alpine RSW

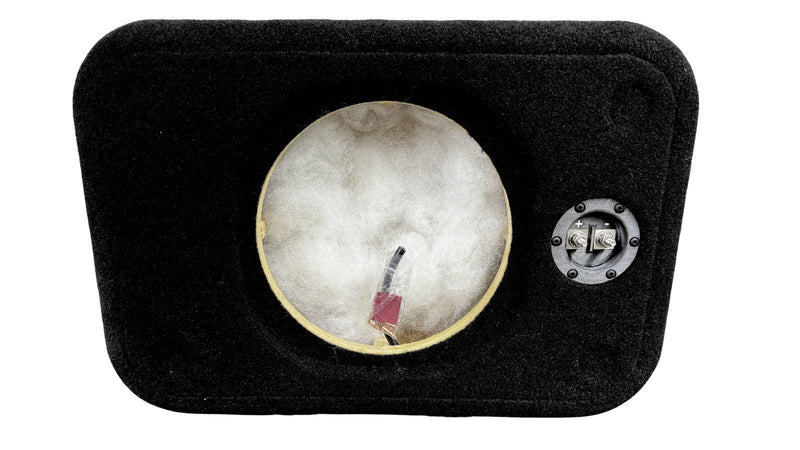

Black rectangular box with a round mirror on a white background

Proline X

Alpine RSW10 Box: Sealed 10" Shallow Micro Series Enclosure

Tuned for the Alpine RSW10. Compact sealed alignment with Alpine's reliability behind the driver.

$ 249.99

View Details

Best Micro for ResoNix Owners

Black subwoofer enclosure with visible driver on a white background

Proline X

ResoNix GUS-12 Box: Sealed 12" Shallow Micro Series Enclosure

Built for the ResoNix GUS 12. We build for drivers we don't sell, no questions asked. Bring the driver, we have the box.

$ 299.99

View Details

Best Micro Dual Setup

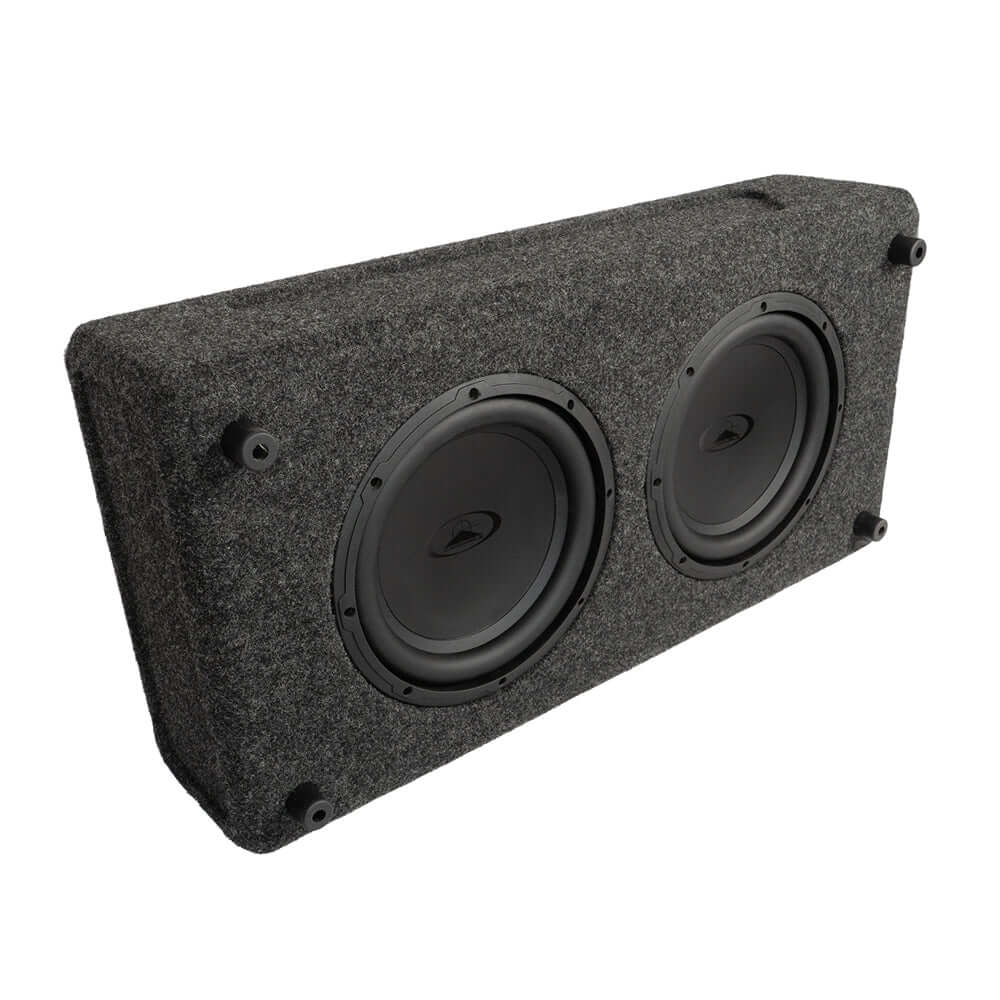

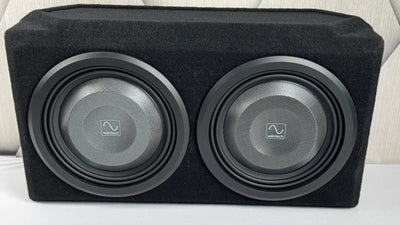

Dual Sealed Box for Wavtech 10's

Proline X

Wavtech thinPRO10 Dual Box: Sealed 10" Shallow Micro Series Enclosure

Dual 10 inch sealed enclosure for paired Wavtech thinPRO 10 builds. Compact footprint with the output of two drivers.

$ 299.99

View Details

Shop the Lineup

←
→

All products loaded

Micro Series Against the Standard-Depth Builds

The comparison worth reading before you commit to a shallow build, because shallow costs something and it is better to know what.

Every active Micro Series cabinet in stock. All are sealed.
Micro SeriesPerformance Optimized
ConstructionStack-fab, layered panels with dowel reinforcementV-groove and dado joinery on a 1.5 in double baffle
External footprintReduced, which is the entire pointWhatever the alignment needs
DriverShallow-mount models onlyAny model we hold parameters for
OrientationShips with feet, so down-fire or uprightCut for one orientation
Warranty2 year limited1 year limited

Shared across every row: Langboard Elite MDF cut on ShopSabre routers in Tullahoma, Tennessee. Plush black carpet. A Proline X ABS and carbon fibre composite terminal cup with stainless hardware, pre-wired in 12-gauge OFC. Construction method varies by series and is stated on each product page.

Stack Fabrication, and Why It Is Not Just a Smaller Box

A shallow cabinet built the conventional way runs out of wall stiffness before it runs out of space. Stack fabrication solves that differently: instead of joining six panels at their edges, the cabinet is built up from layers, with dowels through them putting the structure in tension.

That buys two things. The walls stay rigid at a reduced external size, and the area behind the driver magnet can be precision milled to recover internal volume and relieve backpressure against the voice coil. All four corners are radiused three inches top down. Internal volume is calculated by summing each layer opening rather than estimated from the outside.

How to Choose a Micro Series Enclosure

Establish the depth budget before anything else

It is the only reason to be on this page. If a standard-depth cabinet fits your space, a Performance Optimized build will generally give you more cabinet for the money.

Then match the driver model

Each cabinet is cut to one shallow-mount driver published parameters. The product page names it, and that name is the match to work from.

Single or dual

A dual Micro is common chamber on some builds and dual chamber on others, and the listing states which. Either way each driver gets less volume than it would alone, because the external footprint is the fixed constraint.

Decide whether you want it to go either way

Every Micro ships with feet, so it runs down-firing or upright. That flexibility is worth something if the cabinet may move to another vehicle later.

Measure Depth First, and Measure It Properly

With the trim in place, not off a drawing

The number that matters is the real clearance in the vehicle, which is almost always less than the published cabin dimension. Under a fold-flat seat, measure to the seat back at its lowest position rather than its highest.

Count the feet into the total height

Every Micro ships with feet. If you are running it down-firing they set the clearance the cone needs; either way they add to the overall height, and that is the figure that has to fit.

Then confirm the driver is shallow enough too

A Micro cabinet does not make a standard-depth driver fit a shallow space. The cabinet and the driver both have to be shallow, which is why each listing names the model it was cut for.

Shallow Is a Solution to a Constraint, Not an Upgrade

If you have the depth for a standard driver in a standard cabinet, that will generally give you more output for the money. Micro Series exists because behind-seat and under-seat spaces have a depth the vehicle fixed and you do not. Buy it for the constraint, not for the badge.

Every Micro Ships With Feet

That is why a Micro cabinet can carry a standard orientation on its spec panel and still appear on the down-fire page. The feet make it down-fire capable without it being cut exclusively for that, which is a genuine advantage if the cabinet may move vehicles later.

Sealed, and Down-Fire Capable Without Being Cut For It

Every Micro cabinet is sealed and ships with polyfill already installed. The spec panel lists a standard orientation, and every one also ships with feet, which makes it down-fire capable without being cut exclusively for it. If you want a cabinet that can go either way in a future vehicle, that is the distinction to shop on.

Ten, twelve and fifteen inch, single and dual, each cut to one driver published parameters on a 1.5 inch baffle.

The constraint

Depth the vehicle decided

Why this range exists

Behind a seat, under a seat, or beneath a false floor. If a standard-depth cabinet fits, you do not need this standard and should not pay for it.

Measure with trim in place

The construction

Stack fabrication

Rigid at a smaller size

Layered CNC-cut panels with dowels through them in tension, corners radiused three inches top down, and the area behind the magnet milled to recover volume.

2 year limited warranty

The flexibility

Ships with feet

Runs either way

Down-fire capable without being cut exclusively for it, so the same cabinet works upright or aimed at the floor if it moves to another vehicle.

Count the feet into total height

Baffle thickness and construction method vary by series. Each product page states how that cabinet is built and, where it is driver-matched, which model it was cut for.

Categories

Keep Reading

Supporting guides to help you design, build, and tune your system.

Micro Series Questions

What is a Micro Series enclosure?

A shallow-mount cabinet built by stack fabrication rather than conventional joinery: layered CNC-cut panels with dowels between them acting as tension reinforcement. That keeps the walls rigid at a smaller external size, which is what a behind-seat or under-seat space needs.

Will a Micro box make my standard subwoofer fit a shallow space?

No. The cabinet and the driver both have to be shallow. A Micro cabinet is cut to a specific shallow-mount driver published parameters, and the product page names the model. Putting a standard-depth driver in one does not work geometrically.

Are these down-firing or standard?

Both, which is why they appear on the down-fire page as well. The spec panel lists a standard orientation, and every Micro ships with feet, so it runs down-firing or upright. It is down-fire capable without being cut exclusively for it.

Do I give anything up by going shallow?

Yes, and it is worth being clear about. A shallow driver in a reduced cabinet will not match a standard driver in a standard box for output at the same price. Shallow is a solution to a space constraint. If you have the depth, spend the money on the standard build instead.

Why is the warranty longer than Performance Optimized?

Micro Series carries a 2 year limited warranty on craftsmanship and materials against 1 year for Performance Optimized. Stack fabrication with dowel reinforcement is the more involved build, and the warranty follows the construction.

Are the dual cabinets common chamber or dual chamber?

It varies by build and the listing states which. Either way each driver gets less volume than it would have alone, because the external footprint is the constraint the whole cabinet is designed around.

Related Collections

With the driver already fitted

Browse curated picks that work with the products above.

Proline-X P8-P II Ported Enclosure – Loaded with Helix Precision P8W Subwoofer

Proline X

Proline-X Ported 8" Enclosure – Loaded with Helix Precision P8W

$ 249.99 $ 349.99
Proline-X Sealed 10" Enclosure – Loaded with Prodigy Audio NB3 - Proline X Subwoofer Enclosures for car audio systems

Proline X

Proline-X Sealed 10" Shallow Sub Enclosure – Loaded with Prodigy Audio NB3

$ 299.99 $ 329.99
Arc Audio X2 10 + Matching Proline X Enclosure Bundle, Box 50% Off - Proline X Subwoofer Enclosures for car audio systems

Proline X

Proline X P10-S W | Single 10" Sealed Wedge Subwoofer Enclosure | Loaded with Arc Audio X2V2 10

$ 359.99
A gray carpeted car audio subwoofer box with a large gray speaker cone, shown at a three-quarter angle on a white background.

Proline X

Proline X P12-S W | Single 12" Sealed Wedge Subwoofer Enclosure | Loaded with Arc Audio X2V2 12

$ 379.99

View all loaded subwoofer boxes | Need a custom build? Contact us

Related Collections

Cut to a named vehicle

Browse curated picks that work with the products above.

Toyota Tacoma Subwoofer Enclosure (2015-2023) – Fits 10-inch Subwoofer

Proline X

Toyota Tacoma Subwoofer Enclosure (2015-2023) – Fits 10" Subwoofer

$ 329.99
2015-2023 Ford F150 Subwoofer Enclosure F-250 Direct Fit Behind-Seat Subwoofer Enclosure Super Duty Model

Proline X

F-150 Behind Seat Single 10" (2015-2023) Subwoofer Enclosure | Super Duty Model

$ 379.99
2024-2026 Ford F-150 behind-seat subwoofer enclosure, front view with the 10-inch cutout and terminal cup

Proline X

F-150/F-250/F-350 Behind Seat Single 10" (2024-2026) Behind-Seat Subwoofer Enclosure

$ 419.99
Ford F-150 behind-seat subwoofer enclosure with a JL Audio 10-inch subwoofer installed, angled view

Proline X

F-150 Behind Seat Single 10" (2015-2023) Behind-Seat Subwoofer Enclosure | PR Edition with Passive Radiator

$ 469.99

View all ford truck subwoofer enclosures | Need a custom build? Contact us

Related Collections

Pairs Well With This Collection

Browse curated picks that work with the products above.

Subwoofer in a black enclosure on a gray background

Proline X

Image Dynamics IDQ 10 Box: Sealed 10" Enclosure

$ 229.99
Car subwoofer enclosure with visible brand logo on a gray background

Proline X

Sony XS-W104ES Box: Sealed 10" Enclosure

$ 229.99
Performance Optimized Sealed 10-inch Enclosure Arc Audio 10-inch Arc Series - Proline X Subwoofer Enclosures for car audio systems

Proline X

Arc Audio ARC 10 Box: Sealed 10" Enclosure

$ 239.99
Proline X PO 10-S DF L7T sealed down fire enclosure, front panel on 1.75 inch feet, 30 by 5.4 inches.

Proline X

Kicker Solo-Baric L7T Box: Sealed 10" Down Fire Enclosure

$ 239.99

View all proline x performance optimized series enclosures | Need a custom build? Contact us

Drivers Built to Match

Subwoofers Spec'd for These Enclosures

The drivers below are matched to the enclosures above by Thiele-Small parameters. Buying together guarantees the alignment, port tuning, and damping work the way the engineering intended.

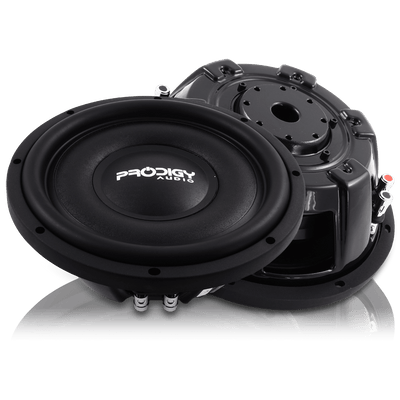

Prodigy Audio 10 inch Subwoofer NB3 Series - Prodigy Subwoofer for car audio systems

Prodigy Audio

Prodigy Audio NB3-10 | 10 inch Shallow Mount Subwoofer | 3" Mounting Depth

$ 148.99 $ 165.99
Rockford Fosgate Punch P3S 10 inch shallow subwoofer, front view with the diamond-cut trim ring and anodized aluminum cone

Rockford Fosgate

Rockford Fosgate Punch P3S 10 | 10 inch Shallow Subwoofer | Dual 2 or 4 Ohm

$ 229.99
JBL Club 102SL 10 inch shallow subwoofer, angled front view of the aluminum cone with the JBL exclamation logo and orange accent ring

JBL

JBL Club 102SL | 10 inch Shallow Subwoofer | 2 or 4 Ohm Selectable

$ 274.95

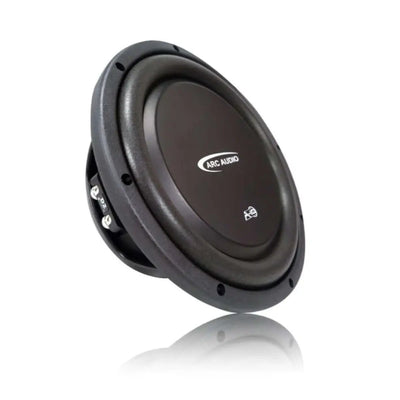

Arc Audio A10 10-inch Subwoofer
