Sealed and Ported, 8 to 18 Inch

Digital Designs Subwoofer Boxes and Enclosures

Sealed and ported enclosures cut for Digital Designs subwoofers, CNC-machined in Tullahoma, Tennessee.

Proline X subwoofer enclosures built for Digital Designs subwoofers.

Sealed and Ported, 8 to 18 Inch

Digital Designs builds drivers across a wide range, from the 300, 500, 600 and 700 series and the SL line to the 9500 and 9900 series. The enclosures here cover that range from 8 to 18 inch: sealed and ported wedges, ported down-fires, and Professional Series ported cabinets for the drivers built to be pushed.

Every cabinet is machined in Tullahoma, Tennessee to the parameters DD publishes for the one driver it names, so match the model number rather than the cone size.

Digital Designs enclosures from 8 to 18 inch, sealed and ported, in Performance Optimized and Professional Series construction. Enclosure only.

Cut, assembled and finished in Tullahoma, Tennessee, to the parameters Digital Designs publishes for each driver.

Driver parameters are taken from Digital Designs published data. We build enclosures to those figures; we do not stock Digital Designs drivers and make no claim to represent the brand.

Decision Shortcut

Find Your Match

Curated picks matched to common build goals

Best High-Output

Proline X Pro 18-P 9518LESP Professional Series ported enclosure, front baffle with slot port and branded gloss black acrylic insert, 36 by 21 inches, 73.1 square inches of port area.

Proline X

DD Audio 9518L ESP Box: Ported 18" Professional Series Enclosure

The largest cabinet on the page: 4.01 cubic feet tuned to 33 Hz for the 18 inch 9518L ESP.

$ 760.99

View Details

Best Value

Proline X PO 10-S W 610F sealed wedge, front baffle with gloss black insert and pre-wired leads, 15.39 by 13 inches.

Proline X

DD Audio 610f Box: Sealed 10" Wedge Enclosure

The entry point to the DD range: a sealed wedge for the 610f with polyfill installed.

$ 279.99

View Details

Best for Tight Spaces

Proline X PO 8-S W 608F sealed wedge, front baffle with gloss black insert and pre-wired leads, 10.80 by 11.75 inches.

Proline X

DD Audio 608f Box: Sealed 8" Wedge Enclosure

A 0.30 cubic foot sealed wedge for the 608f, the smallest cabinet in the range.

$ 249.99

View Details

Best Ported 12

Proline X PO 12-P W SL712 ported wedge, front baffle with gloss black insert and pre-wired leads, 30 by 15.5 inches.

Proline X

DD Audio SL712 Box: Ported 12" Wedge Enclosure

The SL712 in a ported wedge tuned to 36.5 Hz, shaped for a seat back.

$ 399.99

View Details

Shop the Lineup

←
→

Every Digital Designs Cabinet We Cut

Net volume and tuning as stated on each listing, by driver size.

Digital Designs cabinets currently listed. Net volume in cubic feet.
ModelCabinetNet volumeTuning
2508g ESPWedge sealed 80.33Sealed
608fWedge sealed 80.30Sealed
SL608Wedge ported 80.8037.5 Hz
508eProfessional ported 81.3833 Hz
508eProfessional ported dual 81.5934 Hz
610fWedge sealed 100.63Sealed
9510L ESPWedge sealed 100.51Sealed
SL710Wedge sealed 100.75Sealed
310eDown-fire ported 101.2734.5 Hz
SL610Down-fire ported 101.3535.5 Hz
710gProfessional ported 102.9432.5 Hz
710gProfessional ported dual 103.0334 Hz
712fWedge sealed 120.82Sealed
SL712Down-fire sealed 121.00Sealed
SL712Wedge ported 121.5636.5 Hz
312eWedge ported 121.5334 Hz
512eWedge ported 121.5735 Hz
SL612Wedge ported 121.3034.5 Hz
9512L ESPProfessional ported 123.7335.5 Hz
9915cWedge sealed 151.40Sealed
515eWedge ported 152.5230 Hz
SL715Wedge ported 151.8233.5 Hz
715fProfessional ported 152.6234.5 Hz
715fProfessional ported dual 153.4132 Hz
9518L ESPProfessional ported 184.0133 Hz

Shared across every cabinet: Langboard Elite MDF cut on ShopSabre routers in Tullahoma, Tennessee, and a Proline X ABS and carbon fibre composite terminal cup pre-wired in 12-gauge OFC.

DD Audio Subwoofer Box Directory by Model

We build sealed and ported enclosures for 21 DD Audio subwoofer models, 8 to 18 inch, in standard, down-fire and wedge styles from single, dual, triple and quad woofer cabinets. Open a model to see every box cut for it, with net volume, tuning and outside dimensions. Full specs and fitment notes are on each product page.

DD Audio 310e 3 boxes
BoxSeriesNet volumeTuningOutside dimensions
Down Fire Ported, SinglePerformance Optimized1.27 ft³34.5 Hz31" W x 15.50" D x 7.75" H
Wedge Wide Sealed, TriplePerformance Optimized3.53 ft³Sealed40" W x 17" H x 17.67" D, tapering to 11.48"
Wedge Wide Sealed, QuadPerformance Optimized4.70 ft³Sealed44" W x 17" H x 19.73" D, tapering to 13.54"
DD Audio 312e 2 boxes
BoxSeriesNet volumeTuningOutside dimensions

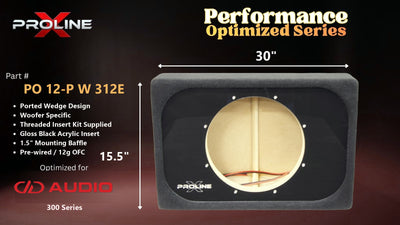

Wedge Ported, SinglePerformance Optimized1.53 ft³34.0 Hz30.00" W x 15.50" H x 14.89" D, tapering to 9.25"
Wedge Wide Sealed, TriplePerformance Optimized5.83 ft³Sealed44" W x 17" H x 23.00" D, tapering to 16.81"
DD Audio 508e 4 boxes
BoxSeriesNet volumeTuningOutside dimensions
Standard Ported, SingleProfessional1.38 ft³33.0 Hz30.00" W x 14.00" H x 12.88" D
Standard Ported, DualProfessional1.61 ft³34.0 Hz34.00" W x 14.00" H x 13.88" D
Wedge Wide Sealed, TriplePerformance Optimized4.10 ft³Sealed40" W x 13" H x 23.00" D, tapering to 18.27"
Wedge Wide Sealed, QuadPerformance Optimized4.62 ft³Sealed44" W x 13" H x 23.00" D, tapering to 18.27"
DD Audio 512e 2 boxes
BoxSeriesNet volumeTuningOutside dimensions
Wedge Ported, SinglePerformance Optimized1.57 ft³35.0 Hz30.00" W x 15.50" H x 15.14" D, tapering to 9.50"
Wedge Wide Sealed, TriplePerformance Optimized5.83 ft³Sealed44" W x 17" H x 23.00" D, tapering to 16.81"
DD Audio 515e 1 box
BoxSeriesNet volumeTuningOutside dimensions
Wedge Ported, SinglePerformance Optimized2.52 ft³30.0 Hz30.00" W x 18.50" H x 17.73" D, tapering to 11.00"
DD Audio 608f 2 boxes
BoxSeriesNet volumeTuningOutside dimensions
Wedge Sealed, SinglePerformance Optimized0.30 ft³Sealed10.80" W x 11.75" H x 12.87" D, tapering to 8.59"
Wedge Wide Sealed, QuadPerformance Optimized1.29 ft³Sealed40" W x 11" H x 12.75" D, tapering to 8.75"
DD Audio 610f 3 boxes
BoxSeriesNet volumeTuningOutside dimensions
Wedge Sealed, SinglePerformance Optimized0.63 ft³Sealed15.39" W x 13" H x 13.82" D, tapering to 9.09"
Wedge Wide Sealed, TriplePerformance Optimized2.47 ft³Sealed40" W x 17" H x 14.49" D, tapering to 8.30"
Wedge Wide Sealed, QuadPerformance Optimized2.90 ft³Sealed44" W x 17" H x 14.90" D, tapering to 8.71"
DD Audio 710g 2 boxes
BoxSeriesNet volumeTuningOutside dimensions
Standard Ported, SingleProfessional2.93 ft³32.5 Hz30.00" W x 14.00" H x 24.75" D
Standard Ported, DualProfessional3.03 ft³34.0 Hz35.00" W x 16.00" H x 20.50" D
DD Audio 712f 2 boxes
BoxSeriesNet volumeTuningOutside dimensions

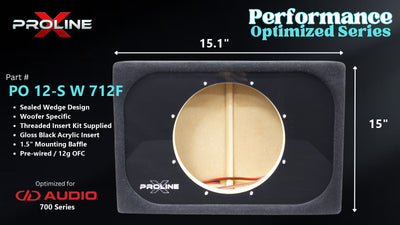

Wedge Sealed, SinglePerformance Optimized0.82 ft³Sealed15.12" W x 15" H x 15.90" D, tapering to 10.44"
Wedge Wide Sealed, TriplePerformance Optimized3.13 ft³Sealed44" W x 17" H x 16.24" D, tapering to 10.05"
DD Audio 715f 3 boxes
BoxSeriesNet volumeTuningOutside dimensions
Standard Ported, SingleProfessional2.61 ft³34.5 Hz36.00" W x 18.00" H x 15.88" D
Wedge Sealed, SinglePerformance Optimized2.50 ft³Sealed29.50" W x 18" H x 16.88" D, tapering to 10.33"
Standard Ported, DualProfessional3.45 ft³32.0 Hz46.00" W x 18.00" H x 17.25" D
DD Audio 2508g ESP 3 boxes
BoxSeriesNet volumeTuningOutside dimensions
Wedge Sealed, SinglePerformance Optimized0.33 ft³Sealed11.45" W x 11.75" H x 13.06" D, tapering to 8.78"
Wedge Wide Sealed, TriplePerformance Optimized1.65 ft³Sealed40" W x 13" H x 13.26" D, tapering to 8.53"
Wedge Wide Sealed, QuadPerformance Optimized1.82 ft³Sealed44" W x 13" H x 13.26" D, tapering to 8.53"
DD Audio 9510L ESP 1 box
BoxSeriesNet volumeTuningOutside dimensions

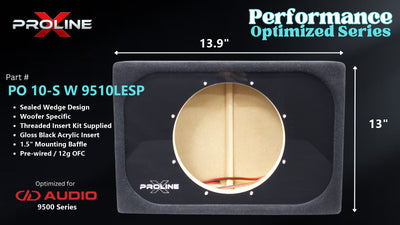

Wedge Sealed, SinglePerformance Optimized0.51 ft³Sealed13.94" W x 13" H x 15.38" D, tapering to 10.65"
DD Audio 9512L ESP 1 box
BoxSeriesNet volumeTuningOutside dimensions
Standard Ported, SingleProfessional3.72 ft³37.0 Hz32.00" W x 16.00" H x 27.12" D
DD Audio 9518L ESP 1 box
BoxSeriesNet volumeTuningOutside dimensions
Standard Ported, SingleProfessional4.02 ft³33.0 Hz36.00" W x 21.00" H x 19.00" D
DD Audio 9915c 1 box
BoxSeriesNet volumeTuningOutside dimensions
Wedge Sealed, SinglePerformance Optimized1.40 ft³Sealed19.12" W x 18" H x 17.72" D, tapering to 11.17"
DD Audio SL608 3 boxes
BoxSeriesNet volumeTuningOutside dimensions
Wedge Ported, SinglePerformance Optimized0.80 ft³37.5 Hz30.00" W x 11.75" H x 11.90" D, tapering to 7.62"
Wedge Wide Sealed, TriplePerformance Optimized1.01 ft³Sealed40" W x 13" H x 10.07" D, tapering to 5.34"
Wedge Wide Sealed, QuadPerformance Optimized1.12 ft³Sealed44" W x 13" H x 10.07" D, tapering to 5.34"
DD Audio SL610 5 boxes
BoxSeriesNet volumeTuningOutside dimensions
Down Fire Ported, SinglePerformance Optimized1.35 ft³35.5 Hz31" W x 16.00" D x 7.75" H
Wedge Sealed, SinglePerformance Optimized0.75 ft³Sealed25.39" W x 13" H x 10.55" D, tapering to 5.81"
Wedge Sealed, DualPerformance Optimized1.50 ft³Sealed32.00" W x 15" H x 12.68" D, tapering to 7.22"
Wedge Wide Sealed, TriplePerformance Optimized1.56 ft³Sealed40" W x 17" H x 11.22" D, tapering to 5.03"
Wedge Wide Sealed, QuadPerformance Optimized1.85 ft³Sealed44" W x 17" H x 11.49" D, tapering to 5.30"
DD Audio SL612 2 boxes
BoxSeriesNet volumeTuningOutside dimensions

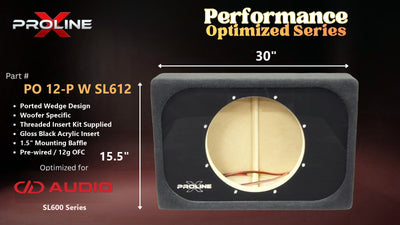

Wedge Ported, SinglePerformance Optimized1.30 ft³34.5 Hz30.00" W x 15.50" H x 13.52" D, tapering to 7.88"
Wedge Wide Sealed, TriplePerformance Optimized3.64 ft³Sealed44" W x 17" H x 16.75" D, tapering to 10.56"
DD Audio SL710 5 boxes
BoxSeriesNet volumeTuningOutside dimensions
Down Fire Ported, SinglePerformance Optimized1.37 ft³35.0 Hz31" W x 16.50" D x 7.75" H
Wedge Sealed, SinglePerformance Optimized0.90 ft³Sealed25.52" W x 13" H x 11.70" D, tapering to 6.96"
Wedge Sealed, DualPerformance Optimized1.80 ft³Sealed32.00" W x 15" H x 14.28" D, tapering to 8.82"
Wedge Wide Sealed, TriplePerformance Optimized2.26 ft³Sealed40" W x 17" H x 13.66" D, tapering to 7.47"
Wedge Wide Sealed, QuadPerformance Optimized3.02 ft³Sealed44" W x 17" H x 15.00" D, tapering to 8.81"
DD Audio SL712 7 boxes
BoxSeriesNet volumeTuningOutside dimensions
Down Fire Ported, SinglePerformance Optimized1.42 ft³35.5 Hz31" W x 17.00" D x 7.75" H
Wedge Ported, SinglePerformance Optimized1.56 ft³36.5 Hz30.00" W x 15.50" H x 15.14" D, tapering to 9.50"
Down Fire Sealed, SinglePerformance Optimized1.00 ft³Sealed30.00" W x 15.00" D x 7.27" H
Down Fire Wide Sealed, SinglePerformance Optimized1.244 ft³Sealed41" W x 14" D x 7" H
Wedge Sealed, SinglePerformance Optimized1.00 ft³Sealed23.24" W x 15" H x 12.40" D, tapering to 6.94"
Wedge Sealed, DualPerformance Optimized2.00 ft³Sealed32.00" W x 16" H x 14.78" D, tapering to 8.96"
Wedge Wide Sealed, TriplePerformance Optimized5.82 ft³Sealed44" W x 17" H x 22.89" D, tapering to 16.70"
DD Audio SL715 3 boxes
BoxSeriesNet volumeTuningOutside dimensions
Wedge Ported, SinglePerformance Optimized1.82 ft³33.5 Hz30.00" W x 18.50" H x 15.11" D, tapering to 8.38"
Wedge Sealed, SinglePerformance Optimized2.50 ft³Sealed29.50" W x 18" H x 16.38" D, tapering to 9.82"
Wedge Sealed, DualPerformance Optimized5.00 ft³Sealed36.00" W x 18" H x 22.84" D, tapering to 16.29"

Two Series, Two Jobs

Performance Optimized: shaped to the space
Sealed and ported wedges and ported down-fires on a 1.5 inch double baffle, each cut to one DD driver's published alignment. The sealed versions ship with polyfill installed; the ported versions ship without it, with the tuning on the listing.

Professional Series: ported, built heavier
Standard front-firing ported cabinets with a thicker baffle and more internal bracing, from a single 8 to the 9518L ESP at 18 inch. This is where the largest DD alignments live, including duals for the 508e, 710g and 715f.

How to Choose

Start from the model number
Each cabinet is cut to one DD driver's published parameters. A 512e and an SL612 are both twelves and want different cabinets, so match the model rather than the size.

Then pick the alignment
Sealed is the smaller, more forgiving box and holds its output below tuning. Ported gives more output around its tuning frequency from a larger cabinet. The sealed and ported pages set the two side by side.

Read the tuning, not just the volume
The ported DD cabinets run from 30 to 37.5 Hz, and every ported listing states its figure. The subwoofer tuning tool helps if you are deciding, and the port area calculator shows why the ports on high-excursion DD drivers are sized the way they are.

Then source the driver
We do not stock Digital Designs subwoofers, so these cabinets are cut for a driver you already own or buy elsewhere. Other brands are on the subwoofer box hub.

Choosing the Shape

Wedge: against a seat back
The rear panel is tapered to sit flush against a raked seat back or a truck cab wall, recovering airspace a square box would waste. Most of the DD range is offered this way, sealed or ported.

Down-fire: on a flat floor
The cone faces the floor, with the gap set by the cabinet's feet. It suits an SUV or hatch cargo floor where height is short.

Standard front-firing: an open trunk
The Professional Series cabinets are conventional rectangles. They need the most room and suit the drivers that want the largest ported alignments.

Port Area Is Sized for the Excursion

On the ported cabinets, port length and cross-sectional area are cut together to hit the stated tuning, with the area sized for the excursion the driver is rated to. On a long-throw DD driver that is why the port looks large next to a generic one, and why it stays quiet at volume.

We Cut the Box, You Source the Driver

We do not stock Digital Designs subwoofers. These cabinets are built to DD's published figures for a driver you already own or buy elsewhere. Nothing about the fit depends on where the driver came from.

The DD Range at a Glance

8 inch: sealed wedges for the 2508g ESP and 608f, a ported wedge for the SL608, and Professional Series ported cabinets for the 508e in single and dual.

10 inch: sealed wedges for the 610f, 9510L ESP and SL710, ported down-fires for the 310e and SL610, and Professional Series ported cabinets for the 710g in single and dual.

12 inch: a sealed wedge for the 712f, a sealed down-fire and a ported wedge for the SL712, ported wedges for the 312e, 512e and SL612, and a Professional Series ported cabinet for the 9512L ESP.

15 and 18 inch: a sealed wedge for the 9915c, ported wedges for the 515e and SL715, Professional Series ported cabinets for the 715f in single and dual, and the 9518L ESP.

Driver-matched

Performance Optimized Series

The bulk of the range

Sealed and ported wedges and ported down-fires on a 1.5 inch double baffle, each cut to one DD driver's published alignment.

1-year limited warranty

Built heavier

Professional Series

Ported, 8 to 18 inch

Standard front-firing ported cabinets with a thicker baffle and more bracing, from a single 8 to the 18 inch 9518L ESP.

2-year limited warranty

Built to order

Other sizes and configurations

Contact us

Everything is CNC-cut to order in Tullahoma. If the DD model or configuration you need is not listed, send the model and your space and we will quote it.

Made to order

Baffle thickness and construction method vary by series. Each product page states how that cabinet is built and which Digital Designs model it was cut for.

Categories

Keep Reading

Supporting guides to help you design, build, and tune your system.

Digital Designs Subwoofer Box Questions

Which Digital Designs subwoofers do these boxes fit?

Drivers from the 300, 500, 600, 700 and SL series and the 2500, 9500 and 9900 series, from 8 to 18 inch. Each product page names the exact model its cabinet was cut for. Match that model rather than the nominal size, because two DD twelves from different series want different cabinets.

Do you sell Digital Designs subwoofers?

No. We build the enclosure to the figures DD publishes and you source the driver. If you already own the subwoofer, that is exactly what these cabinets are for.

Should my DD sub go in a sealed or ported box?

It depends on the model and your space. Sealed is smaller and holds its output below tuning; ported gives more output around its tuning frequency from a larger cabinet. Our EBP calculator is a quick first check on which alignment a driver favours.

What is the difference between Performance Optimized and Professional Series?

Performance Optimized cabinets are wedges and down-fires on a 1.5 inch double baffle, sealed or ported, and carry a 1-year limited warranty. Professional Series cabinets are standard front-firing ported builds with a heavier baffle and more internal bracing, and carry a 2-year limited warranty.

What tuning are the ported cabinets cut to?

Each listing states its figure. Across the DD range the ported cabinets are tuned between 30 and 37.5 Hz. Lower tuning extends deeper and gives up some midbass punch; higher tuning hits harder and gives up extension.

Do the sealed boxes come with polyfill?

Yes. Every sealed cabinet ships with polyfill installed. The ported cabinets ship without it, so the tuning stated on the listing is the tuning you get.

Can you build for a DD model that is not listed?

Usually. Everything is CNC-cut to order in Tullahoma, Tennessee. Send us the exact model, sealed or ported, and your maximum external dimensions through contact, and we will tell you whether we can cut it and quote it.

Subwoofer Boxes by Brand

Every box is cut to one driver's published specs. Pick the brand your subwoofer comes from.

Related Collections

Pairs Well With This Collection

Browse curated picks that work with the products above.

Proline X 6.5-inch ported subwoofer enclosure, front view with the driver cutout and slot port

Proline X

Proline X P6-P | Single 6.5" Ported Subwoofer Enclosure | V3

$ 149.99
Proline X P8-P Single 8-inch Ported Subwoofer Enclosure V3 - Proline X Subwoofer Enclosures for car audio systems

Proline X

Proline X P8-P | Single 8" Ported Subwoofer Enclosure | V3

$ 169.99
Proline X dual 6.5-inch ported subwoofer enclosure, front view showing both cutouts and the slot port

Proline X

Proline X P6D-P | Dual 6.5" Ported Subwoofer Enclosure | V3

$ 179.99
Proline X Ported Sub Box for 10 inch Subwoofers

Proline X

Proline X P10-P | Single 10" Ported Subwoofer Enclosure | V3

$ 199.99

View all ported subwoofer boxes | Need a custom build? Contact us

Related Collections

Pairs Well With This Collection

Browse curated picks that work with the products above.

Two car audio (1 black & 1 grey) subwoofer enclosures with visible brand logo on a white background

Proline X

Proline X P8-S | Single 8" Sealed Subwoofer Enclosure | V3

$ 129.99
Proline X P8-P Single 8-inch Ported Subwoofer Enclosure V3 - Proline X Subwoofer Enclosures for car audio systems

Proline X

Proline X P8-P | Single 8" Ported Subwoofer Enclosure | V3

$ 169.99
Two car audio subwoofer enclosures on a white background

Proline X

Proline X P8D-S | Dual 8" Sealed Subwoofer Enclosure | V3

$ 169.99
Dual 8 Sub Enclosure

Proline X

Proline X P8D-P | Dual 8" Ported Subwoofer Enclosure | V3

$ 199.99

View all 8 inch subwoofer box | Need a custom build? Contact us

Related Collections

Pairs Well With This Collection

Browse curated picks that work with the products above.

Professional Series Enclosure Image Dynamics IDMAX 10 Sealed Box

Proline X

Image Dynamics IDMAX10 V4 Box: Sealed 10" Professional Series Enclosure

$ 266.99 $ 279.99
Professional Series 6.5 inch Subwoofer Box

Proline X

Professional Series Ported 6.5" Universal Enclosure

$ 275.99
Car audio subwoofer enclosure with American flag design on a white background

Proline X

Image Dynamics IDMAX12 V4 Box: Sealed 12" Professional Series Enclosure

$ 293.99
Proline X Pro 10-P SL10 Professional Series ported enclosure, front baffle with slot port and branded gloss black acrylic insert, 30 by 14 inches, 12.5 square inches of port area.

Proline X

American Bass SL 10 Box: Ported 10" Professional Series Enclosure

$ 309.99

View all professional series subwoofer boxes | Need a custom build? Contact us

Last updated September 26, 2026
