Proline X
Performance Optimized Wedge Sealed Dual 8" Enclosure | PowerBass XL-844
SKU: PO 8D-S W XL844 BB
- Best For: Dual PowerBass XL-844 Trunk-Fit Builds
- Net Volume: 0.50 cu ft per driver (0.55 cu ft Gross)
- Alignment: Qtc 0.610, fc 50.5 Hz, F3 59.8 Hz
- Driver Match: XL-844
- Impedance: single 4 ohm coil
- Construction: Dual Chamber | Rear-Firing Wedge | V-Groove/Dado | Double 1.5" Baffle | Threaded Inserts
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Wedge Sealed Dual 8" Enclosure | PowerBass XL-844
Performance Optimized Wedge | PowerBass XL-844
Dual 8" Sealed Wedge Enclosure | Rear-Firing Trunk-Load Design
The PowerBass XL-844 in a Dual-Driver Sealed Wedge
A 2 inch vented BASV voice coil with Aero-Vent perimeter cooling, a DDC coated non-pressed paper cone and a 200 watt RMS rating. The alignment below is computed from PowerBass's own published Thiele-Small parameters.
0.50 cubic feet net per driver is PowerBass's published sealed recommendation for the XL-844, and this cabinet is cut to it exactly. Gross is 0.55 cu ft per chamber before the driver's 0.0373 cu ft displacement.
Two Fully Separate Chambers
A full divider runs floor to ceiling and front to back, giving each XL-844 its own sealed 0.55 cu ft gross chamber. Neither cone loads against the other, so the pair stays predictable under hard excursion. Each chamber is cut to the same volume the single version delivers, so the alignment is identical whichever you buy.
Trunk-Load Wedge Design Explained
The XL-844 mounts on the vertical trunk-lid-side face and fires rearward into the trunk cavity.
Seat-Side Face Matches Seat Lean
Angled face matches the roughly 20 degree factory seat lean.
Trunk-Lid-Side Face Fires the Woofer
Vertical baffle, cone firing rearward into the trunk cavity.
Trunk Cavity Loading
The trunk acts as an acoustic extension for a smoother presentation.
Preserves Trunk Cargo Space
The wedge tucks against the seat back and the space in front stays usable.
Engineered for the PowerBass XL-844
At 0.50 cubic feet net the XL-844 runs a system Qtc of 0.610, a dry, tightly controlled alignment. PowerBass publishes 0.650 for this driver at the same airspace, so the cabinet and the maker agree.
F3 lands at 59.8 Hz anechoic. That is high for a 8 inch, and it is the driver rather than the cabinet: at a Qts of 0.506 the XL-844 is past the knee for sealed loading, so no sealed box gets it much below 61 Hz. Adding volume makes it worse, not better. If you want the deepest sealed 8 inch in this range, the XL-1244 reaches 46.2 Hz.
Alignment Numbers
Qtc 0.610 · fc 50.5 Hz · F3 59.8 Hz anechoic · Qts 0.506, Vas 6.44 L, Fs 41.9 Hz as published
Mounting Geometry
Vertical baffle CNC cut to 7.1250 in. Driver mounting depth 4.4375 in required. Threaded inserts pressed into the baffle backside at every mounting location.
Performance Series Construction, Driver-Specific Tuning
Langboard Elite MDF
Premium 3/4 in MDF throughout.
V-Groove and Dado Joinery
CNC cut V-grooves at every panel intersection, sides and divider seated in dados.

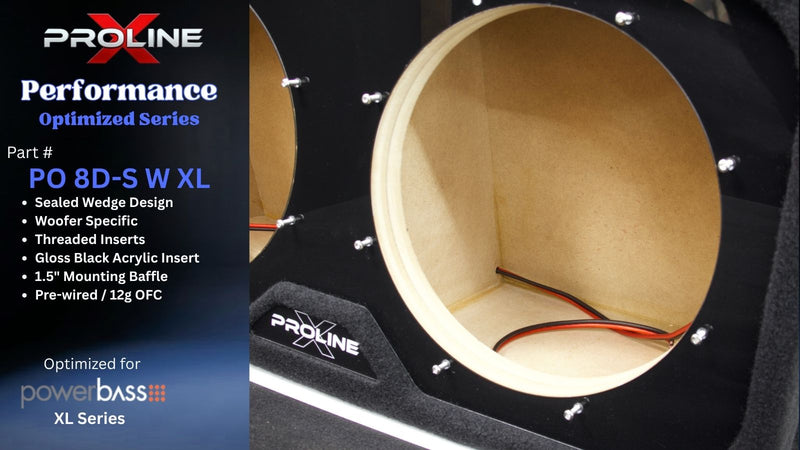

Double-Layer 1.5" Front Baffle
Two bonded 3/4 in MDF sheets at the driver face.
Pre-Wired Terminal Cup
Proline X ABS and carbon fiber composite, 12 gauge OFC pre-wired to both driver positions.
Wiring the PowerBass XL-844 Pair to Your Amplifier
Each driver is a single 4 ohm voice coil. A pair is 2 ohms in parallel or 8 ohms in series. Two ohms is the usual choice and almost every monoblock is stable there.
Power handling is 400 watts RMS total across the pair. Aim for roughly 280 to 400 watts at the final wired impedance.
Built in Tennessee, Backed by Audio Intensity
Cut and assembled in Tullahoma, Tennessee on our own CNC equipment. Finished in plush black carpet. 1 year limited warranty. Enclosure only, the PowerBass XL-844 drivers are purchased separately. Call or text 931-563-5151.
PowerBass XL-844 Dual: Cut to PowerBass's Own Airspace
0.50 cubic feet net per driver at Qtc 0.61, F3 59.8 Hz, built to order in Tennessee.
| Specification | Value |
|---|---|
| Series | Proline X Performance Optimized Wedge |
| Compatible Driver | PowerBass XL-844, quantity 2. Direct fit |
| Configuration | Dual 8 inch, dual chamber sealed wedge |
| Mounting Position | Trunk or cargo area, tall face against the rear seat back |
| Firing Direction | Rearward into the trunk. Not a down fire design, no feet included |

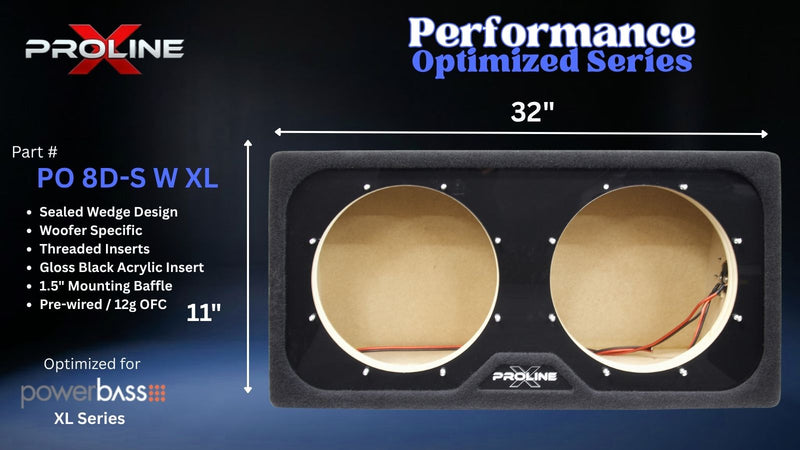

| External Width | 32.00 in |
| External Height | 11 in at the seat face |

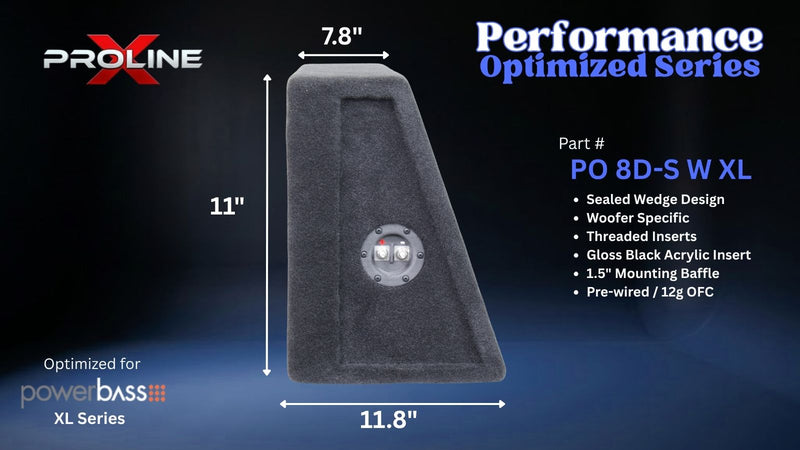

| External Depth | 11.80 in at the base, tapering to 7.80 in at the top |
| Internal Volume, Gross | 1.10 cu ft total, 0.55 per chamber |
| Internal Volume, Net Acoustic | 1.00 cu ft total, 0.50 per driver |
| Alignment | Qtc 0.610, fc 50.5 Hz, F3 59.8 Hz anechoic |
| Driver Cutout | 7.1250 in |
| Driver Mounting Depth | 4.4375 in required |
| Power Handling | 400 watts RMS total across the pair |
| Impedance | Single 4 ohm voice coil |
| Material | Langboard Elite MDF |
| Construction | CNC cut, V-groove and dado joinery |
| Panel Thickness | 0.75 in |
| Front Baffle | 1.5 in, double baffle |
| Internal Bracing | Full chamber divider |
| Driver Mounting | Threaded inserts at every mounting location, stainless machine screws included |
| Terminal Cups | One Proline X ABS and carbon fiber composite, side mounted, pre wired 12 gauge OFC |
| Damping | Light polyfill wall lining, does not alter acoustic volume |
| Carpet | Plush black |
| Weight | 35.5 lb |
| Warranty | 1 Year Limited |
| Built In | Tullahoma, Tennessee |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
0.50 cu ft against a 6.4 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 5.0 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 41.90 | Hz | free-air resonance |
| Qts | 0.506 | XL-844 | |
| Vas | 6.44 | L | equivalent compliance |
| Sd | 176.7 | cm² | effective piston area |
| Xmax | 5 | mm | one-way linear travel |
| Pe | 200 | W | continuous RMS |
| SPL | 81.1 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by powerbassusa.com. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
