Shallow Mount, Sealed and Ported

Wavtech Subwoofer Boxes and Enclosures

Sealed and ported shallow-mount enclosures cut for Wavtech subwoofers, CNC-machined in Tullahoma, Tennessee.

Proline X subwoofer enclosures built for Wavtech subwoofers.

Shallow Mount, Sealed and Ported

Wavtech builds shallow-mount subwoofers for spaces that will not take a standard driver, and a shallow driver needs a cabinet designed around it rather than a normal box with less depth. Every enclosure here is cut to the parameters Wavtech publishes for the driver it names, most of them sealed, with a ported wedge and a ported down-fire cabinet for the thinPRO12.

Ten and twelve inch, single and dual, in standard, down-fire and wedge forms. Some ship loaded with the driver already fitted, and we stock Wavtech subwoofers and amplifiers separately as well.

Sealed and ported Wavtech enclosures in ten and twelve inch across Micro, Performance Optimized and Vehicle Specific Series, single and dual, loaded or bare.

Cut, assembled and finished in Tullahoma, Tennessee, to the parameters Wavtech publishes for each driver.

Driver parameters are taken from Wavtech published data. We stock Wavtech subwoofers and cut enclosures to those figures.

Shop the Lineup

←
→

All products loaded

Wavtech Enclosures by Series and Shape

Cabinets are cut per driver model rather than per nominal size. Use this for the shape of the range, then match the model on the product page.

Wavtech cabinets in ten and twelve inch, sealed and ported, in stock.
SeriesBest forShapesConfigurations
Micro SeriesThe shallowest installsStandard and down-fireSingle and dual
Performance OptimizedDriver-matched, sealed and portedStandard, down-fire and wedgeSingle and dual
Vehicle SpecificDirect fit in a named truck cabStandardSingle, often loaded

Shared across every row: Langboard Elite MDF cut on ShopSabre routers in Tullahoma, Tennessee. Plush black carpet. A Proline X ABS and carbon fibre composite terminal cup with stainless hardware, pre-wired in 12-gauge OFC. Construction method varies by series and is stated on each product page.

Wavtech Subwoofer Box Directory by Model

We build sealed and ported enclosures for 3 Wavtech subwoofer models, 10 to 12 inch, in standard, down-fire and wedge styles from single, dual, triple and quad woofer cabinets. Open a model to see every box cut for it, with net volume, tuning and outside dimensions. Full specs and fitment notes are on each product page.

Vehicle-specific direct fit 4 boxes
BoxSeriesNet volumeTuningOutside dimensions
Standard Sealed, SingleVehicle Specific0.6 ft³SealedDirect Fit | Passenger Side | Behind Rear Seat
Standard Sealed, SingleVehicle Specific0.6 ft³Sealed45"Wide x 14.25" Tall x 3.75" Deep
Standard Sealed, DualCustom1.23 ft³Sealed34.00" W x 28.00" D x 5.00" H
Standard Sealed, QuadCustom2.41 ft³Sealed34.00" W x 28.00" D x 7.81" H
Wavtech thinPRO10 8 boxes
BoxSeriesNet volumeTuningOutside dimensions
Down Fire Sealed, SinglePerformance Optimized0.40 ft³Sealed30" W x 15" D x 4.25" H

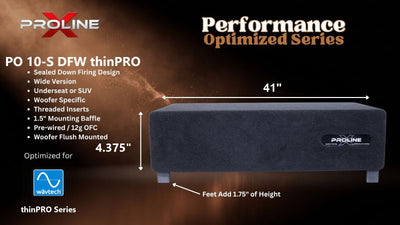

Down Fire Wide Sealed, SinglePerformance Optimized0.464 ft³Sealed41" W x 12" D x 4.375" H
Standard Sealed, SingleMicro.4 ft³Sealed24" × 12.75" × 4.5"
Standard Sealed, SingleMicro.4 ft³Sealed24" × 12.75" × 4.5"
Down Fire Sealed, DualPerformance Optimized0.78 ft³ total / 0.39 ft³ per chamberSealed30" W x 15" D x 6.25" H
Down Fire Wide Sealed, DualPerformance Optimized0.790 ft³ total / 0.395 ft³ per chamberSealed41" W x 12" D x 5.9375" H
Standard Sealed, DualMicro.8 ft³Sealed44" x 13" x 4.5"
Down Fire Sealed, TriplePerformance Optimized1.05 ft³ total / 0.35 ft³ per chamberSealed33" W x 15" D x 7.25" H
Wavtech thinPRO12 11 boxes
BoxSeriesNet volumeTuningOutside dimensions
Down Fire Ported, SinglePerformance Optimized1.49 ft³34.5 Hz31" W x 17.50" D x 7.75" H
Wedge Ported, SinglePerformance Optimized1.60 ft³34.5 Hz30.00" W x 15.50" H x 15.14" D, tapering to 9.50"
Down Fire Sealed, SinglePerformance Optimized0.60 ft³Sealed30" W x 15" D x 5.25" H
Down Fire Wide Sealed, SinglePerformance Optimized0.613 ft³Sealed41" W x 14" D x 4.625" H
Standard Sealed, SingleMicro.6 ft³Sealed26.5" x 17" x 4.5"
Standard Sealed, SingleMicro.60 ft³Sealed26.5" X 17" X 4.5"
Down Fire Sealed, DualPerformance Optimized1.20 ft³ total / 0.60 ft³ per chamberSealed30" W x 15" D x 8.4375" H

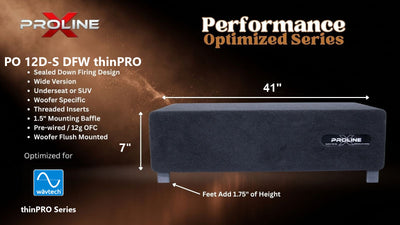

Down Fire Wide Sealed, DualPerformance Optimized1.213 ft³ total / 0.607 ft³ per chamberSealed41" W x 14" D x 7" H
Standard Sealed, DualMicro1.2 ft³Sealed29" X 8" X 15"
Standard Sealed, DualMicro1.2 ft³Sealed29" X 8" X 15"
Wedge Wide Sealed, TriplePerformance Optimized1.80 ft³Sealed44" W x 17" H x 11.46" D, tapering to 5.27"

Shallow Mount Is the Whole Point

People choose a Wavtech driver because depth is the binding constraint: under a rear seat, in a shallow cargo well, behind a truck seat. The cabinet has to respect the same constraint, which is why Micro Series builds make up a large part of this range.

A shallow driver dropped into a standard-depth cabinet gives up exactly the thing you bought it for. These are cut the other way round: the depth budget comes first, then the net volume the driver needs inside it.

Every Wavtech Model We Build For

2 Wavtech models, each with its own cabinets. Ported tunings are the frequency each box is tuned to.

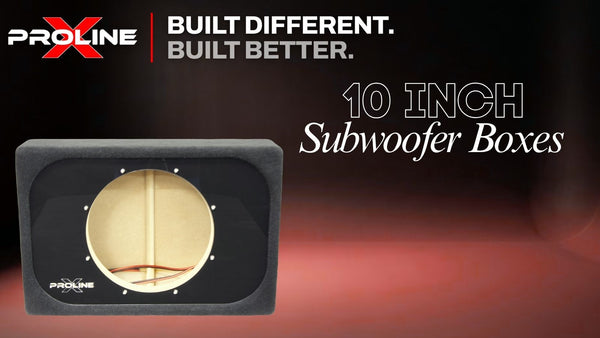

10 inch

thinPRO10: sealed wide down-fire in single and dual; sealed standard in single and dual; sealed down-fire in single, dual and triple.

12 inch

thinPRO12: sealed wide wedge in triple; sealed wide down-fire in single and dual; sealed standard in single and dual; sealed down-fire in single and dual; ported wedge in single at 34.5 Hz; ported down-fire in single at 34.5 Hz.

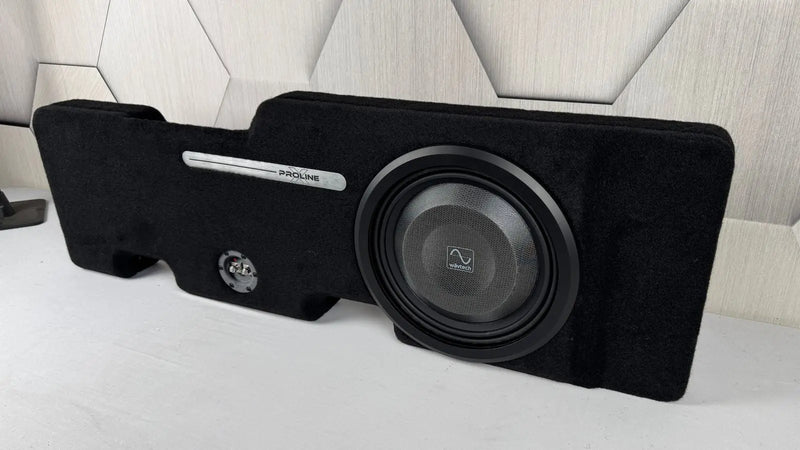

Vehicle-specific builds

4 direct-fit Wavtech enclosures for specific vehicles, listed in the directory above.

How to Choose

Start from the space

Depth is why you are here. Measure it first and the choice narrows quickly.

Pick the series that suits it

Micro Series for the shallowest installs. Performance Optimized for a driver-matched cabinet where you have a little more room. Vehicle Specific if we have already cut one for your truck.

Single or dual

A dual is not two singles joined together. Each chamber is cut tighter than the same driver gets on its own, because the cabinet still has to fit the same space.

Loaded or bare

Some cabinets ship with the Wavtech driver already mounted and wired. We stock the drivers separately too, so either route works.

Depth First, Then Everything Else

Measure the depth you actually have

With trim in place rather than off a drawing. This is the constraint that sent you to a shallow driver in the first place, and it is the one that decides which cabinet works.

Then the total height

A down-fire cabinet needs its feet clearance counted into the overall height, not just the box. Under a fold-flat seat, measure to the seat back at its lowest position rather than its highest.

Then the driver model

Ten or twelve inch, and which Wavtech model. The cabinet is cut to that driver's published figures, so the model number is the match to work from.

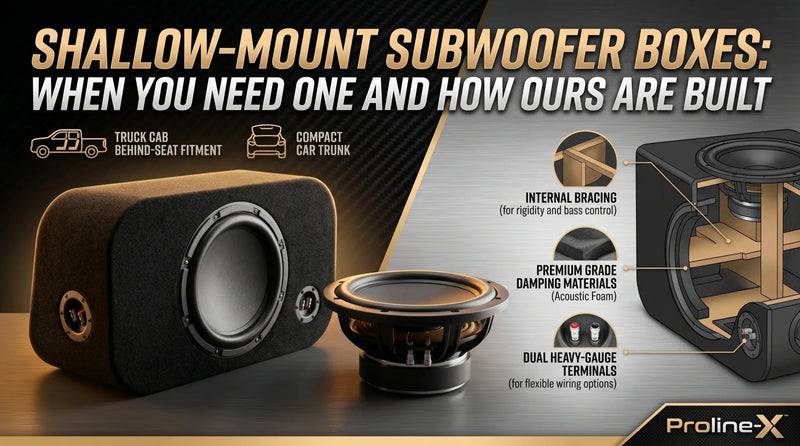

Cut From the Depth Inwards

A shallow-mount driver needs a cabinet designed around its depth, not a standard box made thinner. These are cut the other way round: the depth budget comes first, then the net volume the driver needs inside it. That is what Micro Series construction exists to do.

Buy the Box, the Driver, or Both

Some of these cabinets ship with the Wavtech driver already mounted and wired. The rest are cut for a driver you already own. We stock Wavtech subwoofers and amplifiers separately as well, so whichever half you still need is here.

Three Series, Three Shapes

Micro Series covers the shallow-space builds. Performance Optimized covers the driver-matched cabinets on a 1.5 inch double baffle. Vehicle Specific covers the direct-fit boxes cut to a named truck cab.

The sealed cabinets ship with polyfill already installed; the ported thinPRO12 cabinets ship without it and state their tuning on the listing. Standard front-firing, down-fire and wedge are all represented, in single and dual.

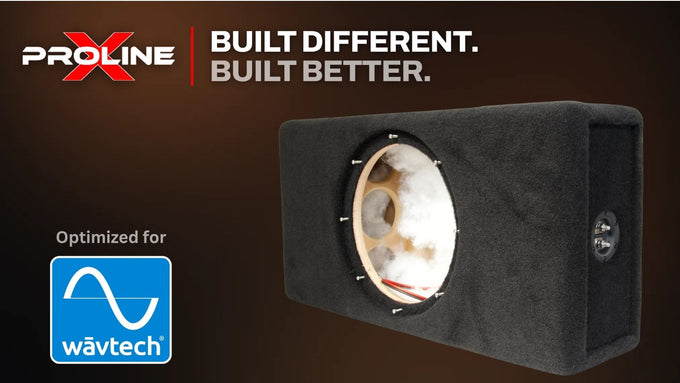

Shallow spaces

Micro Series

Ten and twelve inch

The shallow-space builds, and the natural partner to a shallow-mount driver. For openings a standard cabinet will not fit.

Cut to one driver

Driver-matched

Performance Optimized Series

Ten and twelve inch

Cut to one driver on a 1.5 inch double baffle, in standard and down-fire forms, where the install has a little more depth to give.

Cut to one driver

Direct fit

Vehicle Specific Series

Behind-seat builds

Cabinets cut to a named truck cab rather than a generic opening, several of them loaded with the driver already fitted.

Often loaded

Baffle thickness and construction method vary by series. Each product page states how that cabinet is built and which Wavtech model it was cut for.

Categories

Keep Reading

Supporting guides to help you design, build, and tune your system.

Wavtech Subwoofer Box Questions

Which Wavtech subwoofers do these boxes fit?

The cabinets here are cut for Wavtech shallow-mount subwoofers in ten and twelve inch. Each product page names the exact model it was designed around. Match the model number rather than the nominal size.

Do you sell Wavtech subwoofers as well?

Yes. We stock Wavtech subwoofers and their amplifier line alongside these enclosures, so you can buy the driver and the cabinet together or separately. Some cabinets already ship loaded with the matching driver.

Why does a shallow driver need a special cabinet?

Because the depth budget comes first. A shallow driver in a standard-depth box gives up the reason you chose it, and a standard cabinet simply made shallower will not hold the net volume the driver needs. These are designed the other way round, from the available depth inwards.

What is the difference between Micro and Performance Optimized?

Micro Series cabinets are the shallow-space builds, for openings a standard cabinet will not fit. Performance Optimized cabinets are cut to one driver on a 1.5 inch double baffle where there is a little more room to work with. Both are cut to the same published driver figures.

Are these sealed or ported?

Mostly sealed. A sealed alignment suits shallow drivers and fits the spaces they are bought for, and every sealed enclosure ships with polyfill installed. The thinPRO12 also gets a ported wedge and a ported down-fire cabinet for the install that has the room and wants the output, tuned for the driver with the frequency stated on the listing and shipped without polyfill.

Do you make direct-fit Wavtech boxes for trucks?

Yes. Some of these are Vehicle Specific cabinets cut to a named truck cab rather than to a generic opening, and several of those ship loaded with the driver already fitted.
