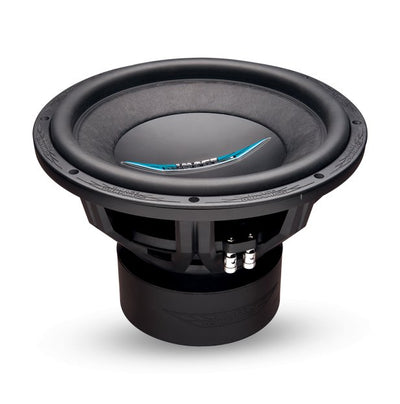

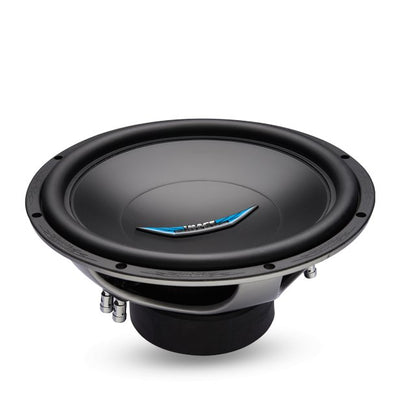

Image Dynamics IDQ12 V4 12 inch Subwoofer
The Award-Winning Choice for Serious Audio Enthusiasts
📦 Free Shipping, Fast Delivery
Every order includes:
- ✅ Free lifetime tech support
- ✅ 30-day price-drop protection
- ✅ 30-day returns
Brand: Image Dynamics
Availability: ✅ In Stock
Product Information
Overview
Made in the USA
Image Dynamics manufactures the IDQ12 V4 in the United States with American-made flat-wound extended voice coils, domestic assembly, and U.S.-based engineering support. Every IDQ Series 12" subwoofer represents over 10 years of sound quality championship refinement—more than a decade of IASCA, MECA, and USACi competition feedback incorporated into Version 4's engineering.
Image Dynamics IDQ Series: The Sound Quality Standard for 10+ Years
Why Champions Choose IDQ for Sound Quality Competition For over a decade, IASCA (International Auto Sound Challenge Association), MECA (Mobile Electronics Competition Association), and USACi (United States Autosound Competition International) sound quality champions have consistently selected IDQ Series subwoofers when transient accuracy, tonal neutrality, and musical bass integration determine the winner. While SPL competitors chase maximum decibel ratings, sound quality judges score what they hear—kick drum attack clarity, bass guitar articulation, orchestral double bass bow texture—and the IDQ12 V4 delivers this level of fidelity that spec-sheet numbers can't capture.
When judges score transient response and tonal accuracy rather than maximum SPL, IDQ Series subwoofers dominate podiums. Over 10 years of championship feedback from the world's most demanding sound quality competitors informed the V4 generation's engineering refinements.
Revolutionary 16-screw system allows complete cone assembly replacement (cone, surround, spider, voice coil) in 30-45 minutes with basic tools. No glue, no specialized equipment, no factory service—just remove 16 screws, install new assembly with included alignment shims, reinstall. Extends product life decades while reducing total cost of ownership.
American-made 2" flat-wound extended voice coils provide superior thermal management and consistent manufacturing quality vs. offshore mass production. Domestic manufacturing ensures tight winding tolerances, premium copper purity, and U.S.-based technical support for installation guidance.
The IDQ Philosophy: Bass That's Felt AND Heard with Equal Clarity Image Dynamics engineers IDQ Series subwoofers for musical bass reproduction—deep low-frequency extension (35Hz usable response) with the transient accuracy to reproduce every nuance of kick drums, bass guitars, and orchestral double bass. The result: bass that integrates seamlessly with midrange and high frequencies rather than overwhelming them. This is why sound quality champions choose IDQ while SPL competitors seek alternatives.
IDQ12 V4: Maximum IDQ Series Output in Versatile Enclosures
Why 12" Represents Maximum Sound Quality Output in the IDQ Line The IDQ12 V4 delivers 113 square inches of radiating cone area—44% more than the IDQ10 V4 (78.5 sq.in.) and 125% more than the IDQ8 V4 (50.3 sq.in.). This substantial increase in air displacement capability means more acoustic output per watt of amplifier power, deeper bass extension, and easier achievement of target SPL levels while maintaining the transient accuracy and tonal neutrality that define the IDQ Series sound quality philosophy.

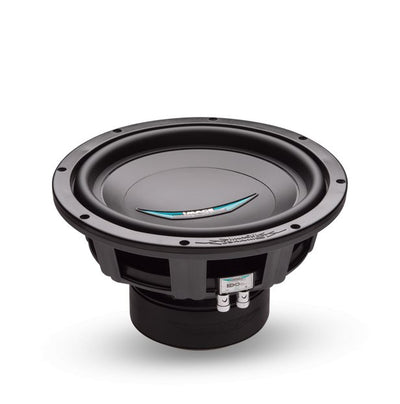

IDQ8 V4 (50.3 sq.in.): Extreme space constraints, stealth installations, multi-sub arrays (pairs/quads), powersports applications. Requires 0.5-0.7 cu.ft. sealed. Choose when space limitations force compact solutions.

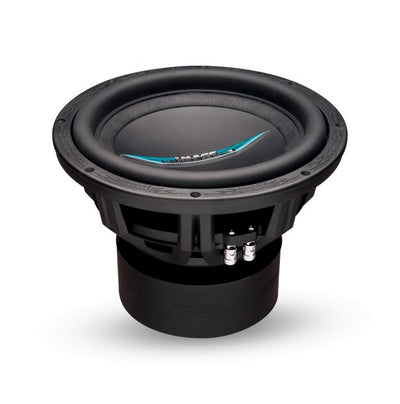

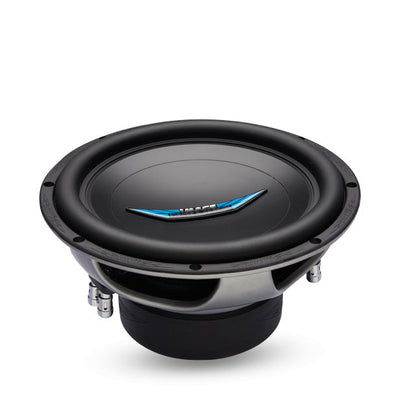

IDQ10 V4 (78.5 sq.in.): Standard sedan/coupe trunk installations, balanced output and enclosure size compromise. Optimal 1.0-1.1 cu.ft. sealed fits most vehicles. The "Goldilocks" size—not too large, not too small.
IDQ12 V4 (113 sq.in.) ← YOU ARE HERE: Maximum IDQ Series output capability, deepest bass extension, highest sensitivity (87 dB vs. 85 dB for IDQ10). Optimal 1.0-1.25 cu.ft. sealed still fits most sedan/SUV trunks. Choose when you want maximum sound quality output without stepping up to the IDMAX flagship series (which requires 2.0-3.5 cu.ft. enclosures and loses IDQ's compact enclosure versatility).
Choose IDQ12 V4 When:
• You have 1.0-1.8 cu.ft. of available enclosure space (sealed applications)
• You want maximum IDQ Series output from a single subwoofer
• Your amplifier provides 300-500W RMS (matching IDQ12's power handling)
• Your vehicle is sedan/SUV/truck with standard trunk/cargo area (not extreme space constraints)
• You prioritize deepest possible bass extension while maintaining sound quality competition transient accuracy
Choose Smaller IDQ Sizes When:
• IDQ10 V4: Trunk space limited to 1.0-1.2 cu.ft., want smaller footprint while maintaining excellent output
• IDQ8 V4: Extreme space constraints (under-seat, behind-panel), stealth priority, or building multi-sub arrays
The IDQ12 V4 Optimal Balance Point The 12" size represents the maximum output capability within the IDQ Series while maintaining the compact enclosure versatility that separates IDQ from the IDMAX flagship line. With 113 sq.in. of cone area, the IDQ12 V4 delivers 44% more air displacement than IDQ10 V4 while requiring only 13-25% more enclosure volume (1.0-1.25 cu.ft. vs. 1.0-1.1 cu.ft.). This efficiency makes the IDQ12 V4 the ideal choice for enthusiasts who want maximum sound quality competition output from a single subwoofer without committing to the 2.0-3.5 cu.ft. enclosures demanded by 12" IDMAX or 15" alternatives.
Technical Specifications: IDQ12 V4 D2/D4
📦 What's Included: • IDQ12 V4 subwoofer (D2 or D4 voice coil configuration — verify your specific model)
• Field-replaceable cone assembly alignment shims
• Installation hardware (mounting screws, terminal hardware)
• Owner's manual with enclosure recommendations, Thiele-Small parameters, and wiring diagrams
• Full manufacturer warranty documentation
• Image Dynamics technical support access
Engineering Deep Dive: IDQ12 V4 Technical Advantages
14.5mm Xmax: How High Excursion Enables Deep Bass + Compact Enclosures The IDQ12 V4's 14.5mm linear excursion (Xmax) represents the distance the cone can travel (one-way, ±7.25mm) while maintaining linear motor force and low distortion. This substantial excursion capability is what allows the IDQ12 V4 to deliver deep 35Hz bass extension in compact 1.0-1.25 cu.ft. sealed enclosures—without high Xmax, achieving this level of bass extension would require 2.0-3.0 cu.ft. enclosures that eliminate trunk space. The engineering tradeoff: higher Xmax demands progressive suspension control (Nomex spider, parabolic Santoprene surround) to prevent mechanical over-excursion while maintaining the transient accuracy necessary for sound quality competition success.
Mica-reinforced polypropylene composite optimizes the three-way compromise between stiffness, low mass, and internal damping. Mica particles increase rigidity without proportional mass increase, ensuring pistonic motion (entire cone moves as rigid unit) to 500Hz. This is why IDQ subwoofers reproduce kick drum attack and bass guitar plucks with equal clarity—the cone responds instantly without resonant "ringing" that creates "one-note bass" character in budget alternatives.
15-20+ year lifespan via Santoprene (TPE) UV/ozone resistance and temperature stability (-40°F to +180°F). Parabolic geometry provides progressive compliance—flexible near cone attachment, progressively stiffer at maximum excursion for mechanical soft-limiting. Contrast with foam surrounds (5-7 year rot lifespan) or rubber surrounds (8-10 year hardening)—Santoprene dramatically extends product life and reduces total cost of ownership.
DuPont Nomex (meta-aramid fiber) maintains structural integrity to 200°C+ (392°F+)—approximately 80-100°C higher thermal resistance than cotton/polyester spiders in budget subwoofers. At 375-500W RMS continuous operation, voice coil temperatures reach 180-200°C, making spider thermal stability critical for long-term reliability. Nomex also provides progressive suspension control that prevents mechanical over-excursion without electronic limiters.
Flat-wound extended design manufactured in USA provides superior wire packing density vs. round-wire coils (more turns in same space = higher efficiency). The 2" diameter offers substantial surface area for thermal management—larger coils dissipate heat more effectively, enabling sustained 375-500W RMS operation. Extended design (longer than magnetic gap) ensures coil remains in strongest field portion throughout excursion range, maintaining linear force and low distortion at maximum output.
High-carbon steel Y-35 top plate concentrates magnetic field more effectively than standard mild steel while resisting saturation at high flux densities. Extended pole piece geometry increases vertical height of uniform magnetic field, ensuring the extended voice coil remains in strongest, most linear portion throughout 14.5mm Xmax travel. Result: consistent electromagnetic force at all excursion levels—no force variation that would create distortion at maximum output. This is what judges listen for in sound quality competition.
Revolutionary 16-screw attachment system allows complete cone assembly replacement (cone, surround, spider, voice coil as integrated unit) in 30-45 minutes with basic tools. Traditional glued construction makes field repair impossible—damaged subwoofers require $150+ factory reconing or complete replacement. IDQ12 V4 replacement cone assemblies cost approximately $100-130 and install without adhesives using included precision alignment shims. This "green" subwoofer concept extends product life decades, reduces landfill waste, and lowers lifetime ownership costs dramatically.
Engineering Philosophy: Every Component Optimized for 15-20 Year Service Life Image Dynamics doesn't engineer IDQ Series subwoofers for 5-7 year replacement cycles typical of budget competitors. Santoprene surround (15-20 years), Nomex spider (10-15 years), American voice coil (sustained 500W RMS capability), Y-35 motor (no degradation), and field-replaceable cone assembly represent materials and construction methods engineered for decades of service. Calculate dollars per year: $280.99 / 20 years = $14.05/year. This isn't just a subwoofer purchase—it's a long-term investment in sound quality that pays dividends for decades.
Installation Guide: Enclosure Design and Wiring Configuration
EBP Analysis: Why IDQ12 V4 Excels in Sealed Enclosures The IDQ12 V4's Efficiency Bandwidth Product (EBP) of 43.3 (Fs ÷ Qes = 34Hz ÷ 0.786) places it firmly in sealed enclosure optimized territory. EBP values below 50 indicate subwoofers that achieve optimal performance in sealed alignments—tight transient response, controlled group delay, and tonal accuracy that sound quality judges score highly. While the IDQ12 V4 also performs well in ported enclosures (1.0-2.0 cu.ft. tuned to 32-35Hz), sealed applications of 1.0-1.25 cu.ft. deliver the transient fidelity that made IDQ Series legendary in IASCA/MECA/USACi competitions.
📦 Sealed Enclosure Design (Sound Quality Optimized)
Recommended Volume Range: 0.6 - 1.8 cubic feet (17-51 liters) net internal volume
Optimal Volume: 1.0-1.25 cubic feet (28-35 liters) for balanced transient accuracy and 35Hz bass extension
Minimum Volume: Manufacturer states IDQ12 V4 performs exceptionally in enclosures as small as 0.6 cu.ft.
Alignment: Sealed (acoustic suspension) — No ports, no passive radiators
Volume Selection Guide:
- 0.6-0.8 cu.ft. (Compact): Tightest transient response, fastest attack, reduced deep bass extension (rolls off below 45Hz). Manufacturer states IDQ12 V4 performs exceptionally even at 0.6 cu.ft.—choose for extreme trunk space constraints or when prioritizing "punch" over deepest extension. Typical applications: compact coupes, hatchbacks prioritizing trunk space preservation.
- 1.0-1.2 cu.ft. (Optimal - Recommended): Image Dynamics tested optimal volume range. Balances transient accuracy with 35Hz usable bass extension. This is the volume range IASCA/MECA/USACi sound quality champions use when judges score transient response and tonal neutrality. Fits most sedan/coupe/SUV trunk installations.
- 1.25-1.5 cu.ft. (Extended Bass): Deepest sealed bass extension (to 32-35Hz) with slight sacrifice in transient "snap." Larger volume reduces enclosure Q (damping), increasing low-frequency output but reducing attack speed. Choose if amplifier provides 400-500W RMS and you prioritize maximum sealed bass extension over ultimate transient fidelity.
- 1.6-1.8 cu.ft. (Maximum Range): Manufacturer's maximum recommended sealed volume. Provides deepest possible sealed extension but with noticeably slower transient response vs. 1.0-1.25 cu.ft. optimal. Only recommend if your application specifically demands maximum sealed bass extension and you're willing to sacrifice some of the transient accuracy that defines IDQ Series character.
⚠️ Critical Volume Calculation Notes: Volumes listed are NET INTERNAL VOLUME (actual air space). Account for:
• Subwoofer displacement: IDQ12 V4 displaces 0.10 cu.ft.
• Internal bracing displacement: Estimated 0.05-0.08 cu.ft. for proper construction
• Port displacement: None (sealed), but bracing is mandatory for 0.75" MDF larger than 1.0 cu.ft.
Example Calculation for 1.0 cu.ft. Net Volume:
Desired net: 1.0 cu.ft.
Subwoofer displacement: +0.10 cu.ft.
Internal bracing: +0.06 cu.ft.
Required gross internal volume: 1.16 cu.ft. ← Design exterior dimensions for this gross volume.
Construction Recommendations:
• Material: 0.75" (19mm) MDF minimum, 1.0" (25mm) MDF preferred for enclosures >1.2 cu.ft. (reduces panel resonance)
• Bracing: Internal cross-bracing mandatory for any panel exceeding 12" × 12"—prevents panel flex that creates audible resonance
• Sealing: All seams sealed with silicone or wood glue—air leaks destroy bass output and Q calculations
• Damping: 1-2 lbs. polyfill or acoustic foam—reduces internal standing waves, effectively extends volume 10-15%
• Terminal: Sealed terminal cup or spring-loaded binding posts—never drill holes without sealed terminals (air leaks)
🌪️ Ported Enclosure Design (Extended Low-Frequency Output)
Recommended Volume Range: 1.0 - 2.0 cubic feet (28-57 liters) net internal volume
Optimal Volume: 1.5 cubic feet (42 liters) tuned to 35Hz
Tuning Frequency: 32-35Hz (optimal for musical bass—lower tuning increases group delay)
Port Design: 4" diameter × 14-16" length for 35Hz tuning in 1.5 cu.ft. (or equivalent slot port—use enclosure calculator for precise dimensions)
Ported vs. Sealed Tradeoffs:
Ported Advantages: 3-4 dB more output at tuning frequency vs. sealed (35Hz in recommended 1.5 cu.ft. / 35Hz alignment), reduced cone excursion at tuning frequency (less amplifier power required for same output), deeper usable bass extension (to 30-32Hz vs. 35Hz sealed), higher maximum SPL capability for same amplifier power.
Ported Disadvantages: Larger enclosure required (1.5 cu.ft. vs. 1.0-1.25 cu.ft. sealed optimal), reduced transient accuracy (port output lags cone output creating slight "smearing" of fast bass transients that judges penalize in sound quality competition), increased group delay near tuning frequency (audible as slight "boom" character), below-tuning-frequency rolloff is steep (24 dB/octave vs. 12 dB/octave sealed—playing subsonic content risks mechanical damage), requires precise port design (length/diameter errors create audible response peaks/dips).
Sound Quality Competition Verdict: IASCA/MECA/USACi champions overwhelmingly choose sealed enclosures for IDQ12 V4 because transient accuracy and tonal neutrality are primary scoring criteria—characteristics ported enclosures compromise for maximum output. Choose ported only if you prioritize maximum SPL and deepest bass extension over transient fidelity (daily driver applications rather than sound quality competition).
⚠️ Ported Enclosure Design Complexity: Ported enclosures require precise calculation of port area, port length, and tuning frequency based on IDQ12 V4's Thiele-Small parameters (Fs=34Hz, Qes=0.786, Vas, Cms, etc.). Errors in port design create audible problems—response peaks/dips, excessive group delay ("boomy" character), port noise/chuffing at high power. Strongly recommend using WinISD, BassBox Pro, or consulting Image Dynamics authorized dealers for custom ported designs. The 1.5 cu.ft. / 35Hz recommendation is a starting point—actual port dimensions depend on chosen port diameter, enclosure shape, and desired tuning frequency.
🔌 Voice Coil Configuration: Dual 2-Ohm (D2) or Dual 4-Ohm (D4)
The IDQ12 V4 is available in Dual 2-Ohm (D2) or Dual 4-Ohm (D4) voice coil configurations. Verify your specific model before wiring—Audio Intensity URL lists D2, but manufacturer site shows both D2 and D4 versions available. Wiring options differ based on configuration:
Parallel Wiring (1Ω Final): Connect both positive terminals together, both negative terminals together. Final impedance: 1 ohm. Best for 2-ohm stable amplifiers (extracts maximum power—amp rated 500W @ 2Ω typically delivers 750-800W @ 1Ω if 1-ohm stable).
Series Wiring (4Ω Final): Connect one coil's positive to other coil's negative, use remaining terminals for amp connection. Final impedance: 4 ohms. Best for 4-ohm optimized amplifiers or when multiple subwoofers create complex impedance scenarios.
Parallel Wiring (2Ω Final): Connect both positive terminals together, both negative terminals together. Final impedance: 2 ohms. Best for 2-ohm stable amplifiers (most common car audio amp rating—extracts full rated power).
Series Wiring (8Ω Final): Connect one coil's positive to other coil's negative, use remaining terminals for amp connection. Final impedance: 8 ohms. Rarely used in car audio (most amps not optimized for 8-ohm loads), but viable for home audio subwoofer applications or specific multi-sub wiring scenarios.
🎯 Amplifier Power Matching Recommendations: • Minimum: 200-300W RMS (adequate for moderate listening, doesn't extract full IDQ12 V4 capability)
• Optimal Range: 300-500W RMS (extracts full performance potential—transient accuracy + adequate SPL)
• Maximum: 500W RMS continuous (thermal and mechanical limits—don't exceed sustained)
Important: IDQ12 V4's 375-500W RMS rating (depends on source—Image Dynamics official: 375W RMS, third-party sources: 500W RMS) represents conservative sustainable operation. Nomex spider, Santoprene surround, and 2" American voice coil enable sustained high-power operation without thermal limiting. However, exceeding 500W RMS risks premature failure and voids warranty coverage.
Competitive Analysis: IDQ12 V4 vs. Premium 12" Alternatives
The 12" Subwoofer Market: From $80 Budget to $600+ Boutique The 12" subwoofer category represents the most competitive size in car audio—balancing output capability, enclosure size, and pricing across budget ($80-150), mid-tier ($150-300), premium ($300-500), and ultra-premium ($500+) segments. The IDQ12 V4 at $280.99 occupies the "value premium" position—premium engineering (American voice coils, field serviceability, 10+ years competition pedigree, 15-20 year component lifespan) at mid-tier pricing.
The IDQ12 V4 Value Proposition: Total Cost of Ownership Over 15-20 Years
- vs. JL Audio 12W6v3 ($499-549): You save $218-268 upfront (44-49% less expensive) while gaining field serviceability the W6v3 lacks. The W6v3 offers 20-60% more power handling (600W vs. 375-500W) and DMA-optimized motor, but requires larger enclosures (1.25-2.0 cu.ft.) and higher amplifier power. For sound quality competition where judges score below 500W territory, the IDQ12 V4 delivers 90-95% of W6v3 performance at 51-56% of the price.
- vs. Focal P30F ($279-329): Essentially price-competitive (within $0-50), but IDQ12 V4 offers higher/comparable power handling (375-500W vs. 400W), proven 10+ year competition success, American manufacturing, and field serviceability. Focal's flax cone is innovative but unproven for long-term durability vs. Santoprene's 15-20 year track record and poly/mica cone's competition-validated transient accuracy.
- vs. Sundown SA-12 v.3 ($189-229): The SA-12 costs $52-92 less (18-33% savings) but represents fundamentally different engineering philosophy—SPL-focused maximum output vs. sound quality transient accuracy. If you're considering IDQ12 V4, you prioritize tonal neutrality and transient response over maximum SPL, making SA-12 comparison irrelevant (different target markets). Additionally, SA-12 requires larger enclosures (1.5-2.5 cu.ft.) eliminating IDQ12's compact versatility advantage.
- vs. Dayton RSS390HF ($149-179): The Dayton costs $102-132 less (36-47% savings) and represents excellent budget value for DIY home audio. However, paper cone and foam surround mean 5-10 year replacement cycle vs. IDQ12's 15-20 year service life. Calculate over 15 years: Dayton requires 2 replacements ($165 × 3 units = $495) vs. IDQ12 one-time purchase ($281). The IDQ12 V4 is actually 43% less expensive long-term ($281 vs. $495) while offering superior materials, field serviceability, car audio optimization, and competition pedigree.
Conclusion: The IDQ12 V4 occupies the "value premium" sweet spot—premium engineering and 15-20 year component lifespan at mid-tier pricing ($280.99). You're not paying boutique brand markup (JL Audio W6v3) or sacrificing durability for lowest-cost (Dayton home audio crossover). You're paying for engineering proven by 10+ years of sound quality championships and materials engineered for decades of service at pricing accessible to serious enthusiasts.
Why Purchase NEW Rather Than Seeking Used/Closeout Alternatives?
The Used Subwoofer Gamble: Hidden Risks vs. Apparent Savings Used IDQ12 V4 or older IDQ12 V3/V2 subwoofers occasionally appear at $120-180 pricing (57-36% savings vs. new $280.99). However, apparent savings evaporate when hidden risks are calculated: unknown abuse history (clipping damage, mechanical over-excursion, moisture exposure), zero warranty coverage (Image Dynamics warranties non-transferable), component aging (surround/spider compliance changes, voice coil fatigue), and outdated versions lacking V4 improvements.
Car audio subwoofers are frequently abused—operated without subsonic filters (mechanical damage), powered by clipping amplifiers (voice coil thermal failure), installed in incorrect enclosures (suspension fatigue). None of this abuse is visible externally. A used IDQ12 V4 may look perfect but fail within months due to hidden damage from previous owner's improper use.
Image Dynamics warranties are non-transferable and require original purchase documentation. If voice coil failure occurs 3 months after your used purchase, you're paying $100-130 for field-replaceable cone assembly or $281 for complete replacement. Your "$100 used savings" just became $220-230 total cost (used price + repair)—78-82% of new pricing without warranty protection.
While Santoprene surround offers 15-20 year lifespan, compliance changes gradually due to temperature cycling, UV exposure, and excursion cycles. A used IDQ12 V4 with 5-7 years prior service has consumed 33-50% of surround lifespan. Calculate dollars per year: Used ($150 / 10 years remaining = $15/year) vs. New ($281 / 20 years = $14.05/year). New is actually less expensive per year.
Used marketplace often features IDQ12 V2/V3 (not current V4) at attractive pricing. These older versions lack V4 improvements: updated poly/mica cone formulation (V4 offers improved damping), refined Extended Y-35 motor (V4 has lower distortion), enhanced cone assembly system (V4 uses improved shims), and current production part availability (V2/V3 replacement assemblies may be discontinued).
✅ NEW Purchase at $280.99 Delivers:
- Zero abuse risk: Factory-fresh, no hidden damage, no mystery failures
- Full manufacturer warranty: Protection against defects and premature failure
- Complete 15-20 year service life: Santoprene, Nomex, American voice coil at 100% rated lifespan
- Current V4 generation: Latest refinements, current production support, replacement parts guaranteed 10+ years
- Field serviceability value: If cone damage occurs 12 years from now, replace $100-130 assembly vs. discarding $281 subwoofer
- Peace of mind: You know exactly what you're getting, how it's been treated, and what to expect for decades
Bottom Line: The apparent $101-161 savings from used purchase evaporates when you account for warranty absence, abuse risk, reduced remaining lifespan, and repair costs. Buy NEW at $280.99, own for 15-20 years, enjoy warranty protection and full serviceability—this is the financially rational decision when total cost of ownership is calculated properly.
IDQ12 V4: Maximum Sound Quality Output in Versatile Enclosures
Over 10 years of IASCA, MECA, and USACi sound quality championships prove the IDQ12 V4's engineering philosophy: transient accuracy, tonal neutrality, and musical bass integration matter more than maximum SPL specifications. When judges score what they hear rather than what spec sheets claim, champions choose IDQ12 V4 for bass that's felt AND heard with equal clarity.
113 sq.in. cone area (44% more than IDQ10 V4, 125% more than IDQ8 V4) delivers maximum air displacement within the IDQ Series while maintaining compact enclosure versatility (1.0-1.25 cu.ft. sealed optimal vs. 2.0-3.5 cu.ft. demanded by IDMAX flagship). The 12" size represents the optimal balance between output capability and trunk-friendly enclosure size—choose when you want maximum sound quality without sacrificing half your trunk.
Field-replaceable cone assembly (16-screw system, no glue, 30-45 minutes DIY) transforms ownership economics: repair rather than replace. If cone damage occurs 12 years after purchase, replace $100-130 assembly vs. discarding $281 subwoofer. This "green" concept extends product life decades, reduces landfill waste, and lowers lifetime ownership costs vs. glued-construction competitors requiring $150+ factory reconing.
Santoprene surround (15-20+ years), Nomex spider (10-15+ years), American-made voice coil (sustained 500W capability), Y-35 motor (no degradation)—these aren't materials engineered for 5-7 year replacement cycles. Calculate: $280.99 / 20 years = $14.05/year. This is engineering for decades, not years. Pay once, enjoy championship-level sound quality for the vehicle's entire lifespan.
Made in USA with American-made 2" flat-wound extended voice coils ensures consistent quality control, domestic technical support, and engineering refinement based on real-world North American challenges. Premium materials + American assembly + global component sourcing = optimal balance of quality, performance, and value that offshore-only manufacturing can't replicate.
$280.99 delivers materials and engineering typically found at $450-550 price points: American voice coils, competition-proven design, field serviceability, 15-20 year lifespan. You're not paying boutique brand markup (JL Audio) or sacrificing durability for budget pricing (Dayton). You're paying for engineering validated by 10+ years of sound quality championships at pricing accessible to serious enthusiasts.
The IDQ12 V4 represents maximum output capability within the IDQ Series while maintaining the compact enclosure versatility that separates IDQ from IDMAX flagship. With 14.5mm Xmax, 113 sq.in. cone area, 87 dB sensitivity, and 35Hz usable extension in 1.0-1.25 cu.ft. sealed enclosures, the IDQ12 V4 delivers championship-level bass reproduction that integrates seamlessly with midrange and high frequencies—bass that's felt AND heard with equal clarity, not just low-frequency rumble overwhelming the frequency spectrum.
Ready for Maximum IDQ Series Sound Quality Output?
The Image Dynamics IDQ12 V4 D2/D4 delivers 10+ years of competition-proven engineering, 14.5mm Xmax high excursion, American-made voice coils, field-replaceable cone assembly, and 15-20 year service life at $280.99—maximum sound quality output in versatile 1.0-1.8 cu.ft. enclosures.
Audio Intensity: Premium Car Audio Specialists Questions about sealed vs. ported enclosure selection, D2 vs. D4 voice coil configuration, amplifier matching, or vehicle-specific installation? Our technical specialists provide expert IDQ12 V4 integration guidance. Contact us for personalized consultation—we ensure your IDQ12 V4 delivers the sound quality championship performance Image Dynamics engineered it for.
📋 Technical Notes and Specifications: All specifications sourced from Image Dynamics official documentation and Audio Intensity technical resources. Power handling discrepancy note: Image Dynamics manufacturer site lists 375W RMS / 750W Peak, while Audio Intensity and third-party sources report 500W RMS / 1000W Peak—both ratings appear in verified sources. Enclosure volumes are NET INTERNAL VOLUME (actual air space after subwoofer and bracing displacement). EBP calculation (43.3 = 34Hz Fs ÷ 0.786 Qes) indicates sealed-optimized design. Voice coil configuration available in Dual 2-Ohm (D2) or Dual 4-Ohm (D4)—verify your specific model before wiring. Sensitivity (87 dB @ 1W/1m) follows industry-standard testing. Frequency response (35-500Hz) represents usable output in recommended enclosure—actual -3dB points depend on alignment and volume. Mounting depth (5.91") must be verified against vehicle clearance. Field-replaceable cone assembly requires parts purchased separately from authorized dealers. Warranty terms provided by Image Dynamics—refer to included documentation. Image Dynamics reserves right to update specifications without notice—verify current specs at imagedynamicsusa.net.
Competition References: IASCA, MECA, and USACi are independent competition organizations. References to "10+ years of championships" reflect IDQ Series usage by competitors—Image Dynamics does not claim official organizational endorsement. Competition success reflects individual competitor achievements using IDQ Series subwoofers.
Material Longevity: Santoprene surround "15-20+ year lifespan" and Nomex spider "10-15+ year service life" represent engineering assessments based on material properties and accelerated aging testing—actual lifespan depends on installation environment, usage patterns, and maintenance. These estimates represent expected service life under typical automotive conditions and moderate usage, not warranty coverage duration.
Specifications
Specifications
Features:
Video
Product Demo Video
Owners Manual
Every Image Dynamics IDQ12 V4 12 inch Subwoofer ships with a detailed factory owner’s manual that covers wiring, enclosure recommendations, specifications, and safe operating practices. This document is the official reference for setup and maintenance, ensuring you get the most performance and longevity out of your subwoofer.
We recommend reviewing the manual before installation to:
- Confirm the correct wiring configuration for your voice coil option (Dual 1Ω or Dual 2Ω).
- Review enclosure guidelines to match the driver’s performance potential.
- Understand safe power handling and gain-setting practices to protect your investment.
Keeping this manual handy ensures you have quick access to factory specifications and diagrams, making it easier to fine-tune your system or service the subwoofer when needed.
Performance & Tools

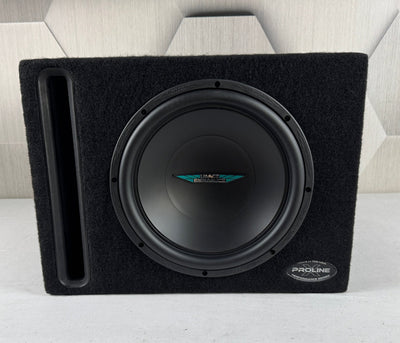

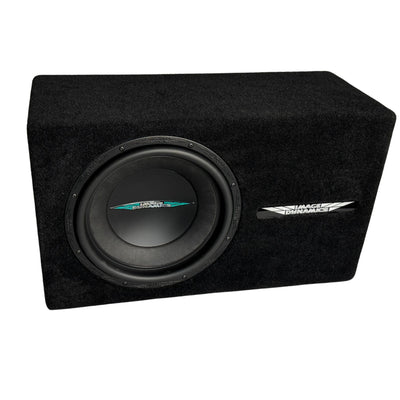

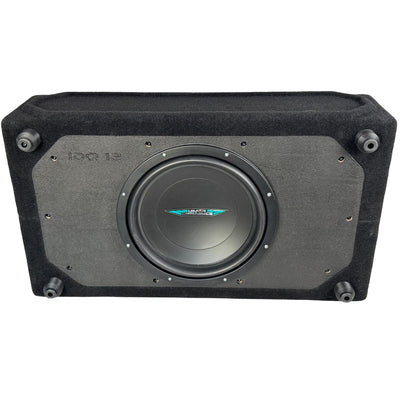

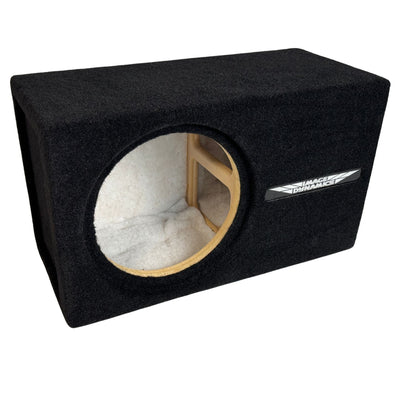

Compatible Enclosures
EBP Calculator
Choosing the right enclosure for your subwoofer isn’t guesswork — it’s science. The Efficiency Bandwidth Product (EBP) is a simple calculation that uses a driver’s Fs (resonance frequency) and Qes (electrical Q) to determine whether it performs best in sealed, ported, or both types of boxes.
- EBP under 50 → Works best in sealed enclosures for tighter, more controlled bass.
- EBP over 100 → Better suited for ported designs where efficiency and output are the priority.
- EBP between 50–100 → Flexible enough to perform well in either design, depending on system goals.
Use our interactive calculator below to compare subwoofers, see where each model falls, and make an informed decision on the best enclosure type for your setup.
Efficiency Bandwidth Product (EBP)
Fs (Hz): 34 hz
Qes: .786
Lower EBP → Sealed. Higher EBP → Ported.
Xmax (mm): 14.5 mm
Mounting Depth (inches): 5.91"
