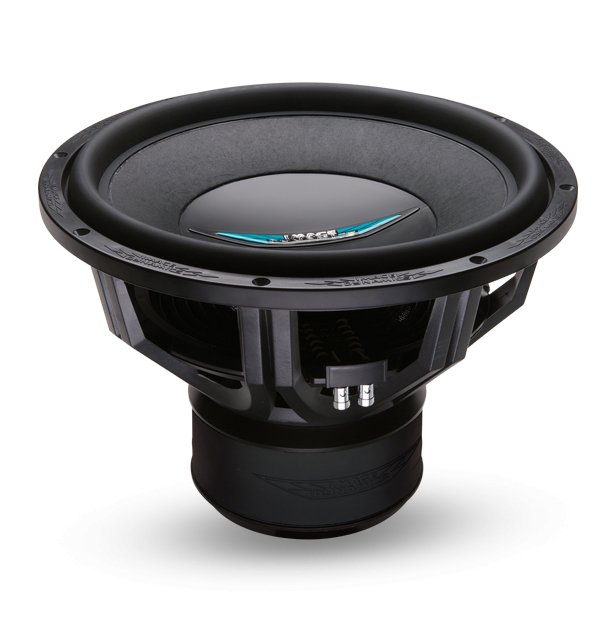

Image Dynamics IDMAX15 V4 15 inch Subwoofer

Product Information

Overview

The Ultimate Sound Quality Powerhouse

The Image Dynamics IDMAX15D4-V4 represents the pinnacle of subwoofer engineering, meticulously designed for discerning audio enthusiasts who demand both exceptional sound quality and impressive output levels. As the flagship model in Image Dynamics' renowned IDMAX Series, this 15" dual 4-ohm subwoofer delivers "the perfect blend of power and grace," reproducing even the subtlest details at the lowest frequencies while handling extremely high output levels. Handcrafted in the USA since 1992, this fourth-generation subwoofer continues Image Dynamics' legacy of manufacturing world-class bass reproduction equipment that stands apart from conventional offerings.

Engineering Excellence for Superior Performance

At the heart of the IDMAX15D4-V4 is its innovative high-excursion design featuring a precision-engineered motor assembly and suspension system. The subwoofer incorporates an aluminum neck joint paired with an American-made flat-wound extended voice coil that maximizes durability and heat dissipation. This meticulous construction allows the subwoofer to operate with minimal distortion even during extended high-output sessions, maintaining clarity and definition when lesser subwoofers would compress or lose detail. Audio enthusiasts will appreciate the subwoofer's remarkable ability to maintain tonal accuracy across its entire frequency range.

Built for Longevity and Reliability

What truly sets the IDMAX15D4-V4 apart from competitors is its exceptional build quality and forward-thinking design features. The field-replaceable cone assembly allows for easy maintenance without requiring glue—simply remove 16 screws and use the included alignment shims to ensure precise reassembly. This innovative approach significantly extends the subwoofer's lifespan and maintains its performance characteristics over time. The extended Y-35 motor structure provides the magnetic force necessary for precise cone control, ensuring years of consistent, high-quality bass reproduction that will satisfy even the most critical listeners.

Specifications
Specifications Icon

Specifications

Electrical Specifications:

Configuration: Dual 4-ohm voice coils

Power Handling: 1200 watts RMS

Recommended Amplifier Power: 300-1200 watts RMS

Frequency Response: 20-250 Hz

Sensitivity: 87.60 dB @ 1W/1m

DC Resistance (Re): 3.10 Ω per coil

Resonance Frequency (Fs): 29.61 Hz

Equivalent Volume (Vas): 109.03 liters

Total Q Factor (Qts): 0.5

Electrical Q Factor (Qes): 0.75

Mechanical Q Factor (Qms): 1.47

Physical Specifications:

Cone Construction: Pressed paper composite

Surround Material: Parabolic EPDM rubber

Voice Coil Design: High-temperature flat wire, flat wound

Spider: Flat design with NOMEX cloth woven tinsel leads

Dust Cap: Inverted with logo

Basket Construction: Powder-coated alloy proprietary design

Linear Excursion (Xmax): 28.6mm one-way

Peak Excursion: 4" peak-to-peak mechanical

Piston Area (Sd): 934.79 cm²

Mounting Depth: 264.1mm

Mounting Diameter: 375.9mm

Weight: 19.55 kg

Additional Features:

Cooling System: RaDiaToR system for heat dissipation

Structural Design: Radiant Diametric Torsional Reinforcement

Suspension: High compliance design

Cone Assembly: Field replaceable without glue (16-screw system)

Origin: Handcrafted in USA

Warranty: 1-year manufacturer warranty

Features
Features Icon

Features:

Unparalleled Sound Quality

The IDMAX15D4-V4 delivers a listening experience that goes beyond conventional subwoofers by offering exceptional articulation and tonal accuracy. The subwoofer reproduces bass with remarkable detail even at low volume, delivering a level of clarity that reveals nuances in your music you may have never heard before. Its ability to transition from subtle, textured bass lines to powerful, commanding low frequencies makes it versatile enough for any music genre. Whether you're a fan of acoustic jazz, electronic dance music, or anything in between, this subwoofer reproduces low frequencies with the precision and naturalness that bring recordings to life.

Thermal Management Excellence

Heat is the enemy of performance in any audio component, and the IDMAX15D4-V4 addresses this challenge with sophisticated engineering. The voice coil is engineered for high thermal resistance, allowing for extended periods of use without overheating. The innovative RaDiaToR cooling system efficiently dissipates heat away from critical components, preventing power compression and maintaining consistent performance even during the most demanding listening sessions. This thermal efficiency not only preserves sound quality but also significantly extends the subwoofer's operational lifespan.

Minimal Power Compression

Many subwoofers lose their dynamic punch when pushed to high output levels, a phenomenon known as power compression. The IDMAX15D4-V4 is specifically designed to minimize power compression, ensuring consistent output and sound quality across all volume levels. This engineering achievement means you'll experience the same tight, controlled bass whether listening at background levels or pushing the system to its limits. The reduction in power compression results in more impactful dynamic contrasts, allowing you to hear music as the artist intended—with all its emotional impact intact.

Field-Replaceable Cone Assembly

In a groundbreaking departure from conventional subwoofer design, the IDMAX15D4-V4 features a field-replaceable cone assembly that revolutionizes maintenance and longevity. The cone assembly can be replaced without glue using a secure 16-screw mounting system and precision alignment shims. This innovative approach means that in the unlikely event of damage, the subwoofer can be restored to factory-spec performance without specialized equipment. This feature not only extends the product's useful life but also represents a more sustainable approach to high-end audio equipment.

Extended Y-35 Motor Structure

At the core of the IDMAX15D4-V4's performance is its advanced motor system. The Y-35-grade motor structure enhances magnetic force and improves the driver's overall efficiency, ensuring reliable, high-powered performance. This robust motor design provides the precise control necessary for articulate bass reproduction, maintaining cone position accuracy even during extreme excursion. The result is tighter, more defined bass that starts and stops with remarkable precision, eliminating the muddiness and overhang that plague lesser subwoofers.

Flexible Installation Options

The IDMAX15D4-V4's dual 4-ohm voice coil configuration offers exceptional versatility for system integration. This design allows for flexible wiring configurations to optimize performance with different amplifiers. Whether wired in series for an 8-ohm load or parallel for a 2-ohm load, the subwoofer maintains its exceptional sonic characteristics. This adaptability makes it ideal for both single-subwoofer systems and multiple-subwoofer arrays, allowing you to tailor your audio system to your specific space and performance requirements.

Video

No video available for this product.

Related Products
Owners Manual

Every Image Dynamics IDMAX15 V4 15 inch Subwoofer ships with a detailed factory owner’s manual that covers wiring, enclosure recommendations, specifications, and safe operating practices. This document is the official reference for setup and maintenance, ensuring you get the most performance and longevity out of your subwoofer.

We recommend reviewing the manual before installation to:

  • Confirm the correct wiring configuration for your voice coil option (Dual 1Ω or Dual 2Ω).
  • Review enclosure guidelines to match the driver’s performance potential.
  • Understand safe power handling and gain-setting practices to protect your investment.

Keeping this manual handy ensures you have quick access to factory specifications and diagrams, making it easier to fine-tune your system or service the subwoofer when needed.

Performance & Tools

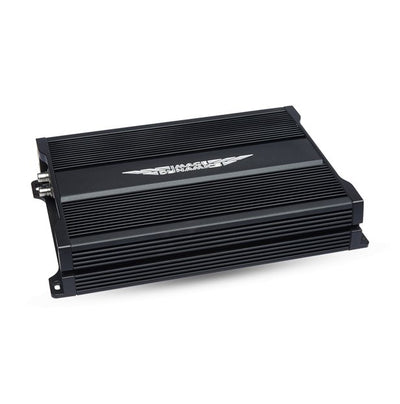

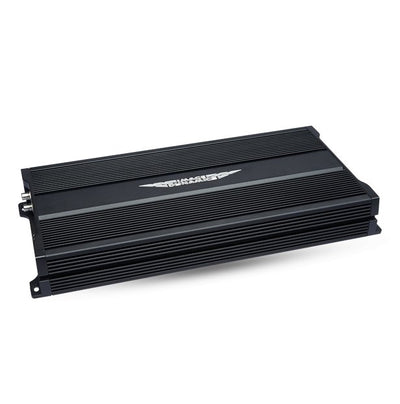

Recommended Amplifier

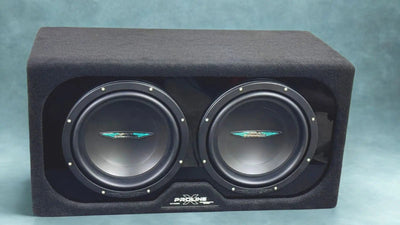

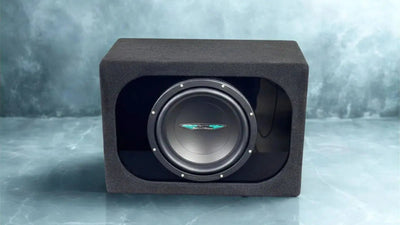

Recommended Enclosures EBP Calculator

EBP Calculator

Choosing the right enclosure for your subwoofer isn’t guesswork — it’s science. The Efficiency Bandwidth Product (EBP) is a simple calculation that uses a driver’s Fs (resonance frequency) and Qes (electrical Q) to determine whether it performs best in sealed, ported, or both types of boxes.

  • EBP under 50 → Works best in sealed enclosures for tighter, more controlled bass.
  • EBP over 100 → Better suited for ported designs where efficiency and output are the priority.
  • EBP between 50–100 → Flexible enough to perform well in either design, depending on system goals.

Use our interactive calculator below to compare subwoofers, see where each model falls, and make an informed decision on the best enclosure type for your setup.

Efficiency Bandwidth Product (EBP)

Fs (Hz): 30hz

Qes: 1.318

Sealed Either Ported
What is EBP? 🛈

Xmax (mm): 22mm

Mounting Depth (inches): 10.4"
