Proline X
Performance Optimized Wedge Sealed 10" Enclosure | JL Audio 10W3v3
SKU: PO 10-S W W3
- Best For: JL Audio 10W3v3 Trunk-Fit Daily Driver Builds
- Net Volume: 0.626 cu ft (JL Spec: 0.625 | 0.675 cu ft Gross)
- Driver Match: JL Audio 10W3v3-2 (SVC 2Ω) or 10W3v3-4 (SVC 4Ω)
- Construction: Rear-Firing Wedge | V-Groove/Dado | Threaded Inserts
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Wedge Sealed 10" Enclosure | JL Audio 10W3v3
Performance Optimized Wedge | JL Audio 10W3v3
Single 10" Sealed Wedge Enclosure | Rear-Firing Trunk-Load Design for the JL Audio W3v3
The JL Audio 10W3v3 in JL's Spec-Perfect Sealed Volume
The JL Audio 10W3v3 is the workhorse of JL's 10-inch subwoofer lineup — 500 watts RMS continuous, a mineral-filled polypropylene cone, an NBR rubber surround, and JL's proprietary Dynamic Motor Analysis system engineered into the motor. This is the driver that strikes an outstanding balance between power handling, enclosure requirements, and excursion for medium-power daily-driver systems, available in Single 2-ohm (10W3v3-2) or Single 4-ohm (10W3v3-4) configurations to match your amplifier.
JL specifies exactly 0.625 cubic feet net internal volume as the optimum sealed enclosure for the 10W3v3. The Performance Optimized Wedge Sealed 10 for JL Audio W3 delivers 0.675 cubic feet gross internal, which after subtracting the 10W3v3's 0.049 cubic foot driver displacement lands at 0.626 cubic feet net — essentially exact match to JL's published sealed spec, delivering the target F3 of 46.9 Hz and Qtc of 0.818.
0.675 cubic feet gross = 0.626 cubic feet net after the 10W3v3's 0.049 cubic foot driver displacement. Essentially exact match to JL Audio's published optimum sealed volume for the 10W3v3 (Qtc 0.818, F3 46.9 Hz). The wedge geometry mounts the woofer on the vertical trunk-lid-side face, firing rearward into the trunk cavity.
Trunk-Load Wedge Design Explained
This wedge is not a front-firing enclosure. The woofer is mounted on the vertical face that sits at the back of the box, closest to the trunk lid, and fires rearward into the trunk cavity. The angled face is on the opposite side of the box — the side that faces the front of the vehicle — and tucks against the rear seat back. Two different problems solved by one geometry.
Seat-Side Face Matches Seat Lean

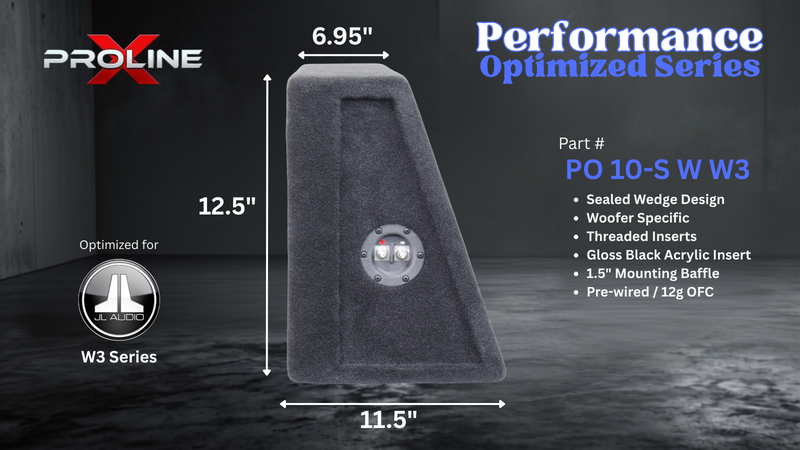

Most factory rear seat backs lean roughly 20 degrees back from vertical. The angled face of this wedge (6.95" at the top, 11.5" at the bottom) matches that lean, tucking against the seat back with no wasted gap. The wedge fills the trunk shelf area behind the seat cleanly.
Trunk-Lid-Side Face Fires the Woofer

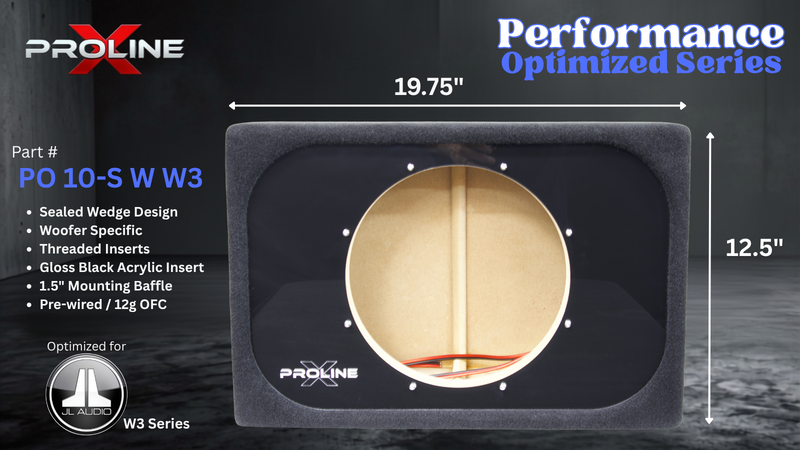

The vertical face on the opposite side of the wedge (19.75" wide × 12.5" tall) is where the 10W3v3 mounts. The driver fires rearward toward the trunk lid, using the trunk cavity as an acoustic loading chamber. This is the classic SQ trunk-load install pattern.
Trunk Cavity Loading
Firing the woofer into the trunk cavity rather than directly into the cabin uses the trunk itself as an extension of the acoustic system. Low frequencies transmit into the passenger cabin through the rear deck, seat back, and cabin boundaries — a smoother, less localized presentation than direct-firing setups.
Preserves Trunk Cargo Space
The wedge tucks against the seat back where cargo can't be stored anyway. The bottom face sits flat and stable on the trunk floor. Cargo space in front of the wedge (toward the trunk lid) stays usable for daily driving.
Engineered to JL Audio's Published Sealed Specification
JL Audio publishes exactly one recommended sealed volume for the 10W3v3: 0.625 cubic feet net internal. In that alignment the driver delivers F3 of 46.9 Hz, Qtc of 0.818, and Fc of 52.9 Hz — the response curve JL's engineers targeted when they designed the driver. The Performance Optimized Wedge Sealed 10 delivers 0.675 cubic feet gross internal, which after subtracting the 10W3v3's 0.049 cubic foot displacement lands at 0.626 cubic feet net — right on JL's spec.
What the JL Spec Delivers
JL engineered the 10W3v3 for a Qtc of 0.818 in a 0.625 cubic foot sealed enclosure. That Qtc target sits slightly above the traditional "flat" 0.707 alignment, giving the driver a warm, impactful bass character that works well in daily-driven cars where cabin gain smooths out the response. Below 0.625 cubic feet the driver overdamps and midbass tightens up but low-end weight drops. Above 0.625 the Qtc drops toward 0.7 and the character shifts more neutral. 0.625 is where the driver sounds like the driver JL designed.
Mounting Geometry
The vertical trunk-lid-side baffle is cut to the 10W3v3's exact 9.0625" cutout specification. The 10W3v3's 5.93" mounting depth fits comfortably inside the cabinet — internal depth from the vertical baffle to the interior of the angled seat-side face ranges from 6.95" at the top to 11.5" at the bottom, providing ample clearance for the driver's motor and cooling requirements. 8/32 threaded inserts are pressed into the baffle backside for secure driver retention.
Performance Series Construction, Driver-Specific Tuning
Langboard Elite MDF
Premium 3/4" MDF panels milled to documented spec — denser and more dimensionally stable than commodity MDF. Less panel resonance, tighter joints, and a longer service life under daily use at the 500 watts RMS the 10W3v3 handles.
V-Groove and Dado Joinery
CNC-cut V-grooves at every panel intersection let the wedge cabinet fold into its angled shape with maximum glue surface. Dado joints lock the vertical woofer baffle and the angled seat-side panel into the side walls — no fasteners visible from outside, no exposed end grain at joints.
8/32 Threaded Inserts
Threaded inserts pressed into the vertical woofer baffle accept stainless steel mounting screws. No stripped pilot holes, no MDF damage from drywall screws, no surprises when the next driver upgrade rolls around.
Pre-Wired Terminal Cup
Proline X ABS/carbon fiber composite terminal cup, pre-wired with 12-gauge OFC inside the cabinet, with stainless steel hardware accepting both spade and banana terminations on the input side.
Every panel is cut on ShopSabre CNC routers in our Tullahoma, TN facility. The angled seat-side panel requires precise CNC compound cuts to hit both the volume target and the mating angles between the top and bottom edges — tolerances that manual fabrication can't reliably hold. Internal volume is verified on every unit to ensure the JL-spec 0.625 cubic foot net target is achieved.
Customize Your Build
Carpet Finish
Dark Gray Trunkliner is the standard durable wrap, matched to most factory trunk and cargo-area carpet tones. Plush Black (+$10) is a deeper, more luxurious nap that pairs well with blacked-out interiors and show builds.
Acrylic Insert Color
Choose Black, Blue, Red, or White for the baffle insert to match your build. Or skip the insert entirely (-$40) for a clean, understated look. The insert is purely cosmetic — performance is identical across colors.
Box-Only or Loaded
Add a JL Audio 10W3v3-2 (2-ohm) or 10W3v3-4 (4-ohm) driver directly to your order and we'll ship the complete loaded system, ready to wire to your amplifier. Already own your 10W3v3? Order the enclosure box-only and drop in the driver you have.
Wiring the JL Audio 10W3v3 to Your Amplifier
The JL Audio 10W3v3 is a single voice coil driver available in two impedance versions to match different amplifier configurations. The pre-wired terminal cup accepts the two-conductor connection via 12-gauge OFC, with stainless steel input hardware.
The 10W3v3-2 (Single 2-ohm) presents a 2-ohm load directly to your amplifier. The 10W3v3-4 (Single 4-ohm) presents a 4-ohm load. Pick the impedance version that matches your amplifier's stable-load requirements — most modern class D monoblocks are stable at 2 ohms and deliver more power at that load, but 4-ohm operation is easier on both the amp and the driver for daily use.
The 10W3v3 is rated for 500 watts RMS continuous, with JL Audio recommending amplifier power in the 150 to 500 watt RMS range. Aim for a clean, well-regulated amplifier delivering 250 to 400 watts RMS at your chosen impedance for balanced output and long-term reliability.
Important: JL Audio explicitly recommends against using this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance. Use your amplifier's active low-pass filter to set the sub's upper cutoff, typically between 80 and 100 Hz for musical accuracy.
Built in Tennessee, Backed by Audio Intensity
Every Performance Optimized enclosure is CNC-cut, assembled, and finished in our Tullahoma, TN facility. Components are pulled from inventory after your order is placed, then bonded and wrapped — a 2 to 5 business day assembly window before the box ships. No pre-built inventory sitting in warehouses, warping in storage. Each unit is built to order.
Backed by a 1-year limited warranty against structural failure and hardware defects. Questions on fitment, wiring, or amplifier pairing? Contact us — we install this gear ourselves, in our own vehicles.
JL's Spec Volume, in a Trunk-Load Wedge
Right on JL Audio's published optimum sealed volume for the 10W3v3 — 0.625 cubic feet net internal — in a trunk-friendly wedge geometry that fires the driver rearward into the trunk cavity. Precise driver-specific engineering for the W3 you already chose.
| Enclosure Type | Sealed | Wedge Geometry | Rear-Firing Trunk-Load |
| Driver-Specific Fitment | JL Audio 10W3v3-2 (SVC 2Ω) or 10W3v3-4 (SVC 4Ω) |
| Internal Volume (Gross) | 0.675 Cubic Feet |
| Internal Volume (Net After Displacement) | 0.626 Cubic Feet (JL Spec: 0.625) |
| Baffle Configuration | Vertical Trunk-Lid-Side Woofer Mounting Face |
| Material | Langboard Elite 3/4" MDF |
| Front Baffle Construction | Double-Layer 1.5" MDF (Two 3/4" Sheets Bonded) |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Construction | ShopSabre CNC / Angled Seat-Side Compound Cuts |
| External Width | 19.75 Inches |
| External Height | 12.5 Inches |
| External Depth (Top) | 6.95 Inches |
| External Depth (Bottom) | 11.5 Inches |
| Baffle Angle | ~20° From Vertical (Seat-Side Face) |
| Mounting Hole Diameter | 9.0625 Inches |
| Mounting Hardware | 8/32 Threaded Inserts | Stainless Steel Screws Included |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | 12g OFC Pre-Wired |
| Damping | Polyfill Pre-Installed |
| Recommended Power | 250-400 Watts RMS (150-500W JL Spec Range) |
| Target Qtc / F3 | 0.818 / 46.9 Hz (JL Published Sealed Spec) |
| Carpet Finish | Dark Gray Trunkliner (Standard) or Plush Black (+$10) |
| Acrylic Insert | Black, Blue, Red, White, or None (-$40) |
| Bundle Options | Box Only | Add a JL Audio 10W3v3 Driver (2Ω or 4Ω) |
| Warranty | 1-Year Limited (Enclosure) |
| Manufactured | Tullahoma, Tennessee, USA |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
