Proline X
Proline X Performance Wedge P12-WDS III Sealed Enclosure for Dual 12" Subwoofers
SKU: P12D-WS III-G
- Best For: Dual 12" Subwoofer Builds | Compact & Midsize Trunk Installs
- Tuning: Sealed — No Port Tuning
- Net Volume: 2.0 cu ft
- Construction: Single Face Baffle | Common Chamber | V-Groove & Dado Joinery | Langboard Elite MDF
Financing available — choose Shop Pay Installments at checkout.

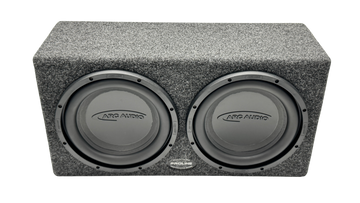

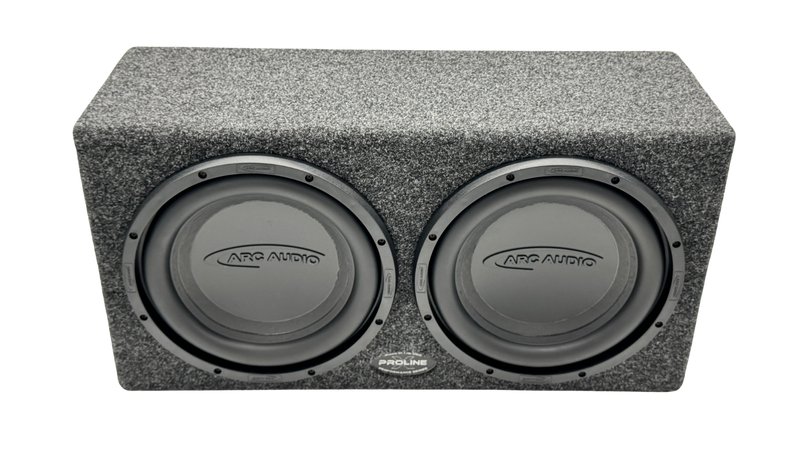

Proline X Performance Wedge P12-WDS III Sealed Enclosure for Dual 12" Subwoofers
Proline X P12-WDS III
Dual 12" Wedge Sealed Enclosure | V3
Enclosure Only!
Two 12" Drivers. Wedge Geometry. Common Sealed Chamber.
The Proline X P12-WDS III is the third-generation dual 12" sealed wedge enclosure, built for installs where two drivers are required and trunk space is still a constraint. At 2.0 ft³ net sealed in a common chamber with a tapered profile that hugs the rear seat contour, this enclosure delivers the combined output of a dual 12" system in a footprint that reclaims inches of upper trunk space compared to a rectangular alternative.
The wedge tapers from 13.75" deep at the bottom to 8.5" deep at the top, matching the natural recline angle of most modern rear seats. Position the shallow edge against the seatback and the deep edge on the trunk floor — the enclosure nestles flush against the seat naturally, eliminating the wasted triangular void that forms behind a rectangular enclosure. The 28" width accommodates both drivers at correct baffle spacing. Internal bracing runs throughout the common chamber to control panel resonance across the full enclosure width.
Every panel is CNC-cut from Langboard Elite MDF to exact internal volume and assembled by hand in our Tennessee facility. Available in Dark Gray Trunkliner at $229.99 or Plush Black at $239.99. Shipping is included.
Why Wedge Geometry
The Problem With Rectangular Enclosures
Modern sedan and coupe rear seats recline at 20 to 30 degrees from vertical. When a rectangular enclosure is placed against that angled surface, the bottom edge sits flush against the seat while the top edge extends straight up into the trunk, leaving a triangular air gap behind the enclosure that serves no acoustic purpose. That wasted space typically measures 2 to 4 inches at the top edge — and at 28" wide, a dual driver rectangular enclosure wastes significantly more of your trunk than a single driver alternative.
The Solution
The P12-WDS III's back panel angles at approximately 20 degrees, closely matching typical rear seat recline. Position the shallow edge (8.5") against the seatback and the deep edge (13.75") on the trunk floor — the enclosure fills the available space correctly with no wasted void behind it. The full 2.0 ft³ internal airspace is preserved through optimized width and height dimensions. No acoustic compromise. Space savings only.
Where The Wedge Pays Off
Full-size sedans running dual 12" drivers where trunk depth is the limiting factor. Coupes and sports cars with aggressive seat recline angles and enough trunk width for a 28" enclosure. Any dual driver install where the rectangular alternative consumes too much of the upper trunk space. The wedge format is the correct solution when you need two drivers and you still need to use your trunk.
Construction: Langboard Elite MDF, V-Groove And Dado Joinery
Langboard Elite MDF, Named And Mill-Documented
Every panel is cut from Langboard Elite MDF, 3/4" (18mm), a named, mill-documented panel stock produced in the United States. The specifications below are pulled directly from Langboard's published mill data.
| Density | 48.5 lbs/ft³ | Higher density means less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Resistance to delamination under sustained bass pressure |
| Modulus of Elasticity | 410,000 psi | Panel stiffness under load; less flex means less resonance |
| Face Screw Holding | 325 lbs | Baffle hardware stays locked under vibration |
| Edge Screw Holding | 250 lbs | Joint integrity at every panel edge connection |
V-Groove And Dado Joinery
Every panel joint uses V-groove and dado joinery — CNC-cut interlocking grooves that mechanically lock panels before adhesive is applied. The angled back panel on a wedge enclosure presents joint geometry that simple butt joints cannot handle reliably over time. V-groove and dado joinery provides the mechanical interlocking and increased glue surface area that keeps angled joints airtight under bass pressure cycling.
Internal Bracing
At 28" wide, the P12-WDS III has significant unsupported panel spans. Internal bracing runs throughout the common chamber to control panel resonance independently of joinery. Every structural flex point is addressed before it becomes an acoustic problem — the result is an enclosure that stays rigid and acoustically inert under sustained output from two drivers.
Proline X Terminal Cup
Built in-house at our Tennessee facility. Proline X ABS/carbon fiber terminal cup with stainless hardware and copper ring terminals, pre-wired 12g OFC speaker wire. Recessed mount keeps the cup protected from cargo contact.
Hand-Assembled In Tennessee
Every enclosure is CNC-cut on ShopSabre industrial routers and hand-assembled at our facility in Tullahoma, Tennessee. Inspected before it ships. No overseas manufacturing.
Fitment Guide
Dimensional Specifications
External Dimensions: 28" W x 14.5" H x 8.5" D (top) / 13.75" D (bottom)
Net Internal Volume: 2.0 ft³ — common chamber
Alignment: Sealed
Subwoofer Cutout: 11.13" x2
Max Mounting Depth: 8.5"
Front Panel Thickness: 0.75" Single Baffle
Driver Compatibility
The P12-WDS III accommodates any 12" subwoofer with a cutout diameter at or below 11.13" and a mounting depth at or below 8.5". Both drivers share a common 2.0 ft³ sealed chamber. Verify published driver specs before ordering. If you need help confirming compatibility with a specific driver, contact us before purchasing.
Installation Orientation
Position the shallow edge (8.5") against the rear seat, with the deep edge (13.75") on the trunk floor. This is the orientation that produces the space-saving benefit — the taper follows the angle of the rear seatback, eliminating the triangular void that forms behind a rectangular enclosure. Installing with the deep edge against the seat defeats the purpose of the wedge geometry entirely. Verify orientation before final installation.
Dual 12" Sealed. Wedge Geometry. Tennessee-Built.
The Proline X P12-WDS III delivers dual 12" sealed alignment in a common 2.0 ft³ chamber in a footprint that works with your vehicle's rear seat geometry instead of against it. Langboard Elite MDF. V-groove and dado joinery. Internal bracing throughout. Proline X ABS/carbon fiber terminal cup with stainless hardware and copper ring terminals. Hand-assembled in Tennessee and inspected before it ships.
Two drivers. Common sealed chamber. Wedge profile. Shipping included.
| Material | Langboard Elite MDF, 3/4" (18mm) |
| Enclosure Type | Sealed |
| Configuration | Dual driver — common chamber |
| Net Internal Volume | 2.0 ft³ Net |
| Tuning Frequency | N/A |
| External Width | 28" |
| External Height | 14.5" |
| External Depth (Top) | 8.5" — shallow end |
| External Depth (Bottom) | 13.75" — deep end |
| Wedge Angle | ~20° taper |
| Subwoofer Cutout | 11.13" x2 |
| Max Mounting Depth | 8.5" |
| Front Panel Thickness | 0.75" Single Baffle |
| Finish | Dark Gray Trunkliner ($229.99) / Plush Black ($239.99) |
| Terminal Cup | Proline X ABS/Carbon Fiber, recessed mount, stainless hardware, copper ring terminals |
| Wiring | Pre-wired 12g OFC speaker wire |
| Warranty | 1-Year Limited |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF — 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure — because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF — Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source — not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure — the most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks — relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention — relevant for every joint that isn't face-to-face |
200 psi — The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually — the symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE — Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness — resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level — not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge — Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint — where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock — Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification — it is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
