Performance Optimized Down Fire Wide Sealed Dual 12" Shallow Sub Enclosure | Wavtech thinPRO12

The Down Fire Wide Format

Down Fire Wide takes the same pair of Wāvtech thinPRO12 our standard 30 by 15 inch Down Fire enclosure is built for and lays the cabinet out along a different axis. It is 1 inch shallower front to back, 14 inches instead of 15, and 11 inches longer, 41 instead of 30.

Fourteen inches is the practical minimum depth for a 12. The frame needs about 13 inches of baffle, and the cabinet walls need land around it, so the depth cannot come down further. The thinPRO12's 13.0625 inch frame sits on the 14 inch deep baffle with about 0.47 inch of baffle fore and aft.

Spreading the airspace along 41 inches means the wide box stands lower. This cabinet is 41 inches wide by 14 inches deep by 7 inches tall, against 8.4375 inches tall for the standard 30 by 15, both measured in the down fire position and excluding standoffs. With the 1.75 inch standoffs installed it stands 8.75 inches.

Performance, Performance Optimized, and Micro

Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.

Built Around the Wāvtech thinPRO12

Nothing about this cabinet is generic. Both baffle positions are bored to the thinPRO12's 11.125 inch, 282mm cutout, and the internal height clears its 3.0 inch, 76.2mm mounting depth with 3.25 inches to spare above the motor.

Each driver is offered as the thinPRO12-2 (2 ohm SVC) or the thinPRO12-4 (4 ohm SVC), rated 750 watts RMS and 2250 watts peak with 20mm of one way linear excursion and 54mm of peak to peak mechanical travel. Across the pair that is 1500 watts RMS combined and 1021.4 cm² of cone area.

The engineering is unusual for a driver that mounts in three inches. A 5 inch, 127mm four layer high temp voice coil rides on a vented polyimide composite former. The cone is honeycomb Nomex and glass fiber composite, the suspension pairs a high excursion double roll NBR surround with dual internal mirrored NBR spiders, and the motor is an FEA optimized dual gap structure with double stacked strontium magnets in a vented cast aluminum frame. Free air resonance is 25 Hz on the -2 and 26 Hz on the -4, low for any 12 and unusual for one this shallow.

Net Volume, Not Gross

Each chamber holds 0.607 cubic feet net, 1.213 cubic feet net total from a 1.32 cubic foot gross cavity, after the divider, the brace work and each driver's 0.042 cubic feet of displacement are subtracted.

That produces one reading per coil per driver: the thinPRO12-2 lands at Qtc 0.910, Fc 46.4 Hz, F3 38.3 Hz; the thinPRO12-4 lands at Qtc 0.854, Fc 48.3 Hz, F3 41.3 Hz. The figure is above the 0.707 maximally flat reference, so there is real lift near the corner rather than a textbook flat curve.

Wāvtech publishes 0.60 as the preferred sealed volume for the thinPRO12, and this cabinet lands within about a hundredth of it. Their own published alignment at that volume agrees with the figures above to within a hertz of F3 on both variants, which is why we build to their number rather than adjusting it.

True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's published displacement, not estimated from external dimensions minus wall thickness. All figures are anechoic; firing down into the floor, the sealed rolloff meets rising cabin gain below 60 Hz, so in-car response extends below them.

Two Chambers, Not One

This enclosure follows the Proline X standing design rule for dual sealed builds: two fully separate chambers divided by a bonded full-height 3/4 inch MDF panel.

Two drivers sharing one sealed volume interact acoustically. Each driver's compression phase becomes the pressure environment the other is working against, which smears transient response and blurs the alignment each would have on its own. A full divider eliminates that. Each driver gets its own 0.607 cubic feet net and its own polyfill, and one shared side mounted terminal cup feeds both positions.

On a long cabinet the divider does structural work as well, tying the front and rear walls together at the centre of a 41 inch span.

Down Fire Wide Construction

Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps both chambers airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

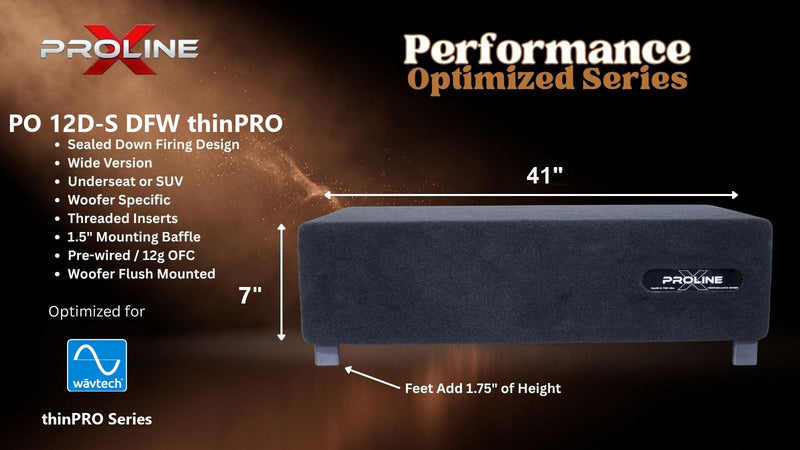

The cabinet measures 41 inches wide by 14 inches deep by 7 inches tall, measured in the down fire position and excluding standoffs. The 1.75 inch standoffs ship with the enclosure but are not installed, so plan the space around the installed height of 8.75 inches.

Power and Wiring

Each thinPRO12 is rated 750 watts RMS and 2250 watts peak, 1500 watts RMS combined across the pair. Wāvtech's recommended power range is 250 to 750 watts RMS per driver. Sensitivity is 83 dB on the -2 and 84 dB on the -4, which is the tradeoff for 20mm of excursion in a 3 inch frame, so give them the upper half of that range.

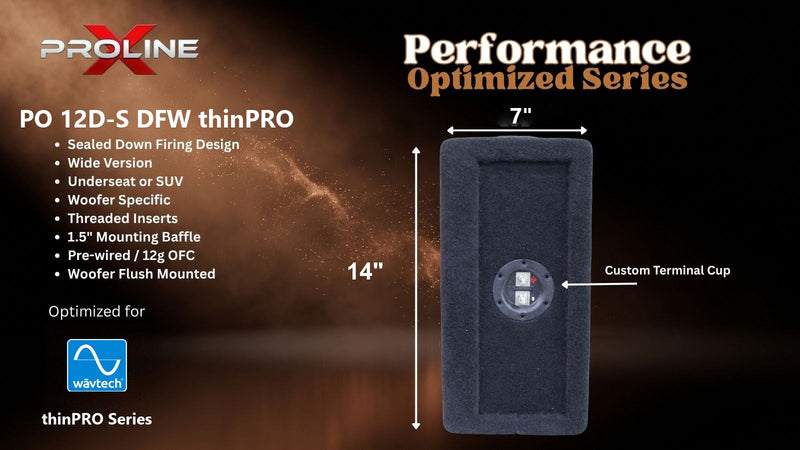

Both variants are single voice coil, so there is no coil configuration decision at the driver. One side mounted cup feeds both positions in parallel: a pair of thinPRO12-2 drivers presents 1 ohm at the cup and a pair of thinPRO12-4 presents 2 ohms. Use two of the same model and confirm the resulting load against your amplifier's minimum stable impedance.

The enclosure carries a 1 year limited warranty. Bring your own pair of thinPRO12-2 or thinPRO12-4 subwoofers; the drivers are purchased separately.
