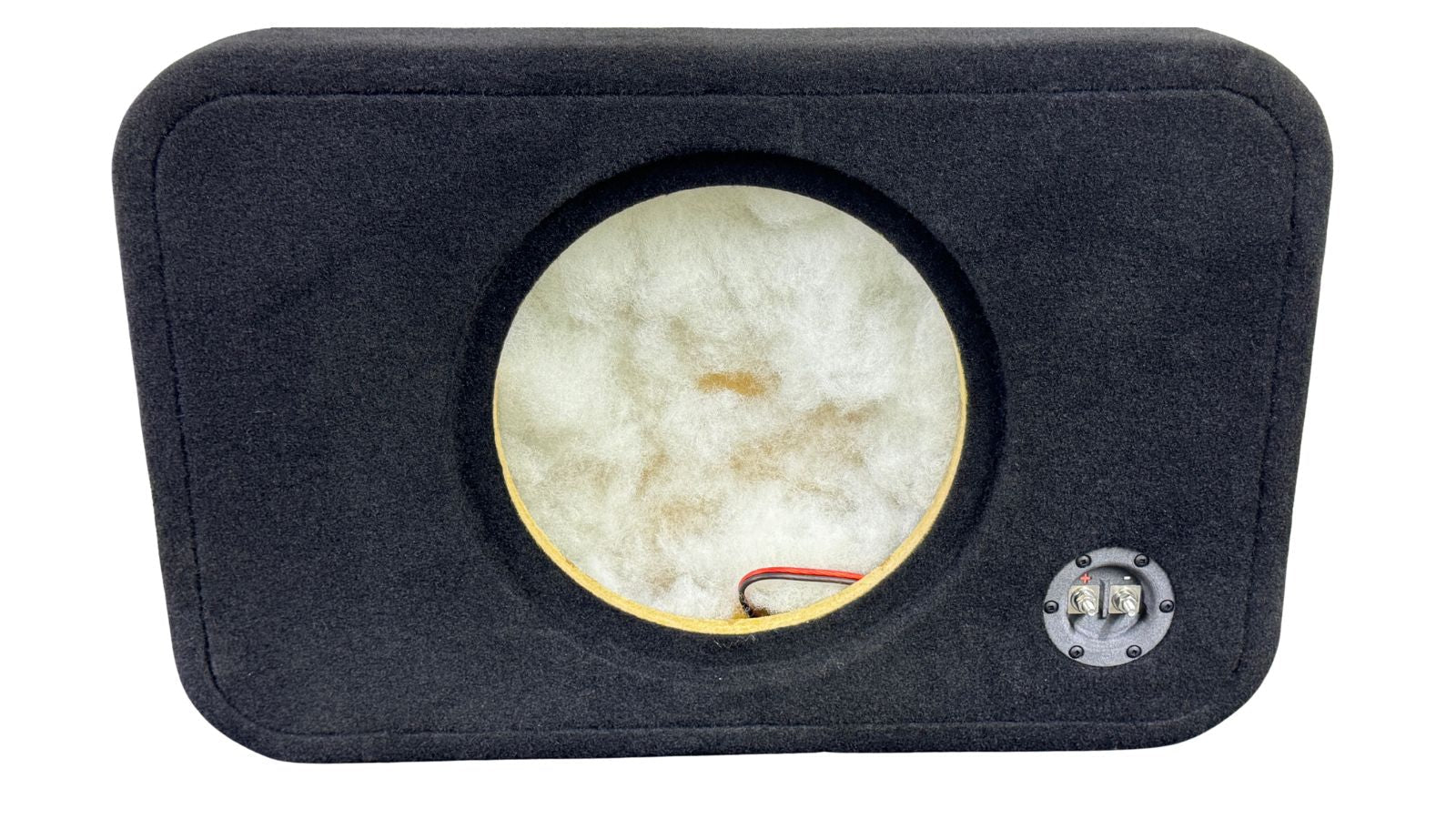

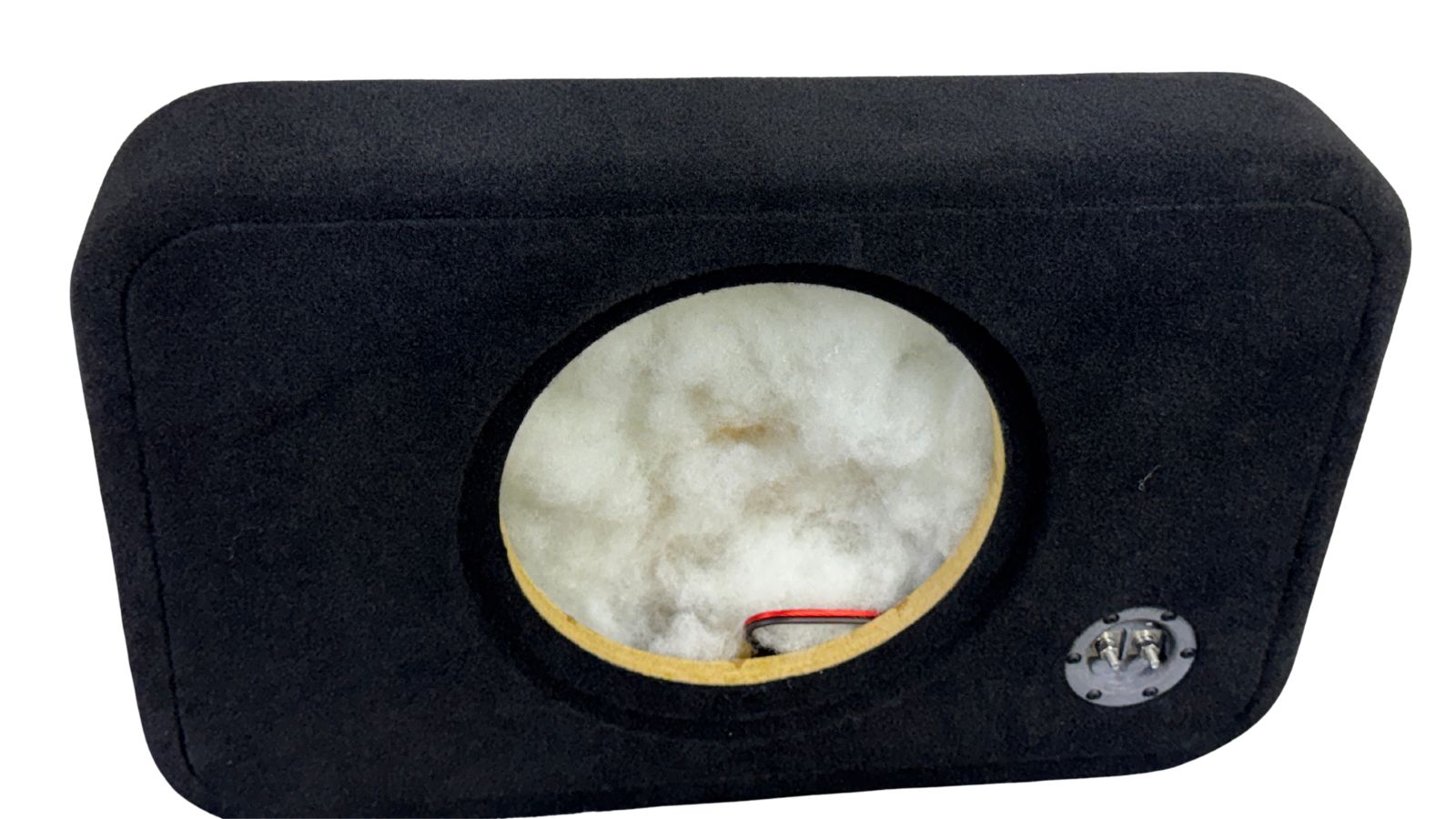

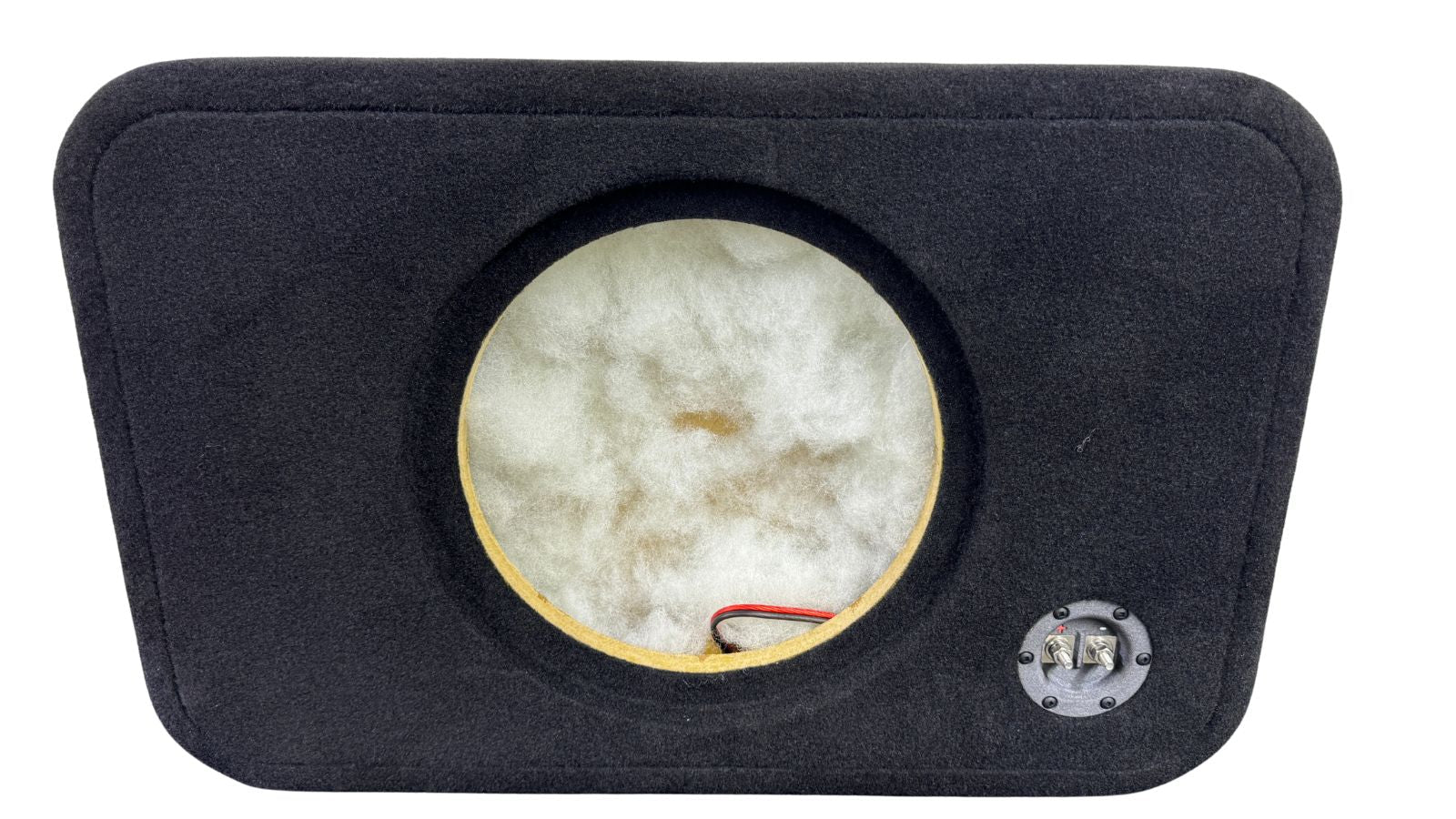

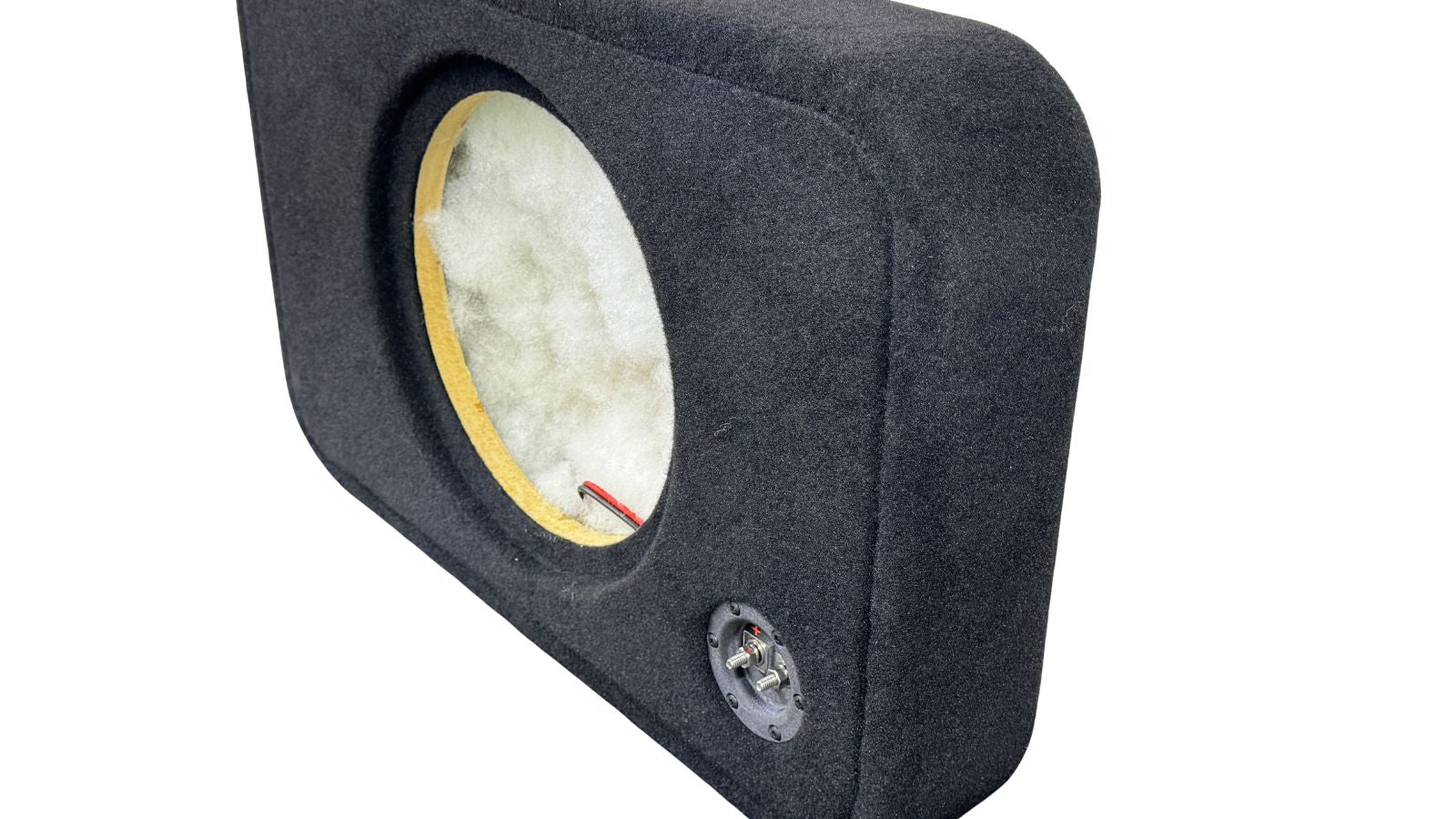

Proline X Micro Series 12" Sealed Enclosure - Fits Wavtech thinPRO 12
SKU: M12-S Wav
- Best For: Behind-seat truck installs, compact trunk builds, tight SUV cargo areas
- Power: Rated for up to 750W RMS (Wavtech thinPRO 12)
- Topology/Class: Sealed / Double-Layer Stack Fab Baffle / Front-Fire or Downfire
- Sonic Character: Musical, extended low end — 0.60 cu ft hits Wavtech's optimal sealed volume exactly
Financing available — choose Shop Pay Installments at checkout.
Proline X Micro Series 12" Sealed Enclosure - Fits Wavtech thinPRO 12
Wavtech's Optimal 0.60 cu ft.
In 4.5 Inches of Depth.
The Wavtech thinPRO 12 has a published optimal sealed volume of 0.60 cubic feet. The Proline X M12-S WAV delivers exactly that — net, after displacement — in a double-layer stack-fab enclosure that is 4.5 inches deep. Use it front-firing or flip it to downfire with the included feet. Where a conventional 0.60 cubic foot sealed 12" box runs 10-12 inches of depth, this one fits behind the seat of a crew cab truck.
0.60 Cubic Feet — The Number Wavtech Publishes as Optimal
Wavtech publishes a sealed volume range of 0.40–1.0 cubic feet for the thinPRO 12, with 0.60 cubic feet as the optimum. At that volume the system Qtc lands near 0.94 based on the thinPRO 12's published T/S parameters — slightly elevated above neutral, which in real-world vehicle cabin environments produces a useful low-frequency extension curve that works with cabin gain rather than against it.
The M12-S WAV is built to hit 0.60 cubic feet net — calculated after driver displacement and double-layer baffle material are subtracted from gross internal volume. Generic shallow-mount 12" enclosures advertise gross volume and sell the same box for multiple driver models. This enclosure is built to one spec, for one driver, and the volume target is the one Wavtech specifies as optimal. The acoustic result you model for this driver in this box is the result you get.
1.5" Double-Layer Baffle — Built for 750W RMS
The front baffle on the M12-S WAV is 1.5 inches thick — two CNC-cut Langboard Elite panels bonded in a stack-fab assembly. The baffle is the highest-stress structural member in any sealed enclosure. It carries the driver's mechanical mounting load and sustains the full acoustic pressure differential between the pressurized interior and the exterior on every bass transient. At 750 watts RMS, the thinPRO 12 loads that baffle hard.
A single 3/4" panel at this driver size and power class will resonate at frequencies within the driver's operating range, adding coloration to the output. Two bonded Langboard Elite layers at 1.5 inches effectively double the panel mass and eliminate the resonance problem at the structural level. The rest of the enclosure runs standard stack-fab construction throughout — dado-jointed, adhesive-sealed, and CNC-cut to tolerance on every panel.
0.60 cu ft Net — Wavtech's Published Optimum
Wavtech specifies 0.60 cubic feet as the optimal sealed volume for the thinPRO 12. This enclosure delivers that number net — after driver displacement and double-layer baffle thickness are subtracted. Not approximated from external dimensions.
1.5" Double-Layer Stack Fab — No Baffle Resonance
Two bonded layers of Langboard Elite 3/4" MDF form a 1.5-inch baffle that does not flex or resonate at the power levels the thinPRO 12 is rated for. Panel resonance at the baffle adds coloration to bass output — this construction eliminates it at the source.
8/32 Threaded Inserts — Machine Screws Included
The double-layer baffle is fitted with 8/32 threaded inserts. Stainless 8/32 machine screws are included. The thinPRO 12 threads into steel — not MDF. No stripping, no loosening under vibration, and the driver comes out and reinstalls cleanly every time.
Proline X Terminal Cup — Pre-Wired from the Factory
The Proline X proprietary terminal cup is installed and pre-wired with 12-gauge OFC run internally to the driver location. Connect your amplifier run to the terminal cup, mount the driver to the threaded inserts — installation is complete on both counts without touching internal wiring.
4.5" Total — Where a Standard 12" Box Cannot Go
A conventional 0.60 cubic foot sealed 12" enclosure runs 10-12 inches deep. The M12-S WAV runs 4.5. That is the difference between fitting behind the seat of a crew cab truck and not fitting at all. The thinPRO 12's 3-inch mounting depth is what makes this geometry possible.
Front-Firing or Downfiring — Feet Included
The M12-S WAV ships with rubber feet for downfiring installation. Use it front-firing in standard orientation or flip it downward to couple bass output with the vehicle floor. Downfiring is particularly effective in full-size truck cabs where floor coupling distributes low-frequency response more evenly throughout the cabin.
Stack-Fab Dado Joinery Throughout
Every panel joint beyond the baffle uses CNC-cut interlocking dado slots — mechanical interlock before adhesive, adhesive seal after. No joint relies on glue alone. At the panel level, Langboard Elite MDF with a published 200 psi internal bond rating and 410,000 psi MOE holds structural integrity at sustained high-excursion input levels.
Polyfill Pre-Installed
Polyfill is packed and installed at the factory. It acoustically increases effective internal volume, extending low-frequency output without adding external size. Factory installation ensures consistent packing density across every unit — not left to the installer to estimate.
Standard 12" Cutout — Direct Fit thinPRO 12
The thinPRO 12 uses a standard 12" round mounting flange (282mm / 11-1/8"). The M12-S WAV baffle is machined to that cutout diameter. The driver seats flush, seals against the gasket, and mounts to the threaded inserts without shimming or modification.
Ready to Mount. Ready to Wire. Ready to Downfire.
The M12-S WAV ships fully prepped. The Proline X terminal cup is installed and pre-wired to the driver location with 12-gauge OFC — connect your amplifier run and the wiring side is done. The double-layer baffle uses 8/32 threaded inserts with stainless machine screws included — the thinPRO 12 mounts to steel, not MDF. Rubber feet are included for downfiring installation — no additional hardware required to run it either way. Pre-installed polyfill is already packed at the factory.
Impedance Options — thinPRO12-2 and thinPRO12-4
The Wavtech thinPRO 12 is available as the thinPRO12-2 (single 2-ohm voice coil) and the thinPRO12-4 (single 4-ohm voice coil). Both variants are physically identical and fit this enclosure. Choose the impedance that matches your amplifier's stable load. Single voice coil — single connection, no wiring configuration required.
Where It Fits
At 26.5" × 17" × 4.5", the M12-S WAV opens install locations that no conventional 0.60 cu ft 12" sealed build can reach:
- Behind-seat — full-size crew cab and extended cab trucks
- Under rear bench — SUVs and full-size vans
- Trunk floor — full-size sedans and wagons
- Cargo floor — crossovers and mid-size SUVs
- Flat cargo area — hatchbacks and sports cars
- Custom under-bed installs — utility and work trucks
All Proline X Micro Series enclosures are covered by a two-year manufacturer's warranty against defects in materials and workmanship. Built in our Tennessee facility and inspected before shipment. Contact Audio Intensity directly for warranty support.
Made in Tennessee
Every Proline X Micro Series enclosure is CNC-cut and hand-assembled in Tullahoma, Tennessee on ShopSabre CNC routers. Internal volume, dado joint depth, cutout diameter, baffle layer count, and terminal placement are held to spec on every unit. Langboard Elite MDF is used throughout — a named, mill-documented board with published density, internal bond, and screw-holding specifications. Not a generic "premium MDF" claim.
| Compatible Driver | Wavtech thinPRO12-2 / thinPRO12-4 |
| Enclosure Type | Sealed |
| Internal Volume (Net) | 0.60 Cubic Feet |
| Material | Langboard Elite 3/4" MDF |
| Construction | CNC-Cut Stack Fab / Interlocking Dado Joints |
| Front Panel Thickness | 1.5 Inches (Double-Layer Stack Fab) |
| External Width | 26.5 Inches |
| External Height | 17 Inches |
| External Depth | 4.5 Inches |
| Max Mounting Depth | 3.0 Inches |
| Woofer Opening | Standard 12" Cutout — Direct Fit thinPRO 12 |
| Driver Mounting | 8/32 Threaded Inserts — Stainless Machine Screws Included |
| Terminal Cup | Proline X Terminal Cup — Pre-Wired |
| Internal Wiring | 12-Gauge OFC (Oxygen-Free Copper) |
| Polyfill | Pre-Installed |
| Finish | Plush Black Automotive Carpet |
| Warranty | 2 Years — Proline X / Audio Intensity |
| Weight | 22 lbs |
| Downfire Feet | Included |
| Firing Direction | Front-Firing or Downfiring |
| Made In | Tullahoma, Tennessee, USA |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Micro Series enclosure is CNC-cut from Langboard Elite MDF — 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure — because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used across the full Proline X lineup.
Langboard Elite MDF — Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source — not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure — the most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks — relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention — relevant for every joint that isn't face-to-face |
200 psi — The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually — the symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE — Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness — resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with stack-fab layering and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level — not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge — Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint — where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Micro Series enclosure is not going anywhere.
Named Panel Stock — Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification — it is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
