Performance Optimized Down Fire Sealed 10" Enclosure | Wāvtech thinPRO10
SKU: PO 10-S DF thinPRO
- Alignment: 0.40 cu ft net. Qtc 0.869 / F3 41.5 Hz (-2), Qtc 0.821 / F3 44.5 Hz (-4)
- Driver: Wāvtech thinPRO10-2 (2Ω) or thinPRO10-4 (4Ω) SVC, 750W RMS / 2250W peak, 20mm Xmax, 2.875" mounting depth
- Clearance: No rear clearance required behind the motor, 9.0625" cutout, 3/8" milled magnet relief
- Build: Proline X V-groove and dado joinery, double-layer 1.5" front baffle with flush outer recess, 12g OFC side-mounted terminal cup
- Cabinet: 30"W x 15"D x 4.25"H in down fire position, square corners, shortest enclosure in the Down Fire line
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Sealed 10" Enclosure | Wāvtech thinPRO10
Proline X PO Down Fire 10" Sealed
Cut and tuned for the Wāvtech thinPRO10
Built Around the thinPRO10
Nothing about this cabinet is generic. The baffle is bored to the thinPRO10's 9.0625 inch, 230mm cutout, and the internal height is set by its 2.875 inch mounting depth. Wāvtech publishes no rear clearance requirement behind the motor, because the magnet structure sits essentially flush with the frame rather than protruding into the airspace like a conventional vented pole motor. That is what allows this cabinet to finish at 4.25 inches tall on a 30 by 15 inch footprint, the shortest in the Proline X Down Fire line.
The driver is offered as the thinPRO10-2 (2 ohm SVC) or the thinPRO10-4 (4 ohm SVC). Both are rated 750 watts RMS and 2250 watts peak, with 20mm of one way linear excursion and 54mm of peak to peak mechanical travel. Cone area is 341.76 cm squared and published displacement is 0.028 cubic feet, which is what the net volume figure below is calculated against.
The engineering is unusual for a shallow driver. A 4.5 inch four layer high temp voice coil rides on a vented polyimide composite former. The cone is honeycomb Nomex and glass fiber composite. The suspension pairs a high excursion double roll NBR surround with dual internal mirrored NBR spiders, and the motor is an FEA optimized dual gap structure with double stacked strontium magnets in a vented cast aluminum frame.
Net Volume, Not Gross
We build this cabinet at 0.40 cubic feet net from a 0.43 cubic foot gross cavity. Wāvtech's preferred sealed volume is 0.35 net, where they publish Qtc 0.86 on the thinPRO10-2 and Qtc 0.81 on the thinPRO10-4. This cabinet sits within 0.05 cubic feet of that target, which lands the alignment within a few thousandths of Wāvtech's own figures while adding a small amount of extra damping.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's published displacement, not estimated from external dimensions minus wall thickness.
Both coil options are a good match in this volume. The thinPRO10-2 runs Fs 31 Hz and Qts 0.55 and lands at Qtc 0.869 with F3 at 41.5 Hz. The thinPRO10-4 runs Fs 32 Hz and Qts 0.52 and lands at Qtc 0.821 with F3 at 44.5 Hz, a more damped alignment that trades three hertz of extension for tighter transient control. Both are single voice coil, so your final impedance is set by which model you buy, not by wiring. If you want to check the math against another volume, the sealed box calculator uses the same published parameters.
Down Fire Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. The cabinet is perimeter cross-braced and pre-filled with polyfill. Corners are square on Down Fire cabinets.

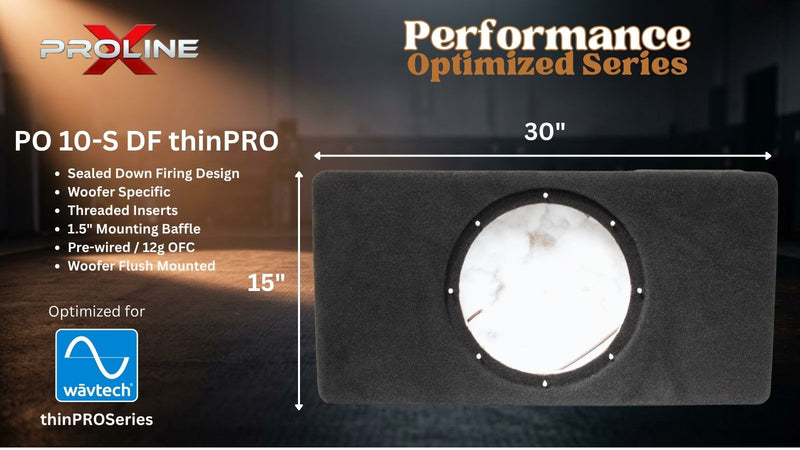

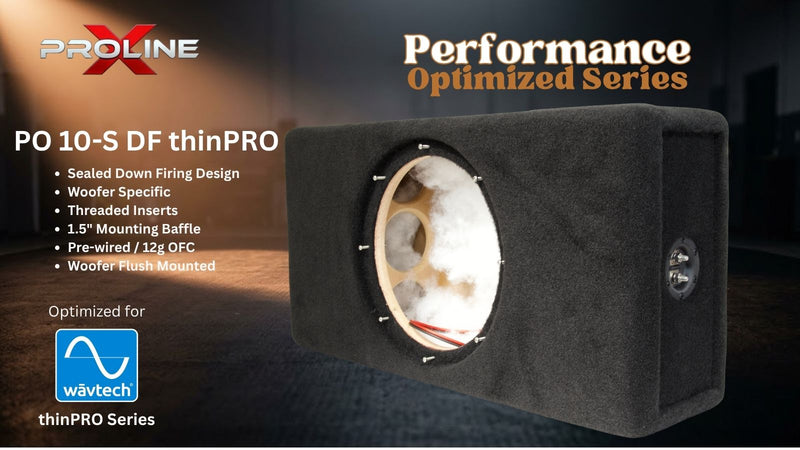

Double Baffle, Flush Recess
The front baffle is 1.5 inches, two bonded 3/4 inch sheets, with the outer layer machined as a flush recess so the driver bolts to the inner layer. That recovers 3/4 inch of internal clearance. Mounting is into 8/32 threaded inserts with stainless machine screws.

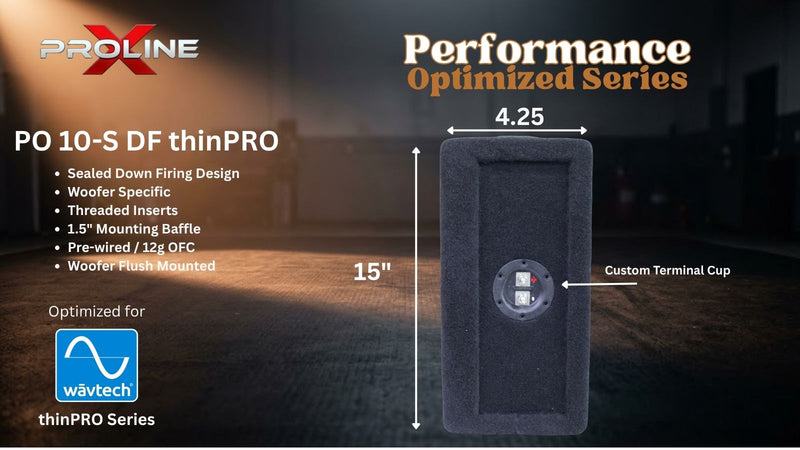

Side-Mounted Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC. Side mounted so it stays accessible with the baffle facing the floor.

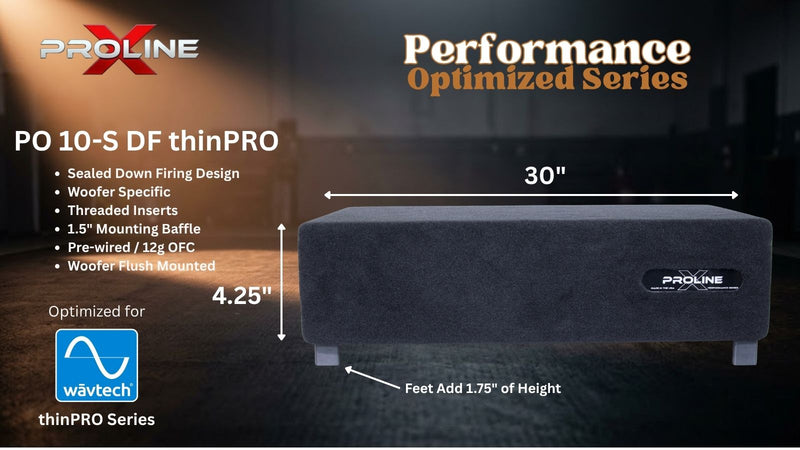

Shortest In The Line
At 4.25 inches in the down fire position this is the shortest cabinet we build in the Down Fire line. A 3/8 inch deep relief is milled into the panel opposite the baffle behind the magnet, and Wāvtech's negligible rear clearance spec does the rest.
Down Firing Into the Floor
The driver fires downward into the floor and the cabinet is floor coupled. The sealed rolloff meets rising cabin gain below 60 Hz, so in car response extends well below the anechoic figure. All external dimensions are stated measured in the down fire position: 30 inches wide, 15 inches deep, 4.25 inches tall.
Power and Warranty
The thinPRO10 is rated 750 watts RMS and 2250 watts peak, and Wāvtech's own recommended power range is 250 to 750 watts RMS. Sensitivity is 81 dB on the thinPRO10-2 and 82 dB on the thinPRO10-4, so plan amplifier gain around the model you choose. Re measures 1.95 ohms on the -2 and 3.35 ohms on the -4.
The enclosure carries a 1 year limited warranty. Bring your own thinPRO10-2 or thinPRO10-4; the driver is purchased separately.
Cut for the Driver, Not the Catalog
One cabinet, one driver, one set of numbers. Cut on ShopSabre CNC routers from Langboard Elite MDF and built one at a time in Tullahoma, Tennessee.
| Series | Proline X Performance Optimized Down Fire |
| Compatible Driver | Wāvtech thinPRO10-2 (2Ω SVC) or thinPRO10-4 (4Ω SVC) |
| Enclosure Type | Sealed | Down Fire Geometry | Floor-Coupled |
| Firing Direction | Down Firing, Driver Fires Toward Floor |
| External Width | 30 Inches |
| External Depth | 15 Inches |
| External Height | 4.25 Inches, Shortest In The Down Fire Line |
| Dimension Reference | All External Dimensions Measured In Down Fire Position |
| Internal Volume (Gross) | 0.43 Cubic Feet |
| Internal Volume (Net) | 0.40 Cubic Feet |
| Wāvtech Preferred Sealed Volume | 0.35 Cubic Feet (This Cabinet Is Within 0.05) |
| Target System Qtc (thinPRO10-2) | 0.869 (Wāvtech Publishes 0.86 At Their Preferred Volume) |
| Target System Qtc (thinPRO10-4) | 0.821 (Wāvtech Publishes 0.81 At Their Preferred Volume) |
| Predicted F3 (thinPRO10-2) | 41.5 Hz |
| Predicted F3 (thinPRO10-4) | 44.5 Hz |
| Driver Fs | 31 Hz (-2) / 32 Hz (-4) |
| Driver Qts | 0.55 (-2) / 0.52 (-4) |
| Driver Qes / Qms | 0.62 / 4.86 (-2) | 0.59 / 4.46 (-4) |
| Driver Vas | 17 Liters / 0.60 Cubic Feet |
| Driver Re | 1.95 Ohm (-2) / 3.35 Ohm (-4) |
| Driver Xmax (One-Way Linear) | 20mm / 0.79 in |
| Driver Xmech (Peak-to-Peak) | 54mm / 2.13 in |
| Driver Sd | 341.76 cm² / 52.97 sq in |
| Driver Displacement | 0.028 Cubic Feet / 0.8 L (Published by Wāvtech) |
| Driver Sensitivity | 81 dB (-2) / 82 dB (-4) |
| Driver Power Handling | 750 Watts RMS / 2250 Watts Peak |
| Recommended Power Range | 250 to 750 Watts RMS (Wāvtech Spec) |
| Driver Voice Coil | 4.5 in / 114mm | 4-Layer High-Temp | Vented Polyimide Composite Former |
| Driver Cone | Honeycomb Nomex + Glass Fiber Composite |
| Driver Surround | High-Excursion Double-Roll NBR |
| Driver Spider System | Dual Internal Mirrored NBR Spiders |
| Driver Motor | FEA-Optimized Dual-Gap, Double-Stacked Strontium Magnets |
| Driver Frame | Vented Cast Aluminum |
| Mounting Depth Required | 2.875 Inches / 72.7mm (Wāvtech Spec) |
| Rear Clearance Required | None / Negligible (Wāvtech Spec) |
| Cutout Diameter | 9.0625 Inches / 230mm (Wāvtech Spec) |
| Driver Overall Diameter With Gasket | 10.8125 Inches / 274.5mm (Wāvtech Spec) |
| Material | Langboard Elite 3/4" MDF |
| Construction | ShopSabre CNC / Perimeter Cross-Brace |
| Panel Thickness | 3/4 Inch |
| Front Baffle Construction | Double-Layer 1.5" MDF | Outer Layer Flush Recess, Driver Mounts To Inner Layer |
| Magnet Relief | 3/8" Deep Milled Relief In Opposite Panel |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Corner Profile | Square (Down Fire Series Standard) |
| Voice Coil Configuration | Single Voice Coil, Impedance Set By Driver Model |
| Driver Mounting | 8/32 Threaded Inserts | Stainless Steel Machine Screws Included |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | Side Mounted | 12g OFC Pre-Wired |
| Damping | Polyfill Pre-Installed |
| Carpet Finish | Dark Gray Trunkliner (Standard) or Plush Black |
| Weight | 24 lb |
| Bundle Options | Enclosure Only (Bring Your Own thinPRO10-2 or thinPRO10-4) |
| Warranty | 1-Year Limited (Enclosure) |
| Built In | Tullahoma, Tennessee, USA |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
0.40 cu ft against a 17.0 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 20.0 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 32.00 | Hz | free-air resonance |
| Qts | 0.520 / 0.550 | 4 / 2 | |
| Vas | 17.00 / 17.00 | L | equivalent compliance |
| Sd | 341.8 | cm² | effective piston area |
| Xmax | 20 | mm | one-way linear travel |
| Pe | 750 | W | continuous RMS |
| SPL | 81.6 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by Wavtech thinPRO10 owner's manual rev2. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
