Cut for the Alpine Type R

Alpine Type R Subwoofer Boxes

Alpine Type R subwoofer boxes, CNC-cut in Tullahoma, Tennessee.

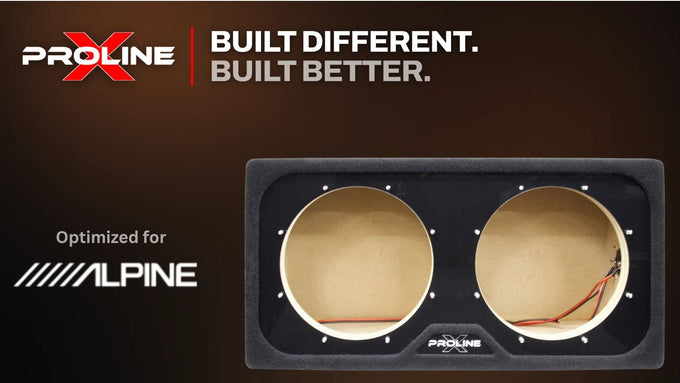

Alpine Type R subwoofer box built by Proline X in Tullahoma, Tennessee

Cut for the Alpine Type R

Alpine's Type R family covers two different drivers: the R2-W, a full-depth 10 and 12, and the RS-W, the shallow R-Series 10 and 12. They share a name but not their parameters, so each one gets its own cabinets.

Every cabinet on this page is built for one Alpine Type R size, named in its title. Singles and duals, sealed and ported, each with its net volume and tuning and external dimensions on the listing.

Alpine Type R enclosures in 10 and 12 inch, sealed and ported.

Cut, assembled and finished in Tullahoma, Tennessee.

Built to fit the Alpine Type R. Enclosure only unless the listing says loaded; the driver is not included.

Decision Shortcut

Find Your Match

Curated picks matched to common build goals

Best Value

Alpine Proline PO 10-S W R2 woofers shown in a black acrylic enclosure with a circular opening, labeled as 15 by 13 inches, on a dark blue background with product specifications and branding.

Proline X

Alpine R2-W10 Box: Sealed 10" Wedge Enclosure

The lowest-priced Alpine Type R cabinet in stock, $239.99, for the 10 inch.

$ 259.99

View Details

Best for SQ

Proline X PO 12-S W R2 sealed wedge, front baffle with gloss black insert and pre-wired leads, 15.3 by 15 inches.

Proline X

Alpine R2-W12 Box: Sealed 12" Wedge Enclosure

A sealed Performance Optimized wedge cut for the Alpine Type R 12 inch: the tightest, most controlled alignment we build for it.

$ 349.99

View Details

Best High-Output

Proline X PO 12-P W R2W ported wedge, front baffle with gloss black insert and pre-wired leads, 30 by 15.5 inches.

Proline X

Alpine R2-W12 Box: Ported 12" Wedge Enclosure

A ported cabinet for the 12 inch, tuned to 35.5 Hz.

$ 399.99

View Details

Best for Trucks

Performance Optimized Series woofer enclosure by Proline, part number PO PO 10D-S W R2, designed for Prodigy NBS series. The black double-baffle enclosure features two circular openings with beige acoustic inserts and is shown with dimension markings of 28.5.

Proline X

Alpine R2-W10 Dual Box: Sealed 10" Wedge Enclosure

A sealed wedge raked to sit flush against a seat back, for the 10 inch.

$ 379.99

View Details

Shop the Lineup

←
→

All products loaded

Every Alpine Type R Box by Size

Which series and shape we build at each size. Prices are the lowest listed at each size today.

Alpine Type R enclosures by size, count and alignment.
SizeSingle sealedSingle portedDual sealedDual portedFrom
10 inchMicro; Performance Optimized down fire and wedgeNot builtPerformance Optimized down fire and wedgeNot built$239.99
12 inchPerformance Optimized down fire and wedgePerformance Optimized wedgePerformance Optimized down fire and wedgeNot built$269.99

Warranty runs by series: 1 year limited on Performance Optimized, 2 years on Professional and Micro.

Alpine Subwoofer Box Directory by Model

We build sealed and ported enclosures for 5 Alpine subwoofer models, 10 to 12 inch, in standard, wedge and down-fire styles from single, dual and triple woofer cabinets. Open a model to see every box cut for it, with net volume, tuning and outside dimensions. Full specs and fitment notes are on each product page.

Alpine R2-W10 2 boxes
BoxSeriesNet volumeTuningOutside dimensions
Wedge Sealed, SinglePerformance Optimized0.50 ft³Sealed15" W x 13" H x 12.4" D, tapering to 7.7"
Wedge Sealed, DualPerformance Optimized0.50 ft³ per chamber (1.00 ft³ total)Sealed28.5" W x 13" H x 12.4" D, tapering to 7.65"
Alpine R2-W12 7 boxes
BoxSeriesNet volumeTuningOutside dimensions
Wedge Ported, SinglePerformance Optimized1.56 ft³35.5 Hz30.00" W x 15.50" H x 15.14" D, tapering to 9.50"
Wedge Sealed, SinglePerformance Optimized0.75 ft³Sealed15.3" W x 15" H x 14.35" D, tapering to 8.89"
Standard Ported, DualProfessional1.70 ft³33.0 Hz41.50" W x 16.00" H x 11.50" D
Standard Wide Ported, DualProfessional2.98 ft³34.5 Hz41.00" W x 16.00" H x 16.12" D
Wedge Sealed, DualPerformance Optimized0.75 ft³ per chamber (1.50 ft³ total)Sealed29.5" W x 15" H x 14" D, tapering to 8.57"
Wedge Wide Sealed, DualPerformance Optimized2.23 ft³Sealed41.00" W x 16" H x 13.57" D, tapering to 7.75"
Wedge Wide Sealed, TriplePerformance Optimized2.44 ft³Sealed44" W x 17" H x 13.74" D, tapering to 7.55"
Alpine RSW10 6 boxes
BoxSeriesNet volumeTuningOutside dimensions
Down Fire Sealed, SinglePerformance Optimized0.50 ft³Sealed30" W x 15" D x 4.75" H
Down Fire Wide Sealed, SinglePerformance Optimized0.539 ft³Sealed41" W x 12" D x 4.75" H
Standard Sealed, SingleMicro.5 ft³Sealed21.5" x 14.5" x 5.25"
Standard Sealed, SingleMicro.50 ft³Sealed21.5" × 14.5" × 5.25"
Down Fire Sealed, DualPerformance Optimized1.004 ft³ total / 0.50 ft³ per chamberSealed30" W x 15" D x 7.4375" H
Down Fire Wide Sealed, DualPerformance Optimized1.010 ft³ total / 0.505 ft³ per chamberSealed41" W x 12" D x 7" H
Alpine RSW12 4 boxes
BoxSeriesNet volumeTuningOutside dimensions
Down Fire Sealed, SinglePerformance Optimized0.70 ft³Sealed30" W x 15" D x 5.75" H
Down Fire Wide Sealed, SinglePerformance Optimized0.709 ft³Sealed41" W x 14" D x 5" H
Down Fire Sealed, DualPerformance Optimized1.402 ft³ total / 0.70 ft³ per chamberSealed30" W x 15" D x 9.4375" H
Down Fire Wide Sealed, DualPerformance Optimized1.402 ft³ total / 0.701 ft³ per chamberSealed41" W x 14" D x 7.75" H
Vehicle-specific direct fit 2 boxes
BoxSeriesNet volumeTuningOutside dimensions
Standard Sealed, SingleVehicle Specific0.60 ft³Sealed45"Wide x 14.25" Tall x 3.75" Deep
Standard Sealed, SingleVehicle Specific0.50 ft³Sealed

Why a Box Built for the Alpine Type R

Cut to the driver, not to the size

Each listing names the exact Type R driver it is cut for, R2-W or RS-W, because the two do not share a cutout or depth.

Performance Optimized
Sealed and ported cabinets solved from the Alpine Type R's own parameters. The dual cabinets split the air with a full-height divider, so each driver gets its own chamber.

Micro Series
Compact sealed cabinets for tight spaces, sized around the Alpine Type R's mounting depth.

Every Alpine Type R and R-Series Model We Build For

4 Alpine Type R and R-Series models, each with its own cabinets. Ported tunings are the frequency each box is tuned to.

10 inch

R2-W10: sealed wedge in single and dual. RSW10: sealed wide down-fire in single and dual; sealed standard in single; sealed down-fire in single and dual.

12 inch

R2-W12: sealed wide wedge in dual and triple; sealed wedge in single and dual; ported wide standard in dual at 34.5 Hz; ported wedge in single at 35.5 Hz; ported standard in dual at 33 Hz. RSW12: sealed wide down-fire in single and dual; sealed down-fire in single and dual.

Vehicle-specific builds

2 direct-fit Alpine enclosures for specific vehicles, listed in the directory above.

How to Choose

Size first
Pick the cabinet for the Alpine Type R size you own; each listing is cut for one size only.

Sealed or ported
Sealed is the smaller box and holds its output below tuning. Ported gives more output around its tuning from a larger cabinet, and every ported listing states its tuning.

Wiring
The Type R drivers come in dual 2 ohm and dual 4 ohm versions. Match the coil to your amplifier's stable load, and run two of the same model and coil in a dual cabinet.

Every Alpine box
The Alpine subwoofer box page has every Alpine cabinet we cut, across all of Alpine's drivers.

Will It Fit?

Measure the opening
The Alpine Type R cabinets here run from about 15 to 45 inches wide, and every listing prints its external dimensions. Measure the narrowest point of the space, not the floor.

Behind a seat or against a seat back
The wedges rake the rear panel to sit flush against a seat back or cab wall. See every shape in the wedge collection.

On a cargo floor
The down fires stand on feet with the cone facing the floor, for hatches and SUVs where height is short. See the down-fire collection.

Built for the Alpine Type R

Each listing names the exact Type R driver it is cut for, R2-W or RS-W, because the two do not share a cutout or depth.

Wiring a Pair

The Type R drivers come in dual 2 ohm and dual 4 ohm versions. Match the coil to your amplifier's stable load, and run two of the same model and coil in a dual cabinet.

The Alpine Type R Range at a Glance

10 inch single: sealed down fire, sealed front-firing, sealed wedge; dual: sealed down fire, sealed wedge. From $239.99.

12 inch single: ported wedge, sealed down fire, sealed wedge; dual: sealed down fire, sealed wedge. From $269.99.

Some builds also ship loaded, with the driver fitted and wired; those listings say so in the title.

Performance Optimized

Performance Optimized Type R boxes

10 and 12 inch·From $239.99

Ported and sealed, down fire, wedge; single and dual.

1 year limited warranty on Performance Optimized

Micro

Micro Type R boxes

10 inch·From $249.99

Sealed, standard; single.

2 year limited warranty on Micro

Vehicle Specific

Vehicle Specific Type R boxes

10 inch·From $999.99

Sealed, behind-seat; single.

2 year limited warranty on Vehicle Specific

Construction and chamber layout are stated on each product page.

Categories

Keep Reading

Supporting guides to help you design, build, and tune your system.

Alpine Type R Box Questions

Which Alpine Type R sizes do you build boxes for?

10 and 12 inch, in single and dual cabinets. Each listing is cut for one size and names it in the title.

What is the difference between the R2-W and the RS-W?

The R2-W is Alpine's full-depth Type R subwoofer; the RS-W is the shallow R-Series version for tight spaces. Their mounting depth and parameters differ, so the R2-W boxes here are wedges and the RS-W boxes are shallow down fires and Micro sealed cabinets.

Sealed or ported for the Alpine Type R?

Sealed is smaller and holds its output below tuning; ported gives more output around its tuning from a larger cabinet. Every ported listing states its tuning and every listing states its net volume.

Do the dual boxes have separate chambers?

The Performance Optimized duals give each driver its own chamber behind a full-height divider.

Is the Alpine Type R included?

No. These are enclosures built to fit the Alpine Type R; the driver is sold separately. A listing that ships with the driver fitted says loaded in its title.

How should I wire the Alpine Type R?

The Type R drivers come in dual 2 ohm and dual 4 ohm versions. Match the coil to your amplifier's stable load, and run two of the same model and coil in a dual cabinet.

What warranty do these boxes carry?

It runs by series: 1 year limited on Performance Optimized, 2 years on Professional and Micro. The series is named in each listing title.

Subwoofer Boxes by Brand

Every box is cut to one driver's published specs. Pick the brand your subwoofer comes from.

Drivers Built to Match

Subwoofers Spec'd for These Enclosures

The drivers below are matched to the enclosures above by Thiele-Small parameters. Buying together guarantees the alignment, port tuning, and damping work the way the engineering intended.
