Performance Optimized Wedge Sealed Dual 10" Enclosure | Alpine R2-W10
SKU: PO 10D-S W R2
- Alignment: 0.50 cu ft net per chamber, Qtc 0.71 (D2) or 0.73 (D4), F3 47 Hz - Butterworth both coils
- Chambers: Two fully separate sealed chambers, 3/4" MDF full-height divider, 2 independent terminal cups
- Drivers: Pair of Alpine R2-W10 (R2-W10D2 or R2-W10D4), 750W RMS each, 20mm Xmax, 65.5mm 4-layer DVC
- Build: Proline X stack-fab, double-layer 1.5" front baffle at both driver positions, perimeter cross-brace

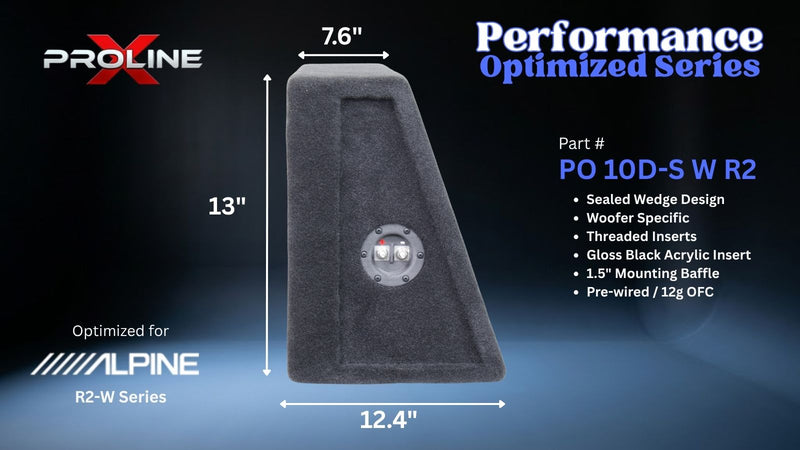

- Cabinet: 28.5"W x 13"H x 12.4"D (base) tapering to 7.65"D (top), rear-firing 20° wedge
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Wedge Sealed Dual 10" Enclosure | Alpine R2-W10
The Performance Optimized Wedge Sealed Dual 10" Enclosure for the Alpine R2-W10 is a musical dual-driver sealed cabinet built around Alpine's R2-Series 10-inch subwoofer. Two fully separate chambers, one wedge, +6 dB of headroom over a single-driver setup - and per-chamber alignment lands right at Butterworth for both the D2 and D4 coil variants.
The Alpine R2-W10 (R2-W10D2 dual 2Ω or R2-W10D4 dual 4Ω) is a 750-watt RMS subwoofer with 20mm of one-way Xmax, a reinforced parabolic pulp/Kevlar cone with PP/ceramic dust cap, high-amplitude multi-roll Santoprene surround (US Pat 8,208,677), progressive spider with reinforced-layer tinsel leads (US Pat 6,810,988), and custom cast aluminum frame with perimeter venting and airflow management (US Pat 7,684,585). Double-stacked strontium ferrite motor (123 oz) driving a 65.5mm 4-layer DVC winding on an aluminum former.
This dual enclosure follows the Proline X standing design rule for dual sealed enclosures: two fully separate chambers divided by a bonded full-height, full-depth 3/4" MDF panel, giving each driver its own dedicated air volume and its own terminal cup. This eliminates cross-chamber acoustic coupling and cabin-pressure interference between drivers, delivering the tight, controlled sealed alignment character that individual chambers preserve.
Total internal gross volume is 1.16 cubic feet, split into two 0.58 cubic foot chambers. Each chamber lands at 0.50 cubic feet net after 0.08 cubic feet of driver displacement, producing Qtc 0.71 with the D2 coil and Qtc 0.73 with the D4 coil - essentially textbook Butterworth for either impedance choice. Predicted F3 lands at 47 Hz per driver, with dual drivers producing +6 dB of maximum output over a single driver in the same alignment.

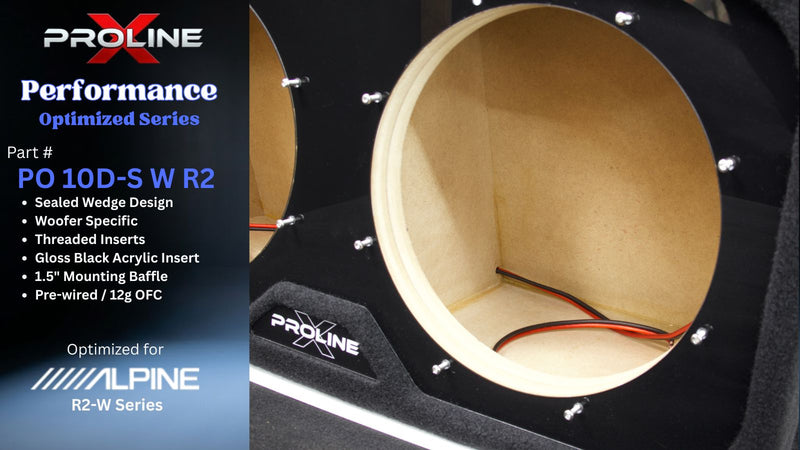

Construction is the full Proline X Performance Optimized platform: ShopSabre CNC-cut Langboard Elite MDF stack-fab layers, all four corners radiused 3" viewed top-down, precision-milled magnet cavities for volume tuning and voice-coil cooling on each driver, perimeter cross-bracing, and double-layer 1.5" front baffles (two 3/4" MDF sheets bonded) on both driver positions. Wedge geometry angles both cones rear-firing into the trunk at ~20° from vertical for optimum cabin loading. Two independent Proline X ABS/carbon-fiber composite terminal cups, one per chamber, pre-wired with 12 gauge OFC.
Bring your own pair of Alpine R2-W10 subwoofers - mount cutouts are direct-fit for either the R2-W10D2 or R2-W10D4. Run both drivers at matched impedance. The R2's 8AWG push terminals with VC configuration jumpers let you wire each driver's dual voice coils in series or parallel at the driver, then wire the two drivers together externally at the amplifier.
Manufactured in Tullahoma, Tennessee. 1-year enclosure warranty.
| Enclosure Type | Sealed | Dual Driver | Wedge Geometry | Rear-Firing Trunk-Load |
| Chamber Configuration | Two Fully Separate Chambers | Full-Height Divider | Independent Terminal Cups |
| Driver-Specific Fitment | Alpine R2-W10 - R2-W10D2 (DVC 2Ω) or R2-W10D4 (DVC 4Ω) | Pair Required |
| Total Internal Gross Volume | 1.16 Cubic Feet |
| Per-Chamber Gross Volume | 0.58 Cubic Feet |
| Per-Chamber Net Volume (After Displacement) | 0.50 Cubic Feet |
| Per-Chamber Target Qtc (D2) | 0.71 (Butterworth | Based on Published T/S) |
| Per-Chamber Target Qtc (D4) | 0.73 (Butterworth | Based on Published T/S) |
| Predicted F3 Per Driver | ~47 Hz (Both Coils) |
| Predicted Fc Per Driver | ~47-48 Hz |
| Driver Displacement (Each) | 0.08 Cubic Feet (Published by Alpine) |
| Baffle Configuration | Vertical Trunk-Lid-Side Woofer Mounting Face | Both Drivers |
| Material | Langboard Elite 3/4" MDF |
| Front Baffle Construction | Double-Layer 1.5" MDF (Two 3/4" Sheets Bonded) at Both Driver Positions |
| Chamber Divider | 3/4" MDF Full-Height Bonded Panel |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Construction | ShopSabre CNC / Angled Seat-Side Compound Cuts / Perimeter Cross-Brace |

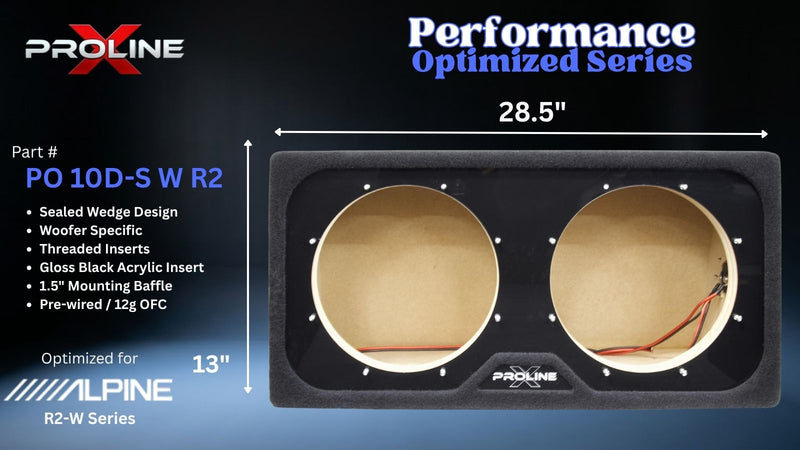

| External Width | 28.5 Inches |
| External Height | 13 Inches |
| External Depth (Top) | 7.65 Inches |
| External Depth (Bottom) | 12.4 Inches |
| Baffle Angle | ~20° From Vertical (Seat-Side Face) |
| Mounting Hole Diameter (Each) | 9.17 Inches (Alpine Spec) |
| Mounting Depth Required (Each) | 6.9 Inches (Alpine Spec) |
| Mounting Hardware | 8/32 Threaded Inserts | Stainless Steel Machine Screws Included | 2 Sets |
| Terminal Cups | Two Independent Proline X ABS/Carbon Fiber Composite | 12g OFC Pre-Wired | One Per Chamber |
| Damping | Polyfill Pre-Installed Per Chamber |
| Recommended Power Per Driver | 500-750 Watts RMS (Alpine Rated: 750W RMS Continuous) |
| Carpet Finish | Dark Gray Trunkliner (Standard) or Plush Black (+$10) |
| Acrylic Insert | Black, Blue, Red, White, or None (-$40) |
| Bundle Options | Enclosure Only (Bring Your Own Pair of R2-W10D2 or R2-W10D4) |
| Warranty | 1-Year Limited (Enclosure) |
| Manufactured | Tullahoma, Tennessee, USA |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
