Previous Demo. Works Flawlessly.  Complete including box

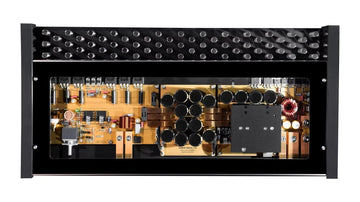

Signature Edition by Robert Zeff is our no compromise, high-power, audiophile amplifier designed and engineered by Robert Zeff and the staff at Nikola Engineering. This design is taken from Robert's many years of experience in both professional and the car audio industries where he used, repaired, and built high power, high fidelity amplifiers almost every day. With these lessons well learned over 30 years, he finally had the opportunity to make for ARC Audio the no compromise, no limits amplifier he had always dreamt of.

Signature Edition is a High Bias Class A/B amplifier. A simple Class B amplifier uses 2 output transistors to supply the current that moves the speaker. The positive transistor will push the woofer out and the negative will pull it back. In this design, only one transistor is working at any given time. It is the transition between positive and negative that leads to the higher distortion that makes a Class B amplifier unacceptable for audio reproduction. In most cases, a bias circuit is added to a Class B amplifier making it a Class A/B. The Bias circuit improves the distortion by turning on the unused output device while the current is flowing across the other. The more bias you add the lower the distortion, but there is a side effect. Heat is created as output transistors are on at the same time. The more bias you add the better it sounds.

More heat equals more bias until you reach the point of over bias and the amplifier fails. The trick to the Signature Edition Bias circuit is managing the bias current at any temperature. By carefully matching the bias of every amp we are able to maintain stable performance across a wide temperature range. This stability allows us to "dial-in" much more bias than any conventional class A/B amplifier. This is one of the key elements to the Signature Editions' amazingly transparent sound.

The key to running so much bias is heat management. Signature Edition has a unique heat sink design that uses a four-inch fan mounted in the center of the circuit board. The fan forces cool air in a cross-flow pattern through the massive finned heat sink before exhausting from the ends. This design minimizes the effects of installation location on the thermal performance of the amplifier. Mounted upside down, under or behind a seat or beneath a panel; Signature Edition will always perform as intended.

To further improve the dynamics and efficiency the Signature Edition amplifier exclusively use stiffly regulated, fully isolated power supplies. Regulation not only improves the damping factor and overall control of an amplifier but it eliminates any effect of voltage drops in the charging system may have.

As close to brand new as you can get. Units were removed from the box and set on a table for display purposes. Since the factory seal has been broken, the set cannot be sold as new. 100% complete, Never seen power, full warranty applies.

While individual Esotec drivers are available separately to offer complete system building flexibility, Dynaudio has packaged the most popular two-way driver complements with audiophile quality, competition-grade, adjustable passive crossover networks into component system packages to deliver the new Esotec performance quality at the highest level of value possible.

Esotec System 222

Two-Way Component System comprised of:

• 2 each Esotec MW 152 5.75“ MSP-Woofer
• 2 each Esotec MD 102 1.1“ Soft-Dome Tweeter
• 2 each Esotec X-252 Two-Way Passive Crossover

• Frequency Response: 55 Hz – 25 kHz
• Sensitivity: 91 dB
• Continuous Power Handling: 100 Watts
• System Impedance: 4 Ω

As close to brand new as you can get. Units were removed from the box and set on a table for display purposes. Since the factory seal has been broken, the set cannot be sold as new. 100% complete, Never seen power, full warranty applies

In order to perfectly integrate the improved drivers, the Esotec component systems feature new crossover designs updated with optimized parameters. The balanced frequency response of the Dynaudio Esotec automotive loudspeaker series is not simply the result of the superior drivers utilized, but also a product of the accurate fine-tuning in the crossover.

Esotec System 242 GT

Two-Way Component System comprised of:

• 2 each Esotec MW 162 GT 6.5“ MSP-Woofer
• 2 each Esotec MD 102 1.1“ Soft-Dome Tweeter
• 2 each Esotec X-252 Two-Way Passive Crossover

• Frequency Response: 55 Hz – 25 kHz
• Sensitivity: 90 dB
• Continuous Power Handling: 100 Watts

As close to brand new as you can get. Units were removed from the box and set on a table for display purposes. Since the factory seal has been broken, the set cannot be sold as new. 100% complete, Never seen power, full warranty applies

The Dynaudio Esotec car loudspeakers are perfectly complemented by the company’s various dedicated crossover offerings. The Esotec component system crossovers are truly competition-grade, using the highest quality components throughout.

Custom-produced, hand-selected, top-quality polypropylene capacitors, and custom-wound, high-grade air-core inductors are utilized, as are impedance correction networks and tweeter protection circuits, and independent tweeter adjustment levels for added system set-up flexibility.

Mated to the advanced technology Esotec car series loudspeakers, the net result is a system that delivers authentic Dynaudio sound quality with a neutral tonal balance, incredible imaging and sound-staging capabilities, unsurpassed dynamics, and complete transparency.

Esotec System 362

Three-Way Component System comprised of:

• 2 each Esotec MW 172 8“ MSP-Woofer
• 2 each Esotec MD 142 3“ Soft-Dome Midrange
• 2 each Esotec MD 102 1.1“ Soft-Dome Tweeter
• 2 each Esotec X-262 Three-Way Passive Crossover

• Frequency Response: 55 Hz – 25 kHz
• Sensitivity: 91 dB
• Continuous Power Handling: 200 Watts
• System Impedance: 4 Ω

Helix builds their Esprit subwoofers to fit in places that normal subs won't. Coming in at just 3-1/2" deep, the Esprit E12W 12" shallow-mount sub lets you get creative with placement while giving you impressive bass. German engineering shines through on this sub, as Helix uses technology from their high-end Precision Series to create a super-slim driver that delivers superior performance and handles plenty of power. You'll enjoy highly accurate bass reproduction in applications where space is an issue.

• 12" shallow-mount subwoofer with dual 2-ohm voice coils
• fiberglass coated honeycomb membrane woofer with rubber surround
• die-cast aluminum frame
• power range: 100-400 watts RMS (600 watts peak power)
• frequency response: not available
• sensitivity: 88 dB
• top-mount depth: 3-1/2"
• sealed box volume: 0.90 cubic feet
• ported box volume: 1.75 cubic feet

The The Hybrid Audio Clarus C10SW subwoofers are the ideal multi-format subwoofer speaker system, and are an upgrade for the Imagine-series subwoofer drivers. subwoofers are the ideal multi-format subwoofer speaker system, and are an upgrade for the Imagine-series subwoofer drivers. At home in virtually any enclosure arrangement – from sealed, to vented, to infinite baffle and bandpass – the Clarus range of subwoofers are going to impress even the most critical listener with speed and articulation, bottom-octave authority, with a total inductance profile that is not just low, but flat over stroke, frequency, and power. You’ll know how serious this driver is at first glance as you take in the cast frame and heavy-duty nickel-plated spring-loaded push terminals, but its proof will be upon first listen as the Clarus subwoofer does what it does best: articulating the nuances of your favorite recordings to effectively reproducing significant sound pressure levels.

Basket/Frame - The basket of the Hybrid Audio Clarus C10SW is a cast aluminum design with semi-gloss black powder coating. The frame includes spider venting for improved thermal power handling. The frame includes reverse-roll surround tooling proprietary to Hybrid Audio Technologies, allowing for close tolerance flush and iso-mounting for easy grille clearance and localization clearance.

Motor and Voice Coil - The motor of the Hybrid Audio Clarus C10SW Subwoofer is conventional dynamic with a large, high-grade ferrite magnet assembly with bumped and vented pole piece. The voice coil diameter for the four subwoofers is 51mm (2-inch) for elevated power handling, dissipation of heat (thereby lowering power compression), and maximizing the size of the magnet around the voice coil for enhanced motor compliance. The voice coil is a four-layer, high-purity aluminum, which is superior to copper for heat dissipation, as well as significantly reduced moving mass. The result is an extremely light weight winding, with low inductance and good power handling.

Suspension, Cone, Tinsel Leads & Terminals - The inverted surround is butyl rubber which is highly consistent, and does not suffer the variance of natural rubbers. This rubber surround terminates mechanical vibrations well, having a low stiffness for positive damping of resonances. The spider material was chosen for optimal performance; the spider is a 90/10 cotton/Nomex blend with single-dip low viscosity phenolic. This material provides the stiffness desired without being overly brittle or stiff, where vibrations in the spider are well damped and do not translate into the former or the cone. The Clarus subwoofers are cone-type drivers consisting of a polypropylene diaphragm with low moving mass. Polypropylene provides a good balance of strength, moving mass, and water resistance, in the event the Clarus subwoofers are used in all-weather climates, such as motorcycle, ATV, golf cart, and marine uses. The tinsel leads are bonded directly to the former and brought out to the terminals, which keeps tinsel lead slap to a minimum and does not compromise the structural integrity of the cone. The Clarus subwoofers come equipped with heavy-duty PCB-mounted nickel-plated push terminals, and give the end user flexibility in tinned wire or crimp terminal terminations

All Hybrid Audio Subwoofers are sold individually.

Hybrid Audio Clarus C10SW specs:

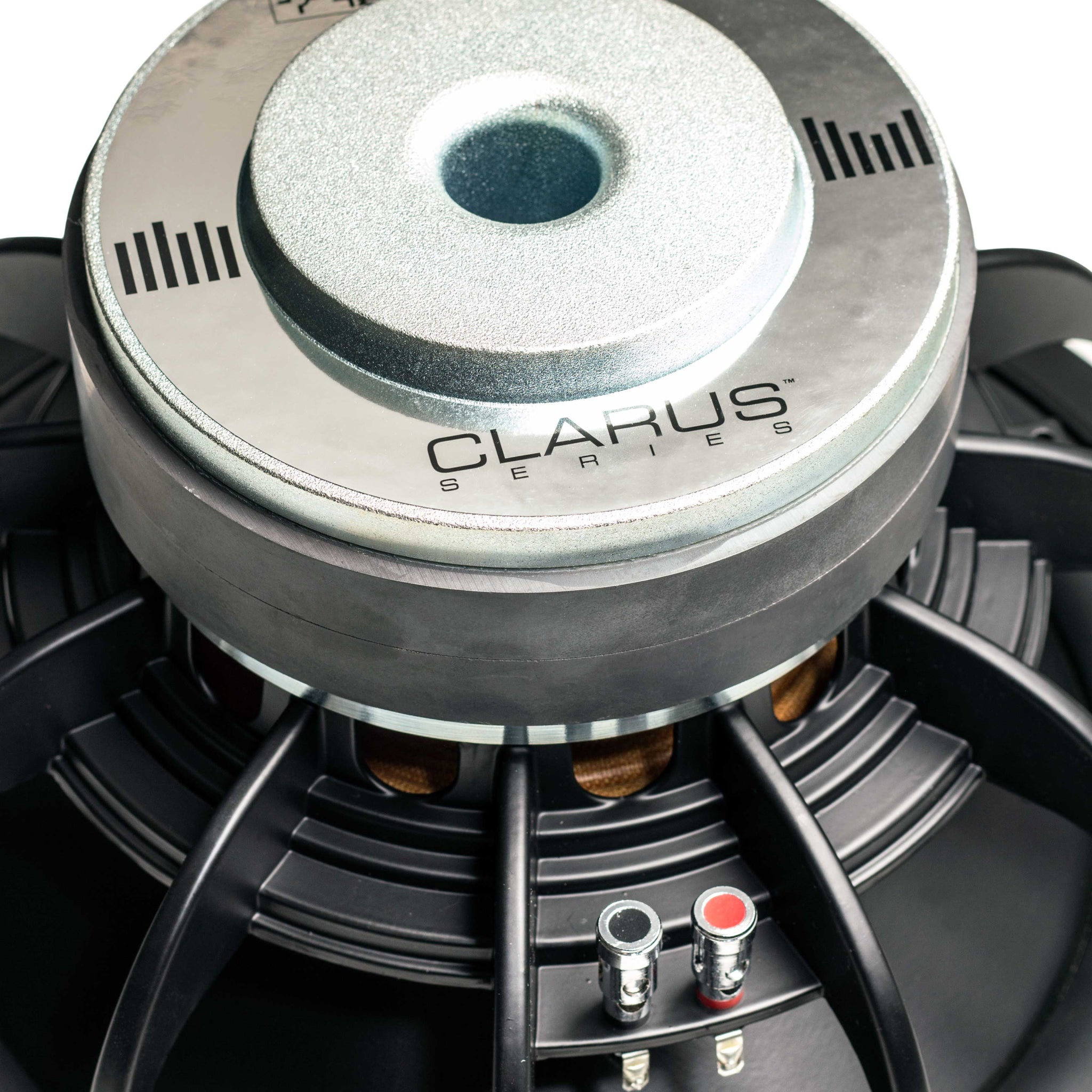

The Hybrid Audio Clarus C12SW subwoofers are the ideal multi-format subwoofer speaker system, and are an upgrade for the Imagine-series subwoofer drivers. At home in virtually any enclosure arrangement – from sealed, to vented, to infinite baffle and bandpass – the Clarus range of subwoofers are going to impress even the most critical listener with speed and articulation, bottom-octave authority, with a total inductance profile that is not just low, but flat over stroke, frequency, and power. You’ll know how serious this driver is at first glance as you take in the cast frame and heavy-duty nickel-plated spring-loaded push terminals, but its proof will be upon first listen as the Clarus subwoofer does what it does best: articulating the nuances of your favorite recordings to effectively reproducing significant sound pressure levels.

Basket/Frame - The basket of the Hybrid Audio Clarus C12SW is a cast aluminum design with semi-gloss black powder coating. The frame includes spider venting for improved thermal power handling. The frame includes reverse-roll surround tooling proprietary to Hybrid Audio Technologies, allowing for close tolerance flush and iso-mounting for easy grille clearance and localization clearance.

Motor and Voice Coil - The motor of the Hybrid Audio Clarus C12SW Subwoofer is conventional dynamic with a large, high-grade ferrite magnet assembly with bumped and vented pole piece. The voice coil diameter for the four subwoofers is 51mm (2-inch) for elevated power handling, dissipation of heat (thereby lowering power compression), and maximizing the size of the magnet around the voice coil for enhanced motor compliance. The voice coil is a four-layer, high-purity aluminum, which is superior to copper for heat dissipation, as well as significantly reduced moving mass. The result is an extremely light weight winding, with low inductance and good power handling.

Suspension, Cone, Tinsel Leads & Terminals - The inverted surround is butyl rubber which is highly consistent, and does not suffer the variance of natural rubbers. This rubber surround terminates mechanical vibrations well, having a low stiffness for positive damping of resonances. The spider material was chosen for optimal performance; the spider is a 90/10 cotton/Nomex blend with single-dip low viscosity phenolic. This material provides the stiffness desired without being overly brittle or stiff, where vibrations in the spider are well damped and do not translate into the former or the cone. The Clarus subwoofers are cone-type drivers consisting of a polypropylene diaphragm with low moving mass. Polypropylene provides a good balance of strength, moving mass, and water resistance, in the event the Clarus subwoofers are used in all-weather climates, such as motorcycle, ATV, golf cart, and marine uses. The tinsel leads are bonded directly to the former and brought out to the terminals, which keeps tinsel lead slap to a minimum and does not compromise the structural integrity of the cone. The Clarus subwoofers come equipped with heavy-duty PCB-mounted nickel-plated push terminals, and give the end user flexibility in tinned wire or crimp terminal terminations

All Hybrid Audio Subwoofers are sold individually.

Hybrid Audio Clarus C12SW Subwoofer specs:

The Hybrid Audio Clarus C15SW subwoofers are the ideal multi-format subwoofer speaker system, and are an upgrade for the Imagine-series subwoofer drivers. At home in virtually any enclosure arrangement – from sealed, to vented, to infinite baffle and bandpass – the Clarus range of subwoofers are going to impress even the most critical listener with speed and articulation, bottom-octave authority, with a total inductance profile that is not just low, but flat over stroke, frequency, and power. You’ll know how serious this driver is at first glance as you take in the cast frame and heavy-duty nickel-plated spring-loaded push terminals, but its proof will be upon first listen as the Clarus subwoofer does what it does best: articulating the nuances of your favorite recordings to effectively reproducing significant sound pressure levels.

Basket/Frame - The basket of the C15SW is a cast aluminum design with semi-gloss black powder coating. The frame includes spider venting for improved thermal power handling. The frame includes reverse-roll surround tooling proprietary to Hybrid Audio Technologies, allowing for close tolerance flush and iso-mounting for easy grille clearance and localization clearance.

Motor and Voice Coil - The motor of the Hybrid Audio Clarus C15SW Subwoofer is conventional dynamic with a large, high-grade ferrite magnet assembly with bumped and vented pole piece. The voice coil diameter for the four subwoofers is 75mm (3-inch) for elevated power handling, dissipation of heat (thereby lowering power compression), and maximizing the size of the magnet around the voice coil for enhanced motor compliance. The voice coil is a four-layer, high-purity aluminum, which is superior to copper for heat dissipation, as well as significantly reduced moving mass. The result is an extremely light weight winding, with low inductance and good power handling.

Suspension, Cone, Tinsel Leads & Terminals - The inverted surround is butyl rubber which is highly consistent, and does not suffer the variance of natural rubbers. This rubber surround terminates mechanical vibrations well, having a low stiffness for positive damping of resonances. The spider material was chosen for optimal performance; the spider is a 90/10 cotton/Nomex blend with single-dip low viscosity phenolic. This material provides the stiffness desired without being overly brittle or stiff, where vibrations in the spider are well damped and do not translate into the former or the cone. The Clarus subwoofers are cone-type drivers consisting of a polypropylene diaphragm with low moving mass. Polypropylene provides a good balance of strength, moving mass, and water resistance, in the event the Clarus subwoofers are used in all-weather climates, such as motorcycle, ATV, golf cart, and marine uses. The tinsel leads are bonded directly to the former and brought out to the terminals, which keeps tinsel lead slap to a minimum and does not compromise the structural integrity of the cone. The Clarus subwoofers come equipped with heavy-duty PCB-mounted nickel-plated push terminals, and give the end user flexibility in tinned wire or crimp terminal terminations

The Hybrid Audio Clarus 15 is the perfect balance between intense output and extreme sound quality. Massive 3" voice coil allows for huge power handling yet light enough to be an extreme SQ subwoofer. It is the top choice for use by Hybrid Audio World Championship competition vehicles.

All Hybrid Audio Subwoofers are sold individually.

 Hybrid Audio Clarus C15SW Subwoofer specs:

The Hybrid Audio Imagine I12SW-V2 subwoofers are the ideal multi-purpose sound quality subwoofer speaker driver. Mechanical and electrical parameters are amenable to a variety of vented and sealed enclosures. At home in virtually any arrangement, the Imagine subwoofer is Hybrid Audio’s Stage II subwoofer, boasting exceptional performance and a high-fidelity design philosophy.

The Imagine subwoofers are cone-type drivers consisting of a polypropylene diaphragm with low moving mass. Polypropylene provides a good balance of strength, moving mass, and water resistance, in the event the Imagine subwoofers are used in all-weather climates, such as motorcycle, ATV, golf cart, and marine uses. The tinsel leads are bonded directly to the former and brought out to the terminals, which keeps tinsel lead slap to a minimum and does not compromise the structural integrity of the cone. The Imagine subwoofer comes equipped with heavy-duty PCB-mounted male blade-type terminals on the Imagine I8SW and I10SW, and nickel-plated push terminals on the I6SW-V2 and I12SW-V2, and give the end user flexibility in tinned wire or crimp terminal terminations.

Basket/Frame - The basket of the Hybrid Audio Imagine I12SW-V2 is a stamped steel design with semi-gloss black powder coating. The frame includes spider venting for improved thermal power handling. The frame includes reverse-roll surround tooling proprietary to Hybrid Audio Technologies, allowing for close-tolerance flush and iso-mounting for easy grille clearance and location clearance (such as underneath a seat, in a touring motorcycle saddle bag, or in a center console enclosure).

Motor and Voice Coil - The motor of the Imagine subwoofer is conventional dynamic with a large, high-grade ferrite magnet assembly with bumped and vented pole piece. The voice coil diameter is 51mm (2-inch) for elevated power handling, dissipation of heat (thereby lowering power compression), and maximizing the size of the magnet around the voice coil for enhanced motor compliance. The voice coil is a four-layer, high-purity aluminum, which is superior to copper for heat dissipation, as well as significantly reduced moving mass. The result is an extremely light weight winding, with low inductance and good power handling.

Suspension, Cone, Tinsel Leads & Terminals - The inverted surround is butyl rubber which is highly consistent, and does not suffer the variance of natural rubbers. This rubber surround terminates mechanical vibrations well, having a low stiffness for positive damping of resonances. The spider material was chosen for optimal performance; the spider is a 90/10 cotton/Nomex blend with single-dip low viscosity phenolic. This material provides the stiffness desired without being overly brittle or stiff, where vibrations in the spider are well damped and do not translate into the former or the cone.

All Hybrid Audio Subwoofers are sold individually.

The Imagine series consist of coaxial pairs designed for the discerning consumer interested in more than just an ‘OEM replacement speaker,’ and an industry favorite in motorcycle, motorsports, and Powersports applications due to its price to performance ratio.

Priced per pair.

The Imagine series consist of coaxial pairs designed for the discerning consumer interested in more than just an ‘OEM replacement speaker,’ and an industry favorite in motorcycle, motorsports, and Powersports applications due to its price to performance ratio.

Priced per pair.

The Hybrid Audio Legatia L4SE is a 118mm (4.65-inch) wide-bandwidth midrange/full-range driver to compliment both two-way and three-way system designs, where a point-source midrange and/or full-range driver is required.

The Hybrid Audio Legatia L4SE is the world’s finest multi-purpose super high-end speaker driver. Mechanical and electrical parameters are amenable to a variety of different installations and speaker locations. This driver is intended to be used in an infinite baffle configuration; a simple, solid baffle, solidly attached to the car’s chassis with available airspace at the rear of the baffle is all that is required for optimum operation. The size of the L4SE allows it to be mounted in typical “4-inch” midrange locations within a vehicle, or in custom locations at the discretion of the end-user, as long as there is adequate airspace behind the driver to allow it to maintain proper damping and acoustic suspension.

At home in virtually any arrangement, the L4SE is Hybrid Audio Technologies Legatia SE high-end midrange offering, boasting exceptional performance and a design philosophy that goes hand in hand with true high-fidelity playback.

The Stage 1 Mirus line-up is comprised of dedicated coaxial kits for the cost-effective, OEM replacement market.

"We managed to get Hybrid Audio-level performance at this price point; the Mirus name is Latin for 'astonishing'; Hybrid Audio is sure that you will be astonished at how good an entry-level coaxial can truly sound (and look)."

Kits include a pair of coated steel frame two-way coaxials with water-proof paper cones proprietary to Hybrid Audio Technologies, high-energy ferrite magnets, 20mm soft-dome tweeters that swivel, integrated high-quality Mylar tweeter crossover capacitors, encased in a full-color gift box. Grilles are not available for this specific product.

.8″

The Hybrid Audio Unity U51-2 5.25” Component Set is a 2-way component set designed for the discerning consumer interested in a product between the Stage II Imagine and the Stage IV Clarus product lines. The Unity series is a melding of the best of the Imagine line with Clarus-level enhancements to make a budget-friendly high-end alternative; Hybrid Audio loosely calls the Unity line ‘Clarus Junior.’

The Hybrid Audio Unity U51-2 5.25” Component Set includes the best features of the Imagine-series components, including the same cast ABS frame, spider, and water-proof cone used in Imagine systems. Clarus-level enhancements include outboard crossovers containing high-quality, low tolerance polypropylene and electrolytic capacitors and air-core inductors, PTC tweeter power protection, and three steps of tweeter attenuation, encased in the Clarus competition crossovers housing with gold-plated screw terminals. Unity systems also utilize the exceptional Clarus C1 competition-grade tweeters for a step-up in performance over the Imagine tweeter offering.

The Hybrid Audio U69-2 combines the U69v2, U1 Tweeter and U2x Crossover for an unparalleled 6X9 Component Set.

Attributes:

Unity U69 Midbass Frame Cast ABS plastic. The basket is a high-quality cast ABS design, which plays a critical role in aligning the voice coil in the magnetic circuit. Additionally, the cast ABS frame allows for better clamping strength verses typically stamped steel frames and ensures that the voice coil remains centered in the former. The midrange frame (Unity U3) is a proprietarily tooled design owned by Hybrid Audio Technologies, has no OEM industry equivalent, and shares common mounting hole diameter and similar mounting depths to the Legatia and Legatia SE three-inch midranges for potential/future upgrade potential. The midbass frame (Unity U5, Unity U6, and Unity U69) is a shared technology with the Imagine series coaxial and convertible component sets and allow for immediate upgrade potential due to identical size footprint, mounting depth, bolt circle diameter, and motor diameter as the Imagine convertible coaxial systems. Cone and Dust Cap Pressed paper with waterproof treatment. It is widely acknowledged that pressed paper cones are the best marriage of lightness, stiffness, and the ability of the cone to damp unwanted cone and edge modes and resonances (read: distortion). The paper cone, known for its excellent sonic attributes, is waterproof, thanks to a polymer developed exclusive and proprietarily by Hybrid Audio Technologies. The treatment does not change the look and parameters of the driver like old-fashioned “glossy” polymers which added an appreciable amount of moving mass and significantly colored the sound. No, the Unity cones look like any “normal” paper cone, but in reality, are likely the only high-performance waterproof paper cone car audio speaker systems on the market. The treatment protects the cone from periodic drips (such as inside a door panel), as well as accidental splashes to the front of the cone. Likewise, the paper dust cap is also treated for water resistance. The cone is a shared technology with the Imagine series coaxial and convertible component sets. On the hybrid-audio.com website, we have hosted a video of an actual water-proof demonstration of the Imagine I61-2, which uses the same cone as the Unity series, where we pour two liters of water over the driver, and then connect it to a musical source. That video may be viewed at http://hybrid-audio. com/imagine/ Surround Inverted high-loss rubber surround. The inverted high-loss rubber surround (in concert with the spider, detailed below), helps to provide the compliance and “restorative force” needed for the Unity drivers to play effectively into the lower midbass, and even upper sub-bass frequencies (depending on in-car cabin gain and other factors). You’ll also know a Hybrid Audio midrange and midbass design by its inverted surround; this design feature allows for the use of a smaller height grille, better clearance with OEM panels, and more flexibility in mounting options. The surround is a shared technology with the Imagine series coaxial and convertible component sets. Spider Phenolic fabric and tinned tinsel leads. The spider is the brownish/yellow corrugated (rippled) fabric that attaches the cone and voice coil. The spider for the Unity designs was the subject of a considerable amount of our research and development. The spider is a phenolic symmetrically-rolled fabric which provides excellent restorative force during the excursion. The spider is vented courteous of the speaker frame; a design element not typically found in this price range of speaker system. The spider venting increases the thermal power handling of the Unity midbass driver. The tinsel leads are connected to real epoxy PCB, not flimsy cardboard. The spider, tinsel leads, and terminals are shared technologies with the Imagine series coaxial and convertible component sets. Voice Coil and Motor System The voice coil used in the Unity midbass is a 2-layer aluminized copper wire coils on a round former. An “overhung” voice coil was selected to improve sensitivity while still keeping distortion to a minimum. The voice coil and motor system are shared technologies with the Imagine series coaxial and convertible component sets.

Tweeter Attributes:

Unity U1 Dome Small diameter impregnated silk textile dome with high-loss rubber suspension. The U1 is a shared technology with the high-end Clarus C1 tweeter, boasting has an impregnated fine cloth silk dome diaphragm for a linear, smooth sound, with a high-loss rubber suspension to damp edge modes and resonances. The dome is of extremely low mass and is much less susceptible to mechanical deformation than other designs, and yet yields a smooth response over the extent of its range. At Hybrid Audio Technologies, we feel larger diaphragm tweeters sound heavy and unremarkable, lack detail in the upper treble frequencies, have an undesirable polar response, and are difficult to install. Additionally, we find metal dome tweeters to be harsh, brittle and sound unrealistic. As a small diameter, soft-dome tweeter, the U1 is the antithesis of a large diaphragm and metal-dome tweeters, for the effective and convincing reproduction of treble frequencies. Voice Coil and Motor System 20mm complimentary design. The motor assembly is “conventional dynamic”, with a compact neodymium magnet structure to ensure a small footprint size and shallow depth. A perforated grille protects the dome. The voice coil is ferrofluid cooled and damped, and the tweeter housing consists of extruded plastic with three different mounting options in component set mode, giving the end-user flexibility in the not only placement of the U1 but also in the physical installation. Crossover Attributes Unity U2x Alignment Second-order L/R (12 dB/octave) filters for a low pass (U5, U6, or U69) and high pass (U1). The U51-2 2-way passive crossover network includes a unity low pass and a high pass crossover frequency of 5,700 Hz at 12 dB/ octave. The U61-2 and U69-2 2-way passive crossover network include a unity low pass and a high pass crossover frequency of 5,200 Hz at 12 dB/octave. The use of 12 dB/octave filters on both low pass and high pass, often not found in speakers in this price range, minimizes phase-related distortion typical of crossovers with mismatched orders, and ensures phase-coherent imaging and staging. The alignment topology is a shared technology to the high-end Clarus C2x crossover design and features asymmetrically-aligned network components. Network Components Audiophile grade. The passive crossover networks incorporate super high quality and low tolerance metalized polypropylene film capacitor for highpass, and a low-tolerance quality metalized electrolytic capacitor for low pass, in concert with air-core inductors, and low tolerance non-inductive resistors. No output level switches were used in the passive crossover design because switches add a resistive effect and are typical of extremely low quality. Additionally, “jumper pins” add an unnecessary pair of splices in the signal path to the tweeter, and were not included in our design either. Rather, all tweeter level adjustments are done on the board level with dedicated non-inductive resistors; tweeter attenuation is accomplished by selecting the appropriate output (-3 dB, 0 dB, or +3 dB) on the passive crossover circuit board. The components selected are complementary and ensure no notable signal degradation between the input and output side of the crossovers. The network componentry, design, circuitry, and polyethylene case with transparent cover are shared technologies to the Clarus series and the Clarus C2x crossover design.

If you know Audiotec Fischer's commitment to quality, then you probably have an idea of how exquisite their MATCH Series of speakers sound. The MS42C component system uses finely tuned, compact external crossover networks for seamless frequency response. The crossovers assign the lows and midrange to the 4" woofers, which are made of a high-damping treated paper for nuanced sound and precise play. The 1" tweeters handle the high-frequency acrobatics with ease, thanks to dynamic neodymium magnets. And the tweeter's silk dome structure delivers that smooth sound you listen for in your highs.

• the component system includes two woofers, two 1" tweeters, and two crossovers
• 4" coated paper woofer with rubber surround
• 1" silk dome tweeter
• tweeter flush-mounting and top-mounting gear included
• works with a factory radio, aftermarket receiver, or outboard amp
• 2-35 watts RMS power range (100 watts peak)
• frequency response: 90-22,000 Hz
• impedance: 4 ohms
• sensitivity: 90 dB
• woofer mounting depth: 1-7/8"

If you know Audiotec Fischer's commitment to quality, then you probably have an idea of how exquisite their MATCH Series of speakers sound. The MS52C component system uses finely tuned, compact external crossover networks for a seamless frequency response. The crossovers assign the lows and midrange to the 5-1/4" woofers, which are made of a high-damping treated paper for nuanced sound and precise play. The 1" tweeters handle the high-frequency acrobatics with ease, thanks to dynamic neodymium magnets. And the tweeter's silk dome structure delivers that smooth sound you listen for in your highs.

• component system includes two woofers, two 1" tweeters, and two crossovers
• 5-1/4" coated paper woofer with rubber surround
• 1" silk dome tweeter
• tweeter flush-mounting and top-mounting gear included
• works with factory radio, aftermarket receiver, or outboard amp
• 2-40 watts RMS power range (120 watts peak)
• frequency response: 65-22,000 Hz
• impedance: 4 ohms
• sensitivity: 90 dB
• woofer mounting depth: 1-7/8"

The MATCH for you

If you know Audiotec Fischer's commitment to quality, then you probably have an idea of how exquisite their MATCH Series speakers sound. The MS5X 2-way car speaker uses a 5-1/4" high-damping treated paper woofer cone for nuanced sound and precise play. The integrated tweeter handles the high-frequency acrobatics with ease, thanks to a dynamic neodymium magnet. And the tweeter's polymer dome structure delivers that crisp sound you listen to in your highs.

German-crafted sound in almost any ride

Up to now, MATCH has focused its attention on direct-fit solutions for German-made vehicles. With the MS5X, they've applied their talents for masterful sound engineering to a speaker designed to fit the factory opening of a wide variety of cars. This speaker's shallow build makes it an easier fit than many upgrades in its class. Match the MS5X with a MATCH DSP for a serious improvement to the audio in your car.

• 2-way car speakers (pair)
• 5-1/4" treated paper woofer cone
• 3/4" polymer dome tweeter
• power range: 2-40 watts RMS (120 watts peak power)
• frequency range: 70-22,000 Hz
• sensitivity: 90 dB
• top-mount depth: 1-7/8"
• impedance: 4 ohms
• grilles included

If you know Audiotec Fischer's commitment to quality, then you probably have an idea of how exquisite their MATCH Series of speakers sound. The MS62C component system uses finely tuned, compact external crossover networks for a seamless frequency response. The crossovers assign the lows and midrange to the 6-3/4" woofers, which are made of a high-damping treated paper for nuanced sound and precise play. The 1" tweeters handle the high-frequency acrobatics with ease, thanks to dynamic neodymium magnets. And the tweeter's silk dome structure delivers that smooth sound you listen for in your highs.

Product Highlights:

• The component system includes two woofers, two 1" tweeters, and two crossovers
• 6-3/4" coated paper woofer with rubber surround
• 1" silk dome tweeter
• tweeter flush-mounting and top-mounting gear included
• works with factory radio, aftermarket receiver, or outboard amp
• 2-50 watts RMS power range (150 watts peak)
• frequency response: 55-22,000 Hz
• impedance: 4 ohms
• sensitivity: 91 dB
• woofer mounting depth: 2-5/16"

New for 2019, the revised The Stage 1 Mirus V line-up is comprised of dedicated coaxial kits for the cost-effective, OEM replacement market.

"We managed to get Hybrid Audio-level performance at this price point; the Mirus name is Latin for 'astonishing'; Hybrid Audio is sure that you will be astonished at how good an entry-level coaxial can truly sound (and look)."

Mirus V represents a radical departure from the norm for Hybrid Audio Technologies. As we set out to improve the already astonishingly-good Mirus range, special attention was paid to critical factors in the Mirus V price range: markedly improving sound pressure level and incorporating drop-dead gorgeous looks. Mirus V boasts carbon-fiber cones and titanium diaphragm tweeters that swivel, along with other features you’ve come to expect in a Hybrid Audio design: reverse-roll high-loss surrounds, powder-coated frames, and integrated low tolerance polypropylene crossover capacitors for the tweeters.

Diameter: 6.5-Inches / 165.5mm
Frequency Response: 80 Hz - 20 kHz
Mounting Depth: 2.54-Inches
Power Handling: 60 watts
Suggested Crossover: 85 Hz

New for 2019, the revised The Stage 1 Mirus V line-up is comprised of dedicated coaxial kits for the cost-effective, OEM replacement market.

"We managed to get Hybrid Audio-level performance at this price point; the Mirus name is Latin for 'astonishing'; Hybrid Audio is sure that you will be astonished at how good an entry-level coaxial can truly sound (and look)."

Mirus V represents a radical departure from the norm for Hybrid Audio Technologies. As we set out to improve the already astonishingly-good Mirus range, special attention was paid to critical factors in the Mirus V price range: markedly improving sound pressure level and incorporating drop-dead gorgeous looks. Mirus V boasts carbon-fiber cones and titanium diaphragm tweeters that swivel, along with other features you’ve come to expect in a Hybrid Audio design: reverse-roll high-loss surrounds, powder-coated frames, and integrated low tolerance polypropylene crossover capacitors for the tweeters.

Diameter: 6x9-Inches
Frequency Response: 67 Hz - 20 kHz
Mounting Depth: 3.44-Inches
Power Handling: 60 watts
Suggested Crossover: 70 Hz

Brand New, Only opened for photos

The DC1100 is the DC Series Big Boy. It gives you 825 watts RMS at 4 ohms and 1100 watts RMS at 2 ohms. And those are Zapco Class A/B watts with all the digital processing of the DC series, so you'll have 10 bands of parametric equalization just for your woofer. Can you say Perfect Bass.

• 4 ohms: 1 x 820 Watts RMS
• 2 ohms: 1 x 1100 Watts RMS
• T.H.D. + Noise <0.015% @ 4 ohms
• On-Board, Full Function DSP
• Intelligent Rail Voltage Control
• Short term stable to below 1 ohm/Ch
• USB Input for PC Control
• 2nd Generation Digital Programming Network
• ZAPCO EHVC Output Circuitry
• Heavy-Duty, High-Current, Insulated Terminal Blocks
• Space Saving Flush Wiring Connections
• Gate Drive Boost Circuit
• High-Current Bipolar Outputs
• Optically Isolated MOSFET Power Supply
• Quality Zapco construction
• Dimensions in Inches : 7.12(W) x 2.35(H) x 24.00(L)

Brand New, Only opened for photos

The DC352 gives you complete DSP control with 100 watts RMS/channel at 4 ohms and 180 watts RMS/channel at 2 ohms. Remember, all the DC series amp include the DSP-Z8 processing at no charge.

• Stereo, 4 ohms: 2 x 100 Watts RMS
• Stereo, 2 ohms: 2 x 180 Watts RMS
• Bridged, 2 ohms: 1 x 360 Watts RMS
• Bridged, 2 ohms: 1 x 720 Watts Max
• T.H.D. + Noise <0.015% @ 4 ohms
• On-Board, Full Function DSP
• Intelligent Rail Voltage Control
• Short term stable to below 1 ohm/Ch
• USB Input for PC Control
• 2nd Generation Digital Programming Network
• Heavy-Duty, High-Current, Insulated Terminal Blocks
• Space Saving Flush Wiring Connections
• Bridgeable
• Three-Channel Capable
• Gate Drive Boost Circuit
• High-Current Bipolar Outputs
• Optically Isolated MOSFET Power Supply
• Quality Zapco construction
• Dimensions in Inches : 7.12(W) x 2.35(H) x 16.38(L)

Brand New, Only opened for photos

The DC501 produces 350 Watts RMS at 4 ohms and 500 watts at 2 ohms to drive your woofer. If you have a 1-ohm woofer, no problem! The entire DC series of amplifiers has our exclusive Rail Voltage Monitoring System to keep the amp stable regardless of the load, down to as low as 1 ohm.

• Mono, 4 ohms: 1 x 350 Watts RMS
• Mono, 2 ohms: 1 x 500 Watts RMS
• T.H.D. + Noise <0.017% @ 4 ohms
• On-Board, Full Function DSP
• Intelligent Rail Voltage Control
• Short term stable to below 1 ohm/Ch
• USB Input for PC Control
• 2nd Generation Digital Programming Network
• ZAPCO EHVC Output Circuitry
• Heavy-Duty, High-Current, Insulated Terminal Blocks
• Space Saving Flush Wiring Connections
• Gate Drive Boost Circuit
• Gate Drive Boost Circuit
• High-Current Bipolar Outputs
• Optically Isolated MOSFET Power Supply
• Quality Zapco construction
• Dimensions in Inches : 7.12(W) x 2.35(H) x 14.01(L)

Brand New... Only opened for pictures.

The DC752 gives you 175 watts RMS/channel at 4ohms and 360 watts RMS/channel at 2 ohms. With over 780 watts RMS at 4 ohms mono. This versatile powerhouse can drive a subwoofer, the most power-hungry passive front stage, or an actively band-passed mid-bass. And all with full DSP.

• Stereo, 4 ohms: 2 x 175 Watts RMS
• Stereo, 2 ohms: 2 x 360 Watts RMS
• Bridged, 4 ohms: 1 x 780 Watts RMS
• Bridged, 4 ohms: 1 x 1560 Watts Max
• T.H.D. + Noise <0.017% @ 4 ohms
• On-Board, Full Function DSP
• Intelligent Rail Voltage Control
• Short term stable to below 1 ohm/Ch
• USB Input for PC Control
• 2nd Generation Digital Programming Network
• Heavy-Duty, High-Current, Insulated Terminal Blocks
• Space Saving Flush Wiring Connections
• Bridgeable
• Three-Channel Capable
• Gate Drive Boost Circuit
• High-Current Bipolar Outputs
• Optically Isolated MOSFET Power Supply
• Quality Zapco construction
• Dimensions in Inches : 7.12(W) x 2.35(H) x 24.40(L)

Previously used for demo purposes at trade shows.

The unit is fully updated and comes with the original box

The HDSP-Z16 V is the best hardware that Zapco has ever built, and the numbers attest to that. Although the HDSP is composed of 18 individual pieces put together in a modular version that is easy to adapt or update according to your needs, the background noise and the crosstalk numbers are superb. The end result surpassed even the expectations of the designers and engineers who built it. It took almost three years, but eventually came this unique piece of hardware that we believe will remain in the history of Zapco and set new standards for what is possible in audio reproduction. The numbers are the proof of the design, for example, -140 dB of background noise and  -115 dB of crosstalk. For a 16-channel device, crosstalk at -115 dB (average around 1 KHz) is proof of the accuracy with which the layout was made. But of course, background noise and crosstalk are not the only numbers that matter in audio devices. All the others, while not so spectacular as -140 dB floor noise, are superb. The digital inputs have 114 dB of A-weighted signal/noise and the analog ones 109 dB at rated output. We kept the output voltage at 4 Volts to avoid added distortion of analog preamplification. Distortion of analog and digital inputs are lower than 0.001% at 4 Volt output and lower than 0.00175% at 1 Volt output. The HDSP-V power supply continues to work down to 6  Volts to solve the problem of cars that have a stop-start ignition system. The main processor is a dual-core 456 + 456 MHz, 8 and16 channels solution have a 192 and 96 kHz sampling rate and the converters are new 32 bit/784 KHz devices from AKM. Very importantly, it is an HD Player that works at 24 bit/192 KHz integrated with DSP. There is no connection between the Player and the DSP, no PCB, no connectors, no cables. Player and DSP are integrated into one dual-core chipset that has a total power of 912 MHz. Then there is a microprocessor that controls only the Player and does not have to do other heavy computational work like can happen, for example, with a computer. So, you can say it is DSP within a DSP, or the most sophisticated DSP existing with an onboard HD Player. The player has a dedicated browser that starts to work immediately when you insert the USB memory stick. It can read all formats up to 24 bit/192 KHz, compressed or not compressed, and from the 3” touch screen display, you can control all the functions using 3 different levels of folders. The dashboard that controls the Player also controls minor DSP functions and can manage up to 10 tunings presets with instantaneous switching of one to another for A/B comparison.

Optional Acrylic Cover:

Specifications

• 16 Channels DSP with HD Player

• 8 Analog Inputs (RCA + High Level), 5 Digital Inputs, 16 Analog Outputs

• Modular device: High-end solution with 18 independent PCB

• Player & DSP: All-in-one dual-core processor

• DSP Processor: OMAP L-138 - 2 x 456 MHz, 32 Bit (till 64-bit/IEEE double precision)

• DSP Processor Point: Fixed & Floating

• DSP Sampling Rate: 96 KHz

• Player power: 456 Mhz - Arm 9 32 Bit

• File Audio formats: WAV, AIF, AIFF, FLAC, ALAC, AAC, MP3, Directories: File/Artist/Album/Title

• USB memory stick support: Formatted FAT32 with no limited memory space

• ADC Processor (standard): AK5558, 32 Bit, 784 KHz, 115 dB DNR

• ADC Processor (option B): AK5578, 32 Bit, 784 KHz, 121 dB DNR

• DAC Processor (standard): AK4458, 32 Bit, 784 KHz, 115 dB DNR

• DAC Processor (option B): ES9028, 32 Bit 784 KHz, 129 dB DNR

• DAC Processor (option A): ES9038PRO, 32 Bit, 784 KHz, 140 dB DNR

• Frequency response: 5Hz @ 45 KHz

• THD+N: 0,0008 (Digital Input), 0,001 (Analog Input) 1V Out

• S/N Device Floor Noise: -125 dB (from 20 Hz to 20 KHz), -135 dB (from 150 Hz to 20 KHz), -140 dB (average from 80 Hz to 20 KHz)

• S/N Ratio (Digital Inputs): from 115 to 120 dB A

• S/N Ratio (Analog Inputs): from 109 to 115 dB A

• Crosstalk: > 110 dB (from 300 Hz to 0.9 KHz)

• Crosstalk: average 115 dB (from 300 Hz to 0.9 KHz)

• Analog Inputs: 6/8 x RCA Low Level 1/5 Volt, 8 x High Level 4/20 Volt

• Digital Inputs: Optical: 24 Bit - 192 KHz, SPDIF: 24 Bit - 192 KHz, 3 x i2S: 24 Bit - 192 KHz

• Analog Outputs: 16 x RCA, 4 Volt (5 KOhm),  Impedance: 100 Ohm

• Dash Board: 3" Touch Screen, 10 Preset

• Dash Board Control: Volume/Sub/Balance/Fader/Tone

• Wireless Control: Wi-Fi External Module (incl.)

• BT Streaming: External APTX HD Module (opt.)

• Tuning: Easy and Expert, "Double Front"

• I/O Setup: 2ch, 4ch, 6ch, 8ch, OEM SUM, AUX

• Digital Input Mode: HD, Optical, Coax, i2S 1, 2, 3

• EQ Parametric 30 / 6 poles (16 ch.), Parametric 15 poles (8 ch.)

• XO Filters: Linkwitz, Butterw., Bessel, Tsecheb.

• Phase Filter: All channels 1Hz/1 Degree step

• VSEQ Filter: 50-200 Hz - 1 Hz step

• Power Supply: Operating: 6-16 Volt, Current Draw: 750 mA/14.4 V, Fuse: 1A

• Stop-Start ignition system support

• Main unit overall dimensions (mm): 217(L) x 164(W) x 57(H)

• Dash Board dim. (mm): 111(L) x 16(W) x 49(H)

iPhone direct interface replacement controller for the DSP Z8 IV-II only!

Specifications

• Digital iPhone Player Interface

• Apple iPhone, iPod, iPad compatibility

• Display size: 2.2"

• Display Resolution: 320 x 240

• Control: Main Volume, Subwoofer Volume, Source, DSP Preset

• USB-C Port

• Connection: custom cable

• Dimensions (mm): 111(L) x 21(W) x 49(H)

Zapco Studio-D amps put big power in a small chassis. But these little beasts aren’t just small, and they aren’t just powerful. They sound great! They had to earn the Zapco name before we put them into production. These amps are loaded with all the advanced features you would expect…and more! They have crossovers, bass boost, both RCA and Speaker level inputs, and preamp outputs to send the signal to another amp. The three larger chassis ST-D amps also have a dash remote control. Finally, the ST-D amps have Bluetooth Streaming, so your Smart Phone, iPad, or other Bluetooth devices can be a portable music source for your sound system.

When the Studio D BT amps are installed they work just like any other amps with your head unit. But if you fire up the music on your

phone, tablet, or other Bluetooth smart device, these amps will automatically switch over to Bluetooth to grab that signal.

Features and Functions

• 2-Channel, Full Range, Class D

• RCA and Speaker Level Inputs

• Bluetooth music streaming

• Variable input gain control

• Variable electronic crossover

• Variable bass boost control

Specifications

• Power @ 4Ω: 2 x 380 watts RMS

• THD @ Rated Power  < 0.5%THD

• Power @ 2Ω: 2 x 550 watts RMS

• Power Bridged @ 4Ω: 1100 watts RMS

• Signal to Noise Ratio > 85dB

• THD + Noise < 0.5%

• Frequency Response 15Hz to 30KHz ±1dB

• Input Sensitivity .25v to 5v

• Dimensions in mm: 160(W) x 52(H) x 300(L) Overall: 160(W) x 52(H) x 335(L)

Features and Functions

• 4-Channel, Full Range, Class A/B

• On-Board, Full Function, 6-ch. Digital Signal Processing

• High-pass and low-pass filters, phase control, signal delay, and 15 channels of parametric equalization on each channel

• BT Streaming: Bluetooth Port for external APTX HD Module (optional)

Specifications

• Power @ 4Ω: 4 x 65 watts

• THD @ Rated Power  < 0.5% THD

• Power @ 2Ω: 4 x 95 watts

• Power Bridged @ 4Ω: 2 x 190W RMS

• Signal to Noise Ratio > 90dB

• THD + Noise < 0.2%

• Channel Separation  >60dB

• Frequency Response 15Hz to 30KHz ±1dB

• Dimensions in mm: 160(W) x 52(H) x 282(L) Overall: 160(W) x 52(H) x 320(L)

Audiophile: An audio fanatic whose sole passion is accurate sound reproduction that brings all the purity of a live performance to recorded music. It is a familiar term with high-end home gear like McIntosh or Bryston, but a term always considered unattainable in the automotive environment. Zapco disagrees! In 1974 Zapco began a quest for perfect sonic reproduction. While perfection may be unattainable, the quest is no less worthy. In 2000 we introduced the C2K Competition amplifiers and in 2012 we introduced the new Z-Series amps with high-end internal components matched for pure sound quality.

Our first line developed by listening rather than measuring, and they were called the best Zapco ever. How did we respond? We said, “thank you, but we think we can do even better”. And we did. We upgraded to top-end audiophile caps and op-amps redesigned the power supply and made board modifications to create the Z-Series LX amps. Not only did they top the car audio comparisons, but home speaker makers even brought their speakers to our CES suite to demonstrate what their speakers could do. The LX was beating their demo home amps in sound quality.

Features & Specifications:

• Class AB Bridgeable 12V Amplifier
• Ultra High-Speed PWM MOSFET Power Supply
• Stable into 4-Ohms Bridged or 2-Ohms Stereo Load
• Tightly regulated from 11.5V to 14.5V
• Variable input sensitivity for each channel
• Tiffany style RCA Signal input and output connectors
• 4-Way protection circuitry (thermal/over current/speaker short/DC
• Tested voltage & THD: 11.5~15V & less than 0.05% THD at Rated Power
• Operating Voltage: DC10V~15.5V Power Input
• Rated Power Output
• RMS Power, 4-Ohms Stereo: 150W x 2 Ch
• RMS Power, 2-Ohms Stereo: 250W x 2 Ch
• RMS Power, 4-Ohms Bridged: 500W x 1 Ch
• Signal-to-Noise Ratio: >90dB
• Frequency Response: 10Hz~30KHz (+/-1 dB)
• THD @ RMS Watts: 0.05%
• Channel Separation: >50dB
• Fuse Rating: 35A x 2
• Input Sensitivity: 200mV~8V (+/- 5%)
• Dimensions: 7.48" W x 2.46" H x 12.83" L
