Cut for the JL Audio W7

JL Audio W7 Subwoofer Boxes

JL Audio W7 subwoofer boxes, CNC-cut in Tullahoma, Tennessee.

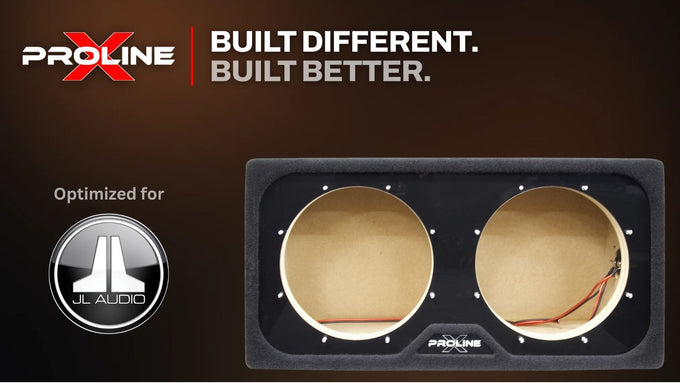

JL Audio W7 subwoofer box built by Proline X in Tullahoma, Tennessee

Cut for the JL Audio W7

The W7AE is JL Audio's flagship subwoofer, and JL publishes a recommended sealed and ported enclosure for every size. The 10, 12 and 13.5 inch Professional ported singles are cut to JL's recommended net volume and tuning.

Every cabinet on this page is built for one JL Audio W7 size, named in its title. Singles and duals, sealed and ported, each with its net volume and tuning and external dimensions on the listing.

JL Audio W7 enclosures in 8, 10, 12 and 13.5 inch, sealed and ported.

Cut, assembled and finished in Tullahoma, Tennessee.

Built to fit the JL Audio W7. Enclosure only unless the listing says loaded; the driver is not included.

Decision Shortcut

Find Your Match

Curated picks matched to common build goals

Best Value

Proline X PO 8-S W W7AE sealed wedge, front baffle with gloss black insert and pre-wired leads, 22.3 by 11.8 inches.

Proline X

JL Audio 8W7AE Box: Sealed 8" Wedge Enclosure

The lowest-priced JL Audio W7 cabinet in stock, $229.99, for the 8 inch.

$ 249.99

View Details

Best for SQ

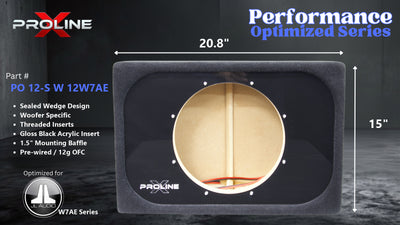

Proline X PO 12-S W 12W7AE sealed wedge, front baffle with gloss black insert and pre-wired leads, 20.8 by 15 inches.

Proline X

JL Audio 12W7AE Box: Sealed 12" Wedge Enclosure

A sealed Performance Optimized wedge cut for the JL Audio W7 12 inch: the tightest, most controlled alignment we build for it.

$ 349.99

View Details

Best High-Output

Pro 13D-P 13W7AE placeholder

Proline X

JL Audio 13W7AE Dual Box: Ported 13" Professional Series Enclosure

A ported pair for two 13.5 inch drivers, tuned to 34.6 Hz.

$ 835.99

View Details

Best for Trucks

Proline X PO 10-S W 10W7AE sealed wedge, front baffle with gloss black insert and pre-wired leads, 24.6 by 13 inches.

Proline X

JL Audio 10W7AE Box: Sealed 10" Wedge Enclosure

A sealed wedge raked to sit flush against a seat back, for the 10 inch.

$ 269.99

View Details

Shop the Lineup

←
→

All products loaded

Every JL Audio W7 Box by Size

Which series and shape we build at each size. Prices are the lowest listed at each size today.

JL Audio W7 enclosures by size, count and alignment.
SizeSingle sealedSingle portedDual sealedDual portedFrom
8 inchPerformance Optimized wedgePerformance Optimized down fire; ProfessionalPerformance Optimized wedgeProfessional$229.99
10 inchPerformance Optimized wedgePerformance Optimized down fire; ProfessionalPerformance Optimized wedgeProfessional$249.99
12 inchPerformance Optimized wedgeProfessionalPerformance Optimized wedgeProfessional$279.99
13.5 inchPerformance Optimized wedgeProfessionalPerformance Optimized wedgeProfessional$309.99

Warranty runs by series: 1 year limited on Performance Optimized, 2 years on Professional and Micro.

JL Audio W7 Subwoofer Box Directory by Model

We build sealed and ported enclosures for 8 JL Audio W7 subwoofer models, 8 to 13 inch, in wedge, down-fire and standard styles from single, dual, triple and quad woofer cabinets. Open a model to see every box cut for it, with net volume, tuning and outside dimensions. Full specs and fitment notes are on each product page.

JL Audio 8W7AE 5 boxes
BoxSeriesNet volumeTuningOutside dimensions
Down Fire Ported, SinglePerformance Optimized1.18 ft³34.0 Hz31" W x 14.50" D x 7.75" H
Wedge Sealed, SinglePerformance Optimized0.88 ft³Sealed22.27" W x 11.75" H x 13.20" D, tapering to 8.92"
Wedge Sealed, DualPerformance Optimized1.75 ft³Sealed32.00" W x 11" H x 16.83" D, tapering to 12.83"
Wedge Wide Sealed, TriplePerformance Optimized2.62 ft³Sealed40" W x 13" H x 17.07" D, tapering to 12.34"
Wedge Wide Sealed, QuadPerformance Optimized3.50 ft³Sealed44" W x 13" H x 19.16" D, tapering to 14.43"
JL Audio 8W7AE-3 2 boxes
BoxSeriesNet volumeTuningOutside dimensions
Standard Ported, SingleProfessional1.26 ft³34.5 Hz30.00" W x 14.00" H x 12.38" D
Standard Ported, DualProfessional1.32 ft³35.0 Hz34.00" W x 14.00" H x 12.00" D
JL Audio 10W7AE 4 boxes
BoxSeriesNet volumeTuningOutside dimensions
Wedge Sealed, SinglePerformance Optimized1.25 ft³Sealed24.57" W x 13" H x 14.57" D, tapering to 9.84"
Wedge Sealed, DualPerformance Optimized2.50 ft³Sealed32.00" W x 15" H x 17.66" D, tapering to 12.20"
Wedge Wide Sealed, TriplePerformance Optimized5.20 ft³Sealed40" W x 17" H x 23.00" D, tapering to 16.81"
Wedge Wide Sealed, QuadPerformance Optimized5.83 ft³Sealed44" W x 17" H x 23.00" D, tapering to 16.81"
JL Audio 10W7AE-3 3 boxes
BoxSeriesNet volumeTuningOutside dimensions

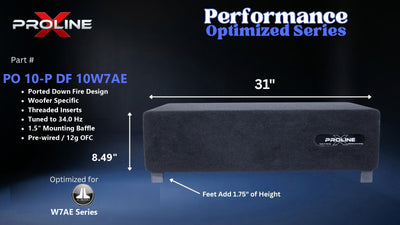

Down Fire Ported, SinglePerformance Optimized1.47 ft³34.0 Hz31" W x 16.00" D x 8.49" H

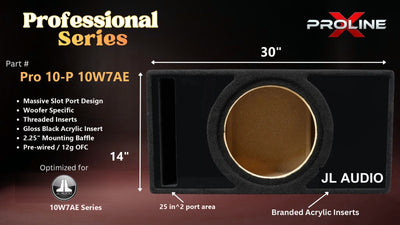

Standard Ported, SingleProfessional1.48 ft³35.3 Hz30.00" W x 14.00" H x 13.62" D
Standard Ported, DualProfessional3.00 ft³35.3 Hz36.00" W x 14.00" H x 19.50" D
JL Audio 12W7AE 3 boxes
BoxSeriesNet volumeTuningOutside dimensions
Wedge Sealed, SinglePerformance Optimized1.38 ft³Sealed20.83" W x 15" H x 16.40" D, tapering to 10.94"
Wedge Sealed, DualPerformance Optimized2.75 ft³Sealed32.00" W x 16" H x 18.47" D, tapering to 12.65"
Wedge Wide Sealed, TriplePerformance Optimized5.64 ft³Sealed44" W x 17" H x 23.00" D, tapering to 16.81"
JL Audio 12W7AE-3 2 boxes
BoxSeriesNet volumeTuningOutside dimensions
Standard Ported, SingleProfessional1.77 ft³36.7 Hz30.00" W x 16.00" H x 14.88" D
Standard Ported, DualProfessional3.45 ft³36.7 Hz39.50" W x 16.00" H x 18.50" D
JL Audio 13W7AE 2 boxes
BoxSeriesNet volumeTuningOutside dimensions
Wedge Sealed, SinglePerformance Optimized1.88 ft³Sealed23.96" W x 16" H x 17.57" D, tapering to 11.75"

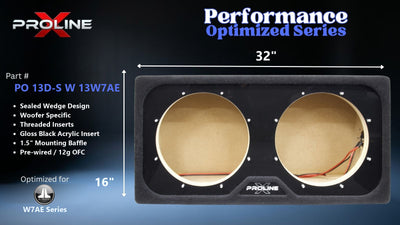

Wedge Sealed, DualPerformance Optimized3.75 ft³Sealed32.00" W x 16" H x 23.20" D, tapering to 17.37"
JL Audio 13W7AE-D1.5 2 boxes
BoxSeriesNet volumeTuningOutside dimensions
Standard Ported, SingleProfessional2.40 ft³34.6 Hz34.00" W x 16.00" H x 16.38" D
Standard Ported, DualProfessional4.78 ft³34.6 Hz46.00" W x 16.00" H x 22.00" D

Why a Box Built for the JL Audio W7

Cut to the driver, not to the size

JL prints the cutout, mounting depth and bolt circle for each W7AE size, and each listing gives the figures its baffle is cut to.

Performance Optimized
Sealed and ported cabinets solved from the JL Audio W7's own parameters. The dual cabinets split the air with a full-height divider, so each driver gets its own chamber.

Professional Series
Front-firing ported cabinets with a slot port, tuned for the JL Audio W7. The duals share one chamber and one port, so run a matched pair.

How to Choose

Size first
Pick the cabinet for the JL Audio W7 size you own; each listing is cut for one size only.

Sealed or ported
Sealed is the smaller box and holds its output below tuning. Ported gives more output around its tuning from a larger cabinet, and every ported listing states its tuning.

Wiring
The 8, 10 and 12 inch W7AE are single 3 ohm voice coil drivers, so a pair lands on 1.5 ohms in parallel or 6 ohms in series. The 13.5 inch W7AE is a dual 1.5 ohm driver.

Every JL Audio box
The JL Audio subwoofer box page has every JL Audio cabinet we cut, across all of JL Audio's drivers.

Will It Fit?

Measure the opening
The JL Audio W7 cabinets here run from about 20 to 46 inches wide, and every listing prints its external dimensions. Measure the narrowest point of the space, not the floor.

Behind a seat or against a seat back
The wedges rake the rear panel to sit flush against a seat back or cab wall. See every shape in the wedge collection.

On a cargo floor
The down fires stand on feet with the cone facing the floor, for hatches and SUVs where height is short. See the down-fire collection.

Built for the JL Audio W7

JL prints the cutout, mounting depth and bolt circle for each W7AE size, and each listing gives the figures its baffle is cut to.

Wiring a Pair

The 8, 10 and 12 inch W7AE are single 3 ohm voice coil drivers, so a pair lands on 1.5 ohms in parallel or 6 ohms in series. The 13.5 inch W7AE is a dual 1.5 ohm driver.

The JL Audio W7 Range at a Glance

8 inch single: ported down fire, ported front-firing, sealed wedge; dual: ported front-firing, sealed wedge. From $229.99.

10 inch single: ported down fire, ported front-firing, sealed wedge; dual: ported front-firing, sealed wedge. From $249.99.

12 inch single: ported front-firing, sealed wedge; dual: ported front-firing, sealed wedge. From $279.99.

13.5 inch single: ported front-firing, sealed wedge; dual: ported front-firing, sealed wedge. From $309.99.

Performance Optimized

Performance Optimized W7 boxes

8, 10, 12 and 13.5 inch·From $229.99

Ported and sealed, down fire, wedge; single and dual.

1 year limited warranty on Performance Optimized

Professional

Professional W7 boxes

8, 10, 12 and 13.5 inch·From $409.99

Ported, standard; single and dual.

2 year limited warranty on Professional

Construction and chamber layout are stated on each product page.

Categories

Keep Reading

Supporting guides to help you design, build, and tune your system.

JL Audio W7 Box Questions

Which JL Audio W7 sizes do you build boxes for?

8, 10, 12 and 13.5 inch, in single and dual cabinets. Each listing is cut for one size and names it in the title.

Are the 8, 10 and 12 inch W7AE dual voice coil?

No. JL rates the 8, 10 and 12 inch W7AE as single 3 ohm voice coil drivers. A pair wires to 1.5 ohms in parallel or 6 ohms in series. Only the 13.5 inch W7AE is dual voice coil, at 1.5 ohms per coil.

Sealed or ported for the JL Audio W7?

Sealed is smaller and holds its output below tuning; ported gives more output around its tuning from a larger cabinet. Every ported listing states its tuning and every listing states its net volume.

Do the dual boxes have separate chambers?

The Performance Optimized duals give each driver its own chamber behind a full-height divider. The Professional Series duals share one chamber and one port, so run two of the same model and coil.

Is the JL Audio W7 included?

No. These are enclosures built to fit the JL Audio W7; the driver is sold separately. A listing that ships with the driver fitted says loaded in its title.

How should I wire the JL Audio W7?

The 8, 10 and 12 inch W7AE are single 3 ohm voice coil drivers, so a pair lands on 1.5 ohms in parallel or 6 ohms in series. The 13.5 inch W7AE is a dual 1.5 ohm driver. Pick the pair's final load to suit the amplifier's minimum stable impedance.

What warranty do these boxes carry?

It runs by series: 1 year limited on Performance Optimized, 2 years on Professional and Micro. The series is named in each listing title.
