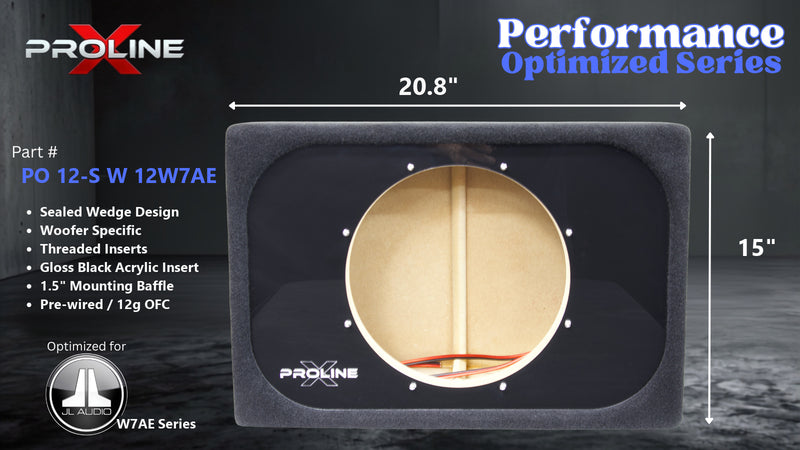

Proline X PO 12-S W 12W7AE sealed wedge, front baffle with gloss black insert and pre-wired leads, 20.8 by 15 inches.

Proline X

Performance Optimized Wedge Sealed 12" Enclosure | JL Audio 12W7AE

Q: Does this fit the JL Audio 12W7AE-3, and will any other 12 inch fit?

The 12W7AE-3, yes. The baffle is cut to 10.50 in (267 mm), JL's published mounting hole, under the 12.5 in (318 mm) frame. The 9.5 inch deep motor clears the raked rear panel with 0.75 inch to spare, and JL sells the 12W7AE in one version, a single 3 ohm coil, so there is no variant to choose.Any other 12 inch, no. The airspace is built around the 12W7AE's 0.482 Qts and 66.0 liters of Vas; a different woofer that happened to drop into the hole would not see the alignment printed on this page.

Q: Why 1.375 cubic feet, and what alignment does it target?

It is JL's own recommended sealed volume for the 12W7AE. On JL's published Fs 27.2 Hz, Qts 0.482 and Vas 66.0 liters it gives Qtc 0.791, system resonance 44.7 Hz and half power 40.4 Hz, the figures JL prints for that box.Qtc 0.79 is a little above maximally flat: a small lift near resonance and a firm, punchy midbass. The flat box on the same figures would be 2.02 cubic feet, a bigger cabinet for a small gain in extension.

Q: What amplifier power should I run, and how should I wire it?

JL rates the 12W7AE-3 at 1000 watts RMS, so target 700 to 1000 watts RMS at the final load.The 12W7AE-3 has a single 3 ohm voice coil, so one driver presents 3 ohms to a mono amplifier. Confirm your amplifier's minimum stable impedance first.

Q: Why the wedge angle, and why rear-firing into the trunk?

The seat-side face carries a 20 degree rake that matches the lean of a factory rear seat back, so the cabinet sits flush against it and the cargo space in front stays usable. The baffle is the vertical trunk-lid-side face, so the driver fires rearward into the trunk cavity.The trunk acts as an acoustic extension for the sealed box, and the cabin adds real output below 50 Hz, so in-vehicle response runs deeper than the anechoic 40.4 Hz on this page.

Q: Why is the front baffle double-layered?

The baffle is two bonded 3/4 inch sheets, 1.5 inches through. A single 3/4 inch panel flexes under what a long-throw 12 inch with 29 mm of excursion puts on it at 1000 watts, which smears output and works the driver loose over time; the second layer stiffens the face and gives the threaded inserts twice the material to bite.The outer layer is machined as a flush recess to JL's 12.5 inch frame, so the driver bolts to the inner layer and sits flush with the gloss black acrylic insert.

Q: What is the expected low-frequency extension?

Anechoic F3 is 40.4 Hz with system resonance at 44.7 Hz. Above Qtc 0.707 F3 sits below fc, so the response carries a small lift near resonance before it rolls off.Those figures exclude cabin gain. In a car the cabin's transfer function adds real output below 50 Hz, so in-vehicle response runs deeper than the numbers above.

Q: Do I need to add polyfill or damping?

No. Polyfill is already installed as a light wall lining to control internal reflections, and the quantity is chosen so it does not change the acoustic volume.Do not add more. Packing a sealed box with fill makes it behave as though it were larger, which walks the alignment away from the 1.375 cubic feet this cabinet was built to.

Q: Is the driver included, and are the threaded inserts installed?

No driver. This is an enclosure only. You receive the cabinet finished in plush black carpet with the gloss black acrylic baffle insert, one side-mounted pre-wired terminal cup, the polyfill lining already in place, and stainless machine screws.The threaded inserts are already pressed: JL publishes a 11.27 inch bolt circle for the 12W7AE, so we drill to it at the shop. The JL Audio 12W7AE-3 is purchased separately, and the cabinet is cut direct fit to it, not a general purpose 12 inch box.

SKU: PO 12-S W 12W7AE BB

QUICK SPECS

Best For: JL Audio 12W7AE-3 Trunk-Fit Builds
Net Volume: 1.375 cu ft (1.53 cu ft Gross)
Driver Match: JL Audio 12W7AE-3 (single 3 ohm)
Construction: Rear-Firing Wedge | V-Groove/Dado | Double 1.5" Baffle | Threaded Inserts

Shipping Included No freight charges at checkout. What you see is what you pay.

Built in Tennessee CNC cut from 3/4" Langboard Elite MDF. V-groove and dado joinery.

Advanced Terminal Cup Built in-house. ABS/Carbon Fiber. Stainless steel hardware. Copper ring terminals.

$ 299.99

Acrylic Insert Color

In Stock and Ready to Ship

Financing available. Choose Shop Pay Installments at checkout.

Performance Optimized Wedge Sealed 12" Enclosure | JL Audio 12W7AE

More enclosures cut for JL Audio subwoofers: JL Audio Subwoofer Boxes

Enclosure Type Sealed

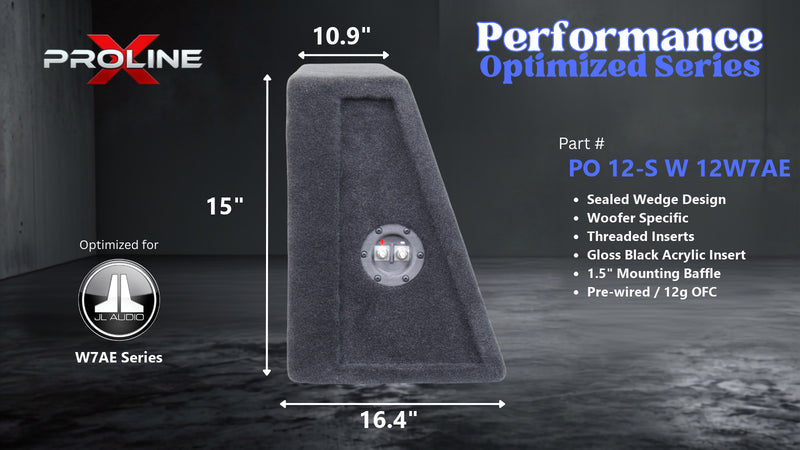

External Dimensions 20.83" W x 15" H x 16.40" D at base tapering to 10.94" D at top

Gross Volume 1.53 cu ft

Net Volume 1.38 cu ft

Shipping Weight 40 lbs

Front Panel Thickness 1.5"

INSTALLER'S TAKE

Built to JL's own sealed box, 1.375 cubic feet, Qtc 0.791. Butterworth on these numbers wants 2.02; JL's figure is the practical one and it is punchy, not boomy.

The 9.5 inch deep motor sets the top of the wedge at 10.94 and clears the raked back with 0.75 to spare. It is 16.40 deep at the base on a 15 inch face; measure the trunk floor first.

Cut is 10.50 (267 mm), JL's own mounting hole, and the inserts are pressed on JL's 11.27 bolt circle. It is sealed, so leave the polyfill as it is and run it at 1000 watts or under.

Product Details

Performance Optimized Wedge | JL Audio 12W7AE-3

12" Sealed Wedge Enclosure | Rear-Firing Trunk-Load Design

1.375 ft3 Net1.53 ft3 GrossQtc 0.79Single Chamber Wedge20.83" x 15" x 10.94/16.40"Built in Tennessee

The JL Audio 12W7AE-3 in a Sealed Wedge

The 12W7AE-3 is the 12 inch of JL Audio's W7AE line: a single 3 ohm voice coil, 1000 watts RMS, 29 mm of one-way excursion on 542 square centimeters of cone, and 9.5 inches of mounting depth on a 12.5 inch frame. Every figure comes from JL Audio's published 12W7AE-3 parameters, and they hold together: Qes and Qms reproduce the printed Qts, and the 217 g moving mass and 0.158 mm/N compliance reproduce the 27.2 Hz resonance and 66.0 liter Vas.

1.375 cubic feet net on JL's published Fs 27.2 Hz, Qts 0.482 and Vas 66.0 liters: Qtc 0.791, system resonance 44.7 Hz, half power 40.4 Hz. Those are the figures JL prints for its own recommended sealed box, and this cabinet reproduces them. JL's own sealed recommendation for the 12W7AE-3 is 1.375 cubic feet net, and this cabinet is built to it. The maximally flat box on the same figures would be 2.02 cubic feet, about 47 percent larger; JL's figure keeps the cabinet trunk-sized for a small lift near resonance.

Trunk-Load Wedge Design Explained

The driver mounts on the vertical trunk-lid-side face and fires rearward into the trunk cavity.

Seat-Side Face Matches Seat Lean

Angled face matches the roughly 20 degree factory seat lean.

Trunk-Lid-Side Face Fires the Woofer

Vertical baffle, cone firing rearward into the trunk cavity.

Trunk Cavity Loading

The trunk acts as an acoustic extension for a smoother presentation.

Preserves Trunk Cargo Space

The wedge tucks against the seat back and the space in front stays usable.

Engineered for the JL Audio 12W7AE-3

Half power lands at 40.4 Hz anechoic, before any cabin gain. JL publishes the driver displacement, 4.0 liters, and it is taken out of the net figure.

Alignment Numbers

Driver	System Qtc	fc	F3
12W7AE-3, single 3 ohm	Qtc 0.791	44.7 Hz	40.4 Hz

Mounting Geometry

The baffle is cut to 10.50 in (267 mm), JL's published mounting hole, under the 12.5 in (318 mm) frame. The rear panel rakes 20 degrees, so the cavity deepens from 10.94 in at the top to 16.40 in at the base, and the 9.5 in deep motor clears it with 0.75 in to spare. JL publishes a 11.27 in (286 mm) bolt circle for the 12W7AE-3, so the threaded inserts are pressed at the shop on that circle and the driver bolts straight down with the stainless machine screws supplied.

What the Numbers Rest On

Langboard Elite MDF

Premium 3/4 in MDF throughout.

V-Groove and Dado Joinery

CNC cut V-grooves at every panel intersection, sides and brace seated in dados.

Double-Layer 1.5" Front Baffle

Two bonded 3/4 in MDF sheets at the driver face, the outer layer machined as a flush recess.

JL's Own Parameters

Fs 27.2 Hz, Qts 0.482, Qes 0.514, Qms 7.807, Vas 66.0 L, Sd 542 cm2, Mms 217 g, Cms 0.158 mm/N, Bl 13.3 N/A. Sensitivity 86.2 dB at 1 W / 1 m.

Wiring the JL Audio 12W7AE-3 to Your Amplifier

The 12W7AE-3 has a single 3 ohm voice coil, so one driver presents 3 ohms to a mono amplifier. Confirm the final load against your amplifier's minimum stable impedance before powering the system.

Power handling is 1000 watts RMS per driver. Aim for roughly 700 to 1000 watts at the impedance you wire.

Built in Tennessee, Backed by Audio Intensity

Cut and assembled in Tullahoma, Tennessee on our own CNC equipment. Finished in plush black carpet with the gloss black acrylic baffle insert, one pre-wired terminal cup, 12 gauge OFC to the driver position. Polyfill wall lining installed. Threaded inserts pressed on JL's bolt circle, stainless machine screws in the box. 1 year limited warranty. Enclosure only, the driver is purchased separately. Call or text 931-563-5151.

JL Audio 12W7AE-3: Built to JL's Own Sealed Box

1.375 cubic feet net at Qtc 0.791, F3 40.4 Hz, cut direct fit and built to order in Tennessee.

Specifications

Specification	Value
Series	Proline X Performance Optimized Wedge
Compatible Driver	JL Audio 12W7AE-3, quantity 1. Direct fit
Configuration	Single 12 inch, single chamber sealed wedge
Mounting Position	Trunk or cargo area, tall face against the rear seat back
Firing Direction	Rearward into the trunk. Not a down fire design, no feet included
External Width	20.83 in
External Height	15 in at the seat face
External Depth	16.40 in at the base, tapering to 10.94 in at the top
Internal Volume, Gross	1.53 cu ft
Internal Volume, Net Acoustic	1.375 cu ft after the brace and JL's published 4.0 L displacement
Driver Mounting Depth	9.5 in required; 0.75 in clearance above the motor against the raked rear panel
Alignment	Qtc 0.791, fc 44.7 Hz, F3 40.4 Hz anechoic
JL Recommended Enclosure	1.375 cu ft sealed (Qtc 0.791, F3 40.4 Hz), 1.75 cu ft at 36.7 Hz ported
Woofer Opening	10.50 in (267 mm), JL's published mounting hole
Frame Outer Diameter	12.5 in (318 mm)
Bolt Circle	11.27 in (286 mm), JL spec; threaded inserts pressed
Driver Displacement	4.0 L / 0.14 cu ft, JL spec
Fs / Qts / Qes / Qms	27.2 Hz / 0.482 / 0.514 / 7.807
Vas / Mms / Cms / Bl	66.0 L / 217 g / 0.158 mm/N / 13.3 N/A
Driver Sd	542 cm2
Xmax	29 mm one way, JL spec (voice coil overhang method)
Driver Sensitivity	86.2 dB at 1 W / 1 m, JL spec
Driver Power Handling	1000 W RMS
Wiring Options	Single 3 ohm coil, a 3 ohm load
Parameter Source	JL Audio 12W7AE-3 published specifications
Material	Langboard Elite MDF
Construction	CNC cut, V-groove and dado joinery
Panel Thickness	0.75 in
Front Baffle	1.5 in double baffle, outer layer machined as a flush recess
Internal Bracing	Windowed brace, dadoed to the shell
Driver Mounting	Threaded inserts pressed on JL's bolt circle, stainless machine screws included
Terminal Cups	One Proline X ABS and carbon fiber composite, side mounted, pre wired 12 gauge OFC
Acrylic Insert	Gloss black acrylic baffle insert standard; None variant minus $20
Damping	Light polyfill wall lining, does not alter acoustic volume
Carpet	Plush black
Shipping Weight	40 lb
Warranty	1 Year Limited
Built In	Tullahoma, Tennessee

Performance Graphs

Net airspace

1.38

cu ft

System Qtc

0.79

sealed

Half power

40.4

Hz · F3

Xmax at

1637

W RMS · no filter

With 25 Hz subsonic

2039

W RMS · +25%

Amplifier

1000

W RMS recommended

This enclosure holds 1.38 cu ft net . In it the JL Audio 12W7AE-3 runs a system Qtc of 0.79 with half power at 40.4 Hz, and the cone reaches its 29.0 mm travel limit at 1637 W, above the driver’s 1000 W thermal rating, so heat stops you before travel does. Run a subsonic filter at 25 Hz and that becomes 2039 W — +402 W, or 25 percent more power for the same 29.0 mm of travel.

01Is it a sealed driver?

Efficiency bandwidth product places the motor before anything else is decided.

EBP = Fs ÷ Qes = 52.9

single 3 ohm · EBP 52.9

At 52.9 the 12W7AE-3 sits in the transition band, not the sealed band. That is not a mismatch: a transition motor works in either alignment, and sealed buys a smaller box and a gentler roll-off at the cost of some low-end output. Stage 02 shows what this airspace actually does with it.

02What the box does to it

1.38 cu ft against a 66.0 L Vas.

α = Vas ÷ Vb = 1.70 · Fc = Fs√(α+1) = 45 Hz · Qtc = 0.79

single 3 ohm · Qtc 0.79, Fc 45 Hz, F3 40.4 Hz

The box lifts resonance from 27.2 Hz free-air to 45 Hz and half power lands at 40.4 Hz, anechoic, before any cabin gain. Figures are JL Audio’s published 12W7AE-3 parameters, and they hold together: Qes and Qms reproduce the printed Qts, and the moving mass and compliance reproduce the 27.2 Hz resonance and 66.0 liter Vas. 1.375 cubic feet is JL’s own recommended sealed volume, which lands at Qtc 0.79 on these figures. The dual wedge holds the same per chamber, so these numbers describe it too.

03The watts that reach Xmax (in this enclosure)

Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 29.0 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.

P_Xmax = 1637 W unfiltered → 2039 W with a 25 Hz subsonic

single 3 ohm · 1637 W, no filtersingle 3 ohm · 2039 W with subsonic at 25 Hz, 24 dB/octXmax 29.0 mm one-way

Every trace touches the limit and no further, because each is drawn at the exact power that puts that coil on 29.0 mm. Unfiltered that is 1637 W, reached first at 20 Hz. It sits above the 1000 W the driver can take thermally, so the voice coil gives up before the suspension does. The dashed traces are the same driver behind a subsonic filter at 25 Hz, 24 dB/oct: stopping the cone wasting travel below the passband lets it take 2039 W before hitting the same 29.0 mm. That is 25 percent more amplifier for the price of one filter setting.

Param	Value	Unit	Note
Fs	27.20	Hz	free-air resonance
Qts	0.482		single 3 ohm
Vas	66.00	L	equivalent compliance
Sd	542.0	cm²	effective piston area
Xmax	29	mm	one-way linear travel
Pe	1000	W	continuous RMS
SPL	86.0	dB	1 W / 1 m, derived from T/S

Driver parameters as published by JL Audio 12W7AE-3 published specifications. Curves computed against this enclosure’s actual net airspace.

Materials

Material

Built From a Spec Sheet, Not a Sales Sheet

Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.

Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.

Specifications

Langboard Elite MDF: Published Mill Data

Property	Value	Why It Matters
Panel Stock	Langboard Elite MDF	Named, verifiable panel source, not generic "high-density MDF"
Thickness	3/4" (18mm)	Industry standard for subwoofer enclosures; panels below this flex under pressure
Density	48.5 lbs/ft³	Higher density = less porosity, better screw retention, reduced resonance
Internal Bond	200 psi	Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet
Modulus of Rupture (MOR)	4,200 psi	Bending strength before the panel breaks, relevant for larger unsupported baffle spans
Modulus of Elasticity (MOE)	410,000 psi	Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance
Face Screw Holding	325 lbs	How firmly the panel surface holds a screw; critical for baffle joint integrity over time
Edge Screw Holding	250 lbs	Panel edge retention, relevant for every joint that isn't face-to-face

Internal Bond

200 psi: The Number That Actually Matters for Enclosures

The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.

Stiffness

410,000 psi MOE: Less Flex, Less Resonance

The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.

Screw Holding

325 lb Face / 250 lb Edge: Joints That Stay Locked

Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.

Sourcing

Named Panel Stock: Not "Premium MDF"

The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.

Why Proline X?

Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.

CNC-Cut to Spec

Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
