Which Subwoofers Work in a Down-Fire Box: Every Driver We Cut For

Two 10 inch subwoofers can want completely different boxes. The Wavtech thinPRO10 is happy in 0.40 cubic feet. The JL Audio 10W3V3 wants 1.09. Same nominal size, and one needs nearly three times the cabinet of the other.

That is the part nobody tells you when you are shopping by driver diameter. Below is every driver we currently cut a down-fire enclosure for, with the sealed volume we cut to. Thirty-three driver models across twelve brands, in single, dual and triple, from 10 to 15 inch. We do not sell the driver on five of those brands, which is exactly why the numbers are worth reading.

Key Takeaways

• Required sealed volume across our 10 inch down-fire builds runs 0.40 to 1.09 cubic feet. Nominal driver size does not determine box size.
• Pick on mounting depth first and published sealed alignment second. Then cut the box to the driver, not the other way around.
• Sealed means isolated chambers, one per driver. Every volume below is per chamber.
• If your driver is not on the list, the universal P10-S DF and P12-S DF are cut to a standard cutout and volume range.

Why does nominal driver size tell you so little?

Because the box is set by the driver's published parameters, not by its diameter. Across our 10 inch down-fire builds the required sealed volume spans 0.35 to 1.09 cubic feet, a 2.7 times spread inside a single nominal size. The 12 inch builds span 0.60 to 1.25, roughly 2.1 times.

A 10 inch driver is a mounting dimension. It tells you the cutout and roughly the footprint. It tells you almost nothing about how much air the motor and suspension want behind the cone.

What are the two specs that decide it?

Mounting depth first, published sealed alignment second. Depth is a hard gate in a down-fire cabinet, because the box has to clear the seat above it and hold the cone off the floor below it. Our universal single 12 takes a maximum of 6 inches, and plenty of high-excursion 12s need 7 or more.

Alignment is the second gate. It sets the volume, and volume sets the footprint. A driver that wants 1.25 cubic feet is going to give you a bigger cabinet than one that wants 0.60, and in a vehicle that difference usually shows up as height you do not have.

Work in that order and you will not waste time. Measure floor to seat, subtract the cabinet height, and only then start comparing drivers that fit the space left over. Our guide to using Thiele-Small parameters to spec a box covers where those published figures come from.

Every driver we cut a down-fire enclosure for

Here is the whole program. Before the tables, the disclosure that makes them worth reading: on five of these twelve brands we do not sell the driver at all. We cut the enclosure and you source the subwoofer wherever you like.

That is not a limitation we are apologising for. It is the reason these numbers are trustworthy. An alignment table that includes drivers we cannot sell you has nothing to gain from steering you.

All volumes are physical net, per chamber. Sealed builds use isolated chambers, one per driver, so a dual enclosure holds two of the volume listed rather than one.

All volumes are physical net, per chamber. Sealed builds use isolated chambers, one per driver, so a dual holds two of the volume listed rather than one.

Singles and duals of the same driver are listed separately, and the numbers differ. That is deliberate. A dual cabinet is constrained by mounting depth, so each chamber is cut tighter than the single. The JL Audio 10W3V3 takes 1.09 cubic feet as a single and 0.55 per chamber as a dual.

10 inch

12 inch

15 inch

One row is worth pausing on. The Wavtech thinPRO10 is the only driver in the program we build a triple for, and three of them fit in 1.05 cubic feet total. That is less cabinet than a single JL Audio 10W3V3 wants on its own. Three cones of displacement in less air than one.

What if your driver is not on the list?

Then you want a universal cutout box. The P10-S DF is 0.60 cubic feet and the P12-S DF is 1.00, both cut to a standard cutout and volume range rather than to one driver's parameters.

The baffle ships as a solid mounting flange with no threaded inserts. That is deliberate. We do not know which subwoofer is going in, so we cannot machine a bolt pattern for it, and you drill your own. The P12-S DF takes an 11.13 inch cutout and a maximum mounting depth of 6 inches.

That depth limit is the honest catch. It covers a good number of 12s, but a lot of high-excursion drivers need 7 inches or more and simply will not fit. Check your driver's published mounting depth before you order anything.

Which drivers suit a shallow floor-to-seat gap?

The slim and shallow families, and they are easy to spot in the tables above because they cluster at the low-volume end. Wavtech thinPRO at 0.40, Alpine RSW10 at 0.50, JL Audio TW3 at 0.50, Morel Ultimo PowerSlim at 0.50, Hertz Mille Pro MPS at 0.51.

Those five occupy the tightest cabinets in the program, which matters twice over in a down-fire build. Less volume means a shorter cabinet, and a shallower motor means less depth eaten by the driver itself. In a truck with a few inches between floor and seat, that combination is the difference between a build and a no.

If that is your situation, our shallow-mount enclosure guide covers what shallow motor design costs you and what it does not.

Going from driver to box

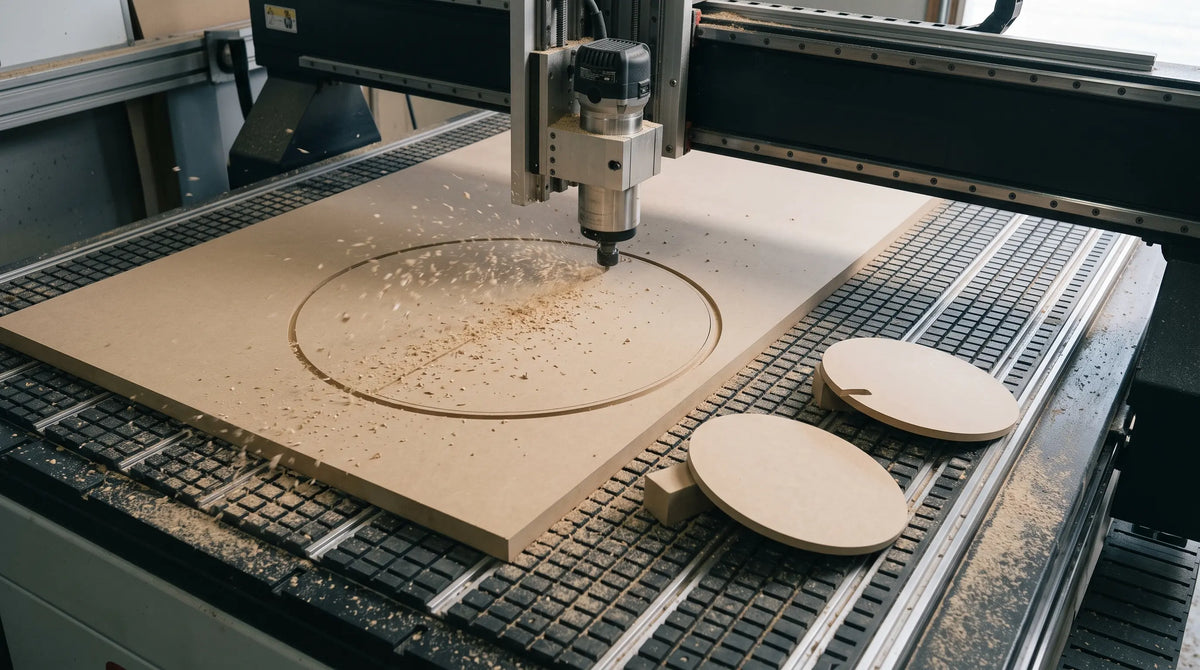

Find your driver in the table, note the volume, and pick the configuration you want. Every one of these is a Performance Optimized build: Langboard Elite MDF at 48.5 pounds per cubic foot, V-groove and dado joinery, a 1.5 inch double baffle, and polyfill sized to the chamber before it ships. All of them are cut on ShopSabre routers in Tullahoma, Tennessee.

Browse the full down-fire lineup to find the enclosure matched to your driver. If you are still deciding between a single and a dual, or between a 10 and a 12, start with our guide to down-fire box sizing. If you have not settled on down-firing yet, read down-firing vs front-firing first.

Driver not listed and not sure whether the universal box will take it? Contact us or call 931-563-5151 with the model and we will tell you straight.
