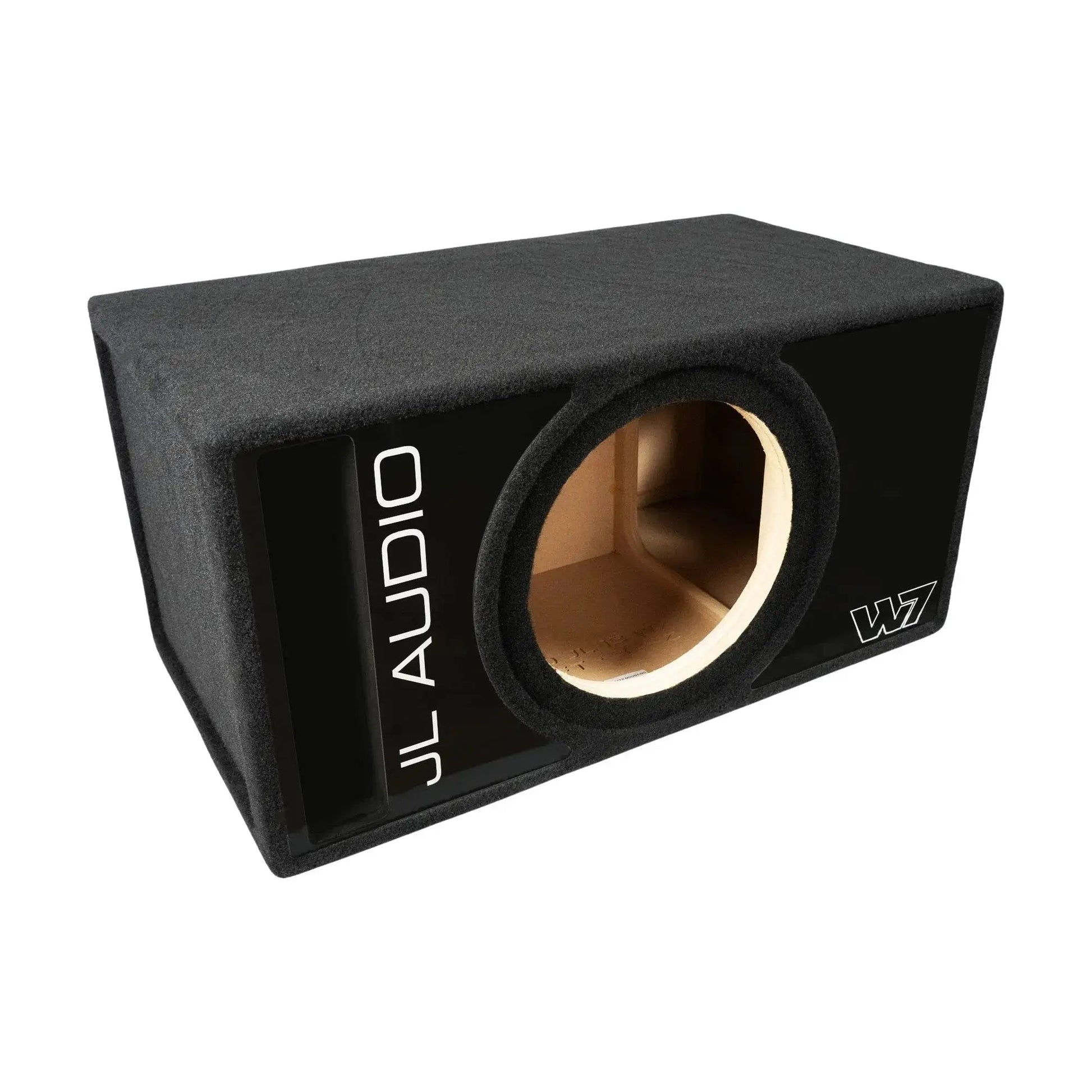

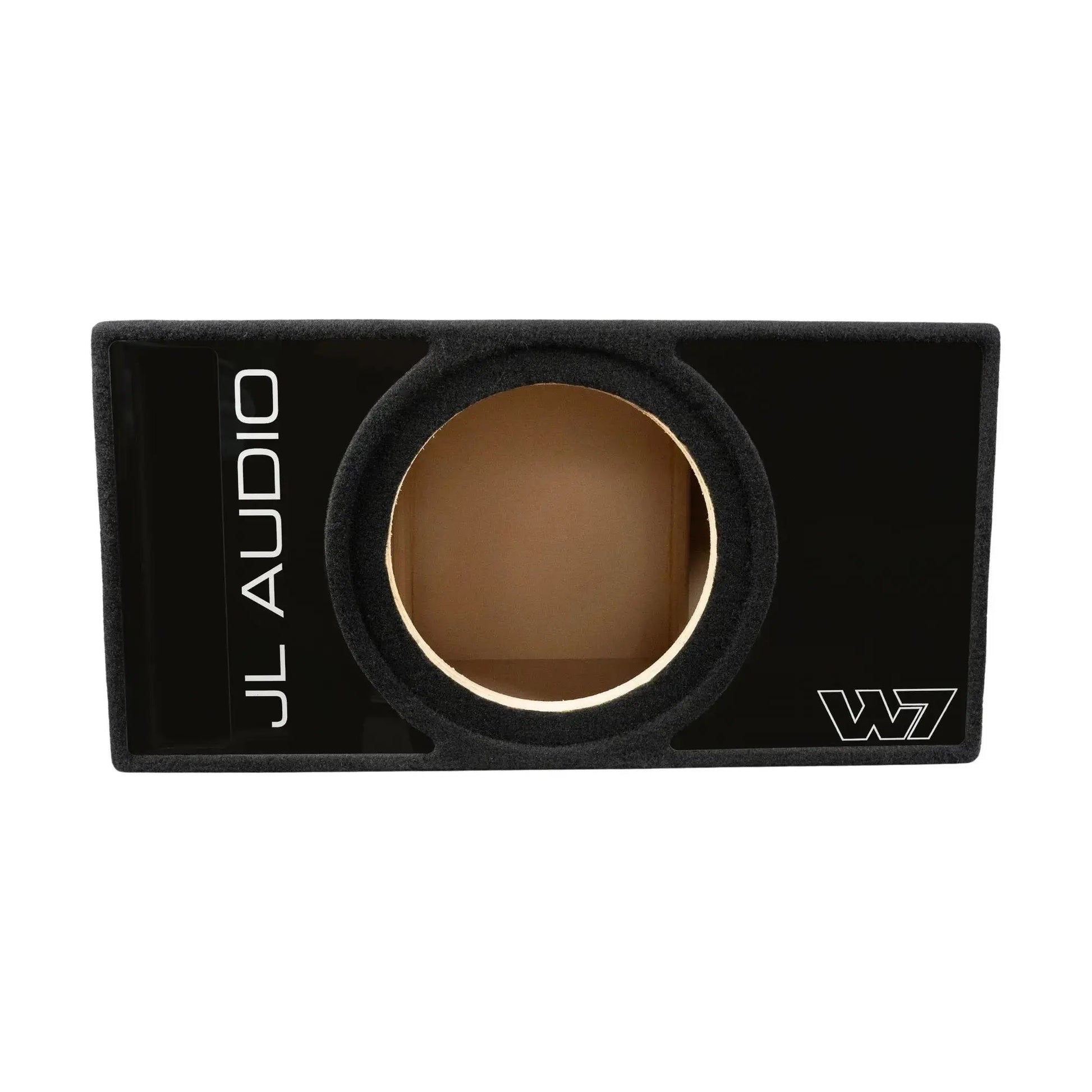

Proline X Enclosure | Professional Series | Fits JL Audio 10w7 Subwoofer
SKU: Pro JL 10W7
- Configuration: Single 10" Ported | 1.7 cu ft net | Tuned to 33Hz | 22 sq in port area — spec-matched to JL Audio 10W7AE-3
- Dimensions: 32" W × 12.5" H × 15" D | ~48 lbs | Plush Black carpet | Shipping included
- Construction: 1.5" Double-Layer Baffle | Threaded Inserts + #10-32 Machine Screws (12-point) | Dado + V-Groove CNC Joinery | Extensive Internal Bracing
- Terminal: Proline X ABS/Carbon Fiber Cup | Pre-wired 12g OFC | Fits JL Audio 10W7AE-3 (Single 3Ω) — Enclosure Only
Financing available — choose Shop Pay Installments at checkout.
Proline X Enclosure | Professional Series | Fits JL Audio 10w7 Subwoofer
Reference-Grade 10" Bass — Built to the W7AE's Exact Numbers
The JL Audio 10W7AE-3 does something rare — it delivers reference-grade sub-bass from a 10" driver. With 23mm one-way Xmax, 750 watts RMS, and a motor tuned for accuracy at volume, it rewards an enclosure built to its parameters. This box is spec'd to 1.7 cu ft net, tuned to 33Hz with 22 sq in of port area, and built to stay rigid and accurate under sustained high-power use. Enclosure only. Driver not included.
Built exclusively for the JL Audio 10W7AE-3. Full driver specs at garmin.com.
Built to the Driver's Numbers — Not a Generic Template
The 10W7AE-3 has a Qts of 0.537 and an Fs of 30.6Hz. That Qts sits above the typical ported threshold — this driver will perform in either sealed or ported alignment — but ported is the right call when the goal is extracting the 10W7AE's full low-frequency potential and output capability. JL Audio publishes 1.5 cu ft as their ported recommendation. This enclosure delivers 1.7 cu ft net — sized above JL's minimum to give the driver more breathing room relative to its Vas of 1.28 cu ft and produce a smoother, more extended low-frequency response at 33Hz.
The 22 sq in port area is calculated for the air displacement this driver produces at 23mm one-way Xmax at 750W. Port sizing at this enclosure volume keeps air velocity in check and eliminates port noise at sustained output levels. Small enclosures with undersized ports are where 10" ported builds typically fail — this one doesn't cut corners on port area.
1.5" Double-Layer Baffle — Twelve-Point Mounting System
The 10W7AE-3 uses the same twelve-point #10-32 bolt pattern as the rest of the W7AE family. This enclosure's 1.5" double-layer baffle — two full sheets of Langboard Elite MDF bonded and CNC-cut as a single unit — provides the rigidity and thread depth that twelve-point mounting demands. Threaded inserts through the baffle, metal-to-metal threading throughout. No wood screws into MDF. No hardware working loose under sustained vibration. The driver stays precisely clamped at every one of its twelve mounting points.
Dado + V-Groove Joinery | Extensive Internal Bracing
A compact ported enclosure at 1.7 cu ft pressurizes efficiently — which means every panel joint carries load under output. Every joint in this enclosure is CNC-cut to interlock before adhesive is applied. Dado joints recess each panel into its mating surface. V-groove cuts at panel edges create a mechanical lock independent of glue. Extensive internal bracing ties opposing walls and spans panel runs throughout the cabinet. The airspace stays constant, the port geometry doesn't shift, and the bass that comes out of the port is what the driver put in — not a distorted version of it.
Langboard Elite 3/4"
Mill-certified panel stock. 48.5 lbs/ft³ density, 200 psi internal bond, 410,000 psi MOE. Every panel traceable to published mill data.
Dado + V-Groove CNC
Panels interlock mechanically before adhesive is applied. The joint holds independent of glue — critical in a compact ported enclosure where internal pressure is high relative to cabinet volume.
Extensive Internal Bracing
Wall-to-wall and panel-spanning bracing throughout. Panel resonance is eliminated at the structure level — the bass you hear comes from the driver, not the box.
Proline X ABS/Carbon Fiber Terminal Cup
Built in-house. Stainless steel hardware. Copper ring terminals. Pre-wired 12-gauge OFC speaker wire — connect your amp and go.
Impedance — Single 3Ω Voice Coil
The 10W7AE-3 runs a single 3Ω voice coil — straightforward single-driver wiring with no parallel or series options. Your amplifier sees 3Ω directly.
Most amplifiers stable at 4Ω handle a 3Ω load without issue. The 10W7AE-3's recommended power range is 300W–750W RMS — match your amplifier's rated output at 3Ω or 4Ω accordingly. Overdriving this driver significantly beyond 750W RMS risks thermal failure; the W7AE motor is optimized for accuracy and output within its rated range, not for absorbing sustained abuse above it.
Every Proline X Professional Series enclosure is covered by a 2-year warranty against defects in materials and workmanship. Built in Tullahoma, Tennessee. Shipping included — no freight charges at checkout.
| Specification | Value |
|---|---|
| SKU | Pro JL 10W7 |
| Series | Professional Series |
| Compatible Driver | JL Audio 10W7AE-3 |
| Configuration | Single 10" | Ported |
| External Dimensions | 32" W × 12.5" H × 15" D |
| Net Internal Volume | 1.7 cu ft |
| Tuning Frequency | 33Hz |
| Port Area | 22 sq in |
| Front Panel Thickness | 1.5" (double-layer Langboard Elite MDF) |
| Panel Material | Langboard Elite 3/4" MDF — 48.5 lbs/ft³ density, 200 psi internal bond, 410,000 psi MOE |
| Joinery | CNC dado + V-groove |
| Internal Bracing | Extensive |
| Baffle Hardware | Threaded inserts, #10-32 machine screws — matched to 10W7AE 12-point bolt pattern |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite — stainless steel hardware, copper ring terminals |
| Internal Wiring | Pre-wired 12-gauge OFC speaker wire |
| Exterior Finish | Plush Black carpet |
| Approximate Weight | ~48 lbs |
| Price | $399.99 |
| Shipping | Included — UPS Ground |
| Warranty | 2 years |
| Built | Tullahoma, Tennessee, USA |
| 10W7AE Cutout Diameter | 8.74" |
| 10W7AE Mounting Depth | 8.0" |
| 10W7AE Xmax (one-way) | 23mm |
| 10W7AE RMS Power | 750W |
| 10W7AE Voice Coil | Single 3Ω |
The JL Audio 10W7AE-3 is the driver this enclosure was built around — a 10" subwoofer that delivers reference-grade sub-bass in a format that fits where a 12" or 15" cannot. With 23mm of one-way linear Xmax, 750 watts RMS power handling, and a single 3Ω voice coil, the 10W7AE-3 produces the kind of accurate, controlled low-frequency output that earned the W7 series its reputation as a benchmark driver. Its Qts of 0.537 and Fs of 30.6Hz place it at the edge of sealed and ported territory, but ported is the correct alignment when the goal is maximum low-frequency extension and output from the 10" format. In a correctly tuned enclosure at 33Hz, the 10W7AE-3 produces deep, accurate bass that tracks complex program material with the composure that defines the W7AE platform. Full driver specifications are available at garmin.com.
| Brand / Model | JL Audio 10W7AE-3 |
| Size | 10" |
| Impedance | Single 3Ω |
| RMS Power | 750W |
| Peak Power | 1500W |
| Recommended Power Range | 300W – 750W |
| Xmax (one-way) | 23mm |
| Fs | 30.6Hz |
| Qts | 0.537 |
| Vas | 1.28 cu ft (36.1L) |
| Sensitivity | 84.3 dB (1W/1m) |
| Cutout Diameter | 8.74" |
| Overall Diameter | 10.5" |
| Mounting Depth | 8.0" |
| Mounting Hardware | Twelve #10-32 machine screws |
| Cone | W-Cone — dual-layer composite |
| Surround | OverRoll polyester foam |
| Driver Weight | 30 lbs |
| Recommended Ported Volume | 1.5 cu ft (42.5L) |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF — 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure — because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF — Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source — not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure — the most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks — relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention — relevant for every joint that isn't face-to-face |
200 psi — The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually — the symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE — Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness — resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level — not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge — Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint — where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock — Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification — it is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Featured Video
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
