Cut for the Skar Audio EVL

Skar Audio EVL Subwoofer Boxes

Skar Audio EVL subwoofer boxes, CNC-cut in Tullahoma, Tennessee.

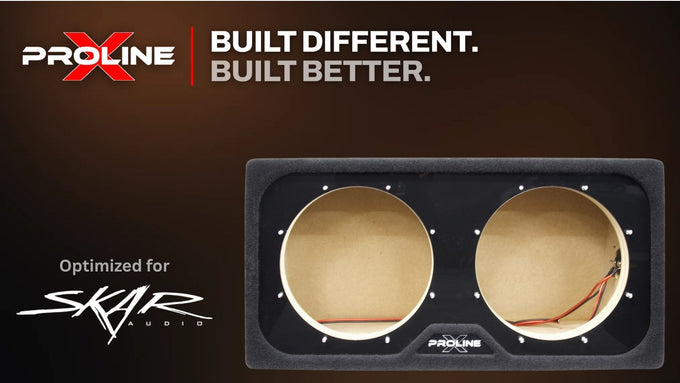

Skar Audio EVL subwoofer box built by Proline X in Tullahoma, Tennessee

Cut for the Skar Audio EVL

The EVL is Skar Audio's line in 10, 12 and 15 inch. The cabinets here are cut to Skar's published parameters for each size rather than to a one-size-fits-all volume.

Every cabinet on this page is built for one Skar Audio EVL size, named in its title. Singles and duals, sealed and ported, each with its net volume and tuning and external dimensions on the listing.

Skar Audio EVL enclosures in 10, 12 and 15 inch, sealed and ported.

Cut, assembled and finished in Tullahoma, Tennessee.

Built to fit the Skar Audio EVL. Enclosure only unless the listing says loaded; the driver is not included.

Decision Shortcut

Find Your Match

Curated picks matched to common build goals

Best Value

Proline X PO 10-S W EVL10 sealed wedge, front baffle with gloss black insert and pre-wired leads, 16.0 by 13 inches.

Proline X

Skar Audio EVL-10 Box: Sealed 10" Wedge Enclosure

The lowest-priced Skar Audio EVL cabinet in stock, $229.99, for the 10 inch.

$ 279.99

View Details

Best for SQ

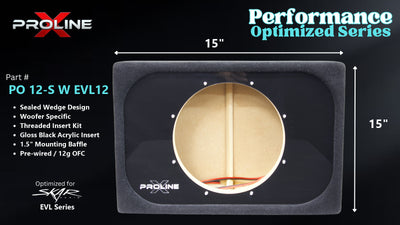

Proline X PO 12-S W EVL12 sealed wedge, front baffle with gloss black insert and pre-wired leads, 15 by 15 inches.

Proline X

Skar Audio EVL-12 Box: Sealed 12" Wedge Enclosure

A sealed Performance Optimized wedge cut for the Skar Audio EVL 12 inch: the tightest, most controlled alignment we build for it.

$ 349.99

View Details

Best High-Output

Pro 15D-P EVL15 placeholder

Proline X

Skar Audio EVL-15 Dual Box: Ported 15" Professional Series Enclosure

A ported pair for two 15 inch drivers, tuned to 34.0 Hz.

$ 687.99

View Details

Best for Trucks

Proline X PO 10D-S W EVL10 sealed wedge, front baffle with gloss black insert and pre-wired leads, 26.1 by 15 inches.

Proline X

Skar Audio EVL-10 Dual Box: Sealed 10" Wedge Enclosure

A sealed wedge raked to sit flush against a seat back, for the 10 inch.

$ 379.99

View Details

Shop the Lineup

←
→

All products loaded

Every Skar Audio EVL Box by Size

Which series and shape we build at each size. Prices are the lowest listed at each size today.

Skar Audio EVL enclosures by size, count and alignment.
SizeSingle sealedSingle portedDual sealedDual portedFrom
10 inchPerformance Optimized down fire and wedgeProfessionalPerformance Optimized down fire and wedgeNot built$229.99
12 inchPerformance Optimized down fire and wedgeProfessionalPerformance Optimized down fire and wedgeProfessional$279.99
15 inchPerformance Optimized wedgePerformance Optimized wedge; ProfessionalNot builtProfessional$449.99

Warranty runs by series: 1 year limited on Performance Optimized, 2 years on Professional and Micro.

Skar Audio Subwoofer Box Directory by Model

We build sealed and ported enclosures for 3 Skar Audio subwoofer models, 10 to 15 inch, in wedge, down-fire and standard styles from single, dual, triple and quad woofer cabinets. Open a model to see every box cut for it, with net volume, tuning and outside dimensions. Full specs and fitment notes are on each product page.

Skar Audio EVL-10 9 boxes
BoxSeriesNet volumeTuningOutside dimensions
Standard Ported, SingleProfessional1.96 ft³33.0 Hz30.00" W x 14.00" H x 17.50" D
Down Fire Sealed, SinglePerformance Optimized1.28 ft³Sealed30.00" W x 15.00" D x 8.66" H
Down Fire Wide Sealed, SinglePerformance Optimized1.405 ft³Sealed41" W x 12" D x 8.6875" H
Wedge Sealed, SinglePerformance Optimized0.65 ft³Sealed16.03" W x 13" H x 13.73" D, tapering to 9.00"
Down Fire Sealed, DualPerformance Optimized1.30 ft³Sealed30.00" W x 15.00" D x 9.35" H
Down Fire Wide Sealed, DualPerformance Optimized1.307 ft³ total / 0.653 ft³ per chamberSealed41" W x 12" D x 8.75" H
Wedge Sealed, DualPerformance Optimized1.30 ft³Sealed26.05" W x 15" H x 14.06" D, tapering to 8.60"
Wedge Wide Sealed, TriplePerformance Optimized2.41 ft³Sealed40" W x 17" H x 14.40" D, tapering to 8.21"

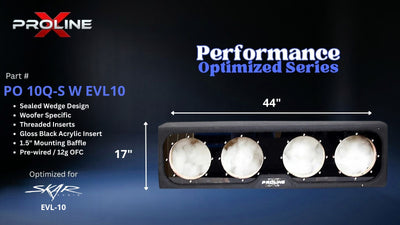

Wedge Wide Sealed, QuadPerformance Optimized2.93 ft³Sealed44" W x 17" H x 15.11" D, tapering to 8.93"
Skar Audio EVL-12 8 boxes
BoxSeriesNet volumeTuningOutside dimensions
Standard Ported, SingleProfessional2.00 ft³35.0 Hz32.00" W x 16.00" H x 14.88" D
Down Fire Sealed, SinglePerformance Optimized1.33 ft³Sealed30.00" W x 15.00" D x 9.11" H
Down Fire Wide Sealed, SinglePerformance Optimized1.765 ft³Sealed41" W x 14" D x 9.125" H
Wedge Sealed, SinglePerformance Optimized0.72 ft³Sealed15.00" W x 15" H x 14.51" D, tapering to 9.05"
Standard Ported, DualProfessional3.13 ft³35.0 Hz42.00" W x 16.00" H x 18.50" D
Down Fire Sealed, DualPerformance Optimized1.18 ft³Sealed30.00" W x 15.00" D x 9.11" H
Down Fire Wide Sealed, DualPerformance Optimized1.597 ft³ total / 0.799 ft³ per chamberSealed41" W x 14" D x 9.125" H
Wedge Sealed, DualPerformance Optimized1.58 ft³Sealed28.25" W x 16" H x 14.68" D, tapering to 8.86"
Skar Audio EVL-15 4 boxes
BoxSeriesNet volumeTuningOutside dimensions
Standard Ported, SingleProfessional2.31 ft³34.5 Hz36.00" W x 18.00" H x 14.25" D
Wedge Ported, SinglePerformance Optimized2.21 ft³34.5 Hz30.00" W x 18.50" H x 17.36" D, tapering to 10.62"
Wedge Sealed, SinglePerformance Optimized3.00 ft³Sealed29.50" W x 18" H x 18.76" D, tapering to 12.21"
Standard Ported, DualProfessional3.41 ft³34.0 Hz46.00" W x 18.00" H x 15.12" D

Why a Box Built for the Skar Audio EVL

Cut to the driver, not to the size

Each listing gives the cutout and mounting depth its baffle is cut to, taken from Skar's published EVL figures.

Performance Optimized
Sealed and ported cabinets solved from the Skar Audio EVL's own parameters. The dual cabinets split the air with a full-height divider, so each driver gets its own chamber.

Professional Series

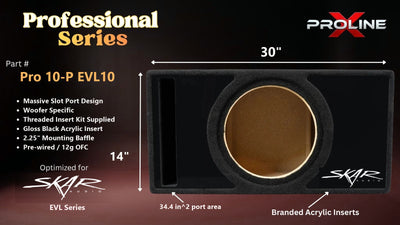

Front-firing ported cabinets with a slot port, tuned for the Skar Audio EVL. The duals share one chamber and one port, so run a matched pair.

Every Skar EVL Model We Build For

3 Skar EVL models, each with its own cabinets. Ported tunings are the frequency each box is tuned to.

10 inch

EVL-10: sealed wide wedge in triple and quad; sealed wide down-fire in single and dual; sealed wedge in single and dual; sealed down-fire in single and dual; ported standard in single at 33 Hz.

12 inch

EVL-12: sealed wide down-fire in single and dual; sealed wedge in single and dual; sealed down-fire in single and dual; ported standard in single and dual at 35 Hz.

15 inch

EVL-15: sealed wedge in single; ported wedge in single at 34.5 Hz; ported standard in single and dual at 34 to 34.5 Hz.

How to Choose

Size first
Pick the cabinet for the Skar Audio EVL size you own; each listing is cut for one size only.

Sealed or ported
Sealed is the smaller box and holds its output below tuning. Ported gives more output around its tuning from a larger cabinet, and every ported listing states its tuning.

Wiring
Skar builds the EVL in dual voice coil versions. Check the impedance printed on your driver before wiring, and run two of the same model and coil in a dual cabinet.

Every Skar Audio box
The Skar Audio subwoofer box page has every Skar Audio cabinet we cut, across all of Skar Audio's drivers.

Will It Fit?

Measure the opening
The Skar Audio EVL cabinets here run from about 15 to 46 inches wide, and every listing prints its external dimensions. Measure the narrowest point of the space, not the floor.

Behind a seat or against a seat back
The wedges rake the rear panel to sit flush against a seat back or cab wall. See every shape in the wedge collection.

On a cargo floor

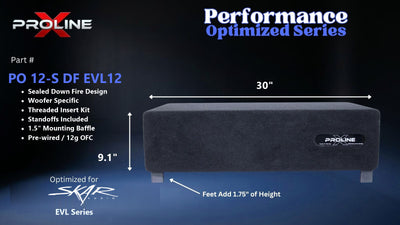

The down fires stand on feet with the cone facing the floor, for hatches and SUVs where height is short. See the down-fire collection.

Built for the Skar Audio EVL

Each listing gives the cutout and mounting depth its baffle is cut to, taken from Skar's published EVL figures.

Wiring a Pair

Skar builds the EVL in dual voice coil versions. Check the impedance printed on your driver before wiring, and run two of the same model and coil in a dual cabinet.

The Skar Audio EVL Range at a Glance

10 inch single: ported front-firing, sealed down fire, sealed wedge; dual: sealed down fire, sealed wedge. From $229.99.

12 inch single: ported front-firing, sealed down fire, sealed wedge; dual: ported front-firing, sealed down fire, sealed wedge. From $279.99.

15 inch single: ported front-firing, ported wedge, sealed wedge; dual: ported front-firing. From $449.99.

Performance Optimized

Performance Optimized EVL boxes

10, 12 and 15 inch·From $229.99

Ported and sealed, down fire, wedge; single and dual.

1 year limited warranty on Performance Optimized

Professional

Professional EVL boxes

10, 12 and 15 inch·From $489.99

Ported, standard; single and dual.

2 year limited warranty on Professional

Construction and chamber layout are stated on each product page.

Categories

Keep Reading

Supporting guides to help you design, build, and tune your system.

Skar Audio EVL Box Questions

Which Skar Audio EVL sizes do you build boxes for?

10, 12 and 15 inch, in single and dual cabinets. Each listing is cut for one size and names it in the title.

Sealed or ported for the Skar Audio EVL?

Sealed is smaller and holds its output below tuning; ported gives more output around its tuning from a larger cabinet. Every ported listing states its tuning and every listing states its net volume.

Do the dual boxes have separate chambers?

The Performance Optimized duals give each driver its own chamber behind a full-height divider. The Professional Series duals share one chamber and one port, so run two of the same model and coil.

Is the Skar Audio EVL included?

No. These are enclosures built to fit the Skar Audio EVL; the driver is sold separately. A listing that ships with the driver fitted says loaded in its title.

How should I wire the Skar Audio EVL?

Skar builds the EVL in dual voice coil versions. Check the impedance printed on your driver before wiring, and run two of the same model and coil in a dual cabinet.

What warranty do these boxes carry?

It runs by series: 1 year limited on Performance Optimized, 2 years on Professional and Micro. The series is named in each listing title.
