Performance Optimized Down Fire Wide Sealed 12" Enclosure | Skar Audio EVL-12
SKU: PO 12-S DFW EVL12
- Alignment: 1.765 cu ft net. EVL-12 D4 Qtc 0.537, Fc 38.1 Hz, F3 53.5 Hz; EVL-12 D2 Qtc 0.494, Fc 37.9 Hz, F3 59.9 Hz
- Down Fire Wide: 41"W x 14"D x 9.125"H in down fire position, effectively the same height as the standard 30 x 15 (9.11 in)
- Height Set By: the 7.61 in motor, 0.75 in clearance above it; holds more air than the standard box, so Qtc is lower
- Driver: Skar Audio EVL-12 (D4 or D2), 1250 W RMS, 23.5 mm Xmax, 7.61 in mounting depth
- Standoffs: Included, 1.75 in, shipped uninstalled. Installed height near 10.875 in
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Wide Sealed 12" Enclosure | Skar Audio EVL-12
More enclosures cut for Skar Audio subwoofers: Skar Audio Subwoofer Boxes
Proline X Performance Optimized Down Fire Wide 12" Sealed
Cut for the Skar EVL-12, D4 or D2
The Down Fire Wide Format
Down Fire Wide is the same driver in a different shape. The standard Performance Optimized Down Fire cabinet for the Skar EVL-12 is 30 by 15 inches. This one runs 41 inches wide by 14 inches deep: 1 inch shallower front to back and 11 inches longer.
Fourteen inches is not arbitrary. A 12 inch frame needs about 13 inches of baffle to sit on, so 14 is the practical minimum depth for this driver size. The Skar EVL-12 frame measures 12.5 inches across and sits on the 14 inch deep baffle with about 0.75 inches of baffle fore and aft.
Here the motor sets the height of both boxes, so this one stands 9.125 inches tall against 9.11 for the standard 30 x 15 Skar EVL-12 cabinet, effectively the same, both measured in the down fire position without feet. The extra length goes into airspace instead of a lower cabinet.
Which one to choose. The standard 30 x 15 is the pick when length is limited. This one is the pick when height or depth is the limit and you have 41 inches of run. On this driver the motor fixes the height of both, so the wide box saves depth, not height, and adds air. Plan around the installed height: the 1.75 inch standoffs put the finished stack near 10.875 inches.
Performance, Performance Optimized, and Micro
Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.
| Performance | Performance Optimized | Micro Series | |
|---|---|---|---|
| Fitment | Universal. Accepts any subwoofer that clears the published cutout and mounting depth. | Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver. | Woofer specific. Cut for one named subwoofer. |
| Footprint | Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch. | Shared 30 by 15 inch platform on most builds. Down Fire Wide variants like this one run long and shallow for under seat fitment. | Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch. |
| Front baffle | Single, 3/4 inch. | Double layer, outer layer machined as a flush recess. 1.5 inch. | Double, 1.5 inch. |
| Driver mounting | Solid flange. You drill your own mounting holes. | 8/32 threaded inserts, stainless machine screws included. | 8/32 threaded inserts, stainless machine screws included. |
| Joinery | V-groove and dado, CNC cut. | V-groove and dado, CNC cut, perimeter cross brace. | Stack fab, dowel reinforced. |
| Published alignment | Modeled Qtc profiles across a range of drivers. No single response curve. | A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters. | Target alignment described in the listing. |
| Carpet | Gray standard, black optional. | Plush black. | Plush black. |
| Warranty | 1 year limited. | 1 year limited. | 2 years. |
Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.
This page is a Performance Optimized enclosure. The airspace, the cutout and the cabinet height all come from the driver's own numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.
Built Around the Skar EVL-12
Nothing about this cabinet is generic. The baffle is cut to 11.22 in, Skar's published cutout, under the 12.50 in frame. The airspace lands on 1.765 cubic feet net, the volume the wide cabinet reaches at the height the 7.61 inch motor requires.
The EVL-12 is Skar Audio's 12 inch, rated 1250 watts RMS, with 23.5 mm of one-way excursion. It is 7.61 inches deep, which matters on a down fire, where the motor rises into the cabinet. Every figure comes from the Thiele-Small table Skar prints on its EVL-12 product page. Skar publishes no driver displacement, so the 0.14 cubic feet used here is our estimate.
Net Volume and Alignment
The cabinet holds 1.765 cubic feet net, from 1.915 cubic feet gross after the brace and the driver's 0.14 cubic feet of displacement (estimated, no manufacturer figure).
Height here is set by the driver's mounting depth, not by a volume target. The 7.61 inch motor needs 0.75 inch of clearance above it, so the cabinet can go no lower than 9.125 inches. At that height the wide footprint holds 1.765 net, more than the 1.33 the standard 30 x 15 box was built to. More air lowers Qtc, which is the safe direction: a softer, better damped corner rather than a peakier one.
Computed from the Thiele-Small table Skar publishes: EVL-12 D4: Qtc 0.537, Fc 38.1 Hz, F3 53.5 Hz; EVL-12 D2: Qtc 0.494, Fc 37.9 Hz, F3 59.9 Hz.
That is a well-damped, dry alignment: tight and controlled, with a gentle, early rolloff rather than lift at the corner. If you want more punch, the standard 30 x 15 box is the pick.
Worth knowing: Skar recommends 1.75 net for a sealed EVL-12, and this cabinet lands essentially on it. On a driver with Qts this low, more air does not dig deeper; it lowers Qtc and moves F3 up slightly, trading lift for control.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's displacement, not estimated from external dimensions minus wall thickness.
Down Fire Wide Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

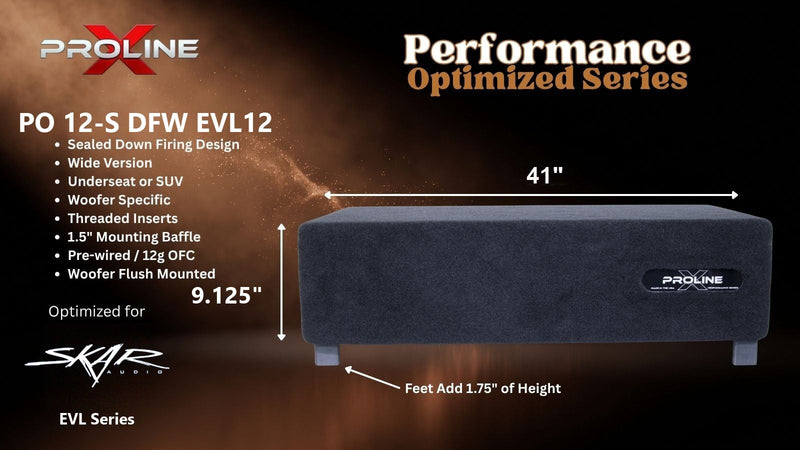

The cabinet measures 41 inches wide by 14 inches deep by 9.125 inches tall, measured in the down fire position. Plan the space around the installed height rather than the cabinet height: the standoffs hold 1.75 inches under the baffle, so the finished stack sits near 10.875 inches.
1.5 Inch Double Baffle
Two 3/4 inch layers laminated to 1.5 inches, with the outer layer machined as a flush recess so the driver bolts to the inner layer. Skar prints no bolt circle, so a threaded insert kit with stainless machine screws ships loose rather than pre-installed.
Windowed U-Brace
A windowed U-brace dadoed to the shell ties the long 41 inch panels together without taking a meaningful bite out of the airspace.

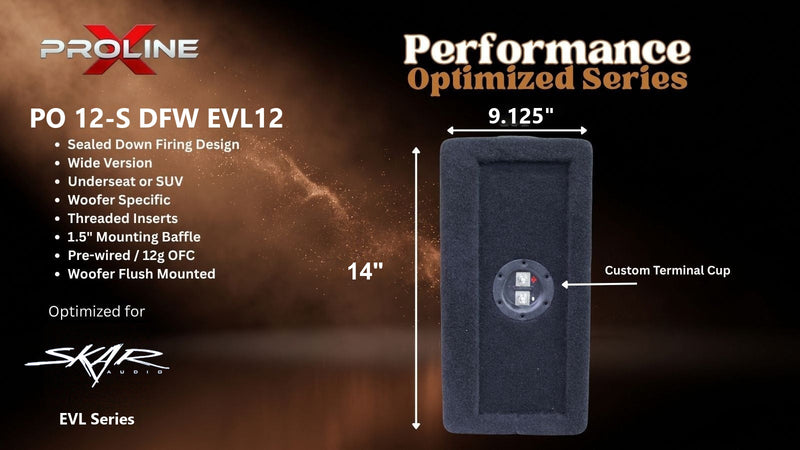

Side-Mounted Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC. Side mounted so it stays accessible with the baffle facing the floor.
Polyfill Installed
Polyfill is installed as a light wall lining to control internal reflections. It does not change the acoustic volume, so do not add more.
Motor Clearance and Orientation
The motor rises off the baffle into the cavity, so on a down fire cabinet the clearance that matters runs to the top panel. The 7.61 inch mounting depth leaves 0.765 inches above the motor in a 6.875 inch internal height, against a 0.75 inch minimum. Height was set by that clearance, not by the airspace.
Skar does not publish a position on down firing this driver, and this cabinet makes no claim on their behalf. The standoffs ship uninstalled, so if you would rather run it front firing or up firing, that is a decision you can make at install time. At 1.75 inches the floor slot is 0.84 times the cone area, under the 1.0 we aim for; the 23.5 mm of excursion moves a lot of air, so taller feet or a front-firing install give it more room if the floor allows.
Power, Mounting and Warranty
Skar rates the EVL-12 at 1250 watts RMS. The EVL-12 D4 wires to 8 ohms in series or 2 ohms in parallel. The EVL-12 D2 wires to 4 ohms with its coils in series or 1 ohm in parallel. Anything under 1 ohm, and many amplifiers at 1 ohm, is outside what the amplifier is built for; series wiring is the safe default. Confirm the load against your amplifier's minimum stable impedance before powering the system.
Skar prints no bolt circle for the EVL-12, so the baffle ships undrilled with a threaded insert kit and stainless machine screws: set the driver in the recess, mark its holes, drill, press the inserts and bolt it down. The enclosure carries a 1 year limited warranty. Bring your own EVL-12; the driver is purchased separately.
Cut for the Driver, Not the Catalog
Down Fire Wide, 41 inches long and 14 deep, cut for one driver model and built one at a time in Tullahoma, Tennessee. Questions on fitment or amplifier matching, call us at 931-563-5151.
| Specification | Value |
|---|---|
| Series | Proline X Performance Optimized Down Fire Wide |
| Compatible Driver | Skar Audio EVL-12 D4 or D2, quantity 1. Direct fit |
| Enclosure Type | Sealed, down fire, floor coupled |
| Intended Fitment | Where height or depth is the limit and 41 in of length is available |
| Firing Direction | Down firing. Feet ship uninstalled, so front or up firing is also possible |
| External Width | 41 in |
| External Depth | 14 in |
| External Height | 9.125 in, measured in down fire position, excludes standoffs |
| Installed Height | 10.875 in including the 1.75 in standoff |
| Standard 30 x 15 Equivalent | 30 in W x 15 in D x 9.11 in H, 1.33 cu ft net |
| Internal Height | 6.875 in |
| Internal Volume, Gross | 1.915 cu ft |
| Internal Volume, Net | 1.765 cu ft after the brace and displacement |
| Height Set By | Driver clearance: 0.765 in above the motor, the 0.75 in minimum plus rounding |
| Alignment, EVL-12 D4 | Qtc 0.537, Fc 38.1 Hz, F3 53.5 Hz, anechoic |
| Alignment, EVL-12 D2 | Qtc 0.494, Fc 37.9 Hz, F3 59.9 Hz, anechoic |
| Skar Recommended Sealed | 1.75 net per driver, net of driver, bracing and port |
| D4 Fs / Qts / Qes / Qms / Vas | 32.6 Hz / 0.46 / 0.56 / 5.00 / 18.2 L |
| D2 Fs / Qts / Qes / Qms / Vas | 32.2 Hz / 0.42 / 0.51 / 4.83 / 19.1 L |
| Driver Sd | 471 cm2, published by Skar |
| Xmax | 23.5 mm one way, Skar spec |
| Floor Slot | 0.84 times the cone area at the 1.75 in standoff |
| Parameter Source | skaraudio.com EVL-12 product page, T/S Parameters and Subwoofer Measurements |
| Driver Power Handling | 1250 W RMS, Skar spec |
| Wiring Options | The EVL-12 D4 wires to 8 ohms in series or 2 ohms in parallel. The EVL-12 D2 wires to 4 ohms with its coils in series or 1 ohm in parallel. Anything under 1 ohm, and many amplifiers at 1 ohm, is outside what the amplifier is built for; series wiring is the safe default. |
| Mounting Depth | 7.61 in |
| Woofer Opening | 11.22 in |
| Driver Frame Diameter | 12.5 in, sits on the 14 in baffle |
| Driver Displacement | 0.14 cu ft, estimated, no manufacturer figure |
| Material | Langboard Elite 3/4 in MDF |
| Joinery | V-groove and dado, CNC cut on ShopSabre routers |
| Panel Thickness | 0.75 in |
| Front Baffle | 1.5 in double baffle, outer layer machined as a flush recess |
| Internal Bracing | Windowed U-brace, dadoed to the shell |
| Corner Profile | Square, Down Fire series standard |
| Driver Mounting | Threaded insert kit included, NOT pre-installed: Skar prints no bolt circle |
| Terminal Cup | One Proline X ABS and carbon fiber composite, side mounted, pre-wired 12 gauge OFC |
| Damping | Polyfill installed as a light wall lining, does not alter acoustic volume |
| Standoffs | Included, 1.75 in, shipped uninstalled |
| Carpet | Plush black |
| Bundle Options | Enclosure only, bring your own EVL-12 |
| Warranty | 1 year limited |
| Built In | Tullahoma, Tennessee |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
1.765 cu ft against a 18.2 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 23.5 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 32.60 / 32.20 | Hz | free-air resonance |
| Qts | 0.460 / 0.420 | D4 / D2 | |
| Vas | 18.20 / 19.10 | L | equivalent compliance |
| Sd | 471.4 | cm² | effective piston area |
| Xmax | 23.5 | mm | one-way linear travel |
| Pe | 1250 | W | continuous RMS |
| SPL | 82.4 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by Skar Audio EVL-12 product page. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
