Proline X

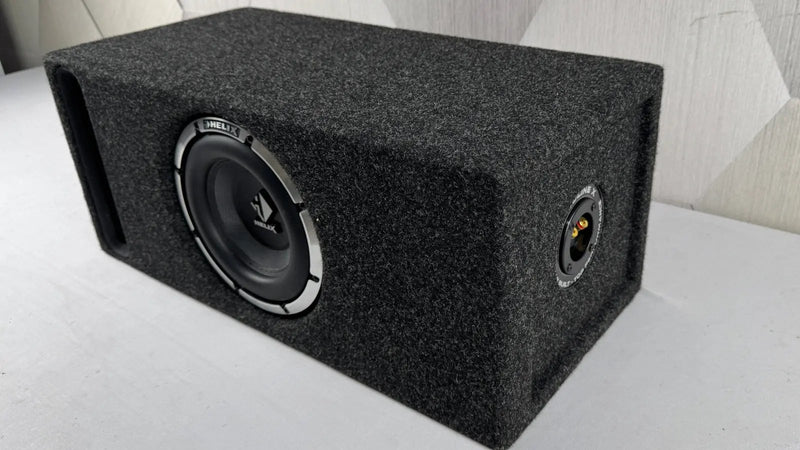

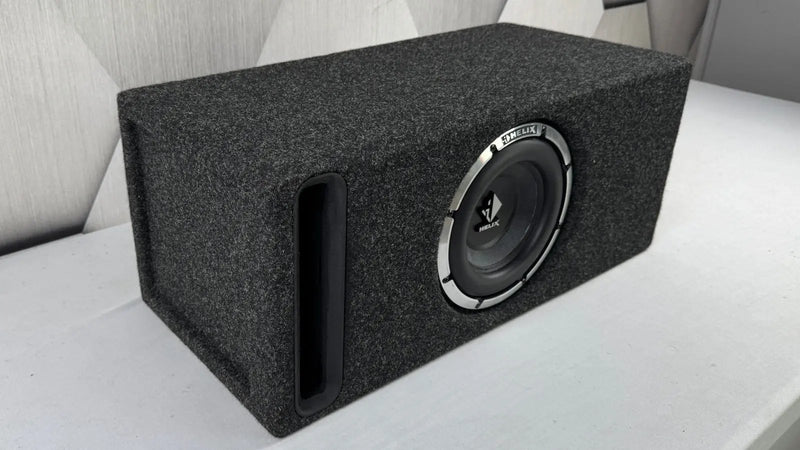

Proline-X Ported 8" Enclosure – Loaded with Helix Precision P8W
- Best For: High output builds that still have to sound right
- Configuration: Single P8W Ported, Professional Series, loaded
- Volume: 0.75 ft³ net
- Tuning: 36 Hz
- Sonic Character: Output focused with extension below the sealed alternative
Financing available. Choose Shop Pay Installments at checkout.
What's Included
Proline-X Ported 8" Enclosure – Loaded with Helix Precision P8W
Proline X Professional Series Enclosure for the Helix Precision P8W
Cut and tuned for the Helix Precision P8W
Built Around the Helix Precision P8W
Nothing about this box is generic. Every layer is cut to the P8W's 36 Hz ported alignment.
Net Volume, Not Gross
We build this cabinet at 0.75 cubic feet net. The volume quoted is true net internal airspace, measured after the walls, bracing and driver displacement are accounted for.
True net, not marketing net. Internal volume is calculated by summing each CNC cut layer's opening, not estimated from external dimensions minus wall thickness.
Tuned to 36 Hz
This is a vented build. Port length and area set the system response, not box volume alone. We tune this cabinet to 36 Hz in 0.75 cubic feet net. Below tuning the driver unloads, which is why the port is sized to the volume rather than dropped in to fit the panel.
Proline X Professional Series Construction
This enclosure is cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. The panels are V-grooved and folded on the seam and dadoed where the bracing lands. Baffles are double layer minimum, with threaded inserts set to the driver's own bolt pattern.
Double Layer Baffle
The baffle is two layers minimum with threaded inserts matched to the driver's own bolt pattern, so mounting hardware loads into steel rather than into MDF.
Pre-Wired Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired internally with 12 gauge OFC. No CCA anywhere in the build.
Finished to Match
The shell is wrapped in plush black carpet. Built one at a time in Tullahoma, Tennessee.
Enclosure Only or Loaded
Order the enclosure bare and mount your own P8W, or order it loaded and we mount the driver, dress the wiring and ship it ready to bolt in.
Cut for the Driver, Not the Catalog
Select your configuration above. This enclosure ships free to the lower 48 with a 2 year limited warranty, built one at a time in Tullahoma, Tennessee.
| Enclosure | Proline X Professional Series |
| Driver | Helix Precision P8W, pre-installed |
| Voice Coil | Voice coils wired in parallel |
| Enclosure Type | Ported |
| Net Internal Volume | 0.75 ft³ net |
| Tuning Frequency | 36 Hz |
| Material | Langboard Elite MDF, 3/4" (18mm) |
| Terminal Cup | Proline X ABS/Carbon Fiber, stainless hardware, copper ring terminals |
| Wiring | Pre-wired 12g OFC speaker wire |
| Finish | Automotive carpet |
| Warranty | 2 year limited |
| Built | Tullahoma, Tennessee |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
