Performance Optimized Down Fire Wide Sealed 12" Enclosure | DD Audio SL712
SKU: PO 12-S DFW SL712
- Alignment: 1.244 cu ft net. Qtc 0.785, Fc 42.1 Hz, F3 38.4 Hz
- Down Fire Wide: 41"W x 14"D x 7"H in down fire position, excludes the 1.75" standoffs (installed height 8.75"). Stands lower than the standard 30 x 15 at 7.27"
- Height set by: motor clearance, 0.75" above the 5.5" deep motor; holds more air than the standard box's 1.00
- Driver: DD Audio SL712, D2 or D4, 1000 W RMS, 19 mm Xmax one way, 5.5 in mounting depth
- Build: Langboard Elite MDF, V-groove and dado, 1.5" double baffle with flush outer recess, windowed U-brace, 12g OFC side-mounted terminal cup
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Wide Sealed 12" Enclosure | DD Audio SL712
More enclosures cut for Digital Designs subwoofers: Digital Designs Subwoofer Boxes
Proline X Performance Optimized Down Fire Wide 12" Sealed
41 inch wide, 14 inch deep format. Cut for the DD Audio SL712
The Down Fire Wide Format
Down Fire Wide is the Performance Optimized answer to a space that is long rather than deep or tall. This cabinet runs 41 inches wide by 14 inches deep by 7 inches tall: 1 inch shallower front to back than our standard 30 by 15 inch Down Fire platform, and 11 inches longer.
Fourteen inches is the practical minimum for a 12 inch driver: a 12 inch frame needs about 13 inches of baffle. The SL712's 12.375 inch frame sits on the 14 inch deep baffle with about 0.81 inch of baffle outside the flange fore and aft. Because the airspace is spread along 41 inches instead of 30, the wide cabinet usually stands lower than the standard box, and it does here: 7 inches against 7.27 inches for the standard 30 by 15 SL712 cabinet.
Height here is set by the driver, not the airspace. The SL712 mounts 5.5 inches deep, and the motor needs 0.75 inch of clear air above it inside the cabinet. That clearance fixes the height at 7 inches, and on a 41 by 14 footprint that height holds 1.244 cubic feet net, more than the 1.00 the standard box was built to. More air lowers Qtc, which is the safe direction.
Which one to choose. The standard 30 by 15 is the pick when length is limited. This one is the pick when height or depth is the limit and you have 41 inches of run: under or behind a rear bench, or along a cargo wall. Measure depth and height first; depth is usually the dimension that decides it.
Performance, Performance Optimized, and Micro
Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.
| Performance | Performance Optimized | Micro Series | |
|---|---|---|---|
| Fitment | Universal. Accepts any subwoofer that clears the published cutout and mounting depth. | Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver. | Woofer specific. Cut for one named subwoofer. |
| Footprint | Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch. | Shared 30 by 15 inch platform on most builds. Down Fire Wide variants like this one run long and shallow for under seat fitment. | Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch. |
| Front baffle | Single, 3/4 inch. | Double layer, outer layer machined as a flush recess. 1.5 inch. | Double, 1.5 inch. |
| Driver mounting | Solid flange. You drill your own mounting holes. | 8/32 threaded inserts, stainless machine screws included. | 8/32 threaded inserts, stainless machine screws included. |
| Joinery | V-groove and dado, CNC cut. | V-groove and dado, CNC cut, windowed internal brace. | Stack fab, dowel reinforced. |
| Published alignment | Modeled Qtc profiles across a range of drivers. No single response curve. | A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters. | Target alignment described in the listing. |
| Carpet | Gray standard, black optional. | Plush black. | Plush black. |
| Warranty | 1 year limited. | 1 year limited. | 2 years. |
Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.
This page is a Performance Optimized enclosure. The cutout, the mounting depth and the chamber volume all come from the DD Audio SL712's own numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.
Built Around the DD Audio SL712
The baffle is bored to the SL712's 11.375 inch cutout, and the cabinet height is set by its 5.5 inch mounting depth.
The SL712 is DD's SL700 series 12, a shallow 5.5 inch motor on a 12.375 inch frame rated 1000 watts RMS, with 19 mm of one-way linear travel by DD's own definition against a 40 mm mechanical limit. DD publishes one Thiele-Small block for the driver and applies it to both the D2 and the D4 coil: Fs 29 Hz, Qts 0.54, Qes 0.62, Qms 5.4, Vas 39.2 liters. It publishes no cone area and no sensitivity; the 532.4 square centimeter Sd behind this page is derived from DD's stated 10.25 inch piston diameter.
Net Volume, Not Gross
We build this cabinet at 1.244 cubic feet net from 1.323 gross, after the internal brace and DD Audio's published 0.07 cubic feet of displacement are accounted for.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's displacement, not estimated from external dimensions minus wall thickness.
That produces Qtc 0.785 with Fc at 42.1 Hz and a predicted F3 of 38.4 Hz, computed from DD Audio's single published parameter set, which applies to both the D2 and the D4.
The SL712 carries a moderately high Qts of 0.54 on a low 29 Hz resonance, so the standard box produced a punchy alignment. The wide box holds more air, which pulls Qtc closer to flat while F3 barely moves; the 1.244 net is inside the 0.7 to 1.5 cubic foot sealed range DD Audio publishes for this driver.
These figures are anechoic. Firing down into the floor, the sealed rolloff meets rising cabin gain below about 60 Hz, so in-car response extends below the published F3.
Down Fire Wide Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

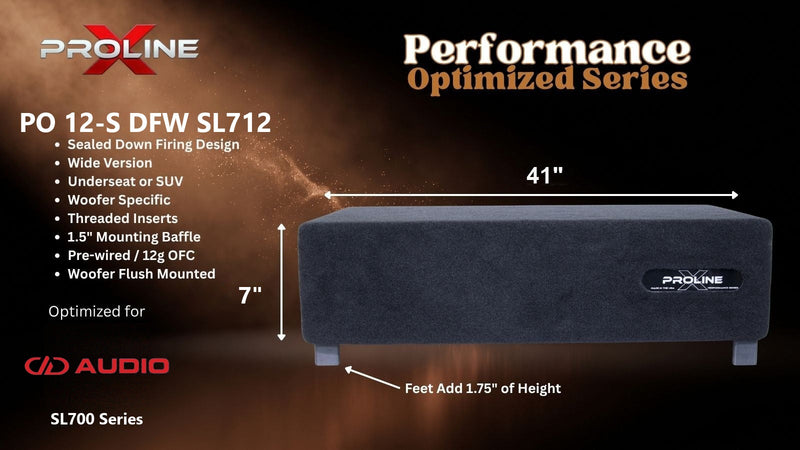

The cabinet measures 41 inches wide by 14 inches deep by 7 inches tall, measured in the down fire position, excluding the feet. The 1.75 inch standoffs ship with the enclosure but are not installed, so the installed height is 8.75 inches. Plan the space around that figure.
1.5 Inch Double Baffle
Two 3/4 inch layers laminated to 1.5 inches, the outer layer machined as a flush recess so the driver bolts to the inner layer, with a threaded insert kit and stainless machine screws included, not pre-installed, because DD Audio publishes no bolt pattern.
Round Frame, 14 Inch Baffle
The 11.375 inch cutout sits centred on the 14 inch deep baffle, leaving about 0.81 inch of baffle outside the flange fore and aft. No rotation or special layout is needed for a round frame.
Windowed U-Brace
A windowed U-brace dadoed into the shell stiffens the long 41 inch panels without walling off the airspace. Polyfill is installed as a light wall lining.

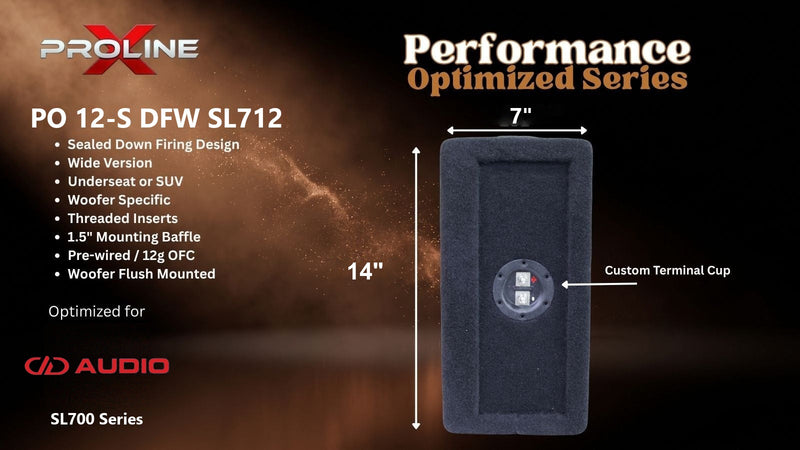

Side-Mounted Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC. Side mounted so it stays accessible with the baffle facing the floor.
Power and Wiring
The SL712 is rated 1000 watts RMS, so target 700 to 1000 watts RMS at the final wired impedance. The D2 coil gives 4 ohms in series or 1 ohm in parallel; the D4 gives 8 ohms in series or 2 ohms in parallel. The 1 ohm load is one many amplifiers are not stable into, so on a D2 series is the safe default unless your amplifier is explicitly rated for it.
DD Audio does not publish a position on down firing this driver, and this cabinet makes no claim on their behalf. The feet ship uninstalled, so front or up firing is an install-time choice.
Bring your own SL712; the driver is purchased separately. The enclosure carries a 1 year limited warranty.
Cut for the Driver, Not the Catalog
We cut every Down Fire Wide cabinet to one driver's published cutout, mounting depth and airspace, then build it one at a time in Tullahoma, Tennessee. Questions on fitment or amplifier matching, call 931-563-5151.
| Specification | Value |
|---|---|
| Series | Proline X Performance Optimized Down Fire Wide |
| Compatible Driver | DD Audio SL712, D2 or D4, quantity 1. Direct fit, no other driver |
| Enclosure Type | Sealed, down fire, floor coupled |
| Intended Fitment | Long, low spaces where height or depth is the limit and 41 in of run is available |
| Firing Direction | Down firing. Feet ship uninstalled, so front or up firing is also possible |
| Chamber Configuration | Single chamber, windowed U-brace, one side-mounted terminal cup |
| External Width | 41 in |
| External Depth | 14 in |
| External Height | 7 in in the down fire position, excludes standoffs |
| Installed Height | 8.75 in including the 1.75 in standoffs |
| Dimension Reference | All external dimensions measured in down fire position |
| Standard 30 x 15 Version | 7.27 in tall, 1.00 cu ft net |
| Internal Volume, Gross | 1.323 cu ft |
| Internal Volume, Net | 1.244 cu ft after displacement and the brace |
| Height Set By | Motor clearance: 0.75 in above the motor, so the box holds more air than the standard version |
| Alignment | Qtc 0.785, Fc 42.1 Hz, F3 38.4 Hz anechoic |
| Woofer Opening | 11.375 in |
| Mounting Depth Required | 5.5 in |
| Frame Outer Diameter | 12.375 in |
| Driver Displacement | 0.07 cu ft, as published by DD Audio |
| DD Audio Published Sealed Range | 0.7 to 1.5 cubic foot; this cabinet sits inside it |
| Driver Fs / Qts | 29.0 Hz / 0.540, as published by DD Audio |
| Driver Qes / Qms | 0.620 / 5.400, as published by DD Audio |
| Driver Vas | 39.2 liters, as published by DD Audio |
| Cone Area (derived) | 532.4 cm2, from DD's published 10.25 in piston diameter; DD publish no Sd |
| Xmax | 19 mm one way, DD's one-way linear movement of the soft parts; 40 mm mechanical |
| Sensitivity | Not published by DD Audio; 83.7 dB at 1 W derived from the parameters |
| Driver Power Handling | 1000 W RMS |
| Wiring Options | D2: 4 ohms in series or 1 ohm in parallel. D4: 8 ohms in series or 2 ohms in parallel |
| Driver Mounting Hardware | Threaded insert kit and stainless machine screws included, not pre-installed: DD Audio publish no bolt pattern |
| Material | Langboard Elite 3/4 in MDF |
| Joinery | V-groove and dado, CNC cut on ShopSabre routers |
| Front Baffle | 1.5 in double baffle, outer layer machined as a flush recess |
| Internal Bracing | Windowed U-brace, dadoed to the shell |
| Corner Profile | Square (Down Fire series standard) |
| Terminal Cup | One Proline X ABS and carbon fiber composite, side mounted, pre-wired 12 gauge OFC |
| Standoffs | 1.75 in, included, shipped uninstalled |
| Damping | Polyfill installed as a light wall lining |
| Carpet | Plush black |
| Bundle Options | Enclosure only (bring your own SL712) |
| Warranty | 1 year limited (enclosure) |
| Built In | Tullahoma, Tennessee, USA |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
1.244 cu ft against a 39.2 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 19.0 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 29.00 | Hz | free-air resonance |
| Qts | 0.540 | D2 / D4 | |
| Vas | 39.20 | L | equivalent compliance |
| Sd | 532.4 | cm² | effective piston area |
| Xmax | 19 | mm | one-way linear movement of the soft parts, as DD Audio states it; the mechanical limit is 40 mm |
| Pe | 1000 | W | continuous RMS |
| SPL | 83.7 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by ddaudio.com, SL712 product page. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
