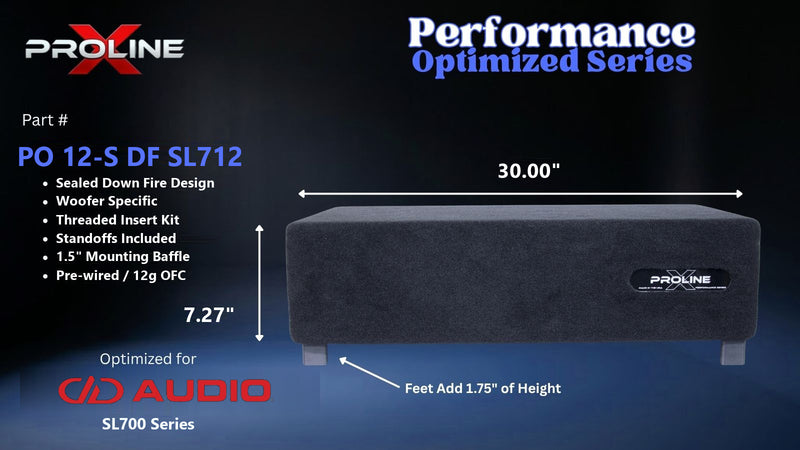

Proline X PO 12-S DF SL712 sealed down fire enclosure, front panel on 1.75 inch feet, 30 by 7.27 inches.

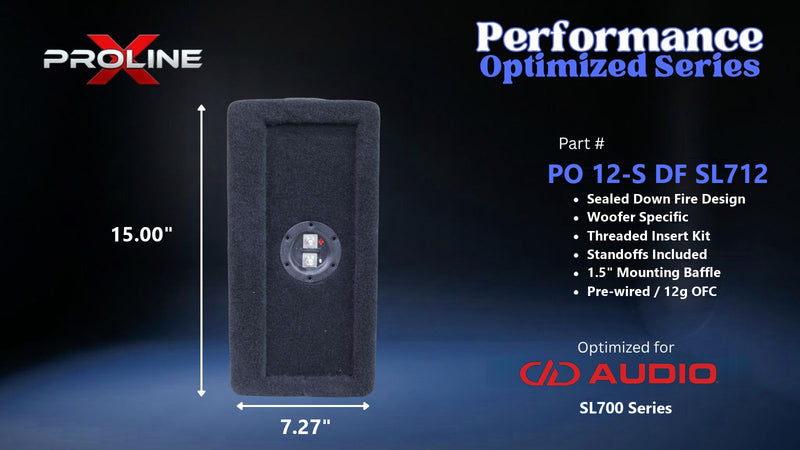

Proline X PO 12-S DF SL712 sealed down fire enclosure, end panel with recessed terminal cup, 15 by 7.27 inches.

Proline X

Performance Optimized Down Fire Sealed 12" Enclosure | DD Audio SL712

Q: Does this enclosure fit both the D2 and D4 SL712, and will any other 12 inch fit?

Both SL712 coils, yes. The D2 and D4 share one basket, one 11.375 inch cutout, one 12.375 inch frame and one 5.5 inch mounting depth, and DD Audio publishes one Thiele-Small block for both, so the fit and the alignment are the same whichever coil you own.Any other 12, no. The baffle is cut direct fit for the SL712 and the airspace is built to that driver's published parameters. Another woofer that happened to drop into the hole would be loading into an airspace engineered around a 0.54 Qts and a 39.2 liter Vas, and the alignment printed on this page would no longer describe what you own.

Q: Why 1.00 cubic feet, and what alignment does it target?

DD Audio publishes a 0.7 to 1.5 cubic foot sealed range for the SL712, and 1.00 cubic feet sits inside it. At that volume the system Qtc is 0.83 with resonance at 44.8 Hz and an anechoic half-power point of 39.0 Hz, a punchy sealed alignment with a mild lift near resonance.The reason not to go bigger is what the extra volume buys. At DD's 1.5 cubic foot ceiling the Qtc falls to 0.75 but F3 only moves to 38.1 Hz, less than a hertz, while the cabinet grows almost three inches taller. On this driver volume buys damping, not extension, so 1.00 keeps the cabinet at 7.27 inches without giving up low-frequency reach.

Q: What amplifier power should I run, and how should I wire it?

The SL712 is rated 1000 watts RMS, so target 700 to 1000 watts RMS at the final wired impedance. The D2 coil gives 4 ohms in series or 1 ohm in parallel; the D4 gives 8 ohms in series or 2 ohms in parallel.The 1 ohm parallel load on a D2 is the one to be careful with. Many amplifiers are not stable at 1 ohm and running one there is how amplifiers die. Series for 4 ohms is the safe answer on a D2 unless your amplifier is explicitly rated 1 ohm stable. On a D4, parallel for 2 ohms is the usual choice.

Q: How tall is this once the standoffs are on?

The cabinet is 7.27 inches tall measured in the down fire position, and that figure excludes the standoffs. The standoffs hold 1.75 inches under the baffle, so plan your space around a finished stack of roughly 9.02 inches.The footprint is the standard Performance Optimized down fire platform, 30.00 inches wide by 15.00 deep. Height is the only dimension solved to the driver, and 7.27 is what holds exactly 1.00 cubic feet net around the SL712.

Q: Why is the front baffle double-layered?

The baffle is two bonded 3/4 inch sheets, 1.5 inches through. A subwoofer pushes as hard against its mounting surface as it does against the air, and a single 3/4 inch panel flexes under that load, which smears output and works the driver loose over time.The outer layer is machined as a flush recess so the driver bolts to the inner layer, which recovers 3/4 inch of internal clearance. That matters here: the SL712's 5.5 inch motor sits 4.0 inches into a 5.02 inch cavity, and the recess is part of what keeps 1.02 inches of air above it.

Q: What is the expected low-frequency extension?

Anechoic F3 is 39.0 Hz at 1.00 cubic feet, with system resonance at 44.8 Hz. Because the Qtc is 0.83 the response carries a mild lift around resonance rather than a flat shelf, so F3 lands below fc.Those figures are anechoic and exclude cabin gain. In a car the transfer function of the cabin adds real output below 50 Hz, so in-vehicle response runs deeper than the number above.

Q: Do I need to add polyfill or damping?

No. Polyfill is already installed as a light wall lining to control internal reflections, and the quantity is chosen so it does not change the acoustic volume.Do not add more. Packing a sealed box with fill makes it behave as though it were larger, which walks the alignment away from the 1.00 cubic feet this cabinet was built to.

Q: Is the DD Audio SL712 included, and are the threaded inserts installed?

No driver. This is an enclosure only. You receive the cabinet finished in plush black carpet, one side-mounted pre-wired terminal cup, the standoffs, the polyfill lining already in place, and a threaded insert kit with stainless machine screws.The inserts ship loose rather than pressed into the baffle, because DD Audio publishes no bolt pattern for the SL712. Set the basket in the recess, mark its holes, and press the inserts to your driver. The SL712 itself is purchased separately.

SKU: PO 12-S DF SL712

QUICK SPECS

Alignment: 1.00 cu ft net. Qtc 0.83, fc 44.8 Hz, F3 39.0 Hz anechoic
Driver: DD Audio SL712, D2 or D4, 1000 W RMS, 19 mm Xmax one way, 5.5 in mounting depth
Alignment character: Punchy sealed, inside DD's own 0.7 to 1.5 cu ft range. A larger box lowers Q on this driver, not F3
Standoffs: Included, 1.75 in, shipped uninstalled. Installed height near 9.02 in
Cabinet: 30.00"W x 15.00"D x 7.27"H in down fire position, excludes standoffs, square corners

Shipping Included No freight charges at checkout. What you see is what you pay.

Built in Tennessee CNC cut from 3/4" Langboard Elite MDF. V-groove and dado joinery.

Advanced Terminal Cup Built in-house. ABS/Carbon Fiber. Stainless steel hardware. Copper ring terminals.

$ 279.99

In Stock and Ready to Ship

Financing available. Choose Shop Pay Installments at checkout.

Performance Optimized Down Fire Sealed 12" Enclosure | DD Audio SL712

$ 279.99

Enclosure Type Sealed

External Dimensions 30.00" W x 15.00" D x 7.27" H (measured in down fire position, excludes standoffs)

Gross Volume 1.08 cu ft

Net Volume 1.00 cu ft

Weight 33.5 lbs

Front Panel Thickness 1.5"

INSTALLER'S TAKE

Measure the installed height, not the cabinet height. The box is 7.27 tall on its own and the standoffs add 1.75, so you are planning around 9.02 inches of stack on the standard 30 by 15 footprint.

The feet ship uninstalled on purpose. If the floor does not suit a down fire mount, run it front firing or up firing instead. Nothing about the enclosure changes.

Set expectations on the alignment before the sale. This is a 0.54 Qts driver in one cubic foot and it lands at Qtc 0.83, punchy with a lift near 45 Hz. Going to DD's 1.5 cubic foot ceiling would flatten it to 0.75 and buy less than a hertz of extension, which is why I stopped at 1.00.

The inserts are in the box, not in the baffle. DD publishes no bolt pattern for the SL712, so set the basket in the recess and press the inserts to its holes before you carpet anything over them.

D2 coil: series for 4 ohms is the default answer. Parallel gives 1 ohm and that is where amplifiers die. D4 owners can run parallel for 2 ohms without that worry.

Product Details

Proline X Performance Optimized Down Fire 12" Sealed

Cut and tuned for the DD Audio SL712

V-Groove and DadoLangboard Elite MDF1.00 cu ft NetStandoffs Included

1.00cu ft net

0.83system Qtc

39.0 HzF3 rolloff, anechoic

7.27 incabinet height, excludes standoffs

Performance, Performance Optimized, and Micro

Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.

	Performance	Performance Optimized	Micro Series
Fitment	Universal. Accepts any subwoofer that clears the published cutout and mounting depth.	Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver.	Woofer specific. Cut for one named subwoofer.
Footprint	Sized to the driver diameter.	A shared 30 by 15 inch platform, with cabinet height as the variable. This build sits on that platform at 7.27 inches tall, the height that holds exactly 1.00 cubic feet net around the SL712.	Compact per driver footprint.
Front baffle	Single, 3/4 inch.	Double, 1.5 inch, outer layer machined as a flush recess.	Double, 1.5 inch.
Driver mounting	Solid flange. You drill your own mounting holes.	Threaded insert kit and stainless machine screws included. DD Audio publishes no bolt pattern for the SL712, so the inserts ship loose for you to set to the basket.	Threaded inserts, stainless machine screws included.
Joinery	V-groove and dado, CNC cut.	V-groove and dado, CNC cut, perimeter cross brace.	Stack fab, dowel reinforced.
Published alignment	Modeled Qtc profiles across a range of drivers. No single response curve.	A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters.	Target alignment described in the listing.
Carpet	Gray standard, black optional.	Plush black.	Plush black.
Warranty	1 year limited.	1 year limited.	2 years.

Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.

This page is a Performance Optimized enclosure. The airspace, the cutout and the cabinet height all come from the SL712's own numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.

Built Around the DD Audio SL712

Nothing about this cabinet is generic. The baffle is bored to the SL712's 11.375 inch cutout, the internal height is set by its 5.5 inch mounting depth, and the airspace lands on 1.00 cubic feet net, inside the 0.7 to 1.5 cubic foot sealed range DD Audio publishes for this driver.

The SL712 is DD's SL700 series 12, a shallow 5.5 inch motor on a 12.375 inch frame rated 1000 watts RMS, with 19 mm of one-way linear travel by DD's own definition, one-way linear movement of the soft parts, against a 40 mm mechanical limit. DD publishes one Thiele-Small block for the driver and applies it to both the D2 and the D4 coil: Fs 29 Hz, Qts 0.54, Qes 0.62, Qms 5.4, Vas 39.2 liters. It publishes no cone area and no sensitivity; the 532.4 square centimeter Sd behind this page is derived from DD's stated 10.25 inch piston diameter, and the 83.7 dB at 1 watt is computed from the parameters.

Net Volume, Not Gross

We build this cabinet at 1.00 cubic feet net. The volume quoted is true net internal airspace after panel thickness, the internal brace and the driver's own 0.07 cubic feet of displacement, a figure DD Audio publishes, are accounted for. Gross is 1.079.

True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's published displacement, not estimated from external dimensions minus wall thickness.

Height was solved to hit 1.00 exactly on the standard 30 by 15 platform, which is why this cabinet stands 7.27 inches rather than a rounded stock height.

What the Alignment Actually Is

The SL712 carries a moderately high total Q of 0.54 on a low 29 Hz resonance, so a sealed box in DD's range produces a punchy alignment with a mild lift near resonance rather than a textbook flat one. At 1.00 cubic feet the system Qtc is 0.83, resonance sits at 44.8 Hz and the anechoic half-power point is 39.0 Hz.

Volume buys damping on this driver, not extension. At DD's 1.5 cubic foot ceiling the same driver would run a Qtc of 0.75 with F3 at 38.1 Hz, and at their 0.7 cubic foot floor a Qtc of 0.93 with F3 near 39.9 Hz. The half-power point moves by about a hertz across the whole range while the cabinet height would move by almost three inches, which is why 1.00 cubic feet is the volume this cabinet is built to.

Parameter source	System Qtc	fc	F3
DD Audio, published, D2 and D4 (one shared parameter set)	Qtc 0.834	44.8 Hz	39.0 Hz

One number, one source. DD Audio prints a single parameter set for the SL712 rather than one per coil, so one alignment describes both coils. The figures above are anechoic; cabin gain in a vehicle adds real output below the half-power point.

Down Fire Construction

Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

The cabinet measures 30.00 inches wide by 15.00 inches deep by 7.27 inches tall, measured in the down fire position and excluding standoffs. Plan the space around the installed height rather than the cabinet height: the standoffs hold 1.75 inches under the baffle, so the finished stack sits near 9.02 inches.

Double Baffle, Flush Recess

The front baffle is 1.5 inches, two bonded 3/4 inch sheets, with the outer layer machined as a flush recess so the driver bolts to the inner layer. That recovers 3/4 inch of internal clearance.

Side-Mounted Terminal Cup

Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC. Side mounted so it stays accessible with the baffle facing the floor.

Standoffs Included

DD Audio publishes no front clearance figure for the SL712, so this cabinet uses the Proline X standard 1.75 inch standoff, shipped with every enclosure and left uninstalled so you can place them to suit your floor.

Motor Clearance and Orientation

The motor rises off the baffle into the cavity, so on a down fire cabinet the clearance that matters runs to the top panel. The SL712's 5.5 inch mounting depth puts the motor 4.0 inches into a 5.02 inch cavity, leaving 1.02 inches above the motor against a 0.75 inch minimum. Height was set by the airspace at 7.27 inches, above the 7.00 inches the clearance alone would have required.

DD Audio does not publish a position on down firing this driver, and this cabinet makes no claim on their behalf. The feet ship uninstalled, so if you would rather run it front firing or up firing, that is a decision you can make at install time without changing anything about the enclosure.

Power and Warranty

The SL712 is rated 1000 watts RMS. The D2 coil gives 4 ohms in series or 1 ohm in parallel; the D4 gives 8 ohms in series or 2 ohms in parallel. The 1 ohm load is one many amplifiers are not stable into, so on a D2 series is the safe default unless your amplifier is explicitly rated for it.

The enclosure carries a 1 year limited warranty. Bring your own SL712; the driver is purchased separately.

Cut for the Driver, Not the Catalog

Built one at a time in Tullahoma, Tennessee, with standoffs and a 1 year limited warranty. Questions on fitment or amplifier matching, call 931-563-5151.

Specifications

Specification	Value
Series	Proline X Performance Optimized Down Fire
Compatible Driver	DD Audio SL712, D2 or D4, quantity 1. Direct fit, no other driver
Configuration	Single 12 inch, sealed down fire
Mounting Position	Trunk or cargo floor, baffle facing down on standoffs
Firing Direction	Downward. Feet ship uninstalled, so front or up firing is also possible
External Width	30.00 in
External Depth	15.00 in
External Height	7.27 in in the down fire position, excludes standoffs
Installed Height	9.02 in including the 1.75 in standoff
Internal Volume, Gross	1.079 cu ft
Internal Volume, Net Acoustic	1.00 cu ft after 0.07 displacement and the internal brace
DD Audio Published Sealed Range	0.7 to 1.5 cu ft; this cabinet is built to 1.00
Alignment, DD Audio published, D2 and D4	Qtc 0.834, fc 44.8 Hz, F3 39.0 Hz anechoic
Driver Fs / Qts	29.0 Hz / 0.540, as published by DD Audio
Driver Qes / Qms	0.620 / 5.400, as published by DD Audio
Driver Vas	39.2 liters / 1.384 cu ft, as published by DD Audio
Cone Area (derived)	532.4 cm2, from DD's published 10.25 in piston diameter; DD publish no Sd
Xmax	19 mm one way, DD's one-way linear movement of the soft parts; 40 mm mechanical
Sensitivity	Not published by DD Audio; 83.7 dB at 1 W derived from the parameters
Woofer Opening	11.375 in (289 mm) direct fit
Frame Outer Diameter	12.375 in, as published by DD Audio
Driver Mounting Depth	5.5 in required, 1.02 in clearance above the motor
Driver Displacement	0.07 cu ft, as published by DD Audio
Driver Power Handling	1000 W RMS
Wiring Options	D2: 4 ohms in series or 1 ohm in parallel. D4: 8 ohms in series or 2 ohms in parallel
Material	Langboard Elite MDF
Construction	CNC cut, V-groove and dado joinery, square corners
Panel Thickness	0.75 in
Front Baffle	1.5 in double baffle, outer layer machined as a flush recess
Internal Bracing	Windowed U-brace, dadoed to front, top and back
Driver Mounting Hardware	Threaded insert kit and stainless machine screws included, not pre-installed: DD Audio publish no bolt pattern
Terminal Cups	One Proline X ABS and carbon fiber composite, side mounted, pre wired 12 gauge OFC
Standoffs	Included, 1.75 in, shipped uninstalled
Damping	Light polyfill wall lining, does not alter acoustic volume
Carpet	Plush black
Weight	33.5 lb
Warranty	1 Year Limited
Built In	Tullahoma, Tennessee

Performance Graphs

Net airspace

1.00

cu ft

System Qtc

0.83

sealed

Half power

39.0

Hz · F3

Xmax at

1103

W RMS · no filter

With 25 Hz subsonic

1311

W RMS · +19%

Amplifier

1000

W RMS recommended

This enclosure holds 1.00 cu ft net . In it the DD Audio SL712 runs a system Qtc of 0.83 with half power at 39.0 Hz, and the cone reaches its 19.0 mm travel limit at 1103 W, above the driver’s 1000 W thermal rating, so heat stops you before travel does. Run a subsonic filter at 25 Hz and that becomes 1311 W — +208 W, or 19 percent more power for the same 19.0 mm of travel.

01Is it a sealed driver?

Efficiency bandwidth product places the motor before anything else is decided.

EBP = Fs ÷ Qes = 46.8

D2 / D4 · EBP 46.8

EBP under 50 means a motor that wants a sealed load. The SL712 sits at 46.8, inside that band, which is why this is a sealed build rather than a ported one.

02What the box does to it

1.00 cu ft against a 39.2 L Vas.

α = Vas ÷ Vb = 1.38 · Fc = Fs√(α+1) = 45 Hz · Qtc = 0.83

D2 / D4 · Qtc 0.83, Fc 45 Hz, F3 39.0 Hz

The box lifts resonance from 29.0 Hz free-air to 45 Hz and half power lands at 39.0 Hz, anechoic, before any cabin gain. DD Audio publishes one parameter block for the SL712 and applies it to both the D2 and the D4 coil, so one curve describes both. The cone area behind the excursion math is derived from DD’s published 10.25 inch piston diameter; DD publish no Sd, and no sensitivity, so the 1 W figure is computed from the parameters rather than quoted. 1.00 cubic feet sits inside DD’s own 0.7 to 1.5 cubic foot sealed range; a larger box would lower the system Q toward 0.75 but move the half-power point by less than a hertz.

03The watts that reach Xmax (in this enclosure)

Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 19.0 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.

P_Xmax = 1103 W unfiltered → 1311 W with a 25 Hz subsonic

D2 / D4 · 1103 W, no filterD2 / D4 · 1311 W with subsonic at 25 Hz, 24 dB/octXmax 19.0 mm one-way

Every trace touches the limit and no further, because each is drawn at the exact power that puts that coil on 19.0 mm. Unfiltered that is 1103 W, reached first at 24 Hz. It sits above the 1000 W the driver can take thermally, so the voice coil gives up before the suspension does. The dashed traces are the same driver behind a subsonic filter at 25 Hz, 24 dB/oct: stopping the cone wasting travel below the passband lets it take 1311 W before hitting the same 19.0 mm. That is 19 percent more amplifier for the price of one filter setting.

Param	Value	Unit	Note
Fs	29.00	Hz	free-air resonance
Qts	0.540		D2 / D4
Vas	39.20	L	equivalent compliance
Sd	532.4	cm²	effective piston area
Xmax	19	mm	one-way linear movement of the soft parts, as DD Audio states it; the mechanical limit is 40 mm
Pe	1000	W	continuous RMS
SPL	83.7	dB	1 W / 1 m, derived from T/S

Driver parameters as published by ddaudio.com, SL712 product page. Curves computed against this enclosure’s actual net airspace.

Materials

Material

Built From a Spec Sheet, Not a Sales Sheet

Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.

Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.

Specifications

Langboard Elite MDF: Published Mill Data

Property	Value	Why It Matters
Panel Stock	Langboard Elite MDF	Named, verifiable panel source, not generic "high-density MDF"
Thickness	3/4" (18mm)	Industry standard for subwoofer enclosures; panels below this flex under pressure
Density	48.5 lbs/ft³	Higher density = less porosity, better screw retention, reduced resonance
Internal Bond	200 psi	Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet
Modulus of Rupture (MOR)	4,200 psi	Bending strength before the panel breaks, relevant for larger unsupported baffle spans
Modulus of Elasticity (MOE)	410,000 psi	Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance
Face Screw Holding	325 lbs	How firmly the panel surface holds a screw; critical for baffle joint integrity over time
Edge Screw Holding	250 lbs	Panel edge retention, relevant for every joint that isn't face-to-face

Internal Bond

200 psi: The Number That Actually Matters for Enclosures

The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.

Stiffness

410,000 psi MOE: Less Flex, Less Resonance

The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.

Screw Holding

325 lb Face / 250 lb Edge: Joints That Stay Locked

Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.

Sourcing

Named Panel Stock: Not "Premium MDF"

The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.

Why Proline X?

Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.

CNC-Cut to Spec

Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
