Proline X
Performance Optimized Wedge Sealed Dual 12" Enclosure | DD Audio SL712
SKU: PO 12D-S W SL712 BB
- Best For: Dual DD Audio SL712 Trunk-Fit Builds
- Net Volume: 1.00 cu ft per chamber, 2.00 total (2.20 cu ft Gross)
- Alignment: Qtc 0.834, fc 44.8 Hz, F3 39.0 Hz
- Driver Match: Pair of DD Audio SL712 (matched, D2 or D4)
- Construction: Dual Chamber | Rear-Firing Wedge | V-Groove/Dado | Double 1.5" Baffle | Threaded Insert Kit included
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Wedge Sealed Dual 12" Enclosure | DD Audio SL712
More enclosures cut for Digital Designs subwoofers: Digital Designs Subwoofer Boxes
Performance Optimized Wedge | Dual DD Audio SL712
Dual 12" Sealed Wedge Enclosure | Rear-Firing Trunk-Load Design
The DD Audio SL712 in a Dual Sealed Wedge
The DD Audio SL712 is rated 1000 watts RMS on a 12.375 inch frame with 5.500 inches of mounting depth. The alignment below is computed from DD Audio's own published Thiele-Small parameters.
1.00 cubic feet net per chamber. DD's own sealed range for the SL712 is 0.7 to 1.5 cubic feet, Qtc 0.93 to 0.75, and a maximally flat box would take 1.94 cubic feet. This cabinet sits inside that range, toward its smaller end, where the SL712 plays with more punch and stays inside Xmax at its full rated power. In 1.00 cubic feet the SL712 lands at Qtc 0.834, punchy, with a mild rise near resonance and extra midbass, with system resonance at 44.8 Hz.
Threaded insert kit ships with this box. DD Audio publishes no mounting hole locations for this driver, so the threaded inserts are not pressed at either position before it ships. The threaded insert kit comes in the box instead: inserts sized to the woofers for both positions, the correct drill bit, allen-head screws, an allen key and woofer gasket tape. You set them when the woofers go in.
Two Fully Separate Chambers
A full-height divider splits the cabinet into two sealed chambers of 1.00 cubic feet net each, 2.00 total. Each SL712 sees only its own air, so the two drivers cannot load each other and a fault in one chamber stays in it. Both chambers share one side-mounted terminal cup.
Trunk-Load Wedge Design Explained
The drivers mount on the vertical trunk-lid-side face and fire rearward into the trunk cavity.
Seat-Side Face Matches Seat Lean
Angled face matches the roughly 20 degree factory seat lean.
Trunk-Lid-Side Face Fires the Woofer
Vertical baffle, cone firing rearward into the trunk cavity.
Trunk Cavity Loading
The trunk acts as an acoustic extension for a smoother presentation.
Preserves Trunk Cargo Space
The wedge tucks against the seat back and the space in front stays usable.
Engineered for the DD Audio SL712
Half power lands at 39.0 Hz anechoic, before any cabin gain. DD publishes no Sd for any of its drivers. The 532.4 square centimetre figure behind this alignment is derived from DD's own published piston diameter, which they define as measured halfway across the surround, the convention Sd itself is defined from. DD publishes no Mms, Cms or DC resistance either.
Alignment Numbers
Qtc 0.834 · fc 44.8 Hz · F3 39.0 Hz anechoic, per chamber
Mounting Geometry
Vertical baffle CNC cut to 11.375 in at both positions. Mounting depth available is 8.46 in against the 5.500 in the driver needs. The cosmetic recess is cut to DD's published 12.375 in frame diameter.
What the Numbers Rest On
Langboard Elite MDF
Premium 3/4 in MDF throughout.
V-Groove and Dado Joinery
CNC cut V-grooves at every panel intersection, sides and divider seated in dados.
Double-Layer 1.5" Front Baffle
Two bonded 3/4 in MDF sheets at the driver face.
Derived Cone Area
DD publishes no Sd for any of its drivers. The 532.4 square centimetre figure behind this alignment is derived from DD's own published piston diameter, which they define as measured halfway across the surround, the convention Sd itself is defined from. DD publishes no Mms, Cms or DC resistance either.
Wiring the DD Audio SL712 to Your Amplifier
DD sells the SL712 in D2 and D4, and a matched pair should share a coil. A D2 pair wires each woofer's coils in series (4 ohms) and the two woofers in parallel for 2 ohms, or everything in series for 8 ohms. A D4 pair wires each woofer's coils in series (8 ohms) and the two woofers in parallel for 4 ohms, or each woofer's coils in parallel (2 ohms) and the two woofers in parallel for 1 ohm. A 1 ohm load needs an amplifier rated 1 ohm stable; if yours is not, use the higher option. DD publishes one set of Thiele-Small parameters for the model, so the cabinet is the same for either coil.
Power handling is 1000 watts RMS per driver, 2000 across the pair. Aim for roughly 1400 to 2000 watts total at the impedance you wire.
Built in Tennessee, Backed by Audio Intensity
Cut and assembled in Tullahoma, Tennessee on our own CNC equipment. Finished in plush black carpet, pre-wired terminal cup, 12 gauge OFC to both driver positions. 1 year limited warranty. Enclosure only, the drivers are purchased separately. Call or text 931-563-5151.
Dual DD Audio SL712: Sealed at Qtc 0.83
1.00 cubic feet net per chamber at Qtc 0.834, F3 39.0 Hz, cut direct fit and built to order in Tennessee.
| Specification | Value |
|---|---|
| Series | Proline X Performance Optimized Wedge |
| Compatible Driver | DD Audio SL712, D2 or D4, quantity 2. Direct fit |
| Configuration | Dual 12 inch, two separate sealed chambers |
| Mounting Position | Trunk or cargo area, tall face against the rear seat back |
| Firing Direction | Rearward into the trunk. Not a down fire design, no feet included |

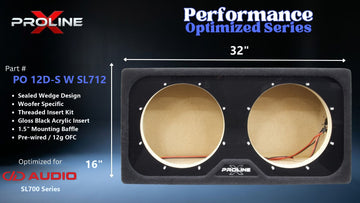

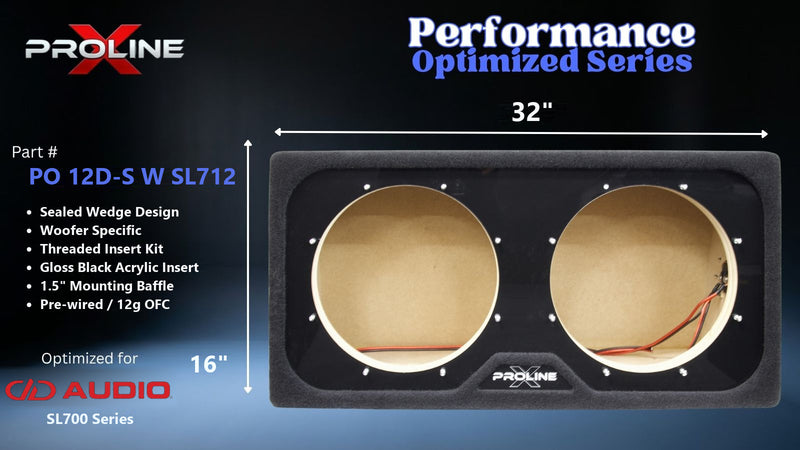

| External Width | 32.00 in |
| External Height | 16 in at the seat face |

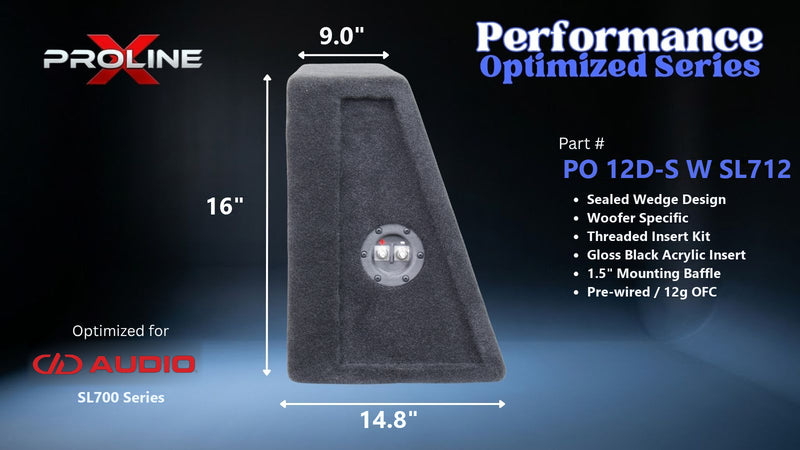

| External Depth | 14.78 in at the base, tapering to 8.96 in at the top |
| Internal Volume, Gross | 2.20 cu ft |
| Internal Volume, Net Acoustic | 1.00 cu ft per chamber, 2.00 total |
| Alignment | Qtc 0.834, fc 44.8 Hz, F3 39.0 Hz anechoic |
| Driver Cutout | 11.375 in |
| Driver Mounting Depth | 8.46 in available, 5.500 in required |
| Frame Outer Diameter | 12.375 in, as published by DD Audio |
| Driver Displacement | 0.070 cu ft each, as published by DD Audio |
| Cone Area (derived) | 532.4 cm2, from DD's published piston diameter; DD publish no Sd |
| Power Handling | 1000 watts RMS per driver, 2000 total |
| Impedance | D2 pair: 2 or 8 ohms; D4 pair: 4 or 1 ohm |
| Xmax | 19 mm one way |
| Material | Langboard Elite MDF |
| Construction | CNC cut, V-groove and dado joinery |
| Panel Thickness | 0.75 in |
| Front Baffle | 1.5 in, double baffle |
| Internal Bracing | Full-height chamber divider |
| Driver Mounting | Threaded insert kit included, NOT pre-installed: DD publish no mounting hole locations |
| Terminal Cups | One Proline X ABS and carbon fiber composite, side mounted, pre wired 12 gauge OFC to both chambers |
| Damping | Light polyfill wall lining in both chambers, does not alter acoustic volume |
| Carpet | Plush black |
| Weight | 46.1 lb |
| Warranty | 1 Year Limited |
| Built In | Tullahoma, Tennessee |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
1.00 cu ft against a 39.2 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 19.0 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 29.00 | Hz | free-air resonance |
| Qts | 0.540 | SL712, D2 or D4 (DD publish one shared table) | |
| Vas | 39.20 | L | equivalent compliance |
| Sd | 532.4 | cm² | effective piston area |
| Xmax | 19 | mm | one-way, as DD publish it, with no stated measurement basis |
| Pe | 1000 | W | continuous RMS |
| SPL | 83.7 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by DD Audio published SL712 specifications (one table for D2 and D4). Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
