Ported, 10 Inch

Ported 10 Inch Subwoofer Boxes

Ported cabinets for 10 inch drivers with the tuning frequency on every card, standard, down-fire and wedge. CNC-cut in Tullahoma.

Ported 10 inch Proline X subwoofer enclosure

Ported, 10 Inch

A ported 10 inch subwoofer box adds a tuned vent so the cabinet gives more output around its tuning frequency than the same driver sealed, for the same amplifier. On a driver-matched cabinet the port is sized to that driver's excursion and power, and every listing on this page states its tuning, because two cabinets of the same volume tuned five hertz apart are different products.

Ten inch is the broadest size in the enclosure catalogue, with the widest list of drivers we cut for, and a ported 10 gets real output from a box small enough to leave most of a trunk usable. CNC-cut in Tullahoma, Tennessee from Langboard Elite MDF on our own ShopSabre routers. Ported cabinets ship dry.

Ported 10 inch cabinets in stock today | single and dual | standard, down-fire and wedge | Performance, Performance Optimized and Professional | tuning stated per cabinet

Cut, assembled, carpeted and shipped from our own shop in Tullahoma, Tennessee. Stock counts on every card are shelf counts. Ported cabinets ship dry, with the tuning on the listing. Limited warranty runs by series from the original date of purchase: one year on Performance and Performance Optimized; two years on Professional.

Specified and written by Scott Welch, IASCA National and MECA World Champion, who runs the CNCs these are cut on. Figures come from our own build sheets and the driver manufacturers' published parameters.

Decision Shortcut

Find Your Match

Curated picks matched to common build goals

Best Value

Proline X Ported Sub Box for 10 inch Subwoofers

Proline X

Proline X P10-P | Single 10" Ported Subwoofer Enclosure | V3

P10-P Single 10" Ported Subwoofer Enclosure. The lowest-priced ported 10 inch cabinet on the page, standard orientation, 1.2 cubic feet net.

$ 199.99

View Details

Best for Trucks

Proline X PO 10-P W A ported wedge, front baffle with gloss black insert and pre-wired leads, 30 by 13.5 inches.

Proline X

Arc Audio A-Series 10 Ported 10" Wedge Enclosure | Proline X

Arc Audio A-Series 10. A wedge cabinet tapered to sit flush against a seat back, tuned to 33.5 Hz.

$ 349.99

View Details

Shallowest Cabinet

Proline X PO 10-P W SW ported wedge, front baffle with gloss black insert and pre-wired leads, 30 by 13.5 inches.

Proline X

Arc Audio SW 10 Ported 10" Wedge Enclosure | Proline X

Arc Audio SW 10. 11.3 inches deep, the shallowest ported 10 inch cabinet in stock, for openings a standard box will not take.

$ 349.99

View Details

Lowest Tuning

Proline X X Series ported enclosure that fits a Kicker Solo-X subwoofer, slot port at left and US flag panel.

Proline X

Proline X Enclosure | X Series | Fits Kicker Solo X 10" Subwoofer

X Series cabinet that fits Kicker Solo X 10" Subwoofer. Tuned to 31 Hz, the lowest on the page, for a driver whose free-air resonance earns it.

$ 484.99

View Details

Shop the Lineup

←
→

All products loaded

Sealed or Ported at 10 Inches

Same driver size, same shop, same materials. The alignment changes the cabinet, what the listing has to tell you and what you do at the amplifier. This page is the ported half; the sealed 10 inch page is the other.

Sealed and ported 10 inch Proline X cabinets as built.
Sealed 10 inchPorted 10 inch
Net volumeSmaller for the same driverLarger, with the port's own volume added
PolyfillInstalled on every buildNone. Ships dry so the tuning holds
Tuning statedNo, a sealed box has noneYes, on every listing
OutputFlat passband, gentle 12 dB per octave roll-offMore output around tuning for the same power
Subsonic filterAn improvementA requirement, set just under tuning
Pick it whenSpace is tight, music is wide, or you want a dualThe space is there and output per watt matters

Shared across both: Langboard Elite MDF at 48.5 lbs per cubic foot, 200 psi internal bond and 410,000 psi MOE, cut on ShopSabre routers in Tullahoma and carpeted in house.

Three Shapes, Three Series

The page spans standard, down-fire and wedge cabinets from the Performance, Performance Optimized and Professional lines, in single and dual configurations. Brands we cut ported 10 inch cabinets for include Kicker, PowerBass, JL Audio, Rockford Fosgate and Arc Audio; the card says whether we stock the driver as well, because the box is the product and it has to be right on its own.

Limited warranty runs by series from the original date of purchase: one year on Performance and Performance Optimized; two years on Professional.

The straight cabinet

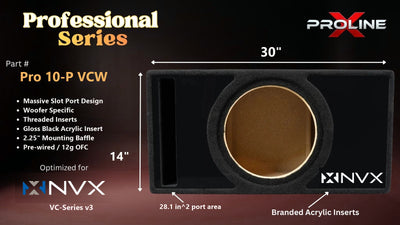

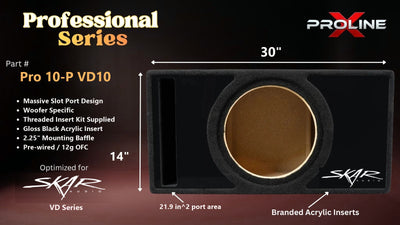

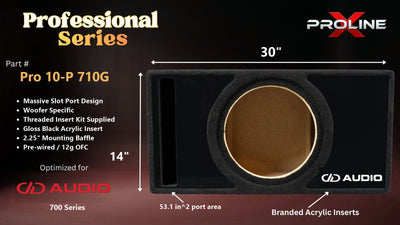

Standard 10 inch, ported

single and dual, ported·From $199.99

Fires forward, stands on its base. The shape for a trunk with height or a cargo floor with room behind the seat.

Warranty 1 or 2 years by series

Fires into the floor

Down Fire 10 inch, ported

single, ported·From $299.99

Driver on the bottom baffle, on feet that set the clearance. The floor loads the cone and protects it from cargo.

1 year limited warranty on Performance Optimized

Leans on the seat back

Wedge 10 inch, ported

single, ported·From $349.99

Tapered on the rear panel to sit flush against a seat. The truck cabinet, and the shape that leads at the larger sizes.

1 year limited warranty on Performance Optimized

Prices are the lowest in stock for each shape today. Depth, net volume and, on ported builds, tuning are what change from card to card.

Categories

Keep Reading

Supporting guides to help you design, build, and tune your system.

Ported 10 Inch Box Questions

What tuning frequency are these 10 inch boxes?

Each listing states its own, and across this page tuning runs 31 to 40 Hz. That is deliberate: a vehicle adds roughly 12 dB per octave below about 45 Hz, so tuning near the driver's own resonance keeps the cone quiet where the port is doing the work instead of doubling up on what the cabin already does.

How big is a ported 10 inch subwoofer box?

Net volume on this page runs 0.8 to 2 cubic feet for a single-driver cabinet, quoted for the box, and every listing states its own. A ported cabinet is larger than a sealed one for the same driver because the port needs volume of its own and the alignment wants more air behind the cone.

Do these ship with polyfill?

No, and do not add any. Every sealed cabinet we build ships with polyfill, but damping material changes the volume a port is tuned against. Stuff a ported box and you move the tuning without shortening the port, which gives you a mistuned enclosure rather than a bigger-sounding one.

Do I need a subsonic filter?

Yes. Below its tuning frequency a ported box stops loading the cone and excursion runs away toward the driver's limits. Set the amplifier's subsonic filter just under the tuning stated on the listing. On a sealed build the same filter is an improvement; on a ported one it is a requirement.

Do you make dual ported 10 inch boxes?

Yes. This page carries dual cabinets alongside the singles. A ported dual shares one tuned chamber, so the stated tuning applies to both drivers.

What is the warranty on a ported 10 inch box?

Limited warranty runs by series from the original date of purchase: one year on Performance and Performance Optimized; two years on Professional. It covers structural failure and manufacturing defects for the original purchaser.

What tuning should I choose for rap, rock or EDM?

For hip-hop, trap and bass-heavy electronic music, the lowest-tuned 10s here, 31 to 33 Hz, reach furthest into the 808 range, in the larger cabinets. For rock, metal and country, the 36 to 40 Hz cabinets keep kick drum punch and are the most compact. For a mixed playlist, 34 to 36 Hz is the safe middle and where most of this page sits. If the music is mostly sub-bass and the space allows, a ported 12 reaches deeper at the same output.
