Proline X
Proline X Enclosure | X Series | Fits Kicker Solo X 10" Subwoofer
SKU: Pro KIK 10 SX-none
- Best For: Single Solo-X 10" Builds | Dedicated Trunk Installs
- Tuning: 31 Hz
- Net Volume: 2.0 cu ft
- Construction: Dual Face Baffle | Internal Bracing
Financing available — choose Shop Pay Installments at checkout.
Proline X Enclosure | X Series | Fits Kicker Solo X 10" Subwoofer
Proline X X Series | Pro KIK 10 SX
Single 10" Ported Enclosure | Built for the Kicker Solo-X L7X
The Sweet Spot of the Lineup. Tuned Lower Than the Competition.
The Solo-X L7X 10" sits in the most versatile position in the X Series lineup — more cone area and low-frequency displacement than the 8", more install flexibility than the 12". It is a driver that rewards a correctly engineered enclosure and gives up real performance in a box that approximates the spec.
Most generic 10" ported enclosures are tuned between 35 and 38 Hz — a range optimized for output numbers rather than for any specific driver's Thiele-Small parameters. The Solo-X L7X 10" calls for something different. The Pro KIK 10 SX is built to 2.0 cubic feet net, tuned to 31 Hz, with 30.6 square inches of port area — every variable derived from the L7X 10"'s published T/S parameters. That 31 Hz tuning is not a compromise. It is where this driver's low-end extension and output efficiency intersect correctly.
This is an enclosure-only product. You source the driver — we handle the box. The square baffle cutout is machined specifically to the L7X 10" platform geometry. This enclosure is not cross-compatible with round 10" drivers.
Why 31 Hz — and Why It Matters
Tuning frequency is not a preference setting. It is a calculated output of the driver's free-air resonance, suspension compliance, and the enclosure's internal volume and port geometry. The Solo-X L7X 10" T/S parameters point to a lower tuning frequency than most generic 10" ported designs deliver. Running this driver in a box tuned at 35–38 Hz produces peak output at frequencies above where the driver's motor is most efficient — you get a louder midband and less of the low-end extension the 10" Solo-X is capable of producing.
At 31 Hz, the Pro KIK 10 SX loads the driver correctly across its full operating range. The 30.6 square inches of port area keeps air velocity below the chuffing threshold at sustained high-power input. The result is clean, controlled output that extends lower than any generic 10" ported box at this driver size — not because of a marketing claim, but because the enclosure was built to what this driver's published specs actually require.
2.0 ft³ — Driver-Specific Volume
The 2.0 ft³ net internal volume is derived from the Solo-X L7X 10"'s suspension compliance and Xmax — not from a universal 10" ported template. It is the volume at which this driver operates in its linear range in a ported alignment tuned to 31 Hz.
31 Hz — Lower Than Generic, Correct for This Driver
Most 10" ported boxes on the market are tuned 4–7 Hz higher than the Pro KIK 10 SX. That difference is audible — particularly in the 28–35 Hz range where the Solo-X 10" has output capability that a higher-tuned enclosure cannot access. This enclosure does not leave that extension on the table.
30.6 sq in Port Area
Port area is sized for the displacement this driver generates at sustained high-power input. At 30.6 square inches, air velocity stays clean at competition power levels — no chuffing, no port noise, no compression artifacts at the tuning frequency where this driver operates hardest.
The Sweet Spot of the X Series
The 10" configuration fits where the 8" does not have enough cone area and the 12" exceeds the available install space. At 32" wide, 13.75" tall, and 18" deep, the Pro KIK 10 SX fits a wide range of dedicated trunk builds and midsize installs without custom fabrication.
Construction: The Same Standard as Every Proline X Enclosure
The Pro KIK 10 SX uses the same construction methodology as every enclosure in the Proline X lineup. Langboard Elite MDF. V-groove and dado joinery. Extensive internal bracing. In-house terminal cup. Hand-assembled in Tennessee. The variables between SKUs are dimensions, volume, and port geometry — the build quality is consistent across the line.
Langboard Elite MDF — Named, Verified, Documented
Every panel is cut from Langboard Elite MDF — 3/4" (18mm) — a named, mill-documented panel stock produced in the United States. Generic descriptions like "high-density" or "premium MDF" carry no defined standard. Langboard Elite carries published mill data that is verifiable and consistent sheet to sheet. For a ported enclosure running a high-excursion motor at sustained power, that consistency matters.
Langboard Elite — Published Mill Data
Density: 48.5 lbs/ft³ — higher density means less porosity, better screw retention, and reduced panel resonance under sustained bass pressure cycling
Internal Bond: 200 psi — resistance to delamination; a ported enclosure at high power cycles pressure through every panel joint on every bass note
Modulus of Elasticity: 410,000 psi — panel stiffness under load; less flex means less panel resonance coloring the port output
Face Screw Holding: 325 lbs — baffle hardware stays locked under the vibration load of the L7X 10" motor at excursion
Edge Screw Holding: 250 lbs — joint integrity at every panel edge connection throughout the enclosure's service life
V-Groove and Dado Joinery
Every panel joint uses V-groove and dado joinery — CNC-cut interlocking grooves that mechanically lock panels before adhesive is applied. The dado creates a tongue-and-groove interlock that resists shear forces regardless of glue condition over time. For a ported enclosure tuned to 31 Hz, joint integrity is acoustic integrity — a leaking seam is a port you did not design, and at this tuning frequency it will show up in the low-end response immediately.
Extensive Internal Bracing
The Pro KIK 10 SX is braced throughout the internal structure. At 2.0 ft³ net, the panel spans on this enclosure are larger than the single 8" — bracing is placed to control resonance across those larger surfaces at the frequencies the L7X 10" generates under load. The result is an enclosure that stays acoustically inert at sustained output — the bass you hear comes from the driver, not the box.
Dual-Layer Mounting Baffle
The mounting surface uses a dual-layer MDF baffle, bringing total front panel thickness to 1.5". The L7X 10" generates significant back-pressure at excursion against the baffle. The dual-layer construction keeps the driver seated, the gasket seal intact, and the baffle inert under sustained high-power input.

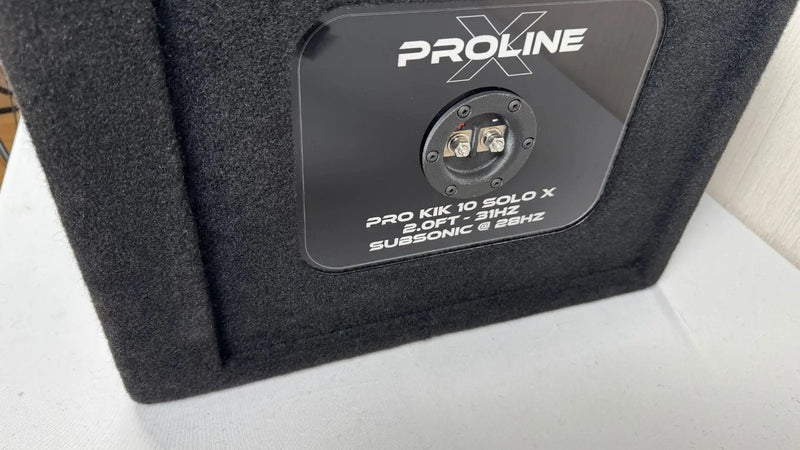

In-House Terminal Cup
The terminal cup is built in-house at our Tennessee facility. The recessed ABS/Carbon Fiber Composite cup features stainless steel hardware, aluminum landing plates, and copper ring terminals, pre-wired with 12g OFC speaker wire. The recessed mount protects terminals from cargo contact. Copper ring terminals provide a corrosion-resistant connection that does not loosen under vibration over time.
ShopSabre CNC Routers
Every panel is machine-cut on ShopSabre industrial CNC routers at our Tennessee facility. The square baffle cutout is machined to direct-fit the Solo-X L7X 10" mounting flange — no adapter, no modification required. The internal volume of every Pro KIK 10 SX is identical to spec.
Hand-Assembled in Tennessee
Every enclosure is hand-assembled and inspected at our Tennessee facility before it ships. No overseas manufacturing. No batch shortcuts. Each unit is built individually and checked for volume accuracy, joint integrity, and port clearance before leaving the floor.
Finish & Options
The Pro KIK 10 SX is finished in Plush Black carpet and available in two configurations. Both ship assembled and ready to install. Lead time is 2–4 business days.
Standard — Carpet Only
Plush Black carpet finish. Recessed ABS/Carbon Fiber Composite terminal cup. Pre-wired with 12g OFC speaker wire. Shipping included.
With Front Acrylic Panel
Everything in Standard plus a laser-etched custom Proline X Hex and Flag acrylic graphics panel on the front baffle. Show-quality finish detail that identifies this as a purpose-built competition enclosure.
Every Proline X X Series enclosure carries a 2-year warranty covering manufacturing defects in materials and workmanship. Built in Tennessee and backed by Audio Intensity directly — no third-party claims process.
Fitment & Specifications
The Pro KIK 10 SX is purpose-built for the Kicker Solo-X L7X 10" in both available impedance configurations — the 1Ω DVC and the 2Ω DVC. The baffle cutout is machined to the L7X square cone geometry. This enclosure is not cross-compatible with round 10" drivers — the square cutout is specific to the L7X platform.
Dimensional & Acoustic Specifications
External Dimensions: 32" W × 13.75" H × 18" D
Net Internal Volume: 2.0 ft³
Tuning Frequency: 31 Hz
Port Area: 30.6 sq in
Front Baffle Thickness: 1.5" Dual-Layer
Recommended Power: 500–1000W RMS
Weight: 65 lbs
Ideal Install Applications
Dedicated Trunk Builds
At 32" wide, 13.75" tall, and 18" deep, the Pro KIK 10 SX fits most standard sedan and midsize SUV trunks without custom fabrication. The 10" configuration is the most versatile in the lineup for trunk installs — wide enough to anchor the build, compact enough to leave usable cargo space.
Midsize SUV Cargo Builds
The 13.75" height clears most SUV cargo floor-to-ceiling constraints where a taller 12" or 15" enclosure would not fit. A correctly loaded Solo-X 10" in this enclosure outperforms a larger driver in a compromised box in the same space.
High-Output Daily Driver
The 31 Hz tuning delivers low-end extension that a higher-tuned generic box cannot access. For daily use at real power levels, that difference is audible — particularly on material with content in the 28–35 Hz range where this enclosure is operating at its designed output point.
Space-Constrained Competition
For competitors building to a class or space limitation where the 12" is too large, the Pro KIK 10 SX delivers Solo-X 10" performance from an enclosure tuned to the driver's published specification — not a generic template.
Built to Spec. Tuned Lower. Built in Tennessee.
The Proline X Pro KIK 10 SX is not a generic 10" ported box. It is built to 2.0 ft³ net, tuned to 31 Hz — lower than the market standard for this driver size, correct for the Solo-X L7X 10"'s published Thiele-Small parameters. Langboard Elite MDF. Dual-layer baffle. Extensive internal bracing. V-groove and dado joinery. Hand-assembled and inspected in Tennessee before it ships. Backed by a 2-year warranty.
You source the driver. We handle the box. Standard $499.99 | With Acrylic Panel $569.99. Shipping included. 2–4 day lead time.
Audio Intensity and Proline X are not affiliated with Kicker. This enclosure is engineered to match the published Thiele-Small specifications of the Kicker Solo-X L7X 10".
| SKU | Pro KIK 10 SX |
| Enclosure Type | Ported / Vented |
| Configuration | Single 10" |
| Compatible Driver | Kicker Solo-X L7X 10" |
| Driver Impedance | 1Ω DVC or 2Ω DVC |
| Net Internal Volume | 2.0 ft³ |
| Tuning Frequency | 31 Hz |
| Port Area | 30.6 sq in |
| External Dimensions | 32" W × 13.75" H × 18" D |
| Front Baffle | 1.5" Dual-Layer MDF |
| Internal Bracing | Extensive — Full Structure |
| Panel Material | Langboard Elite MDF 3/4" (18mm) |
| Joinery | V-Groove and Dado |
| Terminal Cup | Recessed ABS/Carbon Fiber Composite |
| Speaker Wire | 12g OFC — Pre-Wired |
| Finish | Plush Black Carpet |
| Recommended Power | 500–1000W RMS |
| Weight | 65 lbs |
| Warranty | 2 Years — Manufacturing Defects |
| Lead Time | 2–4 Business Days |
| Made In | Tennessee, USA |
| Shipping | Included — Lower 48 States (UPS Ground) |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X X Series enclosure is CNC-cut from Langboard Elite MDF — 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure — because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF — Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source — not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure — the most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks — relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention — relevant for every joint that isn't face-to-face |
200 psi — The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually — the symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE — Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness — resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level — not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge — Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint — where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X X Series enclosure is not going anywhere.
Named Panel Stock — Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification — it is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Frequently Asked Questions
Why is this enclosure tuned to 31 Hz when most 10" ported boxes are tuned at 35–38 Hz?
Can I use this enclosure with a different 10" subwoofer?
How does the single 10" compare to the single 8" and single 12" in the X Series lineup?
How does the X Series differ from the Proline X Performance Series?
What amplifier do I need for this enclosure?
What is the lead time and how does shipping work?
Do I need to add polyfill or damping material inside this enclosure?
How do I confirm this will fit my vehicle before ordering?
