Cut for Ampere Audio AA-2.0, AA-2.75 and AA-3.0

Ampere Audio Subwoofer Boxes and Enclosures

Sealed and ported enclosures cut for Ampere Audio subwoofers, CNC-machined in Tullahoma, Tennessee.

Proline X subwoofer box for Ampere Audio subwoofers

Cut for Ampere Audio AA-2.0, AA-2.75 and AA-3.0

Ampere Audio builds three subwoofer lines, the AA-2.0, AA-2.75 and AA-3.0, and they do not want the same cabinet. Every enclosure here is cut around one named driver, from 8 inch up to 18 inch, sealed or ported, in wedge, down-fire and Professional Series form. Match the model number on your subwoofer to the model on the listing and the alignment is already done.

42 enclosures cut for 12 Ampere Audio subwoofer models, 8 to 18 inch, sealed and ported.

Cut, assembled and finished in Tullahoma, Tennessee, to the parameters Ampere Audio publishes for each driver.

Driver parameters are taken from Ampere Audio published data. We build enclosures to those figures; we do not currently stock Ampere Audio drivers and make no claim to represent the brand.

Shop the Lineup

←
→

All products loaded

Ampere Audio Subwoofer Box Directory by Model

We build sealed and ported enclosures for 12 Ampere Audio subwoofer models, 8 to 18 inch, in wedge, down-fire and standard styles from single and dual woofer cabinets. Open a model to see every box cut for it, with net volume, tuning and outside dimensions. Full specs and fitment notes are on each product page.

Ampere Audio AA-2.0 8 5 boxes
BoxSeriesNet volumeTuningOutside dimensions
Down Fire Ported, SinglePerformance Optimized1.38 ft³33.0 Hz31" W x 16.50" D x 7.75" H
Down Fire Sealed, SinglePerformance Optimized0.88 ft³Sealed30.00" W x 15.00" D x 6.64" H
Wedge Sealed, SinglePerformance Optimized0.38 ft³Sealed14.18" W x 11.75" H x 11.51" D, tapering to 7.23"
Down Fire Sealed, DualPerformance Optimized0.81 ft³Sealed30.00" W x 15.00" D x 6.64" H
Wedge Sealed, DualPerformance Optimized0.76 ft³Sealed27.84" W x 11" H x 11.39" D, tapering to 7.39"
Ampere Audio AA-2.0 10 6 boxes
BoxSeriesNet volumeTuningOutside dimensions
Down Fire Ported, SinglePerformance Optimized1.23 ft³34.0 Hz31" W x 15.00" D x 7.75" H
Wedge Ported, SinglePerformance Optimized1.25 ft³35.5 Hz30.00" W x 13.50" H x 14.16" D, tapering to 9.25"
Down Fire Sealed, SinglePerformance Optimized1.03 ft³Sealed30.00" W x 15.00" D x 7.39" H
Wedge Sealed, SinglePerformance Optimized1.03 ft³Sealed26.87" W x 13" H x 12.18" D, tapering to 7.45"
Down Fire Sealed, DualPerformance Optimized2.06 ft³Sealed30.00" W x 15.00" D x 12.73" H
Wedge Sealed, DualPerformance Optimized2.06 ft³Sealed32.00" W x 15" H x 15.48" D, tapering to 10.02"
Ampere Audio AA-2.0 12 2 boxes
BoxSeriesNet volumeTuningOutside dimensions
Down Fire Ported, SinglePerformance Optimized1.49 ft³32.5 Hz31" W x 18.00" D x 7.75" H
Wedge Ported, SinglePerformance Optimized1.50 ft³32.5 Hz30.00" W x 15.50" H x 14.52" D, tapering to 8.88"
Ampere Audio AA-2.75 8 5 boxes
BoxSeriesNet volumeTuningOutside dimensions
Standard Ported, SingleProfessional1.49 ft³33.0 Hz30.00" W x 14.00" H x 14.00" D
Wedge Sealed, SinglePerformance Optimized0.32 ft³Sealed11.16" W x 11.75" H x 12.79" D, tapering to 8.51"
Standard Ported, DualProfessional2.24 ft³33.5 Hz34.00" W x 14.00" H x 18.00" D
Down Fire Sealed, DualPerformance Optimized1.05 ft³Sealed30.00" W x 15.00" D x 7.92" H
Wedge Sealed, DualPerformance Optimized0.60 ft³Sealed20.57" W x 11" H x 12.67" D, tapering to 8.67"
Ampere Audio AA-2.75 10 1 box
BoxSeriesNet volumeTuningOutside dimensions
Standard Ported, SingleProfessional1.82 ft³32.5 Hz30.00" W x 14.00" H x 16.50" D
Ampere Audio AA-2.75 12 5 boxes
BoxSeriesNet volumeTuningOutside dimensions
Standard Ported, SingleProfessional1.50 ft³35.0 Hz32.00" W x 16.00" H x 12.50" D
Wedge Sealed, SinglePerformance Optimized0.75 ft³Sealed15.33" W x 15" H x 14.40" D, tapering to 8.94"
Standard Ported, DualProfessional2.22 ft³34.0 Hz42.00" W x 16.00" H x 14.00" D
Down Fire Sealed, DualPerformance Optimized1.30 ft³Sealed30.00" W x 15.00" D x 9.52" H
Wedge Sealed, DualPerformance Optimized1.64 ft³Sealed28.91" W x 16" H x 14.57" D, tapering to 8.75"
Ampere Audio AA-2.75 15 5 boxes
BoxSeriesNet volumeTuningOutside dimensions

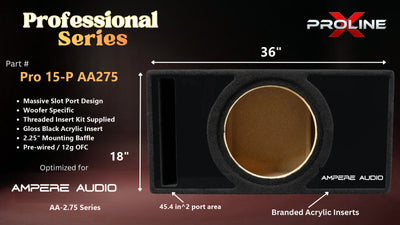

Standard Ported, SingleProfessional2.50 ft³34.0 Hz36.00" W x 18.00" H x 14.50" D

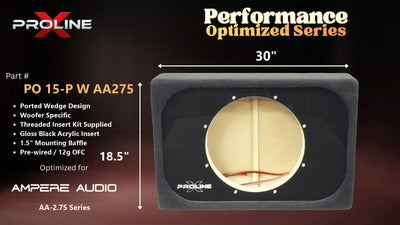

Wedge Ported, SinglePerformance Optimized2.43 ft³34.0 Hz30.00" W x 18.50" H x 17.86" D, tapering to 11.12"
Down Fire Sealed, SinglePerformance Optimized3.27 ft³Sealed30.00" W x 15.00" D x 18.29" H

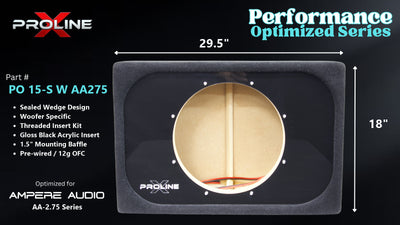

Wedge Sealed, SinglePerformance Optimized3.27 ft³Sealed29.50" W x 18" H x 19.64" D, tapering to 13.09"
Standard Ported, DualProfessional3.90 ft³34.5 Hz46.00" W x 18.00" H x 15.50" D
Ampere Audio AA-2.75 18 3 boxes
BoxSeriesNet volumeTuningOutside dimensions
Standard Ported, SingleProfessional3.41 ft³32.5 Hz36.00" W x 21.00" H x 16.00" D
Down Fire Sealed, SinglePerformance Optimized1.80 ft³Sealed30.00" W x 15.00" D x 11.62" H
Wedge Sealed, SinglePerformance Optimized2.15 ft³Sealed21.16" W x 21" H x 18.06" D, tapering to 10.42"
Ampere Audio AA-3.0 10 1 box
BoxSeriesNet volumeTuningOutside dimensions
Standard Ported, SingleProfessional3.61 ft³27.5 Hz30.00" W x 14.00" H x 29.00" D
Ampere Audio AA-3.0 12 2 boxes
BoxSeriesNet volumeTuningOutside dimensions
Standard Ported, SingleProfessional4.22 ft³27.5 Hz32.00" W x 16.00" H x 28.00" D
Down Fire Sealed, DualPerformance Optimized1.66 ft³Sealed30.00" W x 15.00" D x 11.75" H
Ampere Audio AA-3.0 15 4 boxes
BoxSeriesNet volumeTuningOutside dimensions
Standard Ported, SingleProfessional3.13 ft³36.0 Hz36.00" W x 18.00" H x 18.50" D
Down Fire Sealed, SinglePerformance Optimized2.04 ft³Sealed30.00" W x 15.00" D x 13.00" H
Wedge Sealed, SinglePerformance Optimized1.60 ft³Sealed18.00" W x 18" H x 18.91" D, tapering to 12.36"

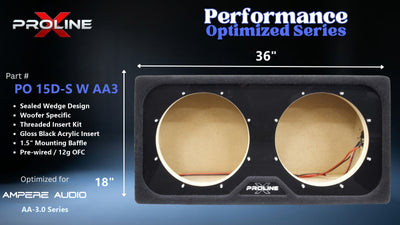

Wedge Sealed, DualPerformance Optimized3.43 ft³Sealed36.00" W x 18" H x 18.91" D, tapering to 12.36"
Ampere Audio AA-3.0 18 3 boxes
BoxSeriesNet volumeTuningOutside dimensions

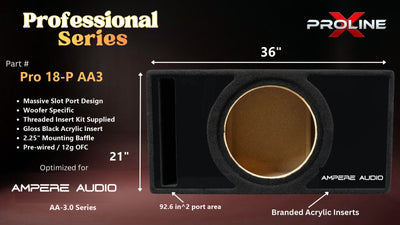

Standard Ported, SingleProfessional4.12 ft³35.5 Hz36.00" W x 21.00" H x 20.00" D
Down Fire Sealed, SinglePerformance Optimized2.96 ft³Sealed30.00" W x 15.00" D x 17.31" H
Wedge Sealed, SinglePerformance Optimized2.96 ft³Sealed23.57" W x 21" H x 20.43" D, tapering to 12.79"
Quick Reference: Ampere Audio Coverage

AA-2.0: 8, 10, 12 inch

AA-2.75: 8, 10, 12, 15, 18 inch

AA-3.0: 10, 12, 15, 18 inch

Different Ampere Audio Driver?

If your model is not listed, tell us the driver and the space you have and we will tell you what we can build.

931-563-5151|contact@audiointensity.com

Ampere Audio Subwoofer Box Questions

Which Ampere Audio subwoofers do these boxes fit?

The AA-2.0, AA-2.75 and AA-3.0 lines, from 8 to 18 inch. Each product page names the exact model it was cut for. Match the model number, not just the driver size.

Can I put an AA-2.75 in a box cut for the AA-2.0?

Not without giving something up. The two lines want different net volumes, so order the cabinet cut for the line you own or you give up output and control.

Should I choose sealed or ported?

Sealed cabinets are smaller and give tighter, more controlled bass with less power. Ported cabinets play louder around their tuning frequency but need more space and more amplifier. If space is tight, start with sealed.

Do the sealed boxes come with polyfill?

Yes. Every sealed cabinet ships with polyfill installed. The ported cabinets ship without it.

Do I need anything else to install one?

An amplifier and wiring. These are passive enclosures, prewired to the terminal cup, with no amplification built in.
