Alpine Subwoofers and Enclosures

Alpine Subwoofers We Carry

We stock a hand-picked set of Alpine drivers rather than the whole Alpine catalog: two from the R-Series Shallow line, the RS-W10 and the RS-W12D2, and the full-depth R2-W12D2. The shallow pair each get 600 watts RMS and 20 mm of Xmax out of 3.25 inches of mounting depth, using a 4 inch voice coil, a neodymium motor and Alpine's dual-gap DD Linear motor design.

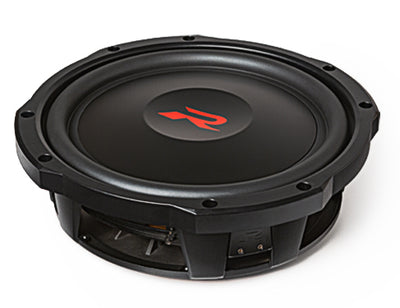

Shallow 10 or 12

The two share their motor, power rating and depth, so the choice comes down to the cutout and the air you can give them. The RS-W10D4 takes a 9-5/8 inch cutout and Alpine recommends 0.45 to 1.0 cubic feet sealed. The RS-W12D2 takes an 11-5/8 inch cutout and wants 0.6 to 1.5 cubic feet. The RS-W10 comes in dual 4 or dual 2 ohm and the RS-W12D2 in dual 2 ohm.

Why Alpine Keeps the Shallow Pair Sealed

These are high-Q drivers, and Alpine publishes only sealed recommendations for the R-Series Shallow line. Each driver page quotes Alpine's own recommended boxes with the external size, net volume and F3 Alpine lists for each.

R2-W12D2 for Sealed or Ported

The 2nd-gen R2-W12D2 is the full-depth option: 750 watts RMS, 20 mm of Xmax and 144 ounces of double-stacked magnet, dual 2 ohm, in a 6-1/2 inch mounting depth and 10-7/8 inch cutout. With a Qts of 0.41 it works sealed at about 0.75 cubic feet or ported at about 1.45 cubic feet, where Alpine lists an F3 of 29 Hz. We cut sealed, dual and ported wedges for it.

Enclosures Cut for Alpine Drivers

Every Proline X cabinet on this page is cut for one Alpine model, not a nominal size, with the cutout and mounting depth cut direct fit. Match the model on the product page to the model on your woofer's label.

R-Series Shallow, R2 and S2

For the RS-W10 and RS-W12 we build low down fire sealed cabinets in single and dual, and a Micro Series sealed 10. For the full-depth R2 and S2 lines we build sealed wedges in single and dual, plus ported wedges for the R2-W12, S2-W12 and S2-W8.

Loaded Builds

Some RS-W10 cabinets ship with the RS-W10D4 already mounted and wired: the Micro Series sealed 10 system and behind-seat builds for the Ford F-150 and F-250. Check each product page for current stock. Every enclosure-only option is in our Alpine subwoofer box collection, and every cabinet we build is in the subwoofer box collection.

Powering an Alpine sub? Our monoblock amplifiers are the place to start, and more thin options across brands are in our shallow mount subwoofers.

Alpine Questions

Which Alpine subwoofers do you sell?

We carry a select few Alpine drivers rather than the whole catalog. Right now that is the R-Series Shallow RS-W10 (dual 4 or dual 2 ohm) and RS-W12D2, both 600 watts RMS, and the full-depth R2-W12D2 at 750 watts RMS. Any Alpine driver we add will appear on this page.

Do you build enclosures for other Alpine subwoofers?

Yes. We cut Proline X enclosures for Alpine R2, S2 and R-Series Shallow drivers from 8 to 12 inch, sealed and ported, in wedge, down fire and standard shapes. Each cabinet is sized for one specific model. The full set is in our Alpine subwoofer box collection.

Which enclosures fit the Alpine subwoofers you sell?

For the RS-W12D2, our down fire sealed 12 and down fire sealed dual 12. For the RS-W10D4, our down fire sealed 10, down fire sealed dual 10 and Micro Series sealed 10. For the R2-W12D2, our sealed wedge, sealed dual wedge and ported wedge.

Can I buy an enclosure with the Alpine driver already installed?

Yes, for the RS-W10D4. The Micro Series sealed 10 system and our Ford F-150 and F-250 behind-seat builds ship with it mounted and wired. Our other enclosures ship empty, and the drivers are listed separately.

Sealed or ported for an Alpine subwoofer?

Alpine publishes only sealed recommendations for the R-Series Shallow RS-W10 and RS-W12D2, and we recommend sealed for them. The full-depth R2 and S2 drivers, including the R2-W12D2 we stock, also work ported, and we cut ported wedges for the R2-W12, S2-W12 and S2-W8.
