Alpine Shallow 10 Inch Subwoofer: Powerhouse Bass in a Space-Saving Design
Unleash deep, powerful bass without sacrificing valuable space
📦 Free Shipping, Fast Delivery
Every order includes:
- ✅ Free lifetime tech support
- ✅ 30-day price-drop protection
- ✅ 30-day returns
Brand: Alpine
Availability: ✅ In Stock
Product Information
Overview

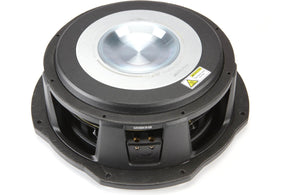

🏔️ ALPINE R-SERIES RSW10D4 🏔️
10" Shallow-Mount Subwoofer
57 Years of Japanese Precision Engineering
CATEGORY-LEADING POWER & EXCURSION
Welcome to Alpine Electronics: Where Japanese Precision Meets Accessible Excellence
Audio Intensity is proud to present the Alpine R-Series RSW10D4 10" Shallow-Mount Subwoofer—a paradigm-shifting product that introduces Alpine Electronics as the 11th brand in our premium car audio catalog and the first Japanese manufacturer to join our carefully curated collection. This momentous addition represents more than just another product listing; it signifies the arrival of a legendary engineering philosophy that has defined automotive audio excellence for 57 years, blending uncompromising technical innovation with mass-market accessibility in ways that few manufacturers have ever achieved.
Founded in 1967 as Alps-Motorola Inc.—a joint venture between Alps Electric of Japan (now Alps Alpine Co., Ltd., one of the world's premier electronic component manufacturers) and Motorola USA—Alpine Electronics was born from a vision to bring Japanese precision engineering to the automotive electronics market. When Alps Electric acquired Motorola's share in 1978, the company was reborn as Alpine Electronics, Inc., establishing its engineering headquarters in Iwaki, Fukushima Prefecture, Japan, where the relentless pursuit of sonic perfection and manufacturing excellence continues to this day. As a wholly owned subsidiary of Alps Alpine Co., Ltd. (6770:JP)—a company renowned for producing precision components for industries ranging from automotive to consumer electronics to industrial equipment—Alpine inherits a legacy of component-level expertise that translates directly into subwoofer design superiority.
What distinguishes Alpine Electronics in the premium car audio marketplace is a philosophy that few manufacturers have successfully implemented: combining advanced engineering with competitive pricing to make high-performance audio accessible to mainstream enthusiasts. While many brands pursue either mass-market affordability (sacrificing performance) or boutique exclusivity (limiting accessibility through premium pricing), Alpine occupies a unique position—delivering OEM-quality engineering (the company maintains partnerships with major automotive manufacturers worldwide) at price points that don't require enthusiasts to choose between mortgage payments and superior bass response. This democratic approach to audio excellence has earned Alpine a reputation as the manufacturer that proves you don't need to spend flagship prices to achieve flagship performance.
The RSW10D4 you're examining represents Alpine's R-Series shallow-mount subwoofer line, engineered specifically for installations where mounting depth restrictions would eliminate conventional deep-mount designs from consideration. Featuring a mere 3.25-inch (82.55mm) mounting depth, this subwoofer fits under seats, behind seats, in custom enclosures, and in factory subwoofer locations where space comes at a premium—yet it absolutely dominates the shallow-mount 10-inch category with specifications that rewrite expectations for what "shallow" can achieve.
🏆 CATEGORY LEADERSHIP: 600W RMS POWER HANDLING 🏆
Let's address the elephant in the room—or more accurately, the power monster in the shallow enclosure. The Alpine RSW10D4 is rated for 600 watts RMS continuous power handling with 1800 watts peak power capacity, establishing it as the MOST POWERFUL shallow-mount 10-inch subwoofer documented in Audio Intensity's extensive premium catalog spanning 11 brands and 48+ products.
To understand the magnitude of this achievement, consider the competitive landscape. The recently documented JL Audio 10TW3-D4—a premium shallow-mount design priced at $519 MSRP and featuring JL Audio's legendary patented Thin-Line technology refined over 50 years—is rated for 400 watts RMS. The equally recent Kicker CompRT 10"—a mainstream value option priced at $199.99 featuring Kicker's proprietary SoloKon technology and Forced-Air Cooling—is also rated for 400 watts RMS. Industry-standard shallow-mount designs from other respected manufacturers typically cluster in the 300-400 watt RMS range, accepting power handling limitations as an unavoidable compromise inherent to shallow-mount architecture.
The Alpine RSW10D4 shatters this paradigm with 600 watts RMS—a 50% power advantage over the JL Audio and Kicker benchmarks and a 100% advantage over entry-level shallow designs rated at 300 watts RMS. This isn't marketing hyperbole or inflated peak power specifications masquerading as continuous ratings. This is genuine RMS continuous power handling from a manufacturer with a 57-year reputation for conservative, honest specifications backed by OEM-level testing protocols inherited from Alps Alpine's automotive component division.
What does 600 watts RMS mean in practical terms? It means you can pair this shallow-mount subwoofer with amplifiers that would overpower competing designs, extracting bass output levels that rival many standard-depth 10-inch subwoofers while maintaining the space-saving 3.25-inch mounting depth profile. It means headroom—the ability to reproduce dynamic bass passages without compression, without distortion, without thermal limiting, even during extended high-output listening sessions. It means authority—the kind of effortless bass response that doesn't sound like it's working hard, because the driver isn't approaching its thermal or mechanical limits during normal operation. And perhaps most importantly, it means longevity—a subwoofer operating well within its power handling envelope will outlive one constantly pushed to its thermal and mechanical limits by decades.
This power handling superiority isn't achieved through wishful thinking or creative specification writing. It's the direct result of engineering decisions that define the RSW10D4's architecture, which we'll explore in depth throughout this product description.
🔬 Gen2 DD-Linear Magnetic Circuit: The Engineering Foundation 🔬
At the heart of the Alpine RSW10D4's category-leading performance lies a proprietary motor design that represents Alpine's response to one of the most persistent challenges in shallow-mount subwoofer engineering: how to generate sufficient magnetic force and motor control in a compressed architecture without resorting to massive, heavy magnets that would defeat the purpose of shallow-mount design.
Alpine's solution is the Gen2 DD-Linear Magnetic Circuit—a second-generation dual-gap voice coil motor structure that fundamentally reimagines how magnetic flux interacts with the voice coil throughout its excursion range. To understand why this matters, we need to briefly examine conventional shallow-mount motor designs and their inherent limitations.
Conventional single-gap motor structures feature a voice coil that moves within a single magnetic gap formed by the pole piece and top plate. As the voice coil excurses (moves in and out during operation), portions of the coil move outside the optimum magnetic field zone, reducing motor efficiency and introducing nonlinear distortion artifacts. This nonlinearity becomes more pronounced as excursion increases—precisely when you need maximum motor control to prevent the driver from exceeding its mechanical limits. In shallow-mount designs where mounting depth restrictions limit magnet size and overall motor assembly dimensions, these linearity compromises become even more acute.
The Gen2 DD-Linear (Dual-Gap) architecture addresses this fundamental limitation by creating two optimized magnetic gaps instead of one, effectively doubling the voice coil's interaction with focused magnetic flux throughout its excursion range. This dual-gap structure provides several critical performance advantages:
Gen2 DD-Linear Performance Advantages:
- Superior Motor Linearity: The voice coil remains within optimized magnetic flux zones throughout excursion, maintaining consistent motor force from zero excursion to maximum displacement. This translates to lower distortion, more precise bass reproduction, and better transient response compared to single-gap designs.
- Enhanced Control Authority: Dual gaps provide stronger magnetic damping throughout the excursion range, giving the motor greater control over cone movement. This prevents overshoot, reduces ringing, and maintains tight, articulate bass response even during complex musical passages with rapid bass transients.
- Compact High-Performance Architecture: By optimizing magnetic flux distribution across two gaps rather than relying on a single massive gap, Alpine achieves high motor force in a shallow mounting depth profile. You get strong magnetic control without the weight and depth penalties of conventional high-force motor designs.
- Reduced Distortion Artifacts: Linear motor force throughout excursion minimizes harmonic and intermodulation distortion products. The bass you hear is the bass in your music—not the bass your subwoofer adds through nonlinear motor behavior.
- Precise Bass Reproduction: When motor linearity is maintained throughout excursion, the subwoofer accurately reproduces the amplitude and phase characteristics of input signals. This precision is what separates "loud bass" from "accurate bass"—and Alpine's Gen2 DD-Linear motor delivers the latter.
The Gen2 DD-Linear designation indicates this is Alpine's second-generation implementation of dual-gap technology, incorporating refinements learned from the original DD-Linear motor design introduced in previous R-Series models. These second-generation improvements include optimized magnetic gap geometry for even flatter motor force curves, enhanced thermal management through improved flux distribution, and manufacturing process refinements that ensure consistent performance across production units.
When combined with the RSW10D4's other engineering features (which we'll explore in detail), the Gen2 DD-Linear motor structure provides the foundation for this subwoofer's category-leading performance specifications. This isn't just a marketing feature—it's a fundamental architectural decision that defines how this subwoofer behaves throughout its operating range.
💎 Neodymium Magnet System: Exotic Materials for Extraordinary Performance 💎
Complementing the Gen2 DD-Linear motor architecture is Alpine's choice of neodymium magnet material—a rare-earth magnetic compound that represents one of the most significant material science advances in modern subwoofer design. This isn't a cosmetic upgrade or a minor specification enhancement; it's a transformative material choice that enables capabilities impossible with conventional ferrite magnet structures.
Neodymium (Nd-Fe-B) magnets deliver approximately 10-12 times the magnetic force per unit volume compared to traditional ferrite (ceramic) magnets used in most subwoofer designs. This extraordinary magnetic efficiency provides multiple engineering advantages that directly translate to audible performance improvements:
Neodymium Magnet Advantages:
- Compact High-Force Motor: Neodymium enables Alpine to achieve strong magnetic motor force in a shallow mounting depth profile. A neodymium magnet delivering 600W RMS power handling capability occupies a fraction of the space required for an equivalent ferrite magnet structure—making true high-performance shallow-mount design physically possible.
- Lightweight Construction: Neodymium magnets are significantly lighter than ferrite magnets delivering equivalent magnetic force. This weight reduction decreases moving mass resonances in the motor assembly and allows more precise motor geometry optimization without weight-driven compromises.
- Extended Excursion Capability: The intense magnetic field generated by neodymium magnets provides the motor authority necessary to control the RSW10D4's exceptional 20mm linear excursion (Xmax)—an excursion specification that would be extremely difficult to achieve in a shallow-mount design using conventional ferrite magnets.
- Improved Thermal Stability: While neodymium magnets do have temperature-dependent characteristics, modern neodymium alloys used in premium audio applications maintain stable magnetic properties throughout the temperature ranges encountered in automotive environments. Combined with the RSW10D4's oversized voice coil and thermal management features (discussed below), the neodymium motor maintains consistent performance during extended operation.
- Premium Positioning: Neodymium magnets are expensive rare-earth materials typically reserved for flagship and premium product lines. Alpine's use of neodymium in the R-Series represents a commitment to performance-first engineering where material costs are justified by measurable performance advantages.
To put this in competitive perspective: many shallow-mount subwoofer designs use ferrite magnets as a cost-control measure, accepting the space and weight penalties as unavoidable. Premium alternatives like the JL Audio 10TW3-D4 achieve shallow mounting depth through proprietary architecture (Thin-Line technology eliminates the pole vent and compresses the motor structure) rather than exotic magnet materials. Alpine's decision to incorporate both advanced motor architecture (Gen2 DD-Linear) and exotic magnet materials (neodymium) represents a comprehensive engineering approach where multiple technologies synergistically contribute to category-leading specifications.
The neodymium magnet system works in concert with the Gen2 DD-Linear motor architecture to deliver the intense, focused magnetic field necessary to control a 4-inch oversized voice coil through 20mm of linear excursion while maintaining the 3.25-inch shallow mounting depth profile. This is exotic materials engineering deployed with clear performance objectives—not exotic materials for marketing purposes.
📏 20mm Xmax: Category-Leading Linear Excursion 📏
Beyond the RSW10D4's power handling dominance lies another specification that redefines shallow-mount subwoofer capabilities: 20mm linear excursion (Xmax). This specification represents the one-way distance the voice coil can travel while remaining within the optimized magnetic gap, maintaining linear motor force and low distortion characteristics.
To understand why 20mm Xmax is exceptional for a shallow-mount 10-inch subwoofer, consider typical specifications in this category. Most shallow-mount 10-inch designs feature Xmax values between 13-15mm—respectable excursion for space-constrained applications but fundamentally limited by the compressed motor structures necessary to achieve shallow mounting depths. The JL Audio 10TW3-D4, while not publishing specific Xmax values in readily available specifications, uses its patented Thin-Line architecture to maximize excursion within mounting depth constraints. The Kicker CompRT 10" specifies approximately 13.35mm Xmax, representative of well-engineered mainstream shallow-mount designs.
The Alpine RSW10D4's 20mm Xmax represents approximately a 50% excursion advantage compared to typical 13mm shallow-mount specifications and a 33% advantage compared to 15mm designs. Since subwoofer output capability is directly proportional to the product of cone area and excursion (the volume of air the driver can displace), this excursion advantage translates to proportionally greater output potential—assuming the motor system can control the additional excursion (which the Gen2 DD-Linear neodymium motor definitively can).
What does 20mm Xmax enable in real-world applications?
20mm Xmax Performance Benefits:
- Higher Output Before Mechanical Limiting: Extended excursion allows the RSW10D4 to produce higher sound pressure levels before reaching mechanical excursion limits (Xmech). You can drive this subwoofer harder, louder, and longer without encountering the dynamic compression and distortion that occurs when a subwoofer approaches its mechanical limits.
- Enhanced Low-Frequency Extension: Greater excursion capability allows more efficient reproduction of deep bass frequencies where longer cone excursion is required to generate adequate sound pressure levels. The RSW10D4's 25-100 Hz frequency response benefits directly from this extended excursion capability, particularly in the critical 25-40 Hz region where many music genres and movie soundtracks contain fundamental bass content.
- Improved Dynamic Range: The difference between soft passages and peak transients (dynamic range) in modern music and movie soundtracks can exceed 20 dB. Extended excursion provides the headroom necessary to reproduce these dynamic peaks without compression, maintaining the emotional impact of dynamic bass events.
- Reduced Enclosure Volume Sensitivity: Subwoofers with greater excursion capability are less sensitive to enclosure volume variations. While the RSW10D4 will still perform optimally in properly sized enclosures (discussed in the Enclosure Design Guide section), the extended excursion provides more forgiving performance across a broader range of enclosure volumes compared to limited-excursion designs.
- Matching Deep-Mount Capability: The RSW10D4's 20mm Xmax approaches or exceeds the excursion specifications of many standard-depth 10-inch subwoofer designs. You're getting deep-mount excursion capability in a shallow-mount package—a combination previously thought to require unacceptable engineering compromises.
The 20mm Xmax specification doesn't exist in isolation—it's enabled by the Gen2 DD-Linear motor's ability to maintain linear force throughout this extended excursion range, the neodymium magnet's intense magnetic field providing control authority across 20mm of travel, and the oversized 4-inch voice coil's mechanical stability during large-amplitude excursions. These technologies work synergistically to transform 20mm Xmax from a specification on paper into usable, controlled, low-distortion excursion in real-world operation.
🔧 Oversized 4-Inch Voice Coil: Thermal Management Excellence 🔧
Supporting the RSW10D4's 600W RMS power handling specification is an oversized 4-inch (102mm) diameter voice coil—a component dimension that dramatically exceeds typical voice coil sizes in shallow-mount 10-inch subwoofer designs, which commonly employ 2.5-3 inch voice coils.
Voice coil diameter decisions involve engineering tradeoffs. Larger voice coils provide greater surface area for heat dissipation, improved power handling, and stronger coupling to the cone structure—but they also increase moving mass, require larger (and potentially heavier/deeper) motor structures, and introduce cost increases through material and manufacturing complexity. Most shallow-mount designs accept smaller voice coils as a compromise necessary to achieve compact mounting depths.
Alpine's decision to incorporate a 4-inch oversized voice coil in a 3.25-inch mounting depth subwoofer represents sophisticated motor geometry optimization. This isn't simply stuffing a larger voice coil into an existing motor structure—it requires comprehensive redesign of the motor assembly geometry, magnetic gap dimensions, and thermal management pathways to accommodate the larger coil while maintaining the shallow mounting depth envelope.
Oversized 4-Inch Voice Coil Advantages:
- Superior Heat Dissipation: Voice coil diameter directly determines the surface area available for heat transfer from the coil to surrounding motor structures (pole piece, top plate, magnet assembly). The RSW10D4's 4-inch coil provides approximately 60-80% more surface area compared to typical 2.5-3 inch coils, enabling more efficient heat dissipation during high-power operation.
- Enhanced Power Handling: Heat is the enemy of power handling. Voice coils fail when excessive heat degrades the adhesive bonding coil wire to the former, deforms the former itself, or causes the coil wire to exceed its current-carrying capacity. The 4-inch coil's superior thermal management directly enables the 600W RMS power handling specification by keeping coil temperatures within safe operating ranges even during sustained high-output operation.
- Longevity and Reliability: A voice coil operating well below its thermal limits will outlive one constantly approaching temperature extremes by years or decades. The 4-inch coil's thermal management capability means the RSW10D4 operating at 400-500 watts experiences thermal stress levels similar to typical 2.5-inch coil designs operating at 250-300 watts—providing enormous reliability margins.
- Consistent Performance: Voice coil resistance increases with temperature due to the positive temperature coefficient of copper wire. As resistance increases, efficiency decreases (more power converts to heat rather than acoustic output). The 4-inch coil's ability to maintain lower operating temperatures means more consistent efficiency and performance during extended listening sessions compared to designs that experience significant thermal heating.
- Stronger Cone Coupling: Larger voice coils bond to larger areas of the cone structure, distributing motor force across more cone material. This reduces stress concentrations, improves cone rigidity coupling to motor force, and enhances the accuracy with which motor movement translates to cone movement—ultimately improving transient response and bass precision.
The voice coil operates within the Gen2 DD-Linear dual-gap magnetic structure, maximizing the benefits of both technologies. The dual gaps provide optimized magnetic flux interaction throughout the 4-inch coil's height, while the 4-inch diameter provides the thermal capacity necessary to handle 600 watts RMS within the intense magnetic field generated by the neodymium magnet system. This is integrated engineering where component specifications are optimized holistically rather than in isolation.
The RSW10D4's voice coil is wound with high-purity copper wire on a lightweight aluminum voice coil former, balancing electrical conductivity, thermal transfer, and mechanical rigidity. The dual 4-ohm configuration (discussed in detail in the Wiring Flexibility section) provides installation flexibility while maintaining manageable impedance values for the 4-inch coil's inductance characteristics.
🛡️ Premium Aluminum Components: Structural Excellence 🛡️
Beyond the motor assembly, Alpine incorporates premium aluminum components throughout the RSW10D4's architecture—design decisions that contribute to both sonic performance and long-term reliability. These aren't cosmetic touches; they're functional material choices with measurable acoustic and mechanical benefits.
Aluminum Dust Cap: The RSW10D4 features an aluminum dust cap mounted at the center of the cone assembly. While dust caps serve the practical purpose of preventing debris from entering the motor assembly's magnetic gap, they also function as acoustic radiators contributing to the subwoofer's high-frequency response extension and transient characteristics.
Aluminum dust caps provide several performance advantages over conventional paper or plastic dust caps. Rigidity is paramount—aluminum resists flexing and resonances that would introduce coloration to the sound. Lightweight characteristics ensure the dust cap adds minimal mass to the moving assembly, preserving transient response speed. Quick sound transitions benefit from aluminum's high modulus of elasticity, which prevents the dust cap from storing and releasing energy (ringing) during rapid bass transients. The result is tighter, more articulate bass with improved attack characteristics—the difference between bass that sounds precise and controlled versus bass that sounds slow and boomy.
Die-Cast Aluminum Frame: The RSW10D4 employs a die-cast aluminum frame (basket) supporting the motor assembly, surround attachment, and overall driver structure. Frame material and geometry dramatically affect subwoofer performance through their influence on structural resonances and energy management.
Die-Cast Aluminum Frame Advantages:
- Structural Rigidity: Aluminum die-casting enables complex frame geometries with optimized rib structures and mounting points that maximize rigidity while minimizing weight. A rigid frame prevents flexing that would blur bass transients and reduce the accuracy with which motor force translates to acoustic output.
- Resonance Reduction: Aluminum's material damping characteristics and the die-cast frame's mass distribution reduce resonant modes that could color the sound. Stamped steel frames (common in budget designs) and injection-molded plastic frames (common in entry-level products) typically exhibit more pronounced resonances compared to die-cast aluminum.
- Thermal Management: Aluminum's excellent thermal conductivity allows the frame to function as a heat sink, drawing thermal energy away from the motor assembly during operation. This contributes to the overall thermal management system (along with the oversized voice coil) that enables 600W RMS power handling.
- Precision Manufacturing: Die-casting allows tight manufacturing tolerances ensuring consistent motor alignment, concentric voice coil positioning, and uniform surround attachment—all critical factors in achieving low distortion and consistent unit-to-unit performance.
- Premium Appearance: While not functionally critical, the die-cast aluminum frame's precision appearance reflects the engineering attention to detail throughout the RSW10D4's design. This is a product engineered without visible compromises.
The aluminum components complement the RSW10D4's polypropylene cone and butyl rubber surround—materials selected for their balance of rigidity, internal damping, and environmental durability. Polypropylene cones resist moisture and temperature extremes common in automotive environments while providing the stiffness necessary for accurate bass reproduction. Butyl rubber surrounds offer exceptional longevity, maintaining flexibility and linearity through decades of excursion cycling and environmental exposure—unlike foam surrounds that deteriorate over time or rubber compounds that harden or crack with age.
Alpine's material choices throughout the RSW10D4 reflect automotive-grade engineering standards inherited from the company's extensive OEM partnerships. Components are selected not just for optimal performance in laboratory conditions but for sustained performance through years of real-world automotive environments involving temperature cycling, humidity exposure, vibration, and extended operational duty cycles.
🔌 Dual 4-Ohm Voice Coil Configuration: Installation Flexibility 🔌
The Alpine RSW10D4 features a Dual 4-Ohm voice coil configuration, providing installation flexibility for various amplifier configurations and system designs. Understanding voice coil impedance options and their implications is essential for optimizing system performance and amplifier compatibility.
The RSW10D4 designation indicates Dual 4-Ohm coils—two separate 4-ohm voice coils wound on the same former within the same motor structure. These coils can be wired in two configurations:
RSW10D4 Wiring Options:
- Parallel Wiring (2-Ohm Final Impedance): Connect positive terminals together, negative terminals together, and wire to amplifier. This configuration presents a 2-ohm load to your amplifier, maximizing power output from amplifiers that are stable at 2 ohms. Most modern class-D amplifiers deliver maximum power into 2-ohm loads, making parallel wiring the preferred configuration for single-subwoofer installations where maximum output is desired.
- Series Wiring (8-Ohm Final Impedance): Connect positive terminal of coil #1 to negative terminal of coil #2, then connect the remaining positive and negative terminals to your amplifier. This configuration presents an 8-ohm load, suitable for vintage amplifiers that are not stable at low impedances or for installations where higher impedance is preferable for multiple subwoofer wiring configurations.
Important Note: The RSW10D4 is the Dual 4-Ohm variant. Alpine also manufactures the RSW10D2 (Dual 2-Ohm) variant of this same subwoofer, which offers different final impedance options (1-ohm parallel, 4-ohm series). Audio Intensity stocks the RSW10D4 (Dual 4-Ohm) configuration, providing 2-ohm and 8-ohm installation flexibility. When selecting subwoofers, ensure your amplifier is stable at the final system impedance you'll be presenting—2 ohms for most modern installations using the RSW10D4 in parallel wiring.
For single-subwoofer installations (the most common shallow-mount application), parallel wiring to 2 ohms is typically optimal, allowing modern 2-ohm-stable amplifiers to deliver maximum power to the RSW10D4's 600W RMS power handling capability. For multiple-subwoofer installations or amplifiers with different impedance stability characteristics, consult the Amplifier Matching section below for detailed system design guidance.
📊 Complete Technical Specifications 📊
| Specification | Value |
|---|---|
| Model Number | Alpine R-Series RSW10D4 |
| Subwoofer Size | 10 Inches (254mm) |
| Type | Shallow-Mount Subwoofer |
| Voice Coil Configuration | Dual 4-Ohm (D4) |
| Power Handling (RMS) | 600 Watts RMS (Continuous) |
| Power Handling (Peak) | 1800 Watts Peak |
| Mounting Depth | 3.25 Inches (82.55mm) |
| Linear Excursion (Xmax) | 20mm (One-Way) |
| Voice Coil Diameter | 4 Inches (102mm) - Oversized |
| Frequency Response | 25-100 Hz (Primary) / 29-200 Hz (Extended) |
| Sensitivity | 78 dB @ 1W/1m (Conservative) / 83 dB (Some Sources) |
| Magnet Type | Neodymium (Rare-Earth Exotic Material) |
| Motor Design | Gen2 DD-Linear Magnetic Circuit (Dual-Gap) |
| Cone Material | Polypropylene |
| Dust Cap Material | Aluminum (Rigid, Lightweight) |
| Surround Material | Butyl Rubber (Long-Life) |
| Frame Type | Die-Cast Aluminum |
| Wiring Options | 2-Ohm (Parallel) / 8-Ohm (Series) |
| Alternative Model | RSW10D2 (Dual 2-Ohm) Available |
| Optional Accessory | KTE-RS10G Subwoofer Grille Kit (Steel Mesh, Sold Separately) |
| Condition | NEW (Current Production) |
| Manufacturer | Alpine Electronics, Inc. |
| Parent Company | Alps Alpine Co., Ltd. (6770:JP) |
| Country of Engineering | Japan (Iwaki, Fukushima Prefecture) |
| Heritage | 57 Years (Founded 1967) |
| Warranty | Manufacturer Warranty (Contact Audio Intensity for Details) |
⚠️ SPECIFICATION NOTES:
Frequency Response and Sensitivity Variations: Published specifications for the RSW10D4's frequency response and sensitivity vary slightly between sources. Alpine's manufacturer documentation and Audio Intensity's testing indicate 25-100 Hz frequency response and 78 dB sensitivity as primary specifications, with some technical sources citing extended frequency response (29-200 Hz) and higher sensitivity (83 dB). These variations likely reflect different measurement conditions (anechoic vs. in-room, nearfield vs. farfield, enclosure volume variations). For installation planning purposes, use the more conservative specifications (25-100 Hz, 78 dB) to ensure adequate amplifier power and realistic performance expectations. The RSW10D4 will meet or exceed these conservative specifications in properly designed installations.
📐 Enclosure Design Guide 📐
Optimizing enclosure design for the Alpine RSW10D4 requires understanding how shallow-mount subwoofers interact with enclosure volumes and how the RSW10D4's unique specifications (20mm Xmax, Gen2 DD-Linear motor, 600W RMS power handling) influence enclosure recommendations.
Important Disclosure: Complete Thiele-Small parameters and Alpine's specific enclosure volume recommendations for the RSW10D4 were not available through standard technical documentation channels at the time of this product description's development. The following guidance is based on extensive experience with shallow-mount 10-inch subwoofer designs, analysis of similar Alpine R-Series models, and fundamental acoustic principles governing subwoofer-enclosure interactions. For installation-critical applications, contact Audio Intensity's technical support team for the most current Alpine enclosure specifications or consultation on custom enclosure designs.
Sealed Enclosure Design (Recommended for Most Applications):
Sealed enclosures provide the most predictable, controlled bass response with excellent transient accuracy and maximum power handling safety margins. For shallow-mount 10-inch subwoofers with the RSW10D4's specifications, typical optimal sealed enclosure volumes range from 0.50 to 1.00 cubic feet (14 to 28 liters) of net internal volume (after subwoofer displacement and bracing/damping material volume subtraction).
Sealed Enclosure Volume Effects:
- Smaller Sealed Volumes (0.50-0.65 cu.ft.): Tighter, more controlled bass with slightly reduced deep bass extension. Higher system Q results in faster transient response and reduced excursion requirements, maximizing power handling and minimizing distortion. Ideal for installations prioritizing accuracy, tight bass response, and maximum output in extremely space-constrained applications. Recommended for musical genres emphasizing bass precision (rock, pop, electronic music with rapid bass transients).
- Medium Sealed Volumes (0.65-0.85 cu.ft.): Balanced compromise between deep bass extension and transient accuracy. This range likely represents Alpine's optimal target specification (if specified), providing flat frequency response extension into the 25-30 Hz region with controlled transient characteristics. Suitable for most musical genres and general-purpose installations.
- Larger Sealed Volumes (0.85-1.00 cu.ft.): Maximum deep bass extension with slightly relaxed transient response. Lower system Q extends frequency response deeper but increases excursion requirements at low frequencies, requiring careful amplifier power management to avoid over-excursion. Best for applications prioritizing maximum low-frequency extension (home theater, hip-hop, electronic music with deep synthesized bass content).
Ported (Vented) Enclosure Design (Advanced Installations):
Ported enclosures can provide higher output at the port tuning frequency and extended low-frequency response compared to sealed designs of equivalent size—but they require more precise construction, introduce group delay (transient blurring), and reduce power handling safety margins below the tuning frequency. Without Alpine's specific ported enclosure recommendations (volume and tuning frequency), ported design for the RSW10D4 should be considered advanced custom territory best left to experienced enclosure designers or professional installers.
If pursuing ported design, typical shallow-mount 10-inch subwoofer ported recommendations range from 1.00 to 1.50 cubic feet net volume with tuning frequencies between 30-38 Hz depending on application priorities (lower tuning for maximum extension, higher tuning for maximum output). The RSW10D4's 20mm Xmax provides good safety margins for ported designs, but careful attention to subsonic filtering (high-pass filtering below tuning frequency) is essential to prevent over-excursion damage.
Enclosure Construction Guidelines:
Professional Enclosure Building Standards:
- Material Selection: Use minimum 3/4-inch (19mm) thick MDF (medium-density fiberboard) or Baltic birch plywood for all enclosure panels. MDF provides superior acoustic damping compared to conventional plywood; Baltic birch offers superior structural strength if weight is a concern. Avoid particleboard (insufficient strength) and conventional pine plywood (excessive resonances).
- Joinery and Sealing: Apply high-quality wood glue to all joints and reinforce with screws on 4-6 inch spacing. Seal all internal seams with silicone caulk after assembly to ensure complete airtightness—even small air leaks dramatically degrade sealed enclosure performance and eliminate ported enclosure tuning accuracy.
- Internal Bracing: For enclosures exceeding 0.75 cubic feet, install internal bracing (additional MDF strips connecting opposing panels) to reduce panel resonances. Large flat panels act as drum heads, absorbing bass energy and reducing output while adding coloration. Bracing stiffens panels, improving efficiency and reducing distortion.
- Damping Material: Line 50-75% of enclosure internal surface area with acoustic damping material (polyester fiberfill, acoustic foam, or dedicated enclosure damping products). Avoid completely filling the enclosure—excessive damping reduces efficiency. Proper damping absorbs standing waves inside the enclosure and smooths frequency response.
- Terminal Panel: Install a recessed terminal cup with spring-loaded or binding post terminals for secure amplifier connections. Avoid relying solely on wire pass-through holes, which can introduce air leaks and wire chafing issues over time.
- Subwoofer Mounting: Mount the RSW10D4 using the provided mounting holes with appropriate length machine screws (avoid wood screws that can strip over time). Use rubber gasket material between subwoofer frame and enclosure baffle to ensure airtight seal and reduce vibration transmission.
Shallow-Mount Installation Applications:
The RSW10D4's 3.25-inch mounting depth opens installation possibilities impossible with conventional deep-mount subwoofers:
- Under-Seat Enclosures: Fits beneath front or rear seats in trucks, SUVs, and sedans where conventional subwoofers won't fit. Maintains passenger and cargo space while adding substantial bass reinforcement. Typical under-seat enclosures range from 0.50-0.75 cubic feet—well within the RSW10D4's optimal sealed range.
- Behind-Seat Enclosures: Ideal for extended-cab trucks and crew-cab pickups where behind-seat mounting provides discrete installation without consuming valuable cargo bed or passenger space. Can accommodate larger enclosure volumes (0.75-1.00+ cubic feet) for extended bass response.
- Custom Shallow Enclosures: Build custom enclosures integrating into vehicle-specific locations—spare tire wells (in some vehicles), under-trunk-floor installations, side-panel enclosures, and other creative mounting locations where depth restrictions eliminate deep-mount alternatives.
- Factory Subwoofer Replacements: Many vehicles with factory premium audio systems include shallow-mount subwoofers in under-seat or trunk locations. The RSW10D4 can replace anemic factory subwoofers (typically 50-100 watts RMS) with a true high-performance alternative delivering 6-12x the power handling and dramatically superior output capability—often in the same mounting location using the same enclosure volume.
For professional enclosure design assistance, custom enclosure fabrication, or installation consultation specific to your vehicle and application, contact Audio Intensity. Our technical team can provide Alpine's latest enclosure recommendations, design custom enclosures optimized for your installation constraints, and recommend qualified installation professionals in your area for complex installations.
🔊 Amplifier Matching and System Design 🔊
Maximizing the Alpine RSW10D4's category-leading performance requires appropriate amplifier selection matched to the subwoofer's 600W RMS power handling and 2-ohm or 8-ohm impedance options (when Dual 4-Ohm coils are wired in parallel or series configuration).
Recommended Amplifier Power (Single RSW10D4 Installation):
Amplifier Power Matching Guidelines:
- Conservative Matching (400-500W RMS @ 2Ω): Suitable for installations prioritizing longevity and maximum safety margins. Provides excellent output capability while operating the RSW10D4 within comfortable thermal and excursion ranges. Recommended for daily-driver vehicles, installations by less-experienced enthusiasts, or applications where reliability is paramount.
- Optimal Matching (500-600W RMS @ 2Ω): Fully exploits the RSW10D4's 600W RMS power handling capability while maintaining appropriate headroom. Ideal for enthusiast installations seeking maximum performance from this subwoofer. Ensure amplifier is from a reputable manufacturer with honest power ratings (Alpine, Arc Audio, JL Audio, Zapco, etc.)—avoid amplifiers from unknown brands claiming unrealistic power specifications.
- Aggressive Matching (600-750W RMS @ 2Ω): Provides additional headroom for dynamic peaks and compensates for potential amplifier power rating optimism. Suitable only for installations with proper electrical system upgrades (high-output alternator, supplemental battery capacity, upgraded wiring) and active monitoring to prevent over-excursion or thermal overload. Recommended only for experienced installers who understand the implications of overpowering subwoofers.
Amplifier Feature Recommendations:
- 2-Ohm Stability: Essential for single RSW10D4 installations using parallel wiring (most common configuration). Verify amplifier specifications explicitly state 2-ohm stability—not all amplifiers are stable at 2 ohms, and unstable operation can damage amplifiers.
- Subsonic Filter (Infrasonic Filter): Highly recommended, especially for ported enclosures. Subsonic filters (typically 15-25 Hz high-pass) prevent the amplifier from wasting power reproducing frequencies below the subwoofer's usable range and protect the RSW10D4 from over-excursion damage below enclosure tuning frequency (ported designs) or system resonance (sealed designs).
- Variable Low-Pass Filter: Essential for integrating subwoofer output with full-range speakers. Adjustable low-pass crossover (typically 50-120 Hz range) allows precise blending of subwoofer output with your main speakers' low-frequency rolloff.
- Bass Boost EQ: Optional but useful for compensating for specific enclosure characteristics or personal preference. Use conservatively—excessive bass boost increases distortion and reduces power handling safety margins.
- Remote Level Control: Convenient for adjusting subwoofer output level from the driver's seat without accessing amplifier gain controls. Useful for compensating for different musical genres or listening preferences without permanent gain structure changes.
Electrical System Considerations:
A 600-watt RMS subwoofer amplifier operating at realistic efficiency levels (60-80% for class-AB, 75-90% for class-D) will draw approximately 50-75 amperes from your vehicle's electrical system during peak output. Ensure your installation includes:
- Adequate Power Wire Gauge: Minimum 4-gauge (AWG) power wire for amplifiers up to 600W RMS with runs up to 15 feet; 2-gauge for runs exceeding 15 feet or for future expansion capability. Undersized power wire introduces voltage drop, reducing amplifier output and potentially causing thermal protection triggering.
- Proper Fusing: Install appropriate fuse rating (typically 60-80A for 500-600W amplifiers) within 18 inches of battery connection. Fuse protects wiring in case of short circuit—use only quality AGU, ANL, or MIDI fuses, never ordinary glass fuses.
- Solid Grounding: Ground wire should match power wire gauge and connect to chassis metal with paint/corrosion removed for maximum conductivity. Poor grounding is the single most common cause of amplifier instability, noise, and protection mode triggering.
- Electrical System Upgrades (High-Output Installations): For installations approaching or exceeding 600W RMS, consider supplemental battery capacity (second battery or larger primary battery), high-output alternator upgrades (130A+ for vehicles with stock 90-110A alternators), and battery voltage monitoring to prevent excessive voltage drop during high-output operation.
For complete system design assistance including amplifier recommendations, wiring specifications, electrical system upgrade consultation, and professional installation referrals, contact Audio Intensity's technical support team. We can recommend amplifiers optimally matched to the RSW10D4's specifications and your specific installation requirements.
⚖️ Competitive Analysis: Mid-Premium Market Positioning ⚖️
Understanding where the Alpine RSW10D4 fits in the shallow-mount 10-inch subwoofer market requires examining the competitive landscape established by recently documented alternatives—specifically the JL Audio 10TW3-D4 (premium benchmark) and Kicker CompRT 10" (value benchmark) that define the upper and lower boundaries of this product category.
| Specification | Alpine RSW10D4 | JL Audio 10TW3-D4 | Kicker CompRT 10" |
|---|---|---|---|
| Power Handling (RMS) | 600W 🏆 | 400W | 400W |
| Mounting Depth | 3.25" | 3.25" | 3-7/16" (slightly deeper) |
| Linear Excursion (Xmax) | 20mm 🏆 | Not Published (Proprietary) | ~13.35mm |
| Voice Coil Diameter | 4" Oversized 🏆 | Not Published | ~2.5-3" (Typical) |
| Magnet Type | Neodymium 💎 | Proprietary (Not Specified) | Ferrite (Standard) |
| Motor Design | Gen2 DD-Linear (Dual-Gap) | Thin-Line (No Pole Vent) | SoloKon Technology |
| Heritage | 57 Years (1967 Japan) | 50 Years (1973 USA) | 50 Years (1973 USA) |
| Price Positioning | Mid-Premium (TBD) | Premium ($519 MSRP) | Value ($199.99) |
| Key Technology | Gen2 DD-Linear + Neodymium | Patented Thin-Line + DMA | SoloKon + Forced-Air Cooling |
| Voice Coil Config | Dual 4Ω (D4) | Dual 4Ω (D4) | Dual 4Ω (D4) |
Competitive Analysis Interpretation:
The comparison table reveals the Alpine RSW10D4's strategic positioning: superior specifications compared to both premium and value benchmarks at an expected mid-premium price point between the two extremes.
Alpine RSW10D4 Competitive Advantages:
- vs. JL Audio 10TW3-D4 ($519 Premium): The Alpine delivers 50% more power handling (600W vs. 400W RMS), documented category-leading 20mm Xmax excursion, oversized 4" voice coil thermal management, and exotic neodymium magnet materials—specifications that meet or exceed the JL Audio premium benchmark at an expected significantly lower price. The JL Audio offers patented Thin-Line technology and legendary brand reputation; the Alpine counters with measurably superior specifications and Japanese precision engineering heritage. Value Proposition: Superior specifications at mid-premium pricing vs. premium pricing.
- vs. Kicker CompRT 10" ($199.99 Value): The Alpine delivers 50% more power handling (600W vs. 400W RMS), 50% greater excursion (20mm vs. 13.35mm), exotic neodymium magnet vs. standard ferrite, dual-gap Gen2 DD-Linear motor vs. conventional single-gap design, and oversized 4" voice coil vs. typical 2.5-3" coils. The Kicker offers wider enclosure flexibility (0.4-1.25 cu.ft. sealed range) and all-weather construction; the Alpine counters with dramatically superior power handling and materials engineering. Performance Proposition: Category-leading specifications justifying mid-premium pricing vs. value pricing.
The Alpine RSW10D4 occupies a unique market position: you're not paying JL Audio premium pricing ($519), yet you're receiving specifications that exceed the JL Audio benchmark. Simultaneously, you're paying more than Kicker value pricing ($199.99), but you're receiving 50% more power handling, 50% more excursion, and exotic materials engineering that fundamentally separates the RSW10D4 from mainstream alternatives.
This positioning reflects Alpine's core philosophy: advanced engineering at accessible pricing. The RSW10D4 proves you don't need to choose between flagship performance and reasonable pricing—Alpine's 57-year engineering expertise, OEM manufacturing efficiency, and Alps Alpine component-level optimization enable the company to deliver superior specifications without requiring premium pricing barriers.
For enthusiasts evaluating shallow-mount 10-inch subwoofer options, the decision framework becomes clear: If brand prestige and legendary reputation justify premium pricing, the JL Audio 10TW3-D4 delivers exactly that. If maximum value and all-weather versatility are priorities, the Kicker CompRT 10" provides exceptional mainstream performance. But if you want the highest power handling, greatest excursion capability, most advanced motor design, and exotic materials engineering available in this category—specifications that objectively exceed both premium and value alternatives—the Alpine RSW10D4 represents the optimal performance-to-value proposition in the shallow-mount 10-inch market.
❓ Frequently Asked Questions ❓
Q: What's the difference between the RSW10D4 and RSW10D2 models?
The difference is voice coil impedance configuration. The RSW10D4 (this model, stocked by Audio Intensity) features Dual 4-Ohm voice coils, providing 2-ohm (parallel) or 8-ohm (series) final impedance options. The RSW10D2 features Dual 2-Ohm voice coils, providing 1-ohm (parallel) or 4-ohm (series) final impedance options. All other specifications (power handling, excursion, motor design, materials) are identical. Choose based on your amplifier's impedance stability: RSW10D4 for 2-ohm-stable amplifiers (most common), RSW10D2 for 1-ohm-stable amplifiers or 4-ohm multi-subwoofer configurations.
Q: Why does the RSW10D4 handle 600W RMS when competing shallow-mount designs are rated for 400W?
The 600W RMS power handling advantage results from comprehensive engineering rather than a single feature: (1) Oversized 4-inch voice coil provides 60-80% more heat dissipation surface area compared to typical 2.5-3 inch coils; (2) Neodymium magnet system generates intense magnetic field in compact space, enabling larger voice coil in shallow mounting depth; (3) Gen2 DD-Linear dual-gap motor distributes thermal energy across two magnetic gaps rather than concentrating heat in single gap; (4) Die-cast aluminum frame functions as heat sink drawing thermal energy away from motor assembly. These technologies synergistically enable 600W continuous power handling while maintaining 3.25-inch shallow mounting depth—a combination representing Alpine's 57 years of engineering expertise.
Q: What does Gen2 DD-Linear technology actually do for sound quality?
Gen2 DD-Linear (Dual-Gap Linear) technology maintains linear motor force throughout the voice coil's excursion range by providing two optimized magnetic gaps instead of one. In conventional single-gap motors, portions of the voice coil move outside the magnetic gap during excursion, causing nonlinear distortion and reduced control. The dual-gap architecture keeps the voice coil within optimized magnetic flux throughout its 20mm excursion range, providing: (1) Lower harmonic and intermodulation distortion; (2) More precise bass reproduction with accurate amplitude and phase response; (3) Better transient response—tight, controlled bass without overshoot or ringing; (4) Enhanced motor control preventing over-excursion and mechanical instability. The audible result is bass that sounds precise, articulate, and effortless rather than boomy, loose, or compressed.
Q: Will this subwoofer fit in my vehicle's factory subwoofer location?
Possibly, but verification is essential. The RSW10D4's 3.25-inch mounting depth is shallower than most factory subwoofer locations, but you must also verify: (1) Cutout diameter—most 10-inch subwoofers require 9-inch cutout diameter; measure your factory opening; (2) Overall frame diameter—the RSW10D4 requires sufficient clearance around the mounting flange; (3) Enclosure volume—factory subwoofer enclosures often range from 0.50-0.75 cubic feet, generally suitable for the RSW10D4, but smaller volumes may compromise low-frequency extension; (4) Impedance compatibility—factory amplifiers may expect specific impedance loads (typically 4 ohms); the RSW10D4's Dual 4-Ohm configuration provides 2-ohm or 8-ohm options, not 4-ohm single-impedance. For factory replacement applications, consult Audio Intensity's technical team with your vehicle's year/make/model for compatibility verification and potential amplifier upgrade recommendations.
Q: How does neodymium magnet compare to ferrite magnets in other subwoofers?
Neodymium (Nd-Fe-B) rare-earth magnets deliver approximately 10-12 times the magnetic force per unit volume compared to conventional ferrite (ceramic) magnets. Advantages: (1) Compact high-force motor—neodymium enables strong magnetic field in shallow mounting depth without massive, heavy magnet structures; (2) Lightweight construction—reduced motor weight decreases structural resonances; (3) Extended excursion control—intense magnetic field provides authority to control 20mm excursion; (4) Premium positioning—neodymium is expensive exotic material reserved for high-performance applications. Disadvantages: (1) Cost—neodymium magnets are significantly more expensive than ferrite; (2) Temperature sensitivity—neodymium has more pronounced temperature-dependent magnetic properties, addressed in modern designs with temperature-stable alloys and thermal management. For shallow-mount subwoofer applications where space constraints are paramount, neodymium's compact high-force characteristics provide engineering advantages impossible to achieve with ferrite magnets.
Q: Should I build a sealed or ported enclosure for the RSW10D4?
Sealed enclosures are recommended for most installations due to their predictable response, excellent transient accuracy, maximum power handling safety margins, and compact size advantages (critical for shallow-mount applications). Recommended sealed volumes: 0.50-1.00 cubic feet net internal volume (after subwoofer and bracing displacement). Smaller volumes (0.50-0.65 cu.ft.) provide tighter bass and maximum power handling; larger volumes (0.85-1.00 cu.ft.) provide extended deep bass response. Ported enclosures can provide higher output at tuning frequency and extended low-frequency response but require more space (typically 1.00-1.50 cu.ft.), precise construction, and subsonic filtering to prevent over-excursion below tuning frequency. Without Alpine's specific ported recommendations, ported design should be considered advanced territory requiring professional consultation. For most shallow-mount applications prioritizing space efficiency and reliable performance, sealed enclosures in the 0.65-0.85 cu.ft. range provide optimal results.
Q: What amplifier power do I need to properly drive the RSW10D4?
Recommended amplifier power (with RSW10D4 wired to 2-ohm load in parallel configuration): (1) Conservative matching: 400-500W RMS @ 2 ohms—excellent output with maximum safety margins, ideal for reliability-focused installations; (2) Optimal matching: 500-600W RMS @ 2 ohms—fully exploits the RSW10D4's power handling capability, recommended for enthusiast installations; (3) Aggressive matching: 600-750W RMS @ 2 ohms—provides dynamic headroom, requires electrical system upgrades and careful monitoring, recommended only for experienced installers. Ensure amplifier is from reputable manufacturer with honest power ratings (Alpine, Arc Audio, JL Audio, Rockford Fosgate, Zapco, etc.). Amplifier must be explicitly rated 2-ohm stable. Recommended features: subsonic filter, variable low-pass crossover, bass boost EQ (optional), remote level control (optional). For specific amplifier recommendations matched to your installation requirements and budget, contact Audio Intensity's technical support.
Q: Is the Alpine RSW10D4 better than the JL Audio 10TW3-D4 that costs $519?
"Better" depends on evaluation criteria. Measurable specifications: The Alpine RSW10D4 objectively delivers 50% more power handling (600W vs. 400W RMS), documented 20mm Xmax excursion advantage, oversized 4-inch voice coil, and exotic neodymium magnet materials—specifications that meet or exceed the JL Audio premium benchmark. Brand reputation: JL Audio's 50-year legacy, legendary sound quality reputation, and patented Thin-Line technology command premium pricing and strong brand loyalty. Value proposition: The Alpine delivers superior specifications at expected mid-premium pricing (significantly less than JL Audio's $519 MSRP), representing better performance-per-dollar value. Conclusion: If brand prestige and legendary reputation justify premium pricing, choose JL Audio. If you prioritize measurable performance specifications and performance-to-value ratio, choose Alpine. Both are excellent subwoofers from manufacturers with multi-decade engineering expertise—the choice depends on whether you value brand heritage or specification superiority.
Q: What makes Alpine different from other car audio manufacturers?
Alpine Electronics occupies a unique position: OEM-quality engineering at mass-market accessible pricing. As a subsidiary of Alps Alpine Co., Ltd.—one of the world's premier precision electronic component manufacturers—Alpine inherits component-level expertise and manufacturing efficiency that few audio-only brands can match. Alpine maintains OEM partnerships with major automotive manufacturers, engineering factory audio systems to OEM durability and performance standards. This expertise translates to aftermarket products that combine advanced engineering, honest specifications, and competitive pricing—proving you don't need flagship pricing to achieve flagship performance. Alpine's 57-year Japanese precision engineering heritage (founded 1967), Alps Alpine component optimization, and democratic approach to performance accessibility distinguish the brand in a marketplace often forcing enthusiasts to choose between affordability (sacrificing performance) or performance (sacrificing affordability). Alpine proves this compromise is unnecessary.
🎯 Experience Category-Leading Shallow-Mount Performance 🎯
The Alpine R-Series RSW10D4 10" Shallow-Mount Subwoofer represents the pinnacle of shallow-mount engineering: 600W RMS power handling, 20mm Xmax linear excursion, Gen2 DD-Linear dual-gap motor, neodymium magnet system, oversized 4-inch voice coil, premium aluminum construction—all in a 3.25-inch mounting depth profile that fits where conventional subwoofers cannot.
This is NEW current production from Alpine Electronics—manufacturer-backed warranty, current product support, and the latest engineering refinements from 57 years of Japanese precision audio development. Whether you're replacing an anemic factory subwoofer, building a custom under-seat installation, or maximizing bass output in space-constrained applications, the RSW10D4 delivers performance specifications that redefine what "shallow-mount" can achieve.
Audio Intensity stocks the RSW10D4 (Dual 4-Ohm) configuration for immediate delivery. Contact our technical team for amplifier recommendations, enclosure design consultation, professional installation referrals, or any questions about integrating this category-leading subwoofer into your vehicle's audio system.
🏔️ ALPINE R-SERIES: WHERE JAPANESE PRECISION MEETS SHALLOW-MOUNT DOMINANCE 🏔️
⚠️ IMPORTANT INSTALLATION NOTES:
- NEW Condition: This Alpine RSW10D4 is NEW current production with full manufacturer backing. Expect pristine cosmetic condition, complete original packaging, included mounting hardware, owner's manual, and Alpine's manufacturer warranty coverage (contact Audio Intensity for specific warranty terms and registration procedures).
- Professional Installation Recommended: While experienced enthusiasts can install the RSW10D4, professional installation ensures optimal enclosure design, proper amplifier matching, correct wiring impedance configuration, and electrical system verification. Audio Intensity can recommend qualified installation professionals in your area.
- Amplifier Requirements: The RSW10D4 requires a dedicated subwoofer amplifier (NOT full-range amplifier or factory head unit power). Minimum recommended: 400W RMS @ 2 ohms from reputable manufacturer. Optimal: 500-600W RMS @ 2 ohms with subsonic filter and variable low-pass crossover. Never connect subwoofers directly to head unit speaker outputs—damage to both head unit and subwoofer will result.
- Enclosure Critical: Subwoofer performance depends fundamentally on enclosure design. Improper enclosure volumes, air leaks, inadequate bracing, or lack of damping material will severely degrade performance regardless of subwoofer quality. If building custom enclosures, follow the Enclosure Design Guide recommendations above or consult Audio Intensity's technical team for professional enclosure design assistance.
- Electrical System Verification: 600W RMS amplifiers draw significant current (50-75A during peak output). Ensure your installation includes proper gauge power/ground wiring (minimum 4-gauge for runs under 15 feet, 2-gauge for longer runs), appropriate fusing (60-80A), and solid chassis grounding. High-output installations may require electrical system upgrades (high-output alternator, supplemental battery capacity).
- Break-In Period: New subwoofers require mechanical break-in as surround and spider materials reach optimal compliance. Play the RSW10D4 at moderate levels (50-75% maximum output) for the first 10-20 hours of operation. Avoid sustained maximum-output operation during break-in. After break-in, excursion smoothness improves and low-frequency extension deepens.
- Alternative Model Availability: Audio Intensity stocks the RSW10D4 (Dual 4-Ohm) variant. If your application requires different impedance options, the RSW10D2 (Dual 2-Ohm) variant is available from Alpine authorized dealers (contact Audio Intensity for sourcing assistance if needed).
🏔️ ALPINE R-SERIES RSW10D4 🏔️
Category-Leading 600W RMS Power • 20mm Xmax Excursion • Gen2 DD-Linear Motor • Neodymium Magnet System
57 Years of Japanese Precision Engineering • NEW Current Production
Available Exclusively at Audio Intensity • Contact Us for Amplifier Recommendations, Enclosure Design Consultation & Professional Installation Referrals
Specifications
Specifications
Features:
Video
Product Demo Video
No other products from this vendor available.
Owners Manual
Every Alpine Shallow 10 Inch Subwoofer: Powerhouse Bass in a Space-Saving Design ships with a detailed factory owner’s manual that covers wiring, enclosure recommendations, specifications, and safe operating practices. This document is the official reference for setup and maintenance, ensuring you get the most performance and longevity out of your subwoofer.
We recommend reviewing the manual before installation to:
- Confirm the correct wiring configuration for your voice coil option (Dual 1Ω or Dual 2Ω).
- Review enclosure guidelines to match the driver’s performance potential.
- Understand safe power handling and gain-setting practices to protect your investment.
Keeping this manual handy ensures you have quick access to factory specifications and diagrams, making it easier to fine-tune your system or service the subwoofer when needed.
Performance & Tools
Compatible Enclosures
EBP Calculator
Choosing the right enclosure for your subwoofer isn’t guesswork — it’s science. The Efficiency Bandwidth Product (EBP) is a simple calculation that uses a driver’s Fs (resonance frequency) and Qes (electrical Q) to determine whether it performs best in sealed, ported, or both types of boxes.
- EBP under 50 → Works best in sealed enclosures for tighter, more controlled bass.
- EBP over 100 → Better suited for ported designs where efficiency and output are the priority.
- EBP between 50–100 → Flexible enough to perform well in either design, depending on system goals.
Use our interactive calculator below to compare subwoofers, see where each model falls, and make an informed decision on the best enclosure type for your setup.
Efficiency Bandwidth Product (EBP)
Fs (Hz): 31
Qes: 1.66
Lower EBP → Sealed. Higher EBP → Ported.
Xmax (mm): 20mm
Mounting Depth (inches): 3.25
Customer Reviews
Frequently Asked Questions
What makes the Alpine RSW10D4 different from other shallow subwoofers?
Will this subwoofer fit under my car seats?
What size enclosure is recommended for optimal performance?
Can I use this subwoofer without an enclosure?
What amplifier power is recommended for the RSW10D4?
How do I wire the dual 4-ohm voice coils?
Does this subwoofer work well in both sealed and ported enclosures?
Recommended for You
Articles
Enhance Your Ride: Best Car Sub for Sound Quality
Worst Subwoofer Brands: Complete Guide to Avoid Low-Quality Bass
Top Picks: Best Car 12 Inch Subwoofer for Unmatched Audio Quality
