Proline X
Proline X P10-S | Single 10" Sealed Subwoofer Enclosure | V3
SKU: P10-S III-B
- Best For: Single 10" sealed installs — accurate bass, compact footprint
- Volume: 0.70 ft³ Net
- Tuning: N/A — Sealed
- Sonic Character: Tight, transient-accurate, flat response
Financing available — choose Shop Pay Installments at checkout.
Proline X P10-S | Single 10" Sealed Subwoofer Enclosure | V3
Proline X P10-S
Single 10" Sealed Subwoofer Enclosure | V3
Accurate 10" Bass. Compact Enough to Fit Where Larger Boxes Cannot.
The Proline X P10-S is a single 10" sealed enclosure built for installs where accuracy and a controlled response curve matter more than raw output. The 10" driver occupies a specific place in car audio — it produces more output and lower frequency extension than an 8" while maintaining the transient speed and articulation that a 12" or 15" driver cannot match at the same power level. Sealed alignment preserves those qualities by keeping the response flat and predictable, with no port resonance, no tuning peak, and no frequency-specific coloration.
At 14.5" wide, 12" tall, and 12.5" deep, the P10-S fits behind most rear seats in compact and mid-size vehicles, under most truck bench seats, and in trunk positions where a larger enclosure would not clear. The 6.25" max mounting depth covers the majority of standard 10" drivers. At 0.70 ft³ net, most 10" drivers intended for sealed alignment sit comfortably within their recommended volume range without requiring damping material or volume correction.
Every panel is CNC-cut from Langboard Elite MDF to exact internal volume and assembled by hand in our Tennessee facility. A single recessed ABS/Carbon Fiber Composite terminal cup handles wiring, pre-wired with 12g OFC speaker wire. Finish options are Dark Gray Trunkliner or Plush Black. Shipping is included.
Why Sealed for a 10" SQ or Daily Build
The 10" driver in sealed alignment is one of the most versatile bass configurations in car audio. It produces enough output to carry the full bass load in a daily driver system, enough low-frequency extension to cover the majority of musical content, and enough transient accuracy to integrate cleanly with a front stage without requiring precise DSP correction to blend. The sealed alignment at 0.70 ft³ gives the driver a correctly-sized acoustic load that works across a wide range of 10" drivers without customization.
For installs running a Goldhorn DSP or any active processor, sealed alignment is the preferred enclosure format. The predictable 12 dB/octave rolloff responds accurately to DSP bass boost and crossover adjustments — you have full control over the final response without fighting port resonance or a ported tuning peak that requires correction before you can start tuning.
Transient Accuracy
Sealed alignment preserves the start-stop precision that the 10" format delivers. Bass notes have distinct attack and decay. The P10-S produces tight, accurate low frequencies that integrate cleanly with a front stage without requiring heavy DSP correction to blend.
Flat, Predictable Response
No port resonance. No tuning peak. No frequency-specific coloration. The P10-S produces a smooth, controlled rolloff below resonance that integrates cleanly with any front stage and responds accurately to DSP equalization.
0.70 ft³ — Correctly Sized
Most 10" drivers intended for sealed alignment specify optimal volumes between 0.50 ft³ and 1.0 ft³. The P10-S at 0.70 ft³ lands in the center of that range, providing universal compatibility across the majority of standard and SQ-oriented 10" drivers.
DSP-Friendly Alignment
Sealed enclosures exhibit a predictable 12 dB/octave rolloff that responds accurately to DSP bass boost and crossover adjustments. If you are running a Goldhorn DSP or any active processor, sealed is the alignment that gives you the most control over the final response.
Construction: The Proline X Standard Applied to Every SKU
The P10-S uses the same construction methodology as every enclosure in the Proline X Performance Series. Langboard Elite MDF. V-groove and dado joinery. In-house terminal cup. Hand-assembled in Tennessee. The variables are dimensions, volume, and alignment. The build quality is consistent across the entire lineup.
Langboard Elite MDF — Named, Verified, Documented
Every panel is cut from Langboard Elite MDF — 3/4" (18mm), a named, mill-documented panel stock produced in the United States. The specifications below are pulled directly from Langboard's published mill data.
Langboard Elite — Published Mill Data
Density: 48.5 lbs/ft³ — higher density means less porosity, better screw retention, and reduced resonance
Internal Bond: 200 psi — resistance to delamination under sustained bass pressure cycling
Modulus of Elasticity: 410,000 psi — panel stiffness under load; less flex means less resonance
Face Screw Holding: 325 lbs — baffle hardware stays locked under vibration
Edge Screw Holding: 250 lbs — joint integrity at every panel edge connection
V-Groove and Dado Joinery
Every panel joint uses V-groove and dado joinery — CNC-cut interlocking grooves that mechanically lock panels before adhesive is applied. For a sealed enclosure, joint integrity is the single most important construction variable — a single air leak degrades output and response accuracy across the entire bass range. Every seam on the P10-S is mechanically locked before adhesive is applied.

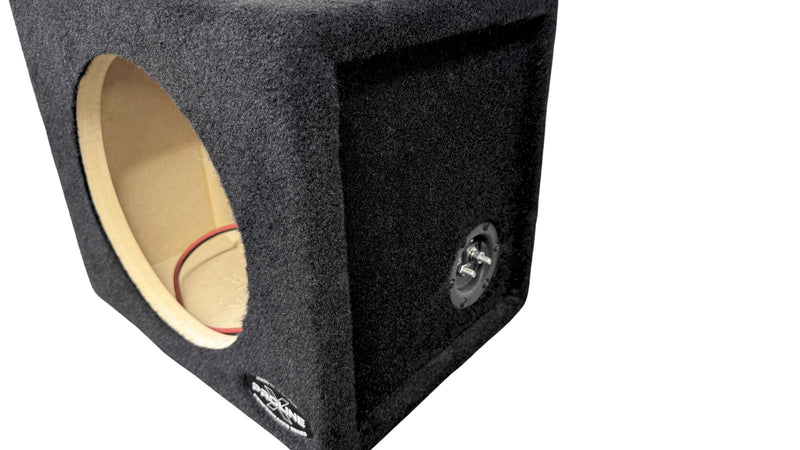

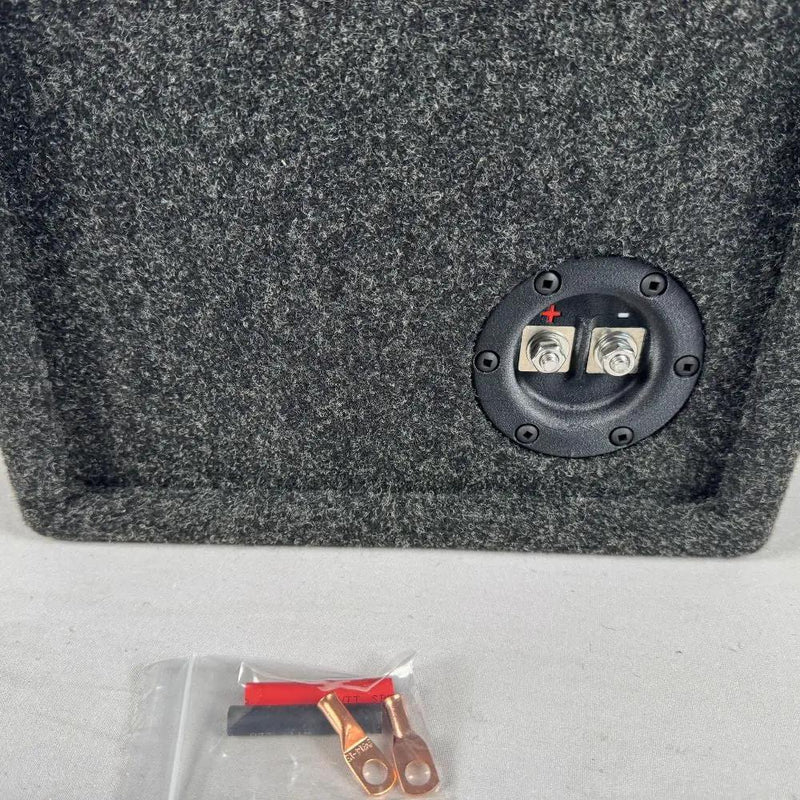

In-House ABS/Carbon Fiber Composite Terminal Cup
The terminal cup is built in-house at our Tennessee facility. The ABS/Carbon Fiber Composite recessed cup features stainless steel hardware, aluminum landing plates, and copper ring terminals, pre-wired with 12g OFC speaker wire. The recessed mount protects terminals from cargo contact. Copper ring terminals provide a clean, corrosion-resistant connection that does not loosen under vibration.
ShopSabre CNC Routers
Every panel is machine-cut on ShopSabre industrial CNC routers. Consistent geometry, no hand-cut variance, no gaps at the joints. The internal volume of every P10-S is identical to spec.
Hand-Assembled in Tennessee
Every enclosure is hand-assembled at our Tennessee facility and inspected before it ships. No overseas manufacturing. No batch assembly shortcuts.

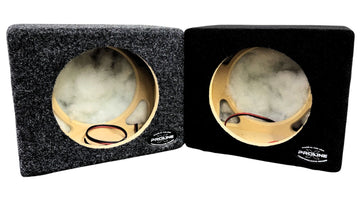

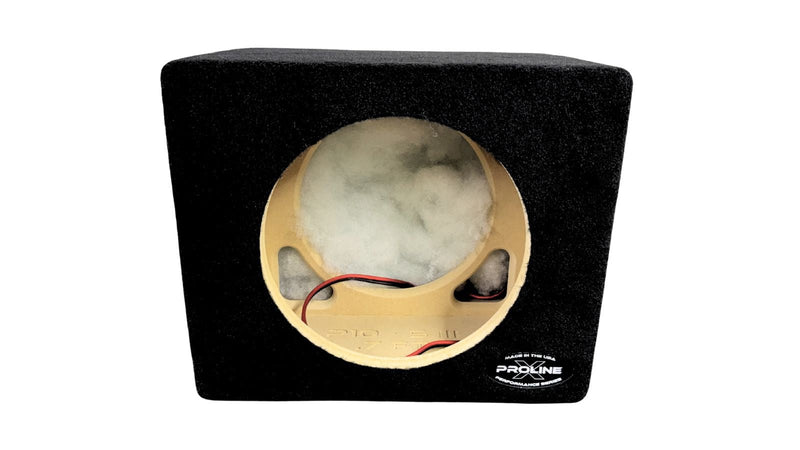

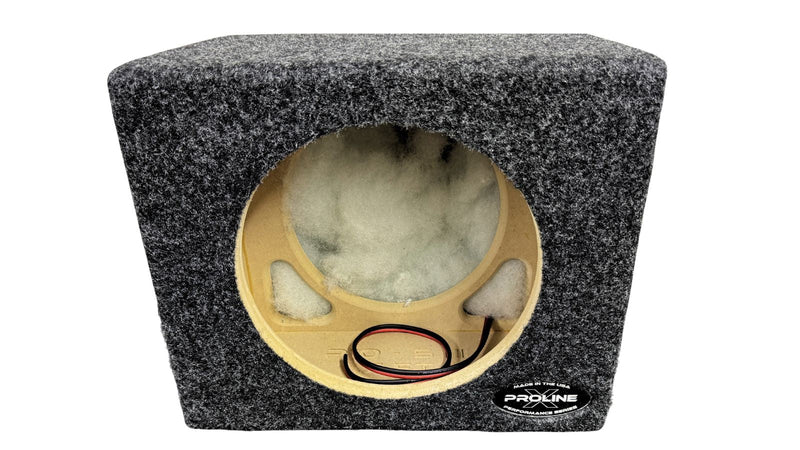

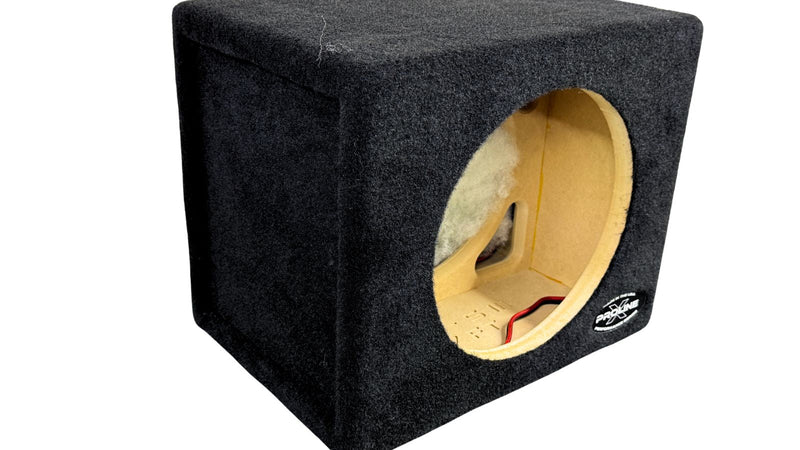

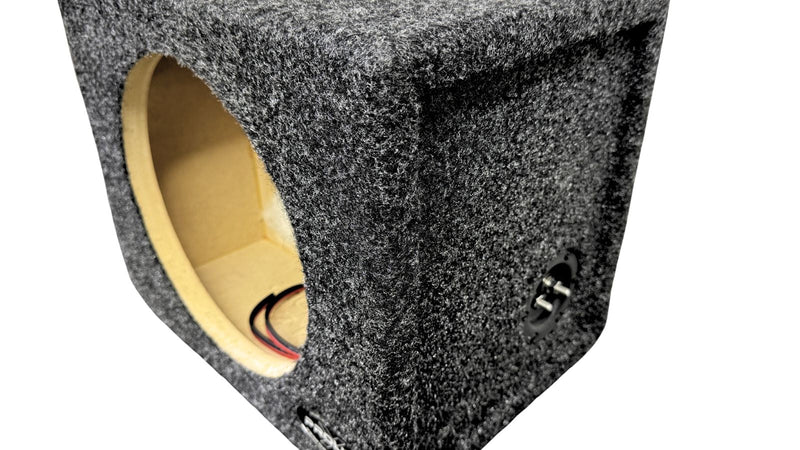

Dark Gray Trunkliner or Plush Black
Both finish options are professionally applied. Dark Gray Trunkliner blends with factory trunk materials for a clean, stealth appearance. Plush Black delivers the traditional aftermarket look. Both are durably bonded.
Shipping Included
No freight charges at checkout. The price you see is the price you pay. The enclosure ships assembled and ready to install.
Fitment Guide
The P10-S is one of the more compact single 10" sealed enclosures available. At 14.5"W x 12"H x 12.5"D it fits behind most rear seats in compact and mid-size vehicles and under most truck bench seats without modification.
Dimensional Specifications
External Dimensions: 14.5" W x 12" H x 12.5" D
Net Internal Volume: 0.70 ft³
Tuning Frequency: N/A — Sealed
Subwoofer Cutout: 9.25"
Max Mounting Depth: 6.25"
Front Panel Thickness: 0.75" Single Baffle
Driver Compatibility
The P10-S accommodates any 10" subwoofer with a cutout diameter at or below 9.25" and a mounting depth at or below 6.25". Verify both dimensions against your driver's published specifications before ordering.
Compatible Drivers
The following drivers are available from Audio Intensity and are compatible with the P10-S:
Prodigy NB2-10D4 → Image Dynamics ID10 V4 → Prodigy NB3-10D4 → Audiomobile GT2 2010 → Prodigy NB5-10D4 → Crescendo Revolution 710 →Always verify cutout diameter and mounting depth against your specific driver's published specifications before ordering.
Ideal Install Applications
Under Truck Bench Seat
At 12.5" deep and 12" tall, the P10-S fits under most full-size truck bench seats without modification. A clean, invisible install that does not sacrifice cab space or passenger comfort.
Behind Rear Seat
The compact footprint fits behind most rear seats in compact and mid-size sedans. The 14.5" width leaves room for spare tire access and cargo floor latches in most trunk configurations.
SQ and DSP-Controlled Systems
Sealed alignment and 0.70 ft³ net volume make the P10-S the correct enclosure for 10" drivers used in sound quality and DSP-controlled builds where accuracy and front stage integration are the priority.
Daily Driver Builds
The compact footprint and flat sealed response make the P10-S a strong daily driver enclosure — enough output for real bass impact, accurate enough to work with any music genre without sounding genre-specific.
Accurate 10" Bass. Tennessee-Built. Shipping Included.
The Proline X P10-S is a single 10" sealed enclosure built to a spec, not a price point. Langboard Elite MDF. V-groove and dado joinery. In-house terminal cup. Hand-assembled in Tennessee and inspected before it ships.
If you need accurate, controlled bass from a compact 10" footprint — this is the correct enclosure. $169.99 Dark Gray Trunkliner. $179.99 Plush Black. Shipping included.
| Material | Langboard Elite MDF, 3/4" (18mm) |
| Enclosure Type | Sealed |
| Net Internal Volume | 0.70 ft³ |
| Tuning Frequency | N/A |
| External Dimensions | 14.5" W x 12" H x 12.5" D |
| Subwoofer Cutout | 9.25" |
| Max Mounting Depth | 6.25" |
| Front Panel Thickness | 0.75" Single Baffle |
| Finish | Dark Gray Trunkliner / Plush Black (+$10) |
| Terminal Cup | ABS/Carbon Fiber Composite, recessed mount, stainless hardware, copper ring terminals |
| Wiring | Pre-wired 12g OFC speaker wire |
| Warranty | 1-Year Limited |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF — 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure — because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF — Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source — not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure — the most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks — relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention — relevant for every joint that isn't face-to-face |
200 psi — The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually — the symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE — Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness — resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level — not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge — Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint — where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock — Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification — it is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
