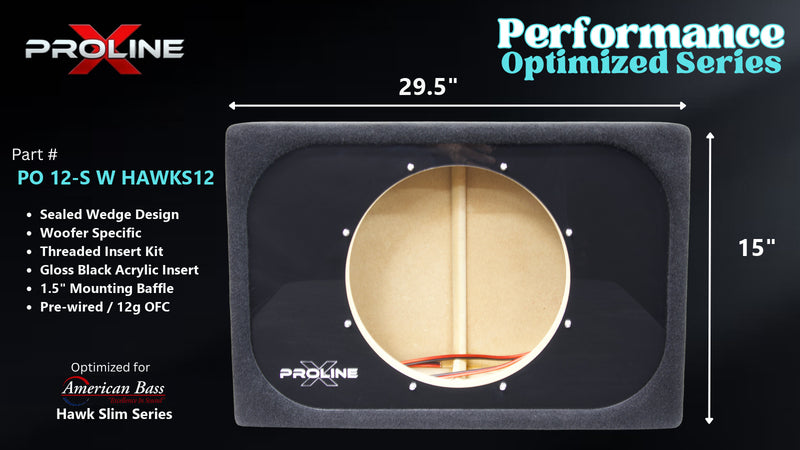

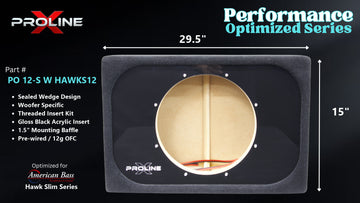

Proline X PO 12-S W HAWKS12 sealed wedge, front baffle with gloss black insert and pre-wired leads, 29.5 by 15 inches.

Proline X

Performance Optimized Wedge Sealed 12" Enclosure | American Bass Hawk Slim 12

Q: Does this fit the American Bass Hawk Slim 12, and will any other 12 inch fit?

The HAWKSLIM-1244, yes: the baffle is cut to its 10.9 in cutout, the recess to its 12.7 in overall diameter, and its 3.54 in motor clears the cabinet with 2.28 in to spare. This box is for the HAWKSLIM-1244, the dual 4 ohm Hawk Slim 12. American Bass lists different mounting figures for the dual 2 ohm HAWKSLIM-1222 and publishes no parameters for it, so it is not covered by this alignment.Any other 12, no. The airspace is worked out from the Hawk Slim 12's own Qts and Vas, and a different woofer that happened to drop into the hole would not see the alignment printed on this page.

Q: Why the wedge angle, and why rear-firing into the trunk?

The seat-side face carries a 20 degree rake that matches the lean of a factory rear seat back, so the cabinet sits flush against it and the cargo space in front stays usable. The baffle is the vertical trunk-lid-side face, so the driver fires rearward into the trunk cavity.The trunk acts as an acoustic extension for the sealed box, and the cabin adds real output below 50 Hz, so in-vehicle response runs deeper than the anechoic 41.2 Hz on this page.

Q: Why is the front baffle double-layered?

The baffle is two bonded 3/4 inch sheets, 1.5 inches through. A single 3/4 inch panel flexes under the pressure a 12 inch woofer puts on it at 900 watts, which smears output and works the driver loose over time; the second layer stiffens the face and gives the mounting hardware twice the material to bite.The outer layer is machined as a flush recess, so the driver bolts to the inner layer and sits flush with the gloss black acrylic insert.

Q: What is the expected low-frequency extension?

Anechoic F3 is 41.2 Hz, with system resonance at 52.4 Hz. Above Qtc 0.707 the response carries a lift near resonance, so F3 sits below fc and the box sounds fuller than a flat alignment.Those figures exclude cabin gain. In a car the cabin's transfer function adds real output below 50 Hz, so in-vehicle response runs deeper than the numbers above.

Q: Do I need to add polyfill or damping?

No. Polyfill is already installed as a light wall lining to control internal reflections, and the quantity is chosen so it does not change the acoustic volume.Do not add more. Packing a sealed box with fill makes it behave as though it were larger, which walks the alignment away from the 1.25 cubic feet this cabinet was built to.

Q: Is the driver included, and are the threaded inserts installed?

No driver. This is an enclosure only. You receive the cabinet finished in plush black carpet with the gloss black acrylic baffle insert, one side-mounted pre-wired terminal cup, the polyfill lining already in place, and a threaded insert kit with stainless machine screws.The inserts ship loose on purpose: American Bass prints no bolt circle for the Hawk Slim 12, so you set the driver in the recess, mark its holes, drill and press the inserts. The driver is purchased separately.

SKU: PO 12-S W HAWKS12 BB

QUICK SPECS

Best For: American Bass Hawk Slim 12 Trunk-Fit Builds
Net Volume: 1.25 cu ft (1.32 cu ft Gross)
Driver Match: American Bass Hawk Slim 12 (HAWKSLIM-1244, D4)
Construction: Rear-Firing Wedge | V-Groove/Dado | Double 1.5" Baffle | Threaded Insert Kit

Shipping Included No freight charges at checkout. What you see is what you pay.

Built in Tennessee CNC cut from 3/4" Langboard Elite MDF. V-groove and dado joinery.

Advanced Terminal Cup Built in-house. ABS/Carbon Fiber. Stainless steel hardware. Copper ring terminals.

$ 289.99

Acrylic Insert Color

In Stock and Ready to Ship

Financing available. Choose Shop Pay Installments at checkout.

Performance Optimized Wedge Sealed 12" Enclosure | American Bass Hawk Slim 12

Enclosure Type Sealed

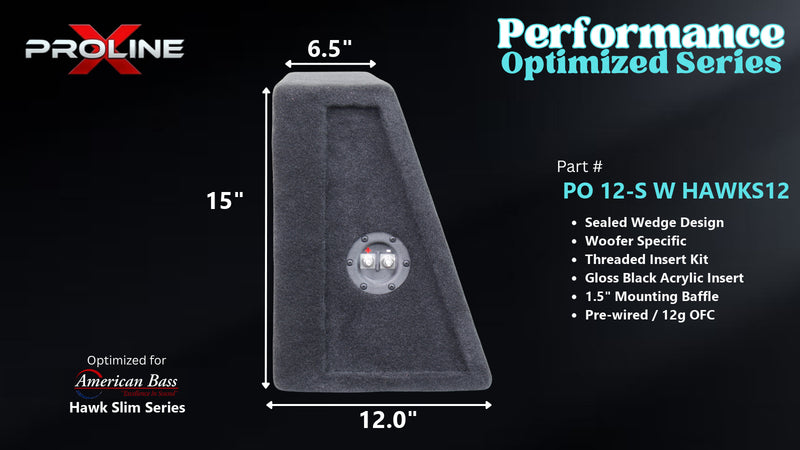

External Dimensions 29.50" W x 15" H x 11.97" D at base tapering to 6.51" D at top

Gross Volume 1.32 cu ft

Net Volume 1.25 cu ft

Shipping Weight 47 lbs

Front Panel Thickness 1.5"

INSTALLER'S TAKE

1.25 cubic feet, Qtc 1.00. The Hawk Slim 12's Qts is already over 0.707, so flat was never on the table; this is the realistic trunk-size box and it lands full and punchy.

American Bass's own box is 1.45. Ours is a touch smaller and a touch punchier. The 3.54 inch motor is so shallow that depth never mattered; width hit the 29.5 cap and the volume set the rest.

Cut is 10.9, the recess is 12.7. Inserts ship in the kit, not pressed: no bolt circle is published. It is sealed, so leave the polyfill as it is.

Power is the catch. 900 watts is the coil's thermal rating, but with 8.5 mm of Xmax the cone runs out of travel at about 210 watts in this box, and a bigger sealed box only makes that worse. Put about 210 watts on it. If the customer wants the full 900, a ported box is the better match.

Product Details

Performance Optimized Wedge | American Bass Hawk Slim 12

12" Sealed Wedge Enclosure | Rear-Firing Trunk-Load Design

1.25 ft3 Net1.32 ft3 GrossQtc 1.00Single Chamber Wedge29.50" x 15" x 6.51/11.97"Built in Tennessee

The American Bass Hawk Slim 12 in a Sealed Wedge

The Hawk Slim 12 is American Bass's shallow 12 inch: 900 watts RMS, 8.5 mm of one-way excursion on 503 square centimeters of cone, and only 3.54 inches of mounting depth. Thiele-Small parameters, mounting depth and cutout come from American Bass's product page and the HAWKSLIM-1244 owner's manual, which publish them for the dual 4 ohm version only. American Bass prints no frame diameter or driver displacement: the recess is cut to the 12.7 in overall diameter retailers list, and 0.056 cubic feet of displacement is our estimate.

The Hawk Slim 12 has a Qts of 0.713, already above the 0.707 of a maximally flat alignment, so no sealed box of any size makes it flat: a sealed box only raises Qtc above the driver's own Qts. Getting it down to 0.8 would take 4.6 cubic feet, far beyond a trunk wedge. This cabinet is built to 1.25 cubic feet net, which puts it at Qtc 1.00: full and punchy, with a lift near 52 Hz before the rolloff. American Bass's own sealed box for the HAWKSLIM-1244 is 1.453 cubic feet net, which reads Qtc 0.96; ours is a slightly smaller box with a little more punch.

Trunk-Load Wedge Design Explained

The driver mounts on the vertical trunk-lid-side face and fires rearward into the trunk cavity.

Seat-Side Face Matches Seat Lean

Angled face matches the roughly 20 degree factory seat lean.

Trunk-Lid-Side Face Fires the Woofer

Vertical baffle, cone firing rearward into the trunk cavity.

Trunk Cavity Loading

The trunk acts as an acoustic extension for a smoother presentation.

Preserves Trunk Cargo Space

The wedge tucks against the seat back and the space in front stays usable.

Engineered for the American Bass Hawk Slim 12

Half power lands at 41.2 Hz anechoic, before any cabin gain. Above Qtc 0.707 the response carries a lift near 52 Hz and F3 sits below fc. An estimated 0.056 cubic feet of driver displacement is taken out of the net figure.

Alignment Numbers

Driver	Net Volume	System Qtc	fc	F3
Hawk Slim 12 D4, this cabinet	1.25 cu ft	0.998	52.4 Hz	41.2 Hz
American Bass recommended box	1.453 cu ft	0.963	-	40.5 Hz

This box is for the HAWKSLIM-1244, the dual 4 ohm Hawk Slim 12. American Bass lists different mounting figures for the dual 2 ohm HAWKSLIM-1222 and publishes no parameters for it, so it is not covered by this alignment.

Mounting Geometry

The baffle is cut to 10.9 in, American Bass's published cutout, and the flush recess to the 12.7 in overall diameter. The rear panel rakes 20 degrees, so the cavity deepens from 6.51 in at the top to 11.97 in at the base, and the 3.54 in motor clears it with 2.28 in to spare. American Bass prints no bolt circle for the Hawk Slim 12, so the baffle ships undrilled with a threaded insert kit and stainless machine screws: set the driver in the recess, mark its holes, drill, press the inserts and bolt it down.

What the Numbers Rest On

Langboard Elite MDF

Premium 3/4 in MDF throughout.

V-Groove and Dado Joinery

CNC cut V-grooves at every panel intersection, sides and brace seated in dados.

Double-Layer 1.5" Front Baffle

Two bonded 3/4 in MDF sheets at the driver face, the outer layer machined as a flush recess.

Published Parameters

Fs 37.46 Hz, Qts 0.713, Qes 0.824, Qms 5.33, Vas 33.89 L, Sd 503 cm2, Mms 191.3 g, Bl 20.38, Re 7.6 ohms, 85.2 dB 1W/1m (HAWKSLIM-1244).

Wiring the Hawk Slim 12 to Your Amplifier

The HAWKSLIM-1244 has two 4 ohm voice coils: 8 ohms in series or 2 ohms in parallel. Confirm the final load against your amplifier's minimum stable impedance before powering the system.

American Bass rates the Hawk Slim 12 at 900 watts RMS, but that is a thermal rating. Its published one-way Xmax is 8.5 mm, and in this sealed box the cone reaches it at about 210 watts, worst near 36 Hz. Plan on an amplifier of about 210 watts RMS for clean output; more power past that point adds distortion and stress, not low end. A larger sealed box does not help: in American Bass's own 1.453 cubic feet the cone reaches Xmax at about 190 watts. If you want to use the full 900 watts, a ported box is the better match for this driver.

Built in Tennessee, Backed by Audio Intensity

Cut and assembled in Tullahoma, Tennessee on our own CNC equipment. Finished in plush black carpet with the gloss black acrylic baffle insert, one pre-wired terminal cup, 12 gauge OFC to the driver position. Polyfill wall lining installed. Threaded insert kit and stainless machine screws in the box. 1 year limited warranty. Enclosure only, the driver is purchased separately. Call or text 931-563-5151.

American Bass Hawk Slim 12: Cut for the Driver

1.25 cubic feet net at Qtc 0.998, F3 41.2 Hz, cut direct fit and built to order in Tennessee.

Specifications

Specification	Value
Series	Proline X Performance Optimized Wedge
Compatible Driver	American Bass Hawk Slim 12, HAWKSLIM-1244 (dual 4 ohm). Direct fit
Configuration	Single 12 inch, single chamber sealed wedge
Mounting Position	Trunk or cargo area, tall face against the rear seat back
Firing Direction	Rearward into the trunk. Not a down fire design, no feet included
External Width	29.50 in
External Height	15 in at the seat face
External Depth	11.97 in at the base, tapering to 6.51 in at the top
Internal Volume, Gross	1.32 cu ft
Internal Volume, Net Acoustic	1.25 cu ft after the brace and an estimated 0.056 cu ft displacement
Driver Mounting Depth	3.54 in required; 2.28 in clearance above the motor against the raked rear panel
Alignment	Qtc 0.998, fc 52.4 Hz, F3 41.2 Hz anechoic
American Bass Recommended Sealed	1.453 cu ft net (Qtc 0.96), HAWKSLIM-1244 manual
Not Covered	HAWKSLIM-1222 (dual 2 ohm): different published fitment, no published parameters
Woofer Opening	10.9 in, American Bass's published cutout
Frame Outer Diameter	12.7 in, retailer published; American Bass prints none
Bolt Circle	Not printed by American Bass; threaded insert kit included
Driver Displacement	0.056 cu ft, estimated; American Bass publishes none
Fs / Qts / Qes / Qms / Vas	37.46 Hz / 0.713 / 0.824 / 5.33 / 33.89 L
Driver Sd	503 cm2
Xmax	8.5 mm one way, American Bass spec
Driver Power Handling	900 W RMS thermal, American Bass spec
Recommended Amplifier Power	About 210 W RMS: the 8.5 mm Xmax is reached near 210 W at 36 Hz in this box
Wiring Options	Dual 4 ohm: 8 ohms series or 2 ohms parallel
Parameter Source	americanbassusa.com Hawk Slim 12 page and HAWKSLIM-1244 owner's manual
Material	Langboard Elite MDF
Construction	CNC cut, V-groove and dado joinery
Panel Thickness	0.75 in
Front Baffle	1.5 in double baffle, outer layer machined as a flush recess
Internal Bracing	Windowed brace, dadoed to the shell
Driver Mounting	Threaded insert kit included, NOT pre-installed: no published bolt circle
Terminal Cups	One Proline X ABS and carbon fiber composite, side mounted, pre wired 12 gauge OFC
Acrylic Insert	Gloss black acrylic baffle insert standard; None variant minus $20
Damping	Light polyfill wall lining, does not alter acoustic volume
Carpet	Plush black
Shipping Weight	47 lb
Warranty	1 Year Limited
Built In	Tullahoma, Tennessee

Performance Graphs

Net airspace

1.25

cu ft

System Qtc

1.00

sealed

Half power

41.2

Hz · F3

Xmax at

215

W RMS · no filter

With 25 Hz subsonic

222

W RMS · +3%

Amplifier

900

W RMS recommended

This enclosure holds 1.25 cu ft net . In it the American Bass Hawk Slim 12 runs a system Qtc of 1.00 with half power at 41.2 Hz, and the cone reaches its 8.5 mm travel limit at 215 W, below the driver’s 900 W thermal rating, so travel is what stops you here, not heat. A 25 Hz subsonic filter adds little here: 222 W against 215 W, 3 percent. The box already resonates at 52 Hz, so its own rolloff has removed most of what the filter would have stopped.

01Is it a sealed driver?

Efficiency bandwidth product places the motor before anything else is decided.

EBP = Fs ÷ Qes = 45.5

dual 4 ohm · EBP 45.5

EBP under 50 means a motor that wants a sealed load. The Hawk Slim 12 sits at 45.5, inside that band, which is why this is a sealed build rather than a ported one.

02What the box does to it

1.25 cu ft against a 33.9 L Vas.

α = Vas ÷ Vb = 0.96 · Fc = Fs√(α+1) = 52 Hz · Qtc = 1.00

dual 4 ohm · Qtc 1.00, Fc 52 Hz, F3 41.2 Hz

The box lifts resonance from 37.5 Hz free-air to 52 Hz and half power lands at 41.2 Hz, anechoic, before any cabin gain. Figures are American Bass’s published HAWKSLIM-1244 (dual 4 ohm) parameters. Driver displacement is not published; 0.056 cubic feet is an estimate. Qts 0.713 is above 0.707, so this alignment sits above flat by design.

03The watts that reach Xmax (in this enclosure)

Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 8.5 mm, and in this alignment a subsonic filter barely moves it.

P_Xmax = 215 W unfiltered → 222 W with a 25 Hz subsonic

dual 4 ohm · 215 W, no filterdual 4 ohm · 222 W with subsonic at 25 Hz, 24 dB/octXmax 8.5 mm one-way

Every trace touches the limit and no further, because each is drawn at the exact power that puts that coil on 8.5 mm. Unfiltered that is 215 W, reached first at 37 Hz. It sits under the 900 W the driver can take thermally, so the enclosure sets the ceiling, not the voice coil. The dashed traces are the same driver behind a subsonic filter at 25 Hz, 24 dB/oct, and they sit almost on top of the solid ones: 222 W against 215 W. At 52 Hz the filter sits well below resonance, where the sealed alignment has already rolled the cone off at 12 dB/oct, so there is little wasted travel left for it to recover. Set it anyway to keep road rumble out of the cone, but do not size the amplifier around it.

Param	Value	Unit	Note
Fs	37.46	Hz	free-air resonance
Qts	0.713		dual 4 ohm
Vas	33.89	L	equivalent compliance
Sd	502.9	cm²	effective piston area
Xmax	8.5	mm	one-way linear travel
Pe	900	W	continuous RMS
SPL	85.2	dB	1 W / 1 m, derived from T/S

Driver parameters as published by American Bass Hawk Slim 12 product page. Curves computed against this enclosure’s actual net airspace.

Customer Installs

Materials

Material

Built From a Spec Sheet, Not a Sales Sheet

Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.

Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.

Specifications

Langboard Elite MDF: Published Mill Data

Property	Value	Why It Matters
Panel Stock	Langboard Elite MDF	Named, verifiable panel source, not generic "high-density MDF"
Thickness	3/4" (18mm)	Industry standard for subwoofer enclosures; panels below this flex under pressure
Density	48.5 lbs/ft³	Higher density = less porosity, better screw retention, reduced resonance
Internal Bond	200 psi	Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet
Modulus of Rupture (MOR)	4,200 psi	Bending strength before the panel breaks, relevant for larger unsupported baffle spans
Modulus of Elasticity (MOE)	410,000 psi	Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance
Face Screw Holding	325 lbs	How firmly the panel surface holds a screw; critical for baffle joint integrity over time
Edge Screw Holding	250 lbs	Panel edge retention, relevant for every joint that isn't face-to-face

Internal Bond

200 psi: The Number That Actually Matters for Enclosures

The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.

Stiffness

410,000 psi MOE: Less Flex, Less Resonance

The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.

Screw Holding

325 lb Face / 250 lb Edge: Joints That Stay Locked

Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.

Sourcing

Named Panel Stock: Not "Premium MDF"

The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.

Why Proline X?

Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.

CNC-Cut to Spec

Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
