Performance Optimized Down Fire Wide Sealed Dual 10" Shallow Sub Enclosure | JBL Club 102SL
SKU: PO 10D-S DFW CLUB
- Alignment: 0.605 cu ft net per chamber, Qtc 1.708 at 4 ohm, Fc 54.5 Hz, F3 37.4 Hz, +5 dB peak near 60 Hz. 2 ohm: Qtc 1.875, F3 37.8 Hz
- Down Fire Wide: 41"W x 12"D x 7.875"H in down fire position, excludes standoffs, sized for under the rear seat of a truck or SUV
- Drivers: Pair of JBL Club 102SL, 350 W RMS each, 3.25 in mounting depth
- Chambers: Two fully separate sealed chambers, 3/4" MDF full divider, one shared side-mounted terminal cup
- Standoffs: Included, 1.75 in, shipped uninstalled. Installed height 9.625 in
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Wide Sealed Dual 10" Shallow Sub Enclosure | JBL Club 102SL
Proline X Performance Optimized Down Fire Wide Dual 10" Sealed
Under rear seat fitment for trucks and SUVs. Cut and tuned for a pair of JBL Club 102SL
The Down Fire Wide Format
Down Fire Wide is the Performance Optimized answer to a specific problem: the space under the rear seat of a truck or SUV, or a narrow cargo floor, is long and shallow, and the standard 30 by 15 inch Down Fire cabinet will not go in it.
So the cabinet is turned sideways. This one runs 41 inches wide by 12 inches deep by 7.875 inches tall, measured in the down fire position. It is cut for the same JBL Club 102SL pair as our standard box, 3 inches shallower front to back and 11 inches longer. The airspace lost from the depth is recovered along the length, and the height is solved to the driver.
Measure the depth before anything else. Under seat spaces vary widely between cab configurations, and depth is almost always the limiting dimension. If you have 15 inches of depth, the standard 30 by 15 inch cabinet at 8.37 inches tall is the pick. If your space stops at 12 inches deep and you have 41 inches of run, this cabinet fits. The standoffs add 1.75 inches, so the installed height is 9.625 inches.
Performance, Performance Optimized, and Micro
Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.
| Performance | Performance Optimized | Micro Series | |
|---|---|---|---|
| Fitment | Universal. Accepts any subwoofer that clears the published cutout and mounting depth. | Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver. | Woofer specific. Cut for one named subwoofer. |
| Footprint | Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch. | Shared 30 by 15 inch platform on most builds. Down Fire Wide variants like this one run long and shallow for under seat fitment. | Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch. |
| Front baffle | Single, 3/4 inch. | Double layer, outer layer machined as a flush recess. 1.5 inch. | Double, 1.5 inch. |
| Driver mounting | Solid flange. You drill your own mounting holes. | 8/32 threaded inserts, stainless machine screws included. | 8/32 threaded inserts, stainless machine screws included. |
| Joinery | V-groove and dado, CNC cut. | V-groove and dado, CNC cut, perimeter cross brace. | Stack fab, dowel reinforced. |
| Published alignment | Modeled Qtc profiles across a range of drivers. No single response curve. | A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters. | Target alignment described in the listing. |
| Carpet | Gray standard, black optional. | Plush black. | Plush black. |
| Warranty | 1 year limited. | 1 year limited. | 2 years. |
Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.
This page is a Performance Optimized enclosure. The airspace, the cutout and the cabinet height all come from the driver's own numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.
Built Around a Pair of JBL Club 102SL
The baffles are cut to JBL's 9.00 in (228.6 mm) cutout, and the 10.52 in (267.3 mm) round frame sits on the 12 inch deep baffle with margin fore and aft. The airspace lands on 0.605 cubic feet net per chamber.
The Club 102SL is JBL's shallow-mount 10 inch: an aluminum cone on a rubber surround, a 2 inch voice coil, 350 watts RMS and 1050 watts peak, and just 3.25 inches of mounting depth. On a down fire, where the motor rises into the cabinet, that shallow depth leaves plenty of room. Every figure comes from JBL's own Club 102SL owner's manual, which prints a separate parameter set for each position of the impedance switch. This cabinet is designed on the 4 ohm set.
Two Chambers, Not One Volume
This enclosure follows the Proline X standing rule for dual sealed builds: two fully separate chambers split by a bonded full height 3/4 inch MDF divider, each driver in its own 0.605 cubic feet net with its own polyfill.
Two drivers sharing one sealed volume interact acoustically. Each driver's compression phase becomes the pressure environment the other is working against, which smears transient response and blurs the alignment either would have on its own. A full divider removes that entirely, and on a 41 inch cabinet it ties the front and rear walls together mid span. One shared side mounted terminal cup feeds both driver positions.
Net Volume, Not Gross
Total gross volume is 1.316 cubic feet. After the divider and an estimated 0.04 cubic feet of displacement per driver, each chamber nets 0.605 cubic feet, 1.210 net total. JBL publishes no driver displacement, so that figure is our estimate.
The Club 102SL is a high-Q woofer, Qts 1.097 at 4 ohms, and a sealed box can only raise system Q, never lower it below the driver's own. No sealed box of any size reaches the 0.707 of a flat alignment, so the airspace is chosen for the space, inside JBL's published sealed range, and matched to the standard 30 by 15 cabinet.
At the 4 ohm setting each chamber reads Qtc 1.708, Fc 54.5 Hz, F3 37.4 Hz; at 2 ohms it reads Qtc 1.875, Fc 55.7 Hz, F3 37.8 Hz. At the 4 ohm setting the response rises about 5 dB to a peak near 60 Hz, returns to its reference level around 42 Hz and is 3 dB down at 37.4 Hz. Expect full, punchy upper bass rather than flat, deep extension.
| Setting | System Qtc | Fc | F3 | Peak |
|---|---|---|---|---|
| 4 ohmdesign basis | 1.708 | 54.5 Hz | 37.4 Hz | +5.0 dB |
| 2 ohm | 1.875 | 55.7 Hz | 37.8 Hz | +5.8 dB |
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's displacement, estimated here because JBL publishes none, not guessed from external dimensions minus wall thickness.
Down Fire Wide Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

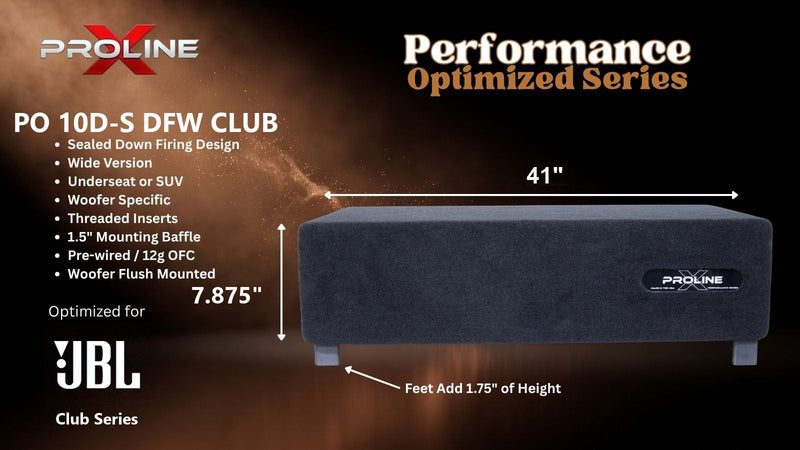

The cabinet measures 41 inches wide by 12 inches deep by 7.875 inches tall, measured in the down fire position. Standoffs ship with the enclosure but are not installed; they add 1.75 inches, for an installed height of 9.625 inches.
1.5 Inch Double Baffle
Two 3/4 inch layers laminated to 1.5 inches, the outer layer machined as a flush recess so the driver bolts to the inner layer, with a threaded insert kit and stainless machine screws included. JBL prints no bolt circle, so the inserts ship loose.
Separate Chambers
A bonded full-height 3/4 inch divider gives each driver its own 0.605 cubic feet net and its own polyfill, and ties the walls together mid span.
One Shared Terminal Cup

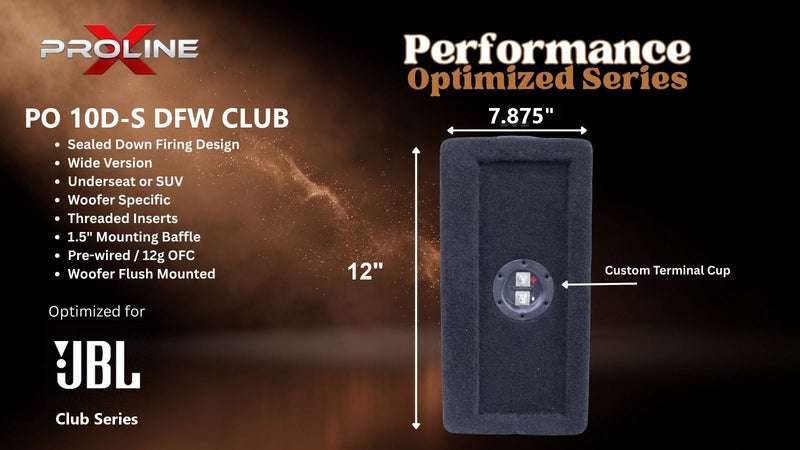

Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, side mounted and pre-wired in 12 gauge OFC to both driver positions in parallel.
Polyfill Installed
Polyfill is installed as a light wall lining in each chamber. It controls internal reflections and is not packed to change the acoustic volume.
Motor Clearance
The 3.25 inch motor rises into the cavity and clears the top panel by 3.875 inches, against a 0.75 inch minimum. Airspace set the height, not clearance.
Power, Mounting and Warranty
JBL rates the Club 102SL at 350 watts RMS and 1050 watts peak, 700 watts RMS combined across the pair. The Club 102SL has one voice coil and JBL's Selectable Smart Impedance (SSI) switch, which sets it to 2 or 4 ohms. Set both drivers the same. Both at 4 ohms and paralleled at the cup gives a 2 ohm load, the usual pairing on a mono amplifier. Both at 2 ohms in parallel is 1 ohm and needs an amplifier rated for it. The 4 ohm setting is also the tighter alignment in this box. Confirm the load against your amplifier's minimum stable impedance before powering the system.
JBL prints no bolt circle for the Club 102SL, so the baffle ships undrilled with a threaded insert kit and stainless machine screws: set the driver in the recess, mark its holes, drill, press the inserts and bolt it down. JBL does not publish a position on down firing this driver, and this cabinet makes no claim on their behalf; the standoffs ship uninstalled, so front firing or up firing is your call at install time.
Bring your own pair of Club 102SL; the drivers are sold separately. The enclosure carries a 1 year limited warranty.
Cut for the Driver, Not the Catalog
Built one at a time in Tullahoma, Tennessee, with standoffs and a 1 year limited warranty. Questions on fitment or amplifier matching, call 931-563-5151.
| Specification | Value |
|---|---|
| Series | Proline X Performance Optimized Down Fire Wide |
| Compatible Driver | JBL Club 102SL, quantity 2. Direct fit |
| Configuration | Dual 10 inch, two separate chambers, sealed down fire |
| Mounting Position | Under the rear seat of trucks and SUVs, or a narrow cargo floor, baffle facing down on standoffs |
| Firing Direction | Downward. Standoffs ship uninstalled, so front or up firing is also possible |
| External Width | 41 in |
| External Depth | 12 in |
| External Height | 7.875 in in the down fire position, excludes standoffs |
| Installed Height | 9.625 in including the 1.75 in standoff |
| Internal Volume, Gross | 1.316 cu ft total |
| Internal Volume, Net Acoustic | 0.605 cu ft per chamber, 1.210 cu ft total, after the divider and an estimated 0.04 cu ft driver displacement per driver |
| Height Set By | Airspace; clearance alone would allow a lower cabinet |
| Driver Mounting Depth | 3.25 in required, 3.875 in clearance above the motor |
| Alignment per chamber, SSI 4 ohm | Qtc 1.708, Fc 54.5 Hz, F3 37.4 Hz anechoic, peak +5.0 dB near 60 Hz |
| Alignment per chamber, SSI 2 ohm | Qtc 1.875, Fc 55.7 Hz, F3 37.8 Hz anechoic, peak +5.8 dB |
| Comparison, Standard 30x15 | 30.00 x 15.00 x 8.37 in, built to 0.60 cu ft net per chamber. Same airspace, different shape |
| Woofer Opening | 9.00 in (228.6 mm), JBL spec, two |
| Frame Outer Diameter | 10.52 in (267.3 mm), JBL spec |
| Bolt Circle | Not printed by JBL; threaded insert kit included |
| Driver Displacement | Not published by JBL; 0.04 cu ft estimated |
| Fs / Qts / Qes / Qms (4 ohm) | 35 Hz / 1.097 / 1.329 / 6.263 |
| Fs / Qts / Qes / Qms (2 ohm) | 36.2 Hz / 1.218 / 1.401 / 9.325 |
| Vas / Mms / Bl (4 ohm) | 24.4 L / 144 g / 10.37 T-m |
| Driver Sd | 346 cm2, JBL spec |
| Xmax | 6 mm, JBL spec |
| Driver Sensitivity | 81 dB at 1 W / 1 m, JBL manual |
| Driver Power Handling | 350 W RMS / 1050 W peak per driver |
| Impedance | Single voice coil, SSI switch-selectable 2 or 4 ohm; a pair at 4 ohm gives 2 ohm parallel at the cup |
| Parameter Source | JBL Club 102SL / 122SL owner's manual |
| Material | Langboard Elite MDF |
| Construction | CNC cut, V-groove and dado joinery, square corners |
| Panel Thickness | 0.75 in |
| Front Baffle | 1.5 in double baffle, outer layer machined as a flush recess |
| Internal Bracing | Full-height 3/4 in divider |
| Driver Mounting | Threaded insert kit included, NOT pre-installed: JBL prints no bolt circle |
| Terminal Cups | One Proline X ABS and carbon fiber composite, side mounted, pre wired 12 gauge OFC to both driver positions |
| Standoffs | Included, 1.75 in, shipped uninstalled |
| Damping | Light polyfill wall lining in both chambers, does not alter acoustic volume |
| Carpet | Plush black |
| Warranty | 1 Year Limited, enclosure |
| Built In | Tullahoma, Tennessee |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
0.605 cu ft against a 24.4 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 6.0 mm, and in this alignment a subsonic filter barely moves it.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 35.00 / 36.20 | Hz | free-air resonance |
| Qts | 1.097 / 1.218 | SSI switch at 4 ohm / SSI switch at 2 ohm | |
| Vas | 24.38 / 23.49 | L | equivalent compliance |
| Sd | 346.4 | cm² | effective piston area |
| Xmax | 6 | mm | one-way linear travel |
| Pe | 350 | W | continuous RMS |
| SPL | 80.8 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by JBL Club 102SL owner's manual. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
