Performance Optimized Down Fire Wide Sealed 12" Enclosure | PowerBass XL-1240T
SKU: PO 12-S DFW XLT
- Alignment: 0.720 cu ft net. Qtc 0.923, Fc 57.9 Hz, F3 47.4 Hz
- Down Fire Wide: 41"W x 14"D x 5.3125"H in down fire position, excludes standoffs, square corners
- Versus the standard 24.89 x 15: 5.3 in tall and 0.40 cu ft net there, 5.3125 in tall and 0.720 cu ft net here
- Driver: PowerBass XL-1240T, 400 W RMS, 7.5 mm Xmax, 3.8 in mounting depth, single 4 ohm, rear vented motor
- Standoffs: Included, 1.75 in, shipped uninstalled. Installed height 7.0625 in
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Wide Sealed 12" Enclosure | PowerBass XL-1240T
More enclosures cut for PowerBass subwoofers: PowerBass Subwoofer Boxes
Proline X Performance Optimized Down Fire Wide 12" Sealed
41 by 14 inch footprint for spaces where height or depth is the limit. Cut for the PowerBass XL-1240T
The Down Fire Wide Format
Down Fire Wide takes the same PowerBass XL-1240T our standard 24.89 by 15 inch Down Fire enclosure is built for and lays the cabinet out along a different axis. It is 1 inch shallower front to back, 14 inches instead of 15, and 16.11 inches longer, 41 instead of 24.89.
Fourteen inches is the practical minimum depth for a 12. The frame needs about 13 inches of baffle, and the cabinet walls need land around it, so the depth cannot come down further. The XL-1240T's 12.244 inch frame sits on the 14 inch deep baffle with about 0.88 inch of baffle fore and aft.
This cabinet is 41 inches wide by 14 inches deep by 5.3125 inches tall, against 5.3 inches tall for the standard 24.89 by 15, both measured in the down fire position and excluding standoffs. The two stand at essentially the same height, because on this driver the motor sets the minimum height of both; the extra length goes into airspace instead. With the 1.75 inch standoffs installed it stands 7.0625 inches.
Which one to choose. The standard 24.89 by 15 is the pick when length is limited. This one is the pick when depth is the limit and you have 41 inches of run. Measure all three before ordering.
Performance, Performance Optimized, and Micro
Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.
| Performance | Performance Optimized | Micro Series | |
|---|---|---|---|
| Fitment | Universal. Accepts any subwoofer that clears the published cutout and mounting depth. | Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver. | Woofer specific. Cut for one named subwoofer. |
| Footprint | Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch. | Shared 30 by 15 inch platform on most builds. Down Fire Wide variants like this one run 41 by 14 for spaces where height or depth is the limit. | Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch. |
| Front baffle | Single, 3/4 inch. | Double layer, outer layer machined as a flush recess. 1.5 inch. | Double, 1.5 inch. |
| Driver mounting | Solid flange. You drill your own mounting holes. | 8/32 threaded inserts, stainless machine screws included. | 8/32 threaded inserts, stainless machine screws included. |
| Joinery | V-groove and dado, CNC cut. | V-groove and dado, CNC cut, perimeter cross brace. | Stack fab, dowel reinforced. |
| Published alignment | Modeled Qtc profiles across a range of drivers. No single response curve. | A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters. | Target alignment described in the listing. |
| Carpet | Gray standard, black optional. | Plush black. | Plush black. |
| Warranty | 1 year limited. | 1 year limited. | 2 years. |
Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.
This page is a Performance Optimized enclosure. The cutout, the cabinet height and the airspace all come from the PowerBass XL-1240T's own published numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.
Built Around the PowerBass XL-1240T
The baffle is bored direct fit to the XL-1240T's published cutout. This is a shallow mount driver: 3.8 inch mounting depth, 7.5 mm of one-way excursion on a 2 in voice coil, 400 watts RMS and 800 peak, rated 33 Hz to 450 Hz.
Published parameters are Fs 33 Hz, Qts 0.526 and Vas 42.37 litres, with 0.126 cubic feet of driver displacement. PowerBass names 0.40 as the optimum sealed volume, quoted as internal airspace that includes the driver's displacement, lists 0.30 to 0.85 as the acceptable range, and does not recommend a ported enclosure for this driver at all.
The XL-T uses a vented rear motor, so the pole vent can be obstructed without harming the driver. On a down fire cabinet that matters: the motor sits inside the enclosure firing at the top panel, and a driver that needs its pole vent kept clear forces a taller box.
Net Volume, Not Gross
The cabinet holds 0.720 cubic feet net from a 0.85 cubic foot gross cavity, after the windowed U-brace and the driver's 0.126 cubic feet of displacement are subtracted.
That produces Qtc 0.923 with Fc at 57.9 Hz and a predicted F3 of 47.4 Hz. The figure is above the 0.707 maximally flat reference, so there is real lift near the corner rather than a textbook flat curve.
Height is set by the motor, not the airspace. The 3.8 inch mounting depth needs the cabinet to leave 0.75 inch above the motor, and at 41 by 14 that minimum height already encloses 0.720 cubic feet net, more than the 0.40 cubic feet the standard 24.89 by 15 box was built to. More air for the same driver lowers Qtc, which is the safe direction: better damping, less peaking, a slightly earlier rolloff.
PowerBass quotes its 0.40 recommendation as gross airspace that includes the driver. This cabinet is 0.720 net, larger than that, and still inside the 0.30 to 0.85 range PowerBass lists as acceptable.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's published displacement, not estimated from external dimensions minus wall thickness. All figures are anechoic; firing down into the floor, the sealed rolloff meets rising cabin gain below 60 Hz, so in-car response extends below them.
Down Fire Wide Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

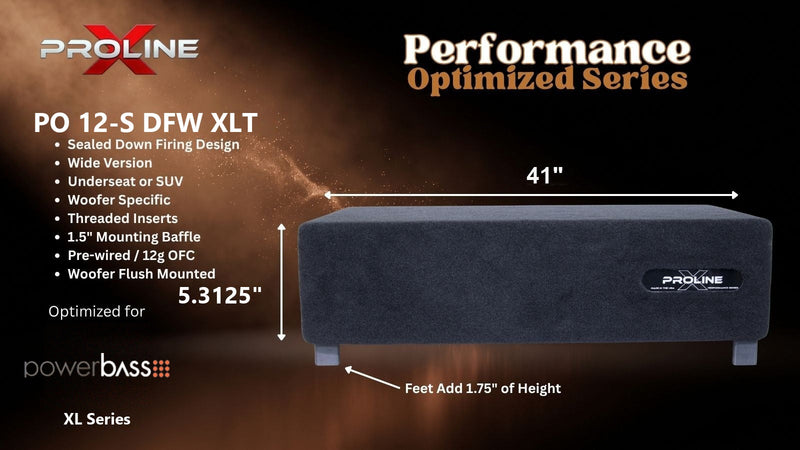

The cabinet measures 41 inches wide by 14 inches deep by 5.3125 inches tall, measured in the down fire position and excluding standoffs. The 1.75 inch standoffs ship with the enclosure but are not installed, so plan the space around the installed height of 7.0625 inches.
1.5 Inch Double Baffle
Two 3/4 inch layers laminated to 1.5 inches, with the outer layer machined as a flush recess so the driver bolts to the inner layer. Mounting is threaded inserts with stainless machine screws.
Frame on a 14 Inch Baffle
The 12.244 inch frame sits on the 14 inch deep baffle with about 0.88 inch of material fore and aft.
Windowed U-Brace
One chamber, braced with a windowed U-brace dadoed to the shell, which stiffens the long panels without walling off the airspace.

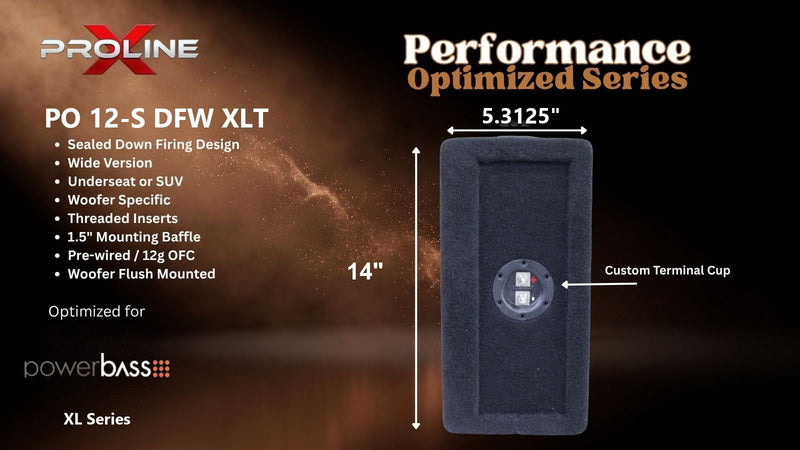

Side-Mounted Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, side mounted and pre-wired in 12 gauge OFC, so it stays accessible with the baffle facing the floor.
Standoffs and Polyfill
1.75 inch standoffs ship uninstalled, so you can place them to suit your floor or leave them off and run the cabinet front or up firing. Polyfill is installed as a light wall lining and does not alter the acoustic volume.
Power and Wiring
The XL-1240T is a single 4 ohm voice coil, so it presents 4 ohms and there is no wiring decision to make. Target 400 watts RMS and set gains properly rather than to a number.
The enclosure carries a 1 year limited warranty. Bring your own XL-1240T; the driver is purchased separately. We do not stock PowerBass drivers.
Cut for the Driver, Not the Catalog
Down Fire Wide, 41 by 14, cut on our ShopSabre routers and built one at a time in Tullahoma, Tennessee. Questions on fitment or amplifier matching, call us at 931-563-5151.
| Specification | Value |
|---|---|
| Series | Proline X Performance Optimized Down Fire Wide |
| Compatible Driver | PowerBass XL-1240T. Direct fit |
| Enclosure Type | Sealed, down fire, floor coupled |
| Intended Fitment | Spaces where height or depth is the limit and 41 in of run is available |
| Chamber Configuration | Single chamber, windowed U-brace, one side-mounted terminal cup |
| External Width | 41 in |
| External Depth | 14 in |
| External Height | 5.3125 in in the down fire position, excludes standoffs |
| Installed Height | 7.0625 in including the 1.75 in standoffs |
| Internal Volume, Gross | 0.85 cu ft |
| Internal Volume, Net | 0.720 cu ft after the brace and 0.126 cu ft displacement |
| Height Set By | Driver clearance: 0.75 in above the 3.8 in motor |
| Alignment | Qtc 0.923, Fc 57.9 Hz, F3 47.4 Hz anechoic |
| Comparison, Standard 24.89 x 15 | 5.3 in tall, 0.40 cu ft net. Wide format is 5.3125 in tall with 0.720 cu ft net |
| Woofer Opening | Direct fit to the XL-1240T |
| Driver Mounting Depth | 3.8 in required, shallow mount |
| Driver Motor | Rear vented, pole vent may be fully obstructed |
| Driver Fs / Qts / Vas | 33 Hz / 0.526 / 42.37 L |
| Driver Displacement | 0.126 cu ft |
| PowerBass Published Target | 0.40 optimum, 0.30 to 0.85 acceptable. Their figures are GROSS and include driver displacement |
| Driver Power Handling | 400 W RMS, 800 W peak |
| Driver Voice Coil | Single 4 ohm, 2 in |
| Wiring | 4 ohms, no wiring choice |
| Material | Langboard Elite 3/4 in MDF |
| Construction | ShopSabre CNC, V-groove and dado joinery |
| Panel Thickness | 0.75 in |
| Front Baffle | 1.5 in double baffle, outer layer machined as a flush recess |
| Internal Bracing | Windowed U-brace, dadoed to the shell |
| Corner Profile | Square, Down Fire series standard |
| Driver Mounting | Threaded inserts with stainless machine screws |
| Terminal Cup | One Proline X ABS and carbon fiber composite, side mounted, pre-wired 12 gauge OFC |
| Standoffs | Included, 1.75 in, shipped uninstalled |
| Damping | Light polyfill wall lining, does not alter acoustic volume |
| Carpet | Plush Black |
| Bundle Options | Enclosure only, bring your own PowerBass XL-1240T |
| Warranty | 1 Year Limited |
| Built In | Tullahoma, Tennessee |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
0.720 cu ft against a 42.4 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 7.5 mm, and in this alignment a subsonic filter barely moves it.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 33.00 | Hz | free-air resonance |
| Qts | 0.526 | XL-1240T | |
| Vas | 42.37 | L | equivalent compliance |
| Sd | 510.7 | cm² | effective piston area |
| Xmax | 7.5 | mm | one-way linear travel |
| Pe | 400 | W | continuous RMS |
| SPL | 85.9 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by powerbassusa.com. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
