Performance Optimized Down Fire Sealed 12" Enclosure | Rockford Fosgate Punch P3 Shallow
SKU: PO 12-S DF P3S
- Alignment: 1.12 cu ft net, Qtc 0.974 / F3 39.4 Hz (D2), Qtc 1.047 / F3 38.1 Hz (D4)
- Driver: Rockford Punch P3SD2-12 (DVC 2Ω) or P3SD4-12 (DVC 4Ω), 400W RMS, 8.4mm Xmax, 3.65" mounting depth, 11.22" cutout
- Driver T/S: 34 Hz Fs and 1.25 cu ft Vas, which is what reaches a 38 Hz F3 under 8 inches tall
- Build: Proline X V-groove and dado joinery, double-layer 1.5" front baffle, perimeter cross-brace, 12g OFC side-mounted terminal cup
- Cabinet: 30"W x 15"D x 7.875"H measured in down fire position, square corners
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Sealed 12" Enclosure | Rockford Fosgate Punch P3 Shallow
Proline X Performance Optimized Down Fire 12" Sealed
Cut and tuned for the Rockford Fosgate Punch P3 Shallow 12
Performance, Performance Optimized, and Micro
Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.
| Performance | Performance Optimized | Micro Series | |
|---|---|---|---|
| Fitment | Universal. Accepts any subwoofer that clears the published cutout and mounting depth. | Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver. | Woofer specific. Cut for one named subwoofer. |
| Footprint | Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch. | Shared 30 by 15 inch platform on most builds, with cabinet height as the variable. A few drivers need a wider or deeper platform. | Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch. |
| Front baffle | Single, 3/4 inch. | Double, 1.5 inch, outer layer machined as a flush recess. | Double, 1.5 inch. |
| Driver mounting | Solid flange. You drill your own mounting holes. | 8/32 threaded inserts, stainless machine screws included. | 8/32 threaded inserts, stainless machine screws included. |
| Joinery | V-groove and dado, CNC cut. | V-groove and dado, CNC cut, perimeter cross brace. | Stack fab, dowel reinforced. |
| Published alignment | Modeled Qtc profiles across a range of drivers. No single response curve. | A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters. | Target alignment described in the listing. |
| Carpet | Gray standard, black optional. | Plush black. | Plush black. |
| Warranty | 1 year limited. | 1 year limited. | 2 years. |

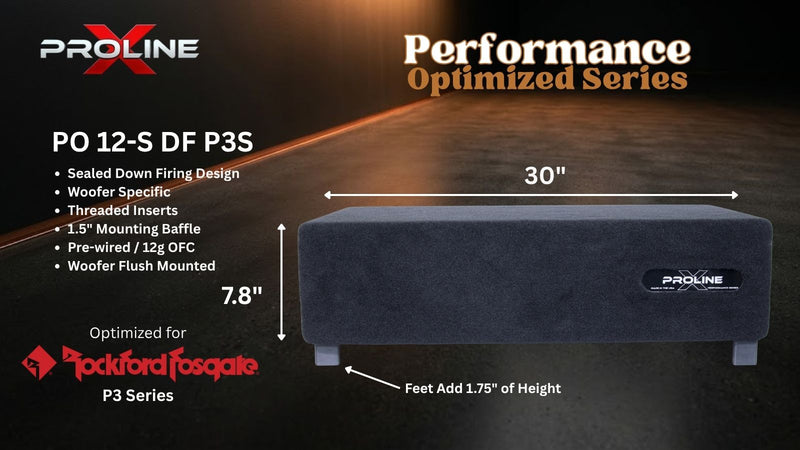

Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.
This page is a Performance Optimized enclosure. The airspace, the cutout and the cabinet height all come from the Rockford Fosgate Punch P3 Shallow 12's own published numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.
Built Around the Rockford Fosgate Punch P3 Shallow 12
Nothing about this cabinet is generic. The baffle is bored to the P3 Shallow 12's 11.22 inch cutout, the internal height is set by its 3.65 inch mounting depth, and the volume is built near the top of Rockford's published sealed range for the driver.
The P3 Shallow 12 comes as the P3SD2-12 (dual 2Ω) or the P3SD4-12 (dual 4Ω), both rated 400 watts RMS with 8.4mm of one-way Xmax. A 2.5 inch four-layer voice coil sits behind an anodized aluminum cone with Rockford's VAST surface technology, and the driver ships with a painted aluminum trim ring. Both models share the same 11.22 inch cutout, 3.65 inch depth and 0.086 cubic foot displacement, so this cabinet is direct fit for either impedance.
What makes this driver work is its Thiele-Small data rather than anything showy: 34 Hz Fs and a 1.25 cubic foot Vas, which for a shallow 12 is genuinely good. That is what reaches a 38 Hz F3 in a cabinet under 8 inches tall. Every external dimension is stated as measured in the down fire position.
Net Volume, Not Gross
We build this cabinet at 1.12 cubic feet net, from 1.21 gross, with the driver's published 0.086 cubic feet of displacement subtracted. Rockford calculates Qtc on gross volume without subtracting the driver, so our figures read slightly higher than theirs against the same box. Same driver, same math, more conservative convention.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's published displacement, not estimated from external dimensions minus wall thickness.
The two coil options sit closer together on the 12 than they do on the 10. The P3SD2-12 has a free-air Qts of 0.67 and lands at Qtc 0.974 with F3 at 39.4 Hz. The P3SD4-12 has a Qts of 0.72 and lands at Qtc 1.047 with F3 at 38.1 Hz. Both sit just above unity with a modest lift at the corner frequency and similar extension. On the 10 the same comparison spreads from 0.795 to 0.969, so there the coil is an alignment decision. Here it is not: pick the coil your amplifier wants and stop thinking about it.
Run the numbers on a different volume with our sealed box calculator.
Why the 12 Reaches Lower Than the 10
The difference comes from the drivers rather than the cabinets. The P3 Shallow 12 has a 34 Hz free-air resonance and a 1.25 cubic foot Vas, against 40 Hz and 0.50 cubic feet on the P3 Shallow 10. In these enclosures the 12 lands at an F3 of 38.1 to 39.4 Hz depending on coil, while the 10 lands at 39.6 to 44.9 Hz. Same series, same footprint, same build, and the 12 buys roughly 6 Hz of extension for 1 inch of cabinet height. It also carries more power, 400 watts RMS against 300.
If your install has 7.875 inches of vertical clearance, this is the one to build.
The figures above are anechoic. In a vehicle the sealed rolloff meets rising cabin gain below 60 Hz, so in-car response extends well below the published F3.
Down Fire Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.
The double baffle earns its keep on this cabinet in particular. An 11.22 inch cutout in a box 7.875 inches tall leaves short panel spans and little room for bracing geometry, so baffle rigidity carries more of the structural load than it would in a taller enclosure.

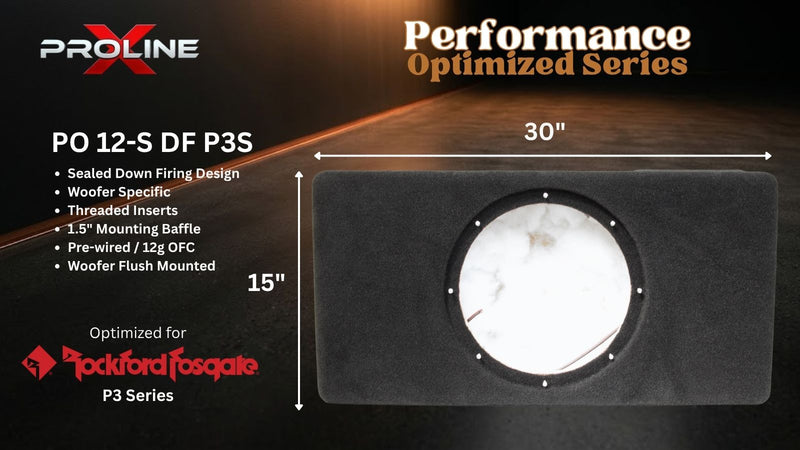

Double Baffle, Flush Recess
The front baffle is 1.5 inches, two bonded 3/4 inch sheets, with the outer layer machined as a flush recess so the driver bolts to the inner layer. That recovers 3/4 inch of internal clearance.

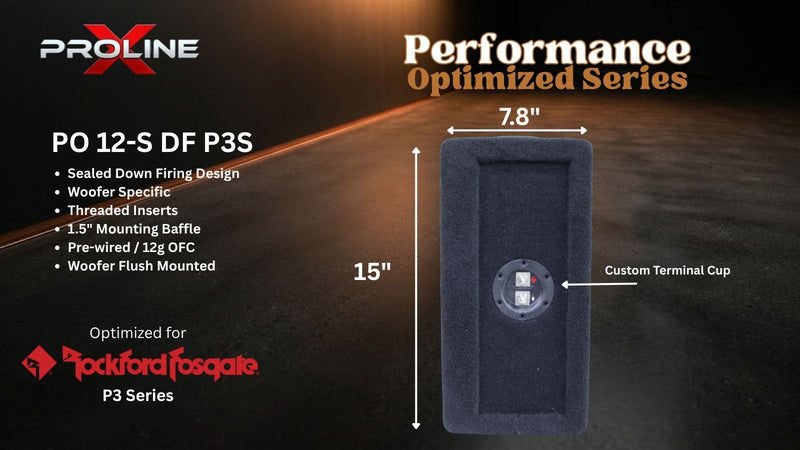

Side-Mounted Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC. Side mounted so it stays accessible with the baffle facing the floor.

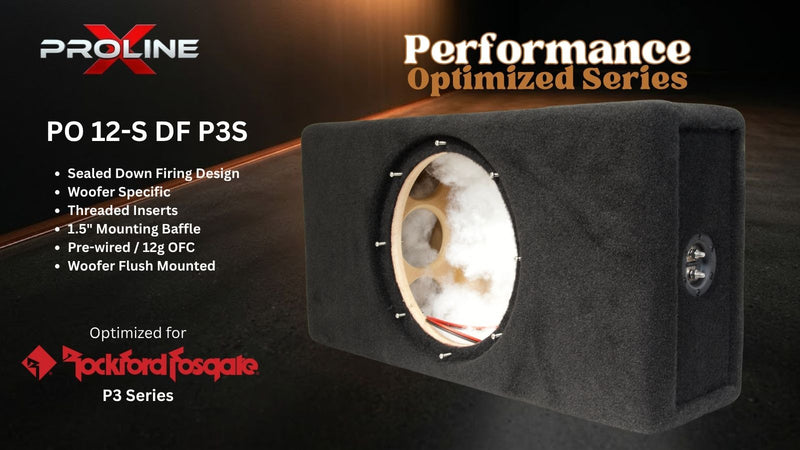

Perimeter Cross-Brace
Cross-bracing ties the long panel spans on a 30 by 15 inch footprint, and polyfill is pre-installed. The driver lands on 8/32 threaded inserts with stainless steel machine screws included.
Power and Warranty
Rockford rates both P3 Shallow 12 models at 400 watts RMS continuous. Target 300 to 400 watts RMS. Both models are dual voice coil, so you set your final impedance by how you wire the coils at the driver. The enclosure ships with one side mounted terminal cup; confirm your amplifier is stable at the load you wire before powering the system.
The enclosure carries a 1 year limited warranty. Bring your own P3SD2-12 or P3SD4-12; the driver is purchased separately.
Cut for the Driver, Not the Catalog
Machined to one driver's published cutout, mounting depth and displacement, then built one at a time in Tullahoma, Tennessee.
| Series | Proline X Performance Optimized Down Fire |
| Compatible Driver | Rockford Fosgate P3SD2-12 (DVC 2Ω) or P3SD4-12 (DVC 4Ω) |
| Enclosure Type | Sealed | Down Fire Geometry | Floor-Coupled |
| Firing Direction | Down Firing, Driver Fires Toward Floor |
| External Width | 30 Inches |
| External Depth | 15 Inches |
| External Height | 7.875 Inches |
| Dimension Reference | All External Dimensions Measured In Down Fire Position |
| Internal Volume (Gross) | 1.21 Cubic Feet |
| Internal Volume (Net After Displacement) | 1.12 Cubic Feet |
| Target System Qtc (P3SD2-12) | 0.974 (Computed from Published T/S) |
| Predicted F3 (P3SD2-12) | 39.4 Hz |
| Driver Fs | 34 Hz |
| Driver Free-Air Qts | 0.67 (D2) / 0.72 (D4) |
| Driver Displacement | 0.086 Cubic Feet (Published by Rockford Fosgate) |
| Mounting Depth Required | 3.65 Inches (Rockford Fosgate Spec) |
| Woofer Opening | 11.22 Inches (Rockford Fosgate Spec) |
| Voice Coil Configuration | Dual Voice Coil, Final Impedance Set At The Driver |
| Material | Langboard Elite 3/4" MDF |
| Construction | ShopSabre CNC / Perimeter Cross-Brace |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Panel Thickness | 3/4 Inch |
| Front Baffle Construction | Double-Layer 1.5" MDF (Two 3/4" Sheets Bonded) |
| Corner Profile | Square (Down Fire Series Standard) |
| Driver Mounting | 8/32 Threaded Inserts | Stainless Steel Machine Screws Included |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | Side Mounted | 12g OFC Pre-Wired |
| Damping | Polyfill Pre-Installed |
| Recommended Power | 300-400 Watts RMS (Rockford Rated: 400W RMS Continuous) |
| Carpet Finish | Plush Black |
| Bundle Options | Enclosure Only (Bring Your Own P3SD2-12 or P3SD4-12) |
| Weight | 34 lb |
| Warranty | 1-Year Limited (Enclosure) |
| Built In | Tullahoma, Tennessee, USA |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
1.12 cu ft against a 35.3 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 8.4 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 34.00 | Hz | free-air resonance |
| Qts | 0.670 | D2 | |
| Vas | 35.30 | L | equivalent compliance |
| Sd | 500.0 | cm² | effective piston area |
| Xmax | 8.4 | mm | one-way linear travel |
| Pe | 400 | W | continuous RMS |
| SPL | 84.5 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by rockfordfosgate.com. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
