Proline X PO 10-S DFW T1 sealed down-fire wide enclosure for the Rockford Fosgate T1 Slim, 41 inches wide by 6.6875 inches tall, feet add 1.75 inches of height.

Proline X PO 10-S DFW T1 sealed down-fire wide enclosure, end panel with side-mounted terminal cup, 6.6875 inches tall by 12 inches deep.

Proline X

Performance Optimized Down Fire Wide Sealed 10" Shallow Sub Enclosure | Rockford Fosgate T1 Slim

Q: Why is this cabinet 41 inches wide instead of 30?

Because it is only 12 inches deep. The standard Performance Optimized Down Fire platform is 30 wide by 15 deep, and under a rear seat or on a narrow cargo floor there is often not 15 inches to give.The airspace lost from the depth is recovered from the length, so the cabinet runs 41 inches instead of 30 and stands 6.6875 inches tall, with the same driver specific chamber. If you do have 15 inches of depth, the standard 30 by 15 cabinet is the better pick.

Q: How does this compare to the standard 30 x 15 T1 Slim 10 enclosure?

The standard cabinet is 30 by 15 by 7 inches and gives the driver 0.99 cubic feet net. This one is 41 by 12 by 6.6875 inches and gives the driver 1.003 cubic feet net. The height was solved to hold the same airspace as the standard box, so the two sit on essentially the same air.The choice is about shape: the standard box if you have 15 inches of depth, this one when depth is the limit and you have 41 inches of run.

Q: Why is the Qtc above 1.0? Is this enclosure too small?

No. The high Qtc comes from the driver, not the box. Free-air Qts is 0.95 on the T1S1-10 and 1.04 on the T1S2-10, and system Qtc can only approach Qts as the box grows, never drop below it. Because Qts is already above 0.707, no sealed volume of any size gives this driver a textbook flat alignment. A smaller box would make it worse, which is why this cabinet carries 1.003 cubic feet net.

Q: What does an under-damped alignment actually sound like?

A peak just above the corner frequency, roughly 2 dB on the 1 ohm model and 3 dB on the 2 ohm, followed by a steeper rolloff below it. In practice that reads as punch and impact rather than flat, deep extension. The peak is also why F3 lands low here, 37.9 Hz on the T1S1-10 against an Fc of 50.8 Hz. In a vehicle, firing into the floor, it lands where cabin gain is already rising.

Q: Should I choose the T1S1-10 or the T1S2-10?

Both are single voice coil and both fit this cabinet identically. In 1.003 cubic feet net the T1S1-10 lands at Qtc 1.148 with Fc at 50.8 Hz and F3 at 37.9 Hz; the T1S2-10 lands at Qtc 1.257 with Fc at 52.6 Hz and F3 at 38.2 Hz. The 1 ohm model is the better damped of the two. Choose by the load your amplifier is stable into first, then take the damping difference as a secondary consideration.

Q: How do I wire this enclosure?

Straightforward, because both T1 Slim models are single voice coil, so there is no series or parallel decision at the driver. The one side mounted Proline X terminal cup is pre-wired in 12 gauge OFC, and the impedance your amplifier sees is the model you install: 1 ohm for the T1S1-10, 2 ohm for the T1S2-10. Rockford rates both at 500 watts RMS; target 350 to 500 watts RMS and confirm your amplifier is stable at that load.

Q: How is this enclosure built?

V-groove and dado joinery, CNC cut on ShopSabre routers from Langboard Elite MDF, so every panel joint locks mechanically before adhesive is applied. The front baffle is a 1.5 inch double layer with the outer layer machined as a flush recess, and the driver lands on 8/32 threaded inserts with stainless machine screws. A windowed U-brace ties the long 41 inch panels together, polyfill is installed as a light wall lining, and corners are square, the Down Fire series standard. The terminal cup is side mounted so it stays accessible with the baffle facing the floor. Assembled and inspected in Tullahoma, Tennessee.

Q: Is the Rockford Fosgate T1 Slim subwoofer included with this enclosure?

No. This listing is for the enclosure only. Bring your own Rockford Fosgate T1S1-10 or T1S2-10; the cutout and mounting depth are direct fit for either model. We also sell the current Gen-2 Rockford Fosgate T1S2-10S, which uses the same 9.13 inch cutout. The 1.75 inch feet ship uninstalled, for an installed height of 8.4375 inches.

SKU: PO 10-S DFW T1

QUICK SPECS

Alignment: 1.003 cu ft net. T1S1-10 (1 ohm) Qtc 1.148, Fc 50.8 Hz, F3 37.9 Hz; T1S2-10 (2 ohm) Qtc 1.257, Fc 52.6 Hz, F3 38.2 Hz. Under-damped and punchy by design
Why Qtc Is High: Free-air Qts is 0.95 (1 ohm) and 1.04 (2 ohm), already above 0.707, so no sealed volume reaches a flat alignment with this driver
Down Fire Wide: 41"W x 12"D x 6.6875"H in down fire position, 3" shallower and 11" longer than the standard 30 x 15, for under rear seats and narrow cargo floors
Driver: Rockford Fosgate T1S1-10 (1 ohm SVC) or T1S2-10 (2 ohm SVC), 500W RMS, 15mm Xmax, 3.03" mounting depth, 9.13" cutout
Build: Windowed U-brace, 1.5" double baffle, one side-mounted terminal cup, 12g OFC
Feet: 1.75", ship uninstalled. Installed height 8.4375"

Shipping Included No freight charges at checkout. What you see is what you pay.

Built in Tennessee CNC cut from 3/4" Langboard Elite MDF. V-groove and dado joinery.

Advanced Terminal Cup Built in-house. ABS/Carbon Fiber. Stainless steel hardware. Copper ring terminals.

$ 299.99

In Stock and Ready to Ship

Financing available. Choose Shop Pay Installments at checkout.

Performance Optimized Down Fire Wide Sealed 10" Shallow Sub Enclosure | Rockford Fosgate T1 Slim

$ 299.99

More enclosures cut for Rockford Fosgate subwoofers: Rockford Fosgate Subwoofer Boxes

Enclosure Type Sealed

External Dimensions 41" W x 12" D x 6.6875" H (measured in down fire position, excludes standoffs)

Gross Volume 1.04 cu ft

Net Volume 1.003 cu ft

Shipping Weight 43.1 lbs

Front Panel Thickness 1.5"

INSTALLER'S TAKE

The T1 Slim 10 is a genuine 3 inch deep driver with a 2.5 inch four-layer coil and 15 mm of one-way Xmax behind an anodized aluminum cone. This cabinet puts it 12 inches deep for the space under a rear bench.

Here is what you need to understand before you buy a box for it. Free-air Qts is 0.95 on the 1 ohm model and 1.04 on the 2 ohm. Qtc only falls toward Qts as the box grows, never below it, so no sealed enclosure in any car puts a T1 Slim at 0.707. Every box built for it is under-damped with a peak near the corner.

In 1.003 cubic feet net the T1S1-10 sits at Qtc 1.148 with F3 at 37.9 Hz, and the T1S2-10 at Qtc 1.257 with F3 at 38.2 Hz. The peak is what holds F3 that low. It reads as punch, which is exactly what Rockford built this driver to do in a thin box.

Height was solved to the airspace, with nearly 3 inches left above the motor. More volume is the only lever with this driver, so we did not trim it. Single voice coil, so whatever you buy is what the amp sees. Target 350 to 500 watts RMS.

Product Details

Proline X Performance Optimized Down Fire Wide 10" Sealed

Under rear seat and narrow cargo floor fitment. Cut for the Rockford Fosgate T1 Slim 10

Down Fire WideV-Groove and Dado12" Shallow DepthLangboard Elite MDF

1.003cu ft net

1.148 / 1.257system Qtc, 1 ohm / 2 ohm

37.9 HzF3 rolloff, 1 ohm

6.6875 incabinet height, excludes feet

The Down Fire Wide Format

Down Fire Wide answers a specific space problem. The floor under the rear seat of a truck or SUV, and many narrow cargo floors, is long and shallow, and a standard 30 by 15 inch enclosure will not go in it.

So the cabinet is turned sideways. This one runs 41 inches wide by 12 inches deep by 6.6875 inches tall, measured in the down fire position. Against our standard 30 by 15 inch T1 Slim 10 cabinet it takes the same driver, sits 3 inches shallower front to back and runs 11 inches longer. The airspace lost from the depth is recovered along the length, so the driver still gets a full size chamber rather than a compromised one.

Which one to choose. If you have 15 inches of depth, the standard 30 by 15 cabinet is the pick: it is shorter end to end and easier to place. Choose this one when depth is the limiting dimension and you have 41 inches of run. Measure the depth first; under seat spaces vary widely between cab configurations.

Performance, Performance Optimized, and Micro

Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.

	Performance	Performance Optimized	Micro Series
Fitment	Universal. Accepts any subwoofer that clears the published cutout and mounting depth.	Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver.	Woofer specific. Cut for one named subwoofer.
Footprint	Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch.	Shared 30 by 15 inch platform on most builds. Down Fire Wide variants like this one run long and shallow for under seat fitment.	Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch.
Front baffle	Single, 3/4 inch.	Double layer, outer layer machined as a flush recess. 1.5 inch.	Double, 1.5 inch.
Driver mounting	Solid flange. You drill your own mounting holes.	8/32 threaded inserts, stainless machine screws included.	8/32 threaded inserts, stainless machine screws included.
Joinery	V-groove and dado, CNC cut.	V-groove and dado, CNC cut, perimeter cross brace.	Stack fab, dowel reinforced.
Published alignment	Modeled Qtc profiles across a range of drivers. No single response curve.	A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters.	Target alignment described in the listing.
Carpet	Gray standard, black optional.	Plush black.	Plush black.
Warranty	1 year limited.	1 year limited.	2 years.

Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.

This page is a Performance Optimized enclosure. The cutout, the mounting depth and the chamber volume all come from the Rockford Fosgate T1 Slim 10's own numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.

Built Around the Rockford Fosgate T1 Slim 10

The baffle is bored to the T1 Slim 10's 9.13 inch cutout, and the internal height starts from its 3.03 inch mounting depth. The frame is round and sits on the 12 inch deep baffle with material to spare.

The T1 Slim 10 ships as the T1S1-10 (1 ohm single voice coil) or the T1S2-10 (2 ohm single voice coil), both rated 500 watts RMS and 1,000 watts program, with 15 mm of one-way Xmax. A 2.5 inch four-layer voice coil sits behind an anodized aluminum cone with Rockford's VAST surface technology and an integrated trim ring. Both models share the same cutout, mounting depth and displacement, so this cabinet is direct fit for either impedance.

It is a genuinely shallow driver that moves real air, and it is built for high Q. Free-air Qts is 0.95 on the T1S1-10 and 1.04 on the T1S2-10, and that single fact shapes everything in the alignment section below.

Net Volume and Alignment

The chamber holds 1.003 cubic feet net, from 1.038 cubic feet gross after the driver's displacement and the internal brace. Alignment figures are computed from the loudspeakerdatabase.com Thiele-Small set for each model: Fs 42 Hz, Qts 0.95, Vas 13.1 liters on the T1S1-10, and Fs 43.5 Hz, Qts 1.04, Vas 13.1 liters on the T1S2-10.

Model	System Qtc	Fc	F3, anechoic
T1S1-10, 1 ohm SVC	Qtc 1.148	50.8 Hz	37.9 Hz
T1S2-10, 2 ohm SVC	Qtc 1.257	52.6 Hz	38.2 Hz

Height is the free dimension. With the footprint fixed at 41 by 12, the cabinet height was solved to put the chamber on the same airspace as the standard 30 by 15 box, then rounded up to the next sixteenth so the volume lands on the target rather than under it. The motor clears the top panel with 2.9 inches to spare, so airspace set this height, not clearance.

Run the numbers on a different volume with our sealed box calculator.

True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver displacement, not estimated from external dimensions minus wall thickness. All figures are anechoic; firing down into the floor, the sealed rolloff meets rising cabin gain and in-car response extends below them.

A High-Q Alignment, Stated Honestly

Both coils land well above 1.0. That is an under-damped, punchy alignment: the response rises into a peak of roughly 2 dB on the T1S1-10 and roughly 3 dB on the T1S2-10 just above the corner frequency, then rolls off more steeply below it. The peak holds output up through the corner, which is why F3 sits well below Fc here. The low F3 comes from the peak, not from deep flat extension.

No sealed box in a car gets this driver to a textbook 0.707. System Qtc can only fall toward the driver's own Qts as the box grows, never below it, and Qts itself is already above 0.707 on both models. There is no sealed volume, at any size, that reaches it.

That is Rockford's design intent rather than a defect. The T1 Slim was built for thin prefab boxes, where the peak plus cabin gain reads as punch and impact and makes a shallow cabinet sound larger than it measures. Firing down into the floor, the peak sits where cabin gain is already climbing. The only lever left is volume, and more is better: a smaller box raises Qtc and sharpens the peak, which is why this cabinet carries the full 1.003 cubic feet.

Down Fire Wide Construction

Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

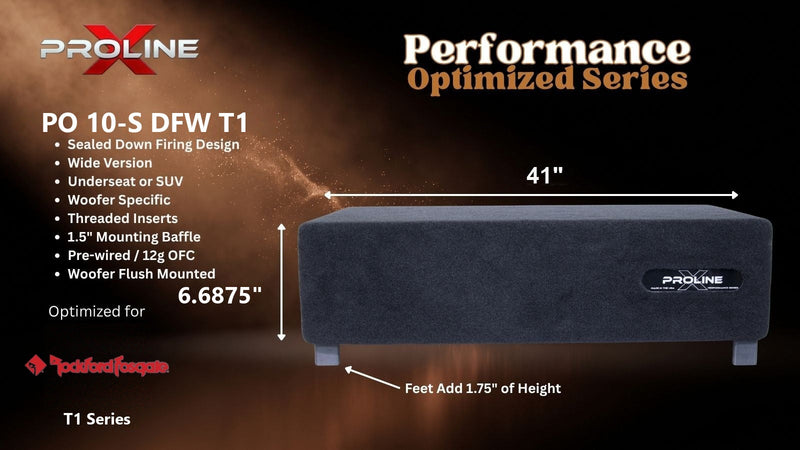

The cabinet measures 41 inches wide by 12 inches deep by 6.6875 inches tall, measured in the down fire position. The 1.75 inch feet ship with the enclosure but are not installed, so plan the space around an installed height of 8.4375 inches if you use them.

1.5 Inch Double Baffle

Two 3/4 inch layers laminated to 1.5 inches, with the outer layer machined as a flush recess so the driver bolts to the inner layer on 8/32 threaded inserts. Stainless machine screws included.

Windowed U-Brace

A windowed U-brace dadoed to the shell ties the long 41 inch panels together without closing off the chamber. Polyfill is installed as a light wall lining.

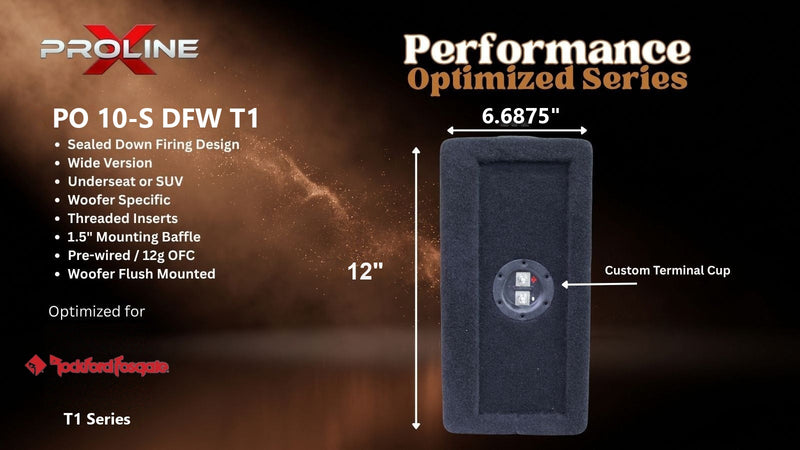

Side-Mounted Terminal Cup

One Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, side mounted and pre-wired in 12 gauge OFC, so it stays accessible with the baffle facing the floor.

Power and Wiring

Rockford rates both T1 Slim 10 models at 500 watts RMS continuous. Target 350 to 500 watts RMS.

Wiring is simple because both models are single voice coil, so there is no series or parallel decision at the driver. The impedance your amplifier sees is set by the model you buy: 1 ohm for the T1S1-10, 2 ohm for the T1S2-10. The enclosure ships with one side mounted terminal cup pre-wired in 12 gauge OFC; confirm your amplifier is stable at that load before powering the system.

The driver is purchased separately: bring your own T1S1-10 or T1S2-10, or order the current Gen-2 Rockford Fosgate T1S2-10S from us, which uses the same 9.13 inch cutout. The enclosure carries a 1 year limited warranty. Plush black carpet.

Cut for the Driver, Not the Catalog

Down Fire Wide, built for the space under a rear bench, one at a time in Tullahoma, Tennessee. Questions on fitment or amplifier matching, call 931-563-5151.

Specifications

Series	Proline X Performance Optimized Down Fire Wide
Compatible Driver	Rockford Fosgate T1S1-10 (1 ohm SVC) or T1S2-10 (2 ohm SVC). Direct fit
Enclosure Type	Sealed, single driver, down fire, floor coupled
Intended Fitment	Under the rear seat of trucks and SUVs and narrow cargo floors, where depth is the limiting dimension
Firing Direction	Down firing, driver fires toward the floor. Feet ship uninstalled, so front or up firing is also possible
Chamber Configuration	Single sealed chamber, windowed U-brace, one side-mounted terminal cup
External Width	41 in
External Depth	12 in
External Height	6.6875 in in the down fire position, excludes feet
Installed Height	8.4375 in with the 1.75 in feet
Standard 30 x 15 Equivalent	30 x 15 x 7 in, 0.99 cu ft net. Same driver, deeper and shorter footprint
Internal Volume, Gross	1.038 cu ft
Net Volume	1.003 cu ft after displacement
Height Set By	Airspace; motor clearance allows a lower cabinet
Clearance Above Motor	2.9 in
Alignment, T1S1-10	Qtc 1.148, Fc 50.8 Hz, F3 37.9 Hz anechoic. Under-damped
Alignment, T1S2-10	Qtc 1.257, Fc 52.6 Hz, F3 38.2 Hz anechoic. Under-damped
T/S Source	loudspeakerdatabase.com, T1S1-10 and T1S2-10
Driver Fs	42 Hz (T1S1-10) / 43.5 Hz (T1S2-10)
Driver Free-Air Qts	0.95 (T1S1-10) / 1.04 (T1S2-10). Above 0.707, so no sealed volume reaches a flat alignment
Driver Vas	13.1 L
Driver Xmax	15mm one way
Woofer Opening	9.13 in
Mounting Depth Required	3.03 in (77 mm)
Driver Displacement	0.0279 cu ft (0.79 L)
Voice Coil	2.5 in, four layer
Driver Cone	Anodized aluminum, VAST surface technology, integrated trim ring
Voice Coil Configuration	Single voice coil, impedance set by driver model
Recommended Power	350 to 500 W RMS (Rockford rated: 500 W RMS continuous, 1,000 W program)
Material	Langboard Elite MDF
Construction	CNC cut on ShopSabre routers, V-groove and dado joinery
Panel Thickness	0.75 in
Front Baffle	1.5 in double baffle, outer layer machined as a flush recess
Internal Bracing	Windowed U-brace, dadoed to the shell
Corner Profile	Square, Down Fire series standard
Driver Mounting	8/32 threaded inserts, stainless machine screws included
Terminal Cup	One Proline X ABS and carbon fiber composite, side mounted
Internal Wiring	12 gauge OFC
Feet	Included, 1.75 in, shipped uninstalled
Damping	Polyfill pre-installed as a light wall lining
Carpet	Plush Black
Bundle Options	Enclosure only, bring your own T1S1-10 or T1S2-10
Warranty	1 Year Limited
Built In	Tullahoma, Tennessee

Performance Graphs

Net airspace

1.003

cu ft per chamber

System Qtc

1.15–1.26

sealed

Half power

37.9–38.2

Hz · F3

Xmax at

565

W RMS · no filter

With 25 Hz subsonic

572

W RMS · +1%

Amplifier

500

W RMS recommended

This enclosure holds 1.003 cu ft net per chamber. In it the Rockford Fosgate T1 Slim runs a system Qtc of 1.15–1.26 with half power at 37.9–38.2 Hz, and the cone reaches its 15.0 mm travel limit at 565 W, above the driver’s 500 W thermal rating, so heat stops you before travel does. A 25 Hz subsonic filter adds little here: 572 W against 565 W, 1 percent. The box already resonates at 51–53 Hz, so its own rolloff has removed most of what the filter would have stopped.

01Is it a sealed driver?

Efficiency bandwidth product places the motor before anything else is decided.

EBP = Fs ÷ Qes = 37.2–40.0

T1S1-10 (1 ohm) · EBP 40.0T1S2-10 (2 ohm) · EBP 37.2

EBP under 50 means a motor that wants a sealed load. The T1 Slim sits at 37.2–40.0, inside that band, which is why this is a sealed build rather than a ported one.

02What the box does to it

1.003 cu ft against a 13.1 L Vas.

α = Vas ÷ Vb = 0.46 · Fc = Fs√(α+1) = 51–53 Hz · Qtc = 1.15–1.26

T1S1-10 (1 ohm) · Qtc 1.15, Fc 51 Hz, F3 37.9 HzT1S2-10 (2 ohm) · Qtc 1.26, Fc 53 Hz, F3 38.2 Hz

The box lifts resonance from 42.0–43.5 Hz free-air to 51–53 Hz and half power lands at 37.9–38.2 Hz, anechoic, before any cabin gain. This enclosure ships without a driver, so both coil variants the maker offers are plotted. They do not load the same box the same way.

03The watts that reach Xmax (in this enclosure)

Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 15.0 mm, and in this alignment a subsonic filter barely moves it.

P_Xmax = 565 W unfiltered → 572–577 W with a 25 Hz subsonic

T1S1-10 (1 ohm) · 565 W, no filterT1S2-10 (2 ohm) · 565 W, no filterT1S1-10 (1 ohm) · 577 W with subsonic at 25 Hz, 24 dB/octT1S2-10 (2 ohm) · 572 W with subsonic at 25 Hz, 24 dB/octXmax 15.0 mm one-way

Every trace touches the limit and no further, because each is drawn at the exact power that puts that coil on 15.0 mm. Unfiltered that is 565 W, reached first at 44 Hz. It sits above the 500 W the driver can take thermally, so the voice coil gives up before the suspension does. The dashed traces are the same driver behind a subsonic filter at 25 Hz, 24 dB/oct, and they sit almost on top of the solid ones: 572 W against 565 W. At 51–53 Hz the filter sits well below resonance, where the sealed alignment has already rolled the cone off at 12 dB/oct, so there is little wasted travel left for it to recover. Set it anyway to keep road rumble out of the cone, but do not size the amplifier around it.

Param	Value	Unit	Note
Fs	42.00 / 43.50	Hz	free-air resonance
Qts	0.950 / 1.040		T1S1-10 (1 ohm) / T1S2-10 (2 ohm)
Vas	13.10 / 13.10	L	equivalent compliance
Sd	356.0	cm²	effective piston area
Xmax	15	mm	one-way linear travel
Pe	500	W	continuous RMS
SPL	81.5	dB	1 W / 1 m, derived from T/S

Driver parameters as published by loudspeakerdatabase.com. Curves computed against this enclosure’s actual net airspace.

Materials

Material

Built From a Spec Sheet, Not a Sales Sheet

Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.

Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.

Specifications

Langboard Elite MDF: Published Mill Data

Property	Value	Why It Matters
Panel Stock	Langboard Elite MDF	Named, verifiable panel source, not generic "high-density MDF"
Thickness	3/4" (18mm)	Industry standard for subwoofer enclosures; panels below this flex under pressure
Density	48.5 lbs/ft³	Higher density = less porosity, better screw retention, reduced resonance
Internal Bond	200 psi	Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet
Modulus of Rupture (MOR)	4,200 psi	Bending strength before the panel breaks, relevant for larger unsupported baffle spans
Modulus of Elasticity (MOE)	410,000 psi	Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance
Face Screw Holding	325 lbs	How firmly the panel surface holds a screw; critical for baffle joint integrity over time
Edge Screw Holding	250 lbs	Panel edge retention, relevant for every joint that isn't face-to-face

Internal Bond

200 psi: The Number That Actually Matters for Enclosures

The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.

Stiffness

410,000 psi MOE: Less Flex, Less Resonance

The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.

Screw Holding

325 lb Face / 250 lb Edge: Joints That Stay Locked

Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.

Sourcing

Named Panel Stock: Not "Premium MDF"

The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.

Why Proline X?

Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.

CNC-Cut to Spec

Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
