Performance Optimized Down Fire Wide Sealed 12" Enclosure | Rockford Fosgate Punch P3 Shallow
SKU: PO 12-S DFW P3S
- Alignment: 1.124 cu ft net. P3SD2-12, dual 2 ohm: Qtc 0.973, Fc 49.4 Hz, F3 39.3 Hz; P3SD4-12, dual 4 ohm: Qtc 1.046, Fc 49.4 Hz, F3 38.1 Hz
- Down Fire Wide: 41"W x 14"D x 6.625"H in down fire position, excludes the 1.75" standoffs (installed height 8.375"). Stands lower than the standard 30 x 15 at 7.875"
- Height set by: airspace; 2.23" of clearance above the motor
- Driver: Rockford Punch P3SD2-12 (DVC 2 ohm) or P3SD4-12 (DVC 4 ohm), 400W RMS, 8.4mm Xmax, 3.65" mounting depth, 11.22" cutout
- Build: Langboard Elite MDF, V-groove and dado, 1.5" double baffle with flush outer recess, windowed U-brace, 12g OFC side-mounted terminal cup
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Wide Sealed 12" Enclosure | Rockford Fosgate Punch P3 Shallow
More enclosures cut for Rockford Fosgate subwoofers: Rockford Fosgate Subwoofer Boxes
Proline X Performance Optimized Down Fire Wide 12" Sealed
41 inch wide, 14 inch deep format. Cut for the Rockford Fosgate Punch P3 Shallow 12
The Down Fire Wide Format
Down Fire Wide is the Performance Optimized answer to a space that is long rather than deep or tall. This cabinet runs 41 inches wide by 14 inches deep by 6.625 inches tall: 1 inch shallower front to back than our standard 30 by 15 inch Down Fire platform, and 11 inches longer.
Fourteen inches is the practical minimum for a 12 inch driver: a 12 inch frame needs about 13 inches of baffle. The P3 Shallow 12's 13.07 inch frame sits on the 14 inch deep baffle with about 0.46 inch of baffle outside the flange fore and aft. Because the airspace is spread along 41 inches instead of 30, the wide cabinet usually stands lower than the standard box, and it does here: 6.625 inches against 7.875 inches for the standard 30 by 15 P3 Shallow 12 cabinet.
With the footprint fixed at 41 by 14, height is the free dimension, and it was solved to the airspace: 1.124 cubic feet net, against 1.12 in the standard box. The motor clears the top panel with 2.23 inches to spare, so clearance did not set the height.
Which one to choose. The standard 30 by 15 is the pick when length is limited. This one is the pick when height or depth is the limit and you have 41 inches of run: under or behind a rear bench, or along a cargo wall. Measure depth and height first; depth is usually the dimension that decides it.
Performance, Performance Optimized, and Micro
Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.
| Performance | Performance Optimized | Micro Series | |
|---|---|---|---|
| Fitment | Universal. Accepts any subwoofer that clears the published cutout and mounting depth. | Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver. | Woofer specific. Cut for one named subwoofer. |
| Footprint | Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch. | Shared 30 by 15 inch platform on most builds. Down Fire Wide variants like this one run long and shallow for under seat fitment. | Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch. |
| Front baffle | Single, 3/4 inch. | Double layer, outer layer machined as a flush recess. 1.5 inch. | Double, 1.5 inch. |
| Driver mounting | Solid flange. You drill your own mounting holes. | 8/32 threaded inserts, stainless machine screws included. | 8/32 threaded inserts, stainless machine screws included. |
| Joinery | V-groove and dado, CNC cut. | V-groove and dado, CNC cut, windowed internal brace. | Stack fab, dowel reinforced. |
| Published alignment | Modeled Qtc profiles across a range of drivers. No single response curve. | A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters. | Target alignment described in the listing. |
| Carpet | Gray standard, black optional. | Plush black. | Plush black. |
| Warranty | 1 year limited. | 1 year limited. | 2 years. |
Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.
This page is a Performance Optimized enclosure. The cutout, the mounting depth and the chamber volume all come from the Rockford Fosgate Punch P3 Shallow 12's own numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.
Built Around the Rockford Fosgate Punch P3 Shallow 12
The baffle is bored to the P3 Shallow 12's 11.22 inch cutout, and the 3.65 inch mounting depth leaves room to spare above the motor. The 13.07 inch frame is the widest in this group, and on the 14 inch deep baffle it still leaves about 0.46 inch of material fore and aft.
The P3 Shallow 12 comes as the P3SD2-12 (dual 2 ohm) or the P3SD4-12 (dual 4 ohm), both rated 400 watts RMS with 8.4mm of one-way Xmax. A 2.5 inch four-layer voice coil sits behind an anodized aluminum cone with Rockford's VAST surface technology, and the driver ships with a painted aluminum trim ring. Both models share the same cutout, depth and 0.086 cubic foot displacement, so this cabinet is direct fit for either impedance.
What makes this driver work is its Thiele-Small data rather than anything showy: 34.0 Hz Fs and a 35.3 liter Vas, which for a shallow 12 is genuinely good.
Net Volume, Not Gross
We build this cabinet at 1.124 cubic feet net from 1.218 gross, after the internal brace and Rockford Fosgate's published 0.086 cubic feet of displacement are accounted for.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's displacement, not estimated from external dimensions minus wall thickness.
Rockford publishes Fs 34.0 Hz and a 35.3 liter Vas for both models, with free-air Qts of 0.67 on the D2 and 0.72 on the D4.
| Coil | System Qtc | Fc | F3 |
|---|---|---|---|
| P3SD2-12, dual 2 ohm | Qtc 0.973 | 49.4 Hz | 39.3 Hz |
| P3SD4-12, dual 4 ohm | Qtc 1.046 | 49.4 Hz | 38.1 Hz |
Both coils sit just around unity with a modest lift at the corner and F3 within about a hertz of each other, so the coil is not an alignment decision here: pick the one your amplifier wants. Rockford calculates Qtc on gross volume without subtracting the driver, so their figures read slightly lower than ours against the same box. Same driver, more conservative convention.
These figures are anechoic. Firing down into the floor, the sealed rolloff meets rising cabin gain below about 60 Hz, so in-car response extends below the published F3.
Down Fire Wide Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

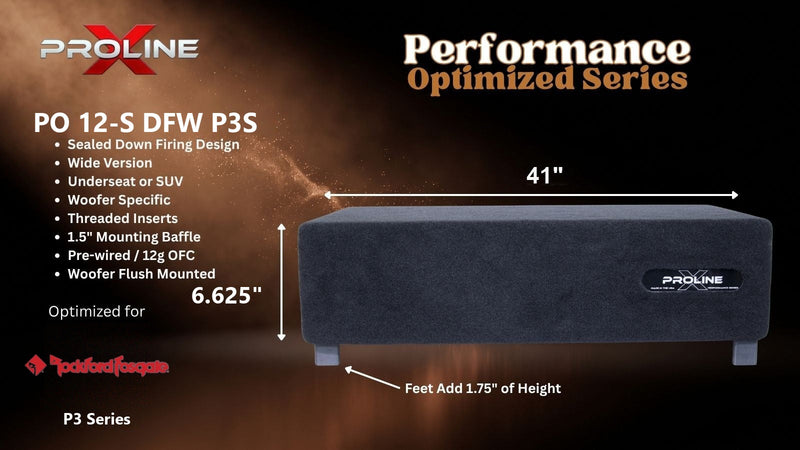

The cabinet measures 41 inches wide by 14 inches deep by 6.625 inches tall, measured in the down fire position, excluding the feet. The 1.75 inch standoffs ship with the enclosure but are not installed, so the installed height is 8.375 inches. Plan the space around that figure.
1.5 Inch Double Baffle
Two 3/4 inch layers laminated to 1.5 inches, the outer layer machined as a flush recess so the driver bolts to the inner layer, with 8/32 threaded inserts at the driver position, stainless machine screws included.
Round Frame, 14 Inch Baffle
The 11.22 inch cutout sits centred on the 14 inch deep baffle, leaving about 0.46 inch of baffle outside the flange fore and aft. No rotation or special layout is needed for a round frame.
Windowed U-Brace
A windowed U-brace dadoed into the shell stiffens the long 41 inch panels without walling off the airspace. Polyfill is installed as a light wall lining.

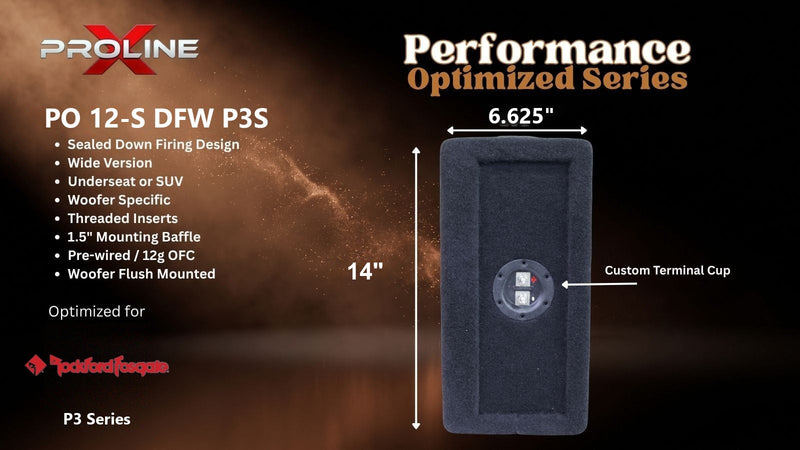

Side-Mounted Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC. Side mounted so it stays accessible with the baffle facing the floor.
Power and Wiring
Rockford rates both P3 Shallow 12 models at 400 watts RMS continuous. Target 300 to 400 watts RMS. Both are dual voice coil, so you set final impedance by how you wire the coils at the driver. Confirm your amplifier is stable at the load you wire before powering the system.
Bring your own P3SD2-12 or P3SD4-12; the driver is purchased separately. The enclosure carries a 1 year limited warranty.
Cut for the Driver, Not the Catalog
We cut every Down Fire Wide cabinet to one driver's published cutout, mounting depth and airspace, then build it one at a time in Tullahoma, Tennessee. Questions on fitment or amplifier matching, call 931-563-5151.
| Series | Proline X Performance Optimized Down Fire Wide |
| Compatible Driver | Rockford Fosgate P3SD2-12 (DVC 2 ohm) or P3SD4-12 (DVC 4 ohm), quantity 1. Direct fit |
| Enclosure Type | Sealed, down fire, floor coupled |
| Intended Fitment | Long, low spaces where height or depth is the limit and 41 in of run is available |
| Firing Direction | Down firing. Feet ship uninstalled, so front or up firing is also possible |
| Chamber Configuration | Single chamber, windowed U-brace, one side-mounted terminal cup |
| External Width | 41 in |
| External Depth | 14 in |
| External Height | 6.625 in in the down fire position, excludes standoffs |
| Installed Height | 8.375 in including the 1.75 in standoffs |
| Dimension Reference | All external dimensions measured in down fire position |
| Standard 30 x 15 Version | 7.875 in tall, 1.12 cu ft net |
| Internal Volume, Gross | 1.218 cu ft |
| Internal Volume, Net | 1.124 cu ft after displacement and the brace |
| Height Set By | Airspace; 2.23 in clearance above the motor |
| Alignment, P3SD2-12, dual 2 ohm | Qtc 0.973, Fc 49.4 Hz, F3 39.3 Hz anechoic |
| Alignment, P3SD4-12, dual 4 ohm | Qtc 1.046, Fc 49.4 Hz, F3 38.1 Hz anechoic |
| Woofer Opening | 11.22 in |
| Mounting Depth Required | 3.65 in |
| Frame Outer Diameter | 13.07 in |
| Driver Displacement | 0.086 cu ft |
| Driver Fs | 34 Hz |
| Driver Free-Air Qts | 0.67 (D2) / 0.72 (D4) |
| Voice Coil Configuration | Dual Voice Coil, Final Impedance Set At The Driver |
| Driver Mounting | 8/32 Threaded Inserts | Stainless Steel Machine Screws Included |
| Recommended Power | 300-400 Watts RMS (Rockford Rated: 400W RMS Continuous) |
| Material | Langboard Elite 3/4 in MDF |
| Joinery | V-groove and dado, CNC cut on ShopSabre routers |
| Front Baffle | 1.5 in double baffle, outer layer machined as a flush recess |
| Internal Bracing | Windowed U-brace, dadoed to the shell |
| Corner Profile | Square (Down Fire series standard) |
| Terminal Cup | One Proline X ABS and carbon fiber composite, side mounted, pre-wired 12 gauge OFC |
| Standoffs | 1.75 in, included, shipped uninstalled |
| Damping | Polyfill installed as a light wall lining |
| Carpet | Plush black |
| Bundle Options | Enclosure only (bring your own P3SD2-12 or P3SD4-12) |
| Warranty | 1 year limited (enclosure) |
| Built In | Tullahoma, Tennessee, USA |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
1.124 cu ft against a 35.3 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 8.1 mm, and in this alignment a subsonic filter barely moves it.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 34.00 | Hz | free-air resonance |
| Qts | 0.670 / 0.720 | D2 / D4 | |
| Vas | 35.30 / 35.30 | L | equivalent compliance |
| Sd | 500.0 | cm² | effective piston area |
| Xmax | 8.1 | mm | one-way linear travel |
| Pe | 400 | W | continuous RMS |
| SPL | 84.5 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by rockfordfosgate.com. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
