Performance Optimized Wedge Sealed 12" Enclosure | Rockford Fosgate T1D212

Proline X

Performance Optimized Wedge Sealed 12" Enclosure | Rockford Fosgate T1D212

Q: What size enclosure does the Rockford Fosgate T1D212 need?

Rockford Fosgate publishes 1.25 cubic feet net internal as the recommended sealed enclosure volume for the T1D212 (and vented at 1.75 cubic feet if you prefer ported). The Audio Intensity Performance Optimized Wedge Sealed 12 for Rockford Fosgate T1 delivers 1.55 cubic feet gross internal, which after subtracting the T1D212's 0.304 cubic foot total driver displacement lands at 1.246 cubic feet net — essentially exact match to RF's published sealed spec.

Q: What is VAST technology on the Rockford Fosgate T1D212?

VAST stands for Vertical Attach Surround Technique, a Rockford Fosgate patented design that increases a subwoofer's effective radiating cone area by up to 25% over conventional surround attachment methods. On the T1D212, VAST means the 12" driver moves more air per stroke than a standard 12" driver would, delivering higher SPL and lower distortion at the same excursion. This is one of the key technologies that positions the T1D212 as Rockford's flagship 12" driver.

Q: How much power can the Rockford Fosgate T1D212 handle?

The Rockford Fosgate T1D212 handles 800 watts RMS continuous (CEA-2031 compliant) with 1600 watts peak. For balanced daily-driver output and long-term reliability in the Performance Optimized Wedge Sealed 12 enclosure, pair the T1D212 with a clean, well-regulated class D monoblock delivering 600-800 watts RMS at your chosen impedance. Rockford Fosgate's own Power T500-1bdCP or T750-1bdCP amplifiers are natural matches, both featuring 1-ohm stable Constant Power design.

Q: What impedance options are available for the Rockford Fosgate T1 12"

Rockford Fosgate offers the T1 12" in two dual-voice-coil impedance configurations: T1D212 (Dual 2-ohm) and T1D412 (Dual 4-ohm). Both fit this cabinet identically since RF publishes the same 1.25 cu ft sealed spec across both variants. The T1D212 (2-ohm) uses SWIFT terminals to configure as 1-ohm parallel (maximum output) or 4-ohm series. The T1D412 (4-ohm) configures as 2-ohm parallel or 8-ohm series. Choose based on your amplifier's impedance capability — most modern class D monoblocks favor 1-ohm loads, making the T1D212 the higher-output single-driver choice.

Q: What is the mounting depth of the Rockford Fosgate T1D212?

The Rockford Fosgate T1D212 has a mounting depth of 6.75 inches with a cutout diameter of 11.25 inches. The T1D212 uses Rockford's FlexFit basket — a slot-mounted frame pattern that allows fine-tuning of the driver's rotational mounting position. The Performance Optimized Wedge Sealed 12 cabinet provides ample internal clearance: over 10.6 inches at the driver's mounting center, and 8.65 inches at the top baffle edge (both after 3/4" MDF panel thickness).

Q: Should I use the T1D212 in a sealed or ported enclosure?

Rockford Fosgate supports both alignments for the T1D212. Sealed (1.25 cu ft net per RF spec) delivers tight, controlled bass with excellent transient response — ideal for musical accuracy and sound quality installs. Ported (1.75 cu ft net per RF spec, typically tuned around 32-35 Hz) delivers 3-4 dB more output in the 40-50 Hz range and is preferred for maximum-SPL builds. This cabinet is engineered for the sealed alignment. If you need a ported T1 enclosure, that's a separate build — contact us for options.

SKU: PO 12-S W T1

QUICK SPECS

Best For: Rockford Fosgate T1D212 Trunk-Fit SPL-Capable Daily Driver Builds
Net Volume: 1.246 cu ft (RF Spec: 1.25 EXACT | 1.55 cu ft Gross)
Driver Match: Rockford Fosgate T1D212 (DVC 2Ω) or T1D412 (DVC 4Ω)
Construction: Rear-Firing Wedge | V-Groove/Dado | FlexFit Baffle Ready

Shipping Included No freight charges at checkout. What you see is what you pay.

Built in Tennessee CNC cut from 3/4" Langboard Elite MDF. V-groove and dado joinery.

Advanced Terminal Cup Built in-house. ABS/Carbon Fiber. Stainless steel hardware. Copper ring terminals.

$ 309.99

In Stock and Ready to Ship

Financing available — choose Shop Pay Installments at checkout.

Performance Optimized Wedge Sealed 12" Enclosure | Rockford Fosgate T1D212

$ 309.99

Enclosure Type Sealed

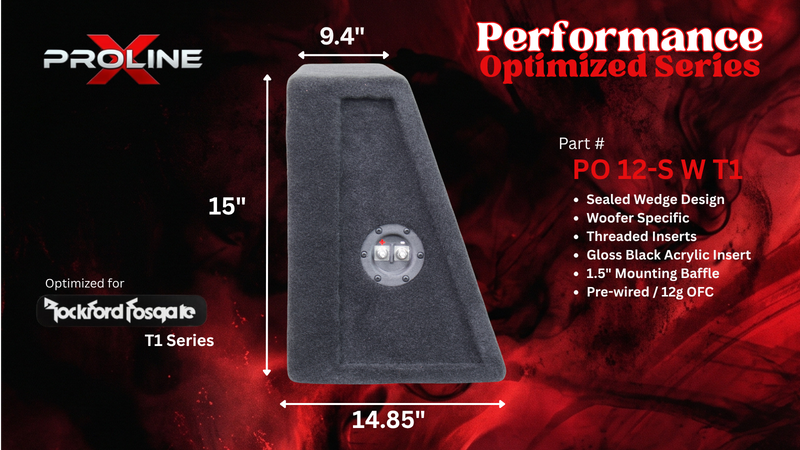

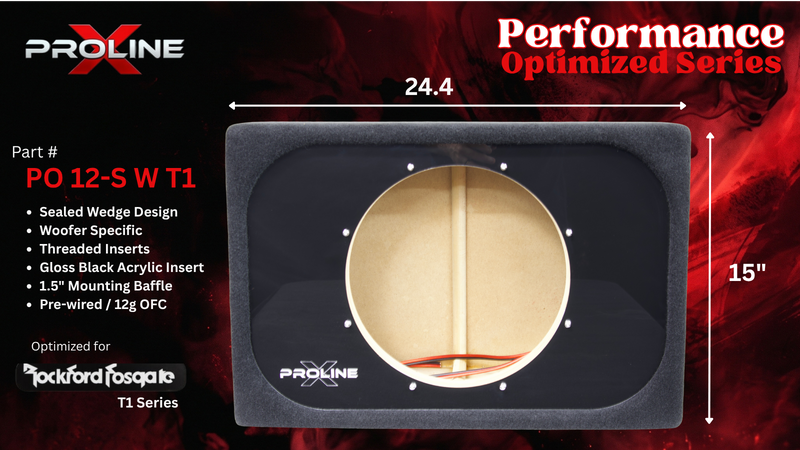

External Dimensions 24.4" W x 15" H x 14.85" D at base tapering to 9.4" D at top

Net Volume 1.25cu ft

Tuning Frequency NA

Cutout Diameter Direct Fit

Front Panel Thickness 1.5"

Max Mounting Depth Direct Fit

INSTALLER'S TAKE

The Rockford Fosgate T1D212 is the flagship of RF's Power Series 12" lineup, and it earns that flagship badge with real engineering behind it. 800 watts RMS CEA-2031 rated, 16mm one-way Xmax, VAST surround technology that adds up to 25% more effective cone area over conventional 12" designs, a 3" voice coil on an anodized aluminum former, and Rockford's inductive damping heat sink for sustained high-power operation without thermal compression. This is not a driver you buy because you want musical warmth at low volume. This is a driver you buy because you want output — clean, controlled, SPL-capable output that can pressurize a cabin at real listening levels.

That said, RF didn't stop at pure SPL. The T1D212 is Klippel-verified, meaning RF has characterized the driver's motor and suspension nonlinearities in a lab and engineered them to deliver low distortion across the operating range. Combined with the dual progressive-roll spider design and kevlar-reinforced paper cone, this driver is capable of surprisingly musical performance for something that puts 800 watts RMS on paper.

Volume math on this box lands where it should. 1.55 cu ft gross minus the T1D212's 0.304 cu ft total driver displacement = 1.246 cu ft net. RF's published sealed spec is 1.25 cu ft net. Direct hit. In that alignment the T1D212 delivers a controlled, punchy sealed response with F3 in the low 40s and Qtc around 0.83 — the character RF's engineers designed for this driver.

One important note on displacement: RF publishes the cone-body displacement number (0.106 cu ft) on their spec sheet, but the actual mounted driver displacement including the full motor/basket/backplate structure that occupies enclosure volume is 0.304 cu ft. That's the number that matters for real enclosure math. Any T1D212 box design that uses the 0.106 published number will end up ~15% over spec. This cabinet is dialed to the real 0.304 number, hitting RF's actual net volume target.

Wedge geometry is the standard PO trunk-load pattern, sized for the T1's substantial physical footprint. 24.4" wide, 15" tall, 9.4" deep at top, 14.85" deep at bottom. This is a standard-depth wedge (not shallow like the TW3/TW5 series) because the T1D212's 6.75" mounting depth needs real cabinet depth to fit. The 9.4" top face provides enough clearance for the driver's basket flange, and the 14.85" bottom face gives the motor structure ample room without contacting the seat-side panel.

Cabinet weight: this is a heavier box than the JL wedges. Between the Langboard MDF construction and the T1D212's own 33-pound shipping weight, the loaded system will be around 65-70 pounds. Two-person install is smart. Once it's in the trunk it stays put.

Power handling: RF specs 800 watts RMS. Real-world sweet spot for musical daily-driver use is 600-800 watts. If you're building for SPL competition or trunk-rattle demonstrations, feed it the full 800W from a class D monoblock stable at 1 ohm (parallel wiring via SWIFT terminals). If you're building for musical accuracy in a daily-driven car where you want the T1's output capability but not to sustained-max-power operation, 500-600W at 1-2 ohms will deliver plenty of impact without pushing thermal limits.

SWIFT terminals are a nice touch — no soldering or barrier strips needed to reconfigure between series and parallel. If you decide to change from a 2-ohm daily setup to a 1-ohm SPL setup later, or bridge across two drivers, the wiring changes take minutes not hours.

Amplifier pairing: RF's own T500-1bdCP or T750-1bdCP monoblocks are the natural matches — both are 1-ohm stable class BD Constant Power designs that hit their rated output regardless of impedance load. Any modern high-quality class D monoblock in the 500-800W RMS range at 1 ohm works fine. Set low-pass around 80-100 Hz depending on your front-stage capability. Subsonic filter around 25-30 Hz is smart insurance for any high-excursion driver.

Sealed vs ported: RF supports both alignments. The T1D212 in a 1.75 cu ft ported box tuned around 33 Hz gains 3-4 dB in the 40-50 Hz range but loses transient accuracy and adds ~40% cabinet volume. For SPL-oriented builds, ported wins. For SQ-oriented builds, sealed wins. This box is the sealed answer. If you want the ported version, that's a different cabinet — reach out.

This is an enclosure-only listing. Bring your own T1D212 (or T1D412 — the 4-ohm variant fits identically, RF publishes the same 1.25 cu ft sealed spec across both). Source the driver from any authorized Rockford Fosgate dealer.

If you want the flagship RF Power Series 12" in RF's exact sealed spec, in trunk-fit wedge form, this is the box.

Product Details

Performance Optimized Wedge | Rockford Fosgate T1D212

Single 12" Sealed Wedge Enclosure | Rear-Firing Trunk-Load Design for the Rockford Fosgate T1 Power Series

1.55 ft³ Gross 1.25 ft³ Net (RF Spec) Rear-Firing Wedge 24.4" × 15" × 9.4/14.85" V-Groove / Dado Built in Tennessee

The Rockford Fosgate T1D212 in RF's Spec-Perfect Sealed Volume

The Rockford Fosgate T1D212 is the current-generation Power T1 series 12-inch subwoofer, engineered around Rockford's patented VAST (Vertical Attach Surround Technique) technology that increases effective radiating cone area by up to 25% over conventional 12" drivers. 800 watts RMS CEA-2031 compliant power handling, dual 2-ohm voice coils, 16mm one-way Xmax, a rigid die-cast aluminum FlexFit basket, Kevlar fiber reinforced paper cone, anodized aluminum voice coil former for superior heat dissipation, and Klippel-verified design tolerances. This is Rockford's flagship SPL-capable 12" driver.

The Performance Optimized Wedge Sealed 12 for Rockford Fosgate T1 is engineered to hit RF's exact published sealed specification. 1.55 cubic feet gross internal volume minus the T1D212's 0.304 cubic foot total driver displacement lands at 1.246 cubic feet net — essentially exact match to Rockford's 1.25 cubic foot published sealed spec, delivering the alignment RF's engineers designed the T1D212 to operate in.

1.55 cubic feet gross = 1.246 cubic feet net after the T1D212's 0.304 cubic foot total driver displacement. Essentially exact match to Rockford Fosgate's published 1.25 cubic foot sealed spec for the T1D212. The wedge geometry mounts the woofer on the vertical trunk-lid-side face, firing rearward into the trunk cavity — classic SQ trunk-load pattern applied to Rockford's SPL-capable T1 platform.

Trunk-Load Wedge Design Explained

This wedge is not a front-firing enclosure. The woofer is mounted on the vertical face that sits at the back of the box, closest to the trunk lid, and fires rearward into the trunk cavity. The angled face is on the opposite side of the box — the side that faces the front of the vehicle — and tucks against the rear seat back. Two different problems solved by one geometry.

Seat-Side Face Matches Seat Lean

Most factory rear seat backs lean roughly 20 degrees back from vertical. The angled face of this wedge (9.4" at the top, 14.85" at the bottom) matches that lean, tucking against the seat back with no wasted gap. The wedge fills the trunk shelf area behind the seat cleanly.

Trunk-Lid-Side Face Fires the Woofer

The vertical face on the opposite side of the wedge (24.4" wide × 15" tall) is where the T1D212 mounts. The driver fires rearward toward the trunk lid, using the trunk cavity as an acoustic loading chamber. This is the classic SQ trunk-load install pattern applied to Rockford's SPL-oriented T1 series.

Trunk Cavity Loading

Firing the woofer into the trunk cavity rather than directly into the cabin uses the trunk itself as an extension of the acoustic system. Low frequencies transmit into the passenger cabin through the rear deck, seat back, and cabin boundaries — a smoother, less-localized presentation than direct-firing setups, and particularly effective for a high-output driver like the T1D212 where cabin standing waves need control.

Preserves Trunk Cargo Space

The wedge tucks against the seat back where cargo can't be stored anyway. The bottom face sits flat and stable on the trunk floor. Cargo space in front of the wedge (toward the trunk lid) stays usable for daily driving.

Engineered to Rockford Fosgate's Published Sealed Specification

Rockford Fosgate publishes exactly 1.25 cubic feet net internal as the recommended sealed enclosure volume for the T1D212. This spec is RF's own engineered target — the volume where the T1's motor structure, VAST-enhanced cone assembly, and progressive-roll spider suspension deliver the sealed response their Klippel-verified design targets. The Performance Optimized Wedge Sealed 12 delivers 1.55 cubic feet gross internal, which after subtracting the T1D212's total driver displacement of 0.304 cubic feet lands at 1.246 cubic feet net — right on RF's published spec.

Sealed vs. Ported for the T1D212

The T1D212 is a versatile driver that Rockford supports both sealed (1.25 cu ft) and vented (1.75 cu ft) applications for. Sealed operation delivers the tightest, most controlled bass response — ideal for musical accuracy, sound quality installs, and daily-driven vehicles where cabin gain rewards a slightly warmer alignment. If you're building a maximum-SPL system or want the peak-tuned resonance boost of a ported enclosure, RF's 1.75 cu ft vented spec is worth considering as a separate build. This cabinet is engineered specifically for RF's sealed alignment — the SQ-oriented, musically accurate side of the T1D212's capabilities.

Mounting Geometry and Driver Fitment

The vertical trunk-lid-side baffle is cut to the T1D212's exact 11.25" cutout specification. The T1D212's 6.75" mounting depth fits inside the cabinet with clearance — internal depth from the vertical baffle to the interior of the angled seat-side face ranges from approximately 8.65" at the top edge to 14.1" at the bottom (after accounting for 3/4" MDF panel thickness), with the driver's mounting position at cabinet center providing over 10.6" of clearance behind the motor. That's ample room for the T1's substantial magnet structure and inductive damping heat sink, and gives the motor breathing room to dissipate the thermal load of 800W RMS operation.

FlexFit Basket Consideration

The T1D212 uses Rockford's FlexFit basket — a slot-mounted frame pattern that allows fine-tuning of the driver's rotational mounting position. The Proline X wedge baffle is drilled with a standard 8-hole bolt pattern compatible with the T1D212's slotted mounting geometry. Threaded 8/32 inserts pressed into the baffle backside accept stainless steel machine screws included with the enclosure.

Performance Series Construction, Built for 800W RMS Operation

Langboard Elite MDF

Premium 3/4" MDF panels milled to documented spec — denser and more dimensionally stable than commodity MDF. Critical for an enclosure housing an 800 watts RMS driver: panel resonance would color the sound and MDF creep would allow air leaks over time under sustained high-power operation. Langboard's density and stability address both.

V-Groove and Dado Joinery

CNC-cut V-grooves at every panel intersection let the wedge cabinet fold into its angled shape with maximum glue surface. Dado joints lock the vertical woofer baffle and the angled seat-side panel into the side walls — no fasteners visible from outside, no exposed end grain at joints, no compromise on structural integrity under high-excursion driver operation.

8/32 Threaded Inserts

Threaded inserts pressed into the vertical woofer baffle accept stainless steel mounting screws. No stripped pilot holes, no MDF damage from drywall screws, no surprises when the next driver upgrade rolls around. Full compatibility with the T1D212's FlexFit slot-mounted frame pattern.

Pre-Wired Terminal Cup

Proline X ABS/carbon fiber composite terminal cup, pre-wired with 12-gauge OFC inside the cabinet, with stainless steel hardware accepting both spade and banana terminations on the input side. Sized to comfortably handle the T1D212's 800W RMS power delivery.

Every panel is cut on ShopSabre CNC routers in our Tullahoma, TN facility. The angled seat-side panel requires precise CNC compound cuts to hit both the volume target and the mating angles between the top and bottom edges — tolerances that manual fabrication can't reliably hold. Internal volume is verified on every unit to ensure the RF-spec 1.25 cubic foot net target is achieved.

Customize Your Build

Carpet Finish

Dark Gray Trunkliner is the standard durable wrap, matched to most factory trunk and cargo-area carpet tones. Plush Black (+$10) is a deeper, more luxurious nap that pairs well with blacked-out interiors and show builds.

Acrylic Insert Color

Choose Black, Blue, Red, or White for the baffle insert to match your build. Or skip the insert entirely (-$40) for a clean, understated look. The insert is purely cosmetic — performance is identical across colors.

Enclosure Only

This listing is for the enclosure only. Drop in your existing Rockford Fosgate T1D212 (Dual 2-ohm) or T1D412 (Dual 4-ohm) subwoofer — the cabinet fits both variants identically since RF publishes the same 1.25 cu ft sealed spec across the T1 12" line. Source your driver from any authorized Rockford Fosgate dealer.

Wiring the Rockford Fosgate T1D212 to Your Amplifier

The Rockford Fosgate T1D212 is a dual-voice-coil driver with both coils at 2 ohms, using RF's SWIFT terminal system that allows quick reconfiguration between series and parallel wiring. The pre-wired terminal cup accepts the two-conductor connection via 12-gauge OFC, with stainless steel input hardware.

Parallel wiring (1 ohm total load): Both voice coils in parallel via SWIFT terminals presents a 1-ohm load to your amplifier — the highest-output configuration, ideal for RF's own Power T500-1bdCP or T750-1bdCP monoblock amplifiers, or any modern class D monoblock stable at 1 ohm. This is the standard high-SPL wiring configuration.

Series wiring (4 ohm total load): Both voice coils in series via SWIFT terminals presents a 4-ohm load — used with amplifiers that don't support 1-ohm stable operation, or in dual-driver installs where paralleling two 4-ohm loads at the amp gets you back to a 2-ohm total. Also compatible with class AB amplifiers preferring higher impedance loads.

T1D412 alternative: Rockford also offers the T1D412 (Dual 4-ohm) variant for installs where 2-ohm parallel (T1D412 wired parallel = 2 ohms) or 8-ohm series operation is preferred. Either variant fits this cabinet identically.

The T1D212 is rated for 800 watts RMS continuous (CEA-2031 compliant) with 1600W peak handling. Aim for a well-regulated monoblock delivering 600-800 watts RMS at your chosen impedance for the best combination of headroom, dynamic capability, and long-term reliability. Rockford Fosgate's own Power T-series amplifiers are natural matches. Set your amplifier's active low-pass filter between 80 and 100 Hz for musical accuracy in a full-range system.

Built in Tennessee, Backed by Audio Intensity

Every Performance Optimized enclosure is CNC-cut, assembled, and finished in our Tullahoma, TN facility. Components are pulled from inventory after your order is placed, then bonded and wrapped — a 2 to 5 business day assembly window before the box ships. No pre-built inventory sitting in warehouses, warping in storage. Each unit is built to order.

Backed by a 1-year limited warranty against structural failure and hardware defects on the enclosure. Your Rockford Fosgate T1D212 subwoofer is covered by Rockford's own 1-year warranty when purchased through an authorized RF dealer. Questions on fitment, wiring, or amplifier pairing? Contact us — we install this gear ourselves, in our own vehicles.

Rockford's Flagship 12" Power Sub, in a Spec-Perfect Trunk-Load Wedge

1.25 cubic feet net internal — Rockford Fosgate's published optimum sealed volume for the T1D212 — in a trunk-friendly wedge geometry that fires the VAST-enhanced 12" cone rearward into the trunk cavity. 800 watts RMS ready, precision driver-specific engineering, built to order in Tennessee.

Specifications

Enclosure Type	Sealed \| Wedge Geometry \| Rear-Firing Trunk-Load
Driver-Specific Fitment	Rockford Fosgate T1D212 (DVC 2Ω) or T1D412 (DVC 4Ω)
Internal Volume (Gross)	1.55 Cubic Feet
Internal Volume (Net After Displacement)	1.246 Cubic Feet (RF Spec: 1.25 EXACT)
Baffle Configuration	Vertical Trunk-Lid-Side Woofer Mounting Face
Material	Langboard Elite 3/4" MDF
Front Baffle Construction	Double-Layer 1.5" MDF (Two 3/4" Sheets Bonded)
Joinery	V-Groove and Dado (CNC-Cut)
Construction	ShopSabre CNC / Angled Seat-Side Compound Cuts
External Width	24.4 Inches
External Height	15 Inches
External Depth (Top)	9.4 Inches
External Depth (Bottom)	14.85 Inches
Baffle Angle	~20° From Vertical (Seat-Side Face)
Mounting Hole Diameter	11.25 Inches
Mounting Hardware	8/32 Threaded Inserts \| Stainless Steel Machine Screws Included (FlexFit Compatible)
Terminal Cup	Proline X ABS/Carbon Fiber Composite \| 12g OFC Pre-Wired
Damping	Polyfill Pre-Installed
Recommended Power	600-800 Watts RMS (RF CEA-2031 Rated: 800W RMS Continuous)
Carpet Finish	Dark Gray Trunkliner (Standard) or Plush Black (+$10)
Acrylic Insert	Black, Blue, Red, White, or None (-$40)
Bundle Options	Enclosure Only (Bring Your Own T1D212 or T1D412)
Warranty	1-Year Limited (Enclosure)
Manufactured	Tullahoma, Tennessee, USA

Performance Graphs

Materials

Material

Built From a Spec Sheet, Not a Sales Sheet

Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.

Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.

Specifications

Langboard Elite MDF: Published Mill Data

Property	Value	Why It Matters
Panel Stock	Langboard Elite MDF	Named, verifiable panel source, not generic "high-density MDF"
Thickness	3/4" (18mm)	Industry standard for subwoofer enclosures; panels below this flex under pressure
Density	48.5 lbs/ft³	Higher density = less porosity, better screw retention, reduced resonance
Internal Bond	200 psi	Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet
Modulus of Rupture (MOR)	4,200 psi	Bending strength before the panel breaks, relevant for larger unsupported baffle spans
Modulus of Elasticity (MOE)	410,000 psi	Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance
Face Screw Holding	325 lbs	How firmly the panel surface holds a screw; critical for baffle joint integrity over time
Edge Screw Holding	250 lbs	Panel edge retention, relevant for every joint that isn't face-to-face

Internal Bond

200 psi: The Number That Actually Matters for Enclosures

The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.

Stiffness

410,000 psi MOE: Less Flex, Less Resonance

The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.

Screw Holding

325 lb Face / 250 lb Edge: Joints That Stay Locked

Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.

Sourcing

Named Panel Stock: Not "Premium MDF"

The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.

Why Proline X?

Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.

CNC-Cut to Spec

Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
