Performance Optimized Down Fire Wide Sealed 10" Shallow Sub Enclosure | Rockford Fosgate Punch P3S 10
SKU: PO 10-S DFW P3S
- Alignment: 0.927 cu ft net. D2 Qtc 0.795, Fc 49.7 Hz, F3 44.8 Hz; D4 Qtc 0.969, Fc 49.7 Hz, F3 39.6 Hz
- Down Fire Wide: 41"W x 12"D x 6.5625"H in down fire position, 3" shallower and 11" longer than the standard 30 x 15, for under rear seats and narrow cargo floors
- Driver: Rockford Punch P3SD2-10 (DVC 2 ohm) or P3SD4-10 (DVC 4 ohm), 300W RMS, 8.4mm Xmax, 3.50" mounting depth, 9.06" cutout
- Build: Windowed U-brace, 1.5" double baffle, one side-mounted terminal cup, 12g OFC
- Feet: 1.75", ship uninstalled. Installed height 8.3125"
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Wide Sealed 10" Shallow Sub Enclosure | Rockford Fosgate Punch P3S 10
More enclosures cut for Rockford Fosgate subwoofers: Rockford Fosgate Subwoofer Boxes
Proline X Performance Optimized Down Fire Wide 10" Sealed
Under rear seat and narrow cargo floor fitment. Cut for the Rockford Fosgate Punch P3 Shallow 10
The Down Fire Wide Format
Down Fire Wide answers a specific space problem. The floor under the rear seat of a truck or SUV, and many narrow cargo floors, is long and shallow, and a standard 30 by 15 inch enclosure will not go in it.
So the cabinet is turned sideways. This one runs 41 inches wide by 12 inches deep by 6.5625 inches tall, measured in the down fire position. Against our standard 30 by 15 inch P3 Shallow 10 cabinet it takes the same P3 Shallow 10 driver, sits 3 inches shallower front to back and runs 11 inches longer. The airspace lost from the depth is recovered along the length, so the driver still gets a properly sized chamber rather than a compromised one.
Which one to choose. If you have 15 inches of depth, the standard 30 by 15 cabinet is the pick: it is shorter end to end and easier to place. Choose this one when depth is the limiting dimension and you have 41 inches of run. Measure the depth first; under seat spaces vary widely between cab configurations.
Performance, Performance Optimized, and Micro
Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.
| Performance | Performance Optimized | Micro Series | |
|---|---|---|---|
| Fitment | Universal. Accepts any subwoofer that clears the published cutout and mounting depth. | Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver. | Woofer specific. Cut for one named subwoofer. |
| Footprint | Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch. | Shared 30 by 15 inch platform on most builds. Down Fire Wide variants like this one run long and shallow for under seat fitment. | Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch. |
| Front baffle | Single, 3/4 inch. | Double layer, outer layer machined as a flush recess. 1.5 inch. | Double, 1.5 inch. |
| Driver mounting | Solid flange. You drill your own mounting holes. | 8/32 threaded inserts, stainless machine screws included. | 8/32 threaded inserts, stainless machine screws included. |
| Joinery | V-groove and dado, CNC cut. | V-groove and dado, CNC cut, perimeter cross brace. | Stack fab, dowel reinforced. |
| Published alignment | Modeled Qtc profiles across a range of drivers. No single response curve. | A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters. | Target alignment described in the listing. |
| Carpet | Gray standard, black optional. | Plush black. | Plush black. |
| Warranty | 1 year limited. | 1 year limited. | 2 years. |
Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.
This page is a Performance Optimized enclosure. The cutout, the mounting depth and the chamber volume all come from the Rockford Fosgate Punch P3 Shallow 10's own numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.
Built Around the Rockford Fosgate Punch P3 Shallow 10
The baffle is bored to the P3 Shallow 10's 9.06 inch cutout, and the internal height starts from its 3.50 inch mounting depth. The frame is round and sits on the 12 inch deep baffle with material to spare.
The P3 Shallow 10 comes as the P3SD2-10 (dual 2 ohm) or the P3SD4-10 (dual 4 ohm), both rated 300 watts RMS with 8.4mm of one-way Xmax. A 2.5 inch four-layer voice coil sits behind an anodized aluminum cone with Rockford's VAST surface technology, and the driver ships with a painted aluminum trim ring. Both models share the same cutout, mounting depth and 0.074 cubic foot displacement, so this cabinet is direct fit for either impedance.
It is the more accurate of Rockford's two shallow families. Free-air Qts is 0.64 on the D2 and 0.78 on the D4, which is why this driver lands near a flat alignment in a sealed box.
Net Volume and Alignment
The chamber holds 0.927 cubic feet net, from 1.009 cubic feet gross after 0.074 cubic feet of driver displacement, published by Rockford Fosgate.
The two coil options behave differently enough here to be worth understanding. Both share Fs 40 Hz; the P3SD2-10 has a free-air Qts of 0.64 and the P3SD4-10 a Qts of 0.78.
| Coil | System Qtc | Fc | F3, anechoic |
|---|---|---|---|
| P3SD2-10, dual 2 ohm | Qtc 0.795 | 49.7 Hz | 44.8 Hz |
| P3SD4-10, dual 4 ohm | Qtc 0.969 | 49.7 Hz | 39.6 Hz |
Height is the free dimension. With the footprint fixed at 41 by 12, the cabinet height was solved to put the chamber on the same airspace as the standard 30 by 15 box, then rounded up to the next sixteenth so the volume lands on the target rather than under it. The motor clears the top panel with 2.31 inches to spare, so airspace set this height, not clearance.
The D2 is the more controlled, accurate presentation, close to flat. The D4 trades some damping for a lift near the corner frequency and more extension. Neither is wrong: the D2 is the choice for accuracy, the D4 for impact.
Rockford calculates Qtc on gross volume without subtracting the driver, so our figures read slightly higher than theirs against the same box. Same driver, same math, more conservative convention. Run the numbers on a different volume with our sealed box calculator.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver displacement, not estimated from external dimensions minus wall thickness. All figures are anechoic; firing down into the floor, the sealed rolloff meets rising cabin gain below 60 Hz and in-car response extends well below them.
Down Fire Wide Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

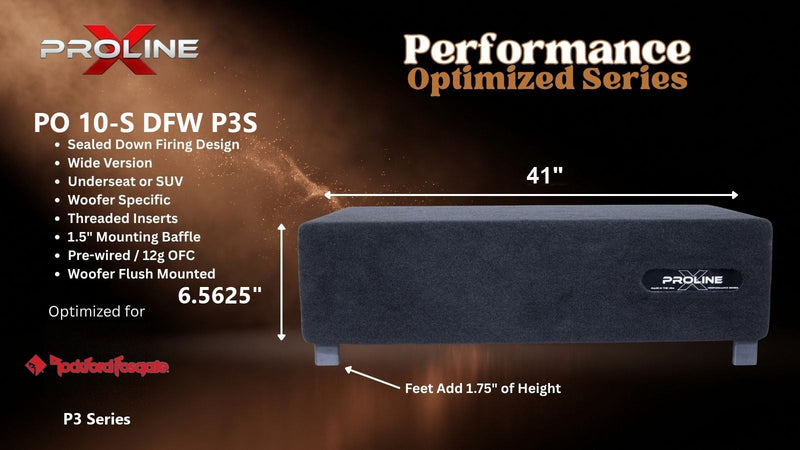

The cabinet measures 41 inches wide by 12 inches deep by 6.5625 inches tall, measured in the down fire position. The 1.75 inch feet ship with the enclosure but are not installed, so plan the space around an installed height of 8.3125 inches if you use them.
1.5 Inch Double Baffle
Two 3/4 inch layers laminated to 1.5 inches, with the outer layer machined as a flush recess so the driver bolts to the inner layer on 8/32 threaded inserts. Stainless machine screws included.
Windowed U-Brace
A windowed U-brace dadoed to the shell ties the long 41 inch panels together without closing off the chamber. Polyfill is installed as a light wall lining.

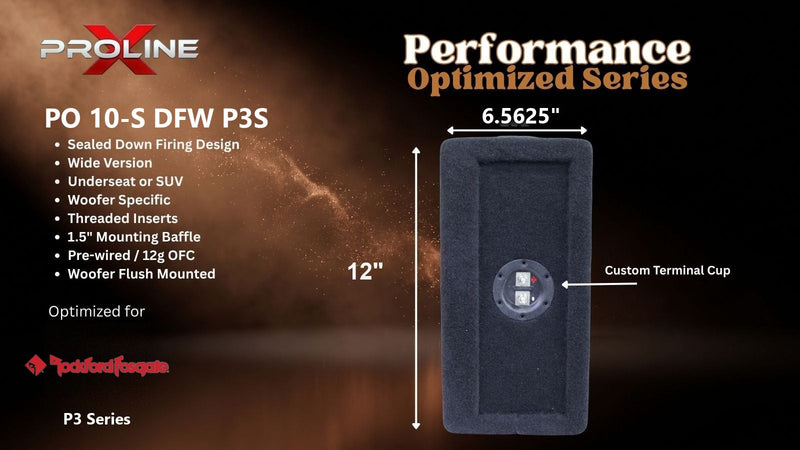

Side-Mounted Terminal Cup
One Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, side mounted and pre-wired in 12 gauge OFC, so it stays accessible with the baffle facing the floor.
Power and Wiring
Rockford rates both P3 Shallow 10 models at 300 watts RMS continuous. Target 200 to 300 watts RMS.
Both models are dual voice coil, so you set your final impedance by how you wire the coils at the driver. The enclosure ships with one side mounted terminal cup pre-wired in 12 gauge OFC; confirm your amplifier is stable at the load you wire before powering the system.
The driver is purchased separately: bring your own P3SD2-10 or P3SD4-10, or order the Rockford Fosgate Punch P3S 10 from us. The enclosure carries a 1 year limited warranty. Plush black carpet.
Cut for the Driver, Not the Catalog
Down Fire Wide, built for the space under a rear bench, one at a time in Tullahoma, Tennessee. Questions on fitment or amplifier matching, call 931-563-5151.
| Series | Proline X Performance Optimized Down Fire Wide |
| Compatible Driver | Rockford Fosgate P3SD2-10 (DVC 2 ohm) or P3SD4-10 (DVC 4 ohm). Direct fit |
| Enclosure Type | Sealed, single driver, down fire, floor coupled |
| Intended Fitment | Under the rear seat of trucks and SUVs and narrow cargo floors, where depth is the limiting dimension |
| Firing Direction | Down firing, driver fires toward the floor. Feet ship uninstalled, so front or up firing is also possible |
| Chamber Configuration | Single sealed chamber, windowed U-brace, one side-mounted terminal cup |
| External Width | 41 in |
| External Depth | 12 in |
| External Height | 6.5625 in in the down fire position, excludes feet |
| Installed Height | 8.3125 in with the 1.75 in feet |
| Standard 30 x 15 Equivalent | 30 x 15 x 6.875 in, 0.92 cu ft net. Same driver, deeper and shorter footprint |
| Internal Volume, Gross | 1.009 cu ft |
| Net Volume | 0.927 cu ft after displacement |
| Height Set By | Airspace; motor clearance allows a lower cabinet |
| Clearance Above Motor | 2.31 in |
| Alignment, D2 | Qtc 0.795, Fc 49.7 Hz, F3 44.8 Hz anechoic |
| Alignment, D4 | Qtc 0.969, Fc 49.7 Hz, F3 39.6 Hz anechoic |
| Woofer Opening | 9.06 in, Rockford Fosgate spec |
| Mounting Depth Required | 3.50 in, Rockford Fosgate spec |
| Driver Fs | 40 Hz |
| Driver Free-Air Qts | 0.64 (D2) / 0.78 (D4) |
| Driver Xmax | 8.4mm one way |
| Voice Coil | 2.5 in, four layer |
| Driver Cone | Anodized aluminum, VAST surface technology |
| Voice Coil Configuration | Dual voice coil, final impedance set at the driver |
| Recommended Power | 200 to 300 W RMS (Rockford rated: 300 W RMS continuous) |
| Driver Displacement | 0.074 cu ft, published by Rockford Fosgate |
| Material | Langboard Elite MDF |
| Construction | CNC cut on ShopSabre routers, V-groove and dado joinery |
| Panel Thickness | 0.75 in |
| Front Baffle | 1.5 in double baffle, outer layer machined as a flush recess |
| Internal Bracing | Windowed U-brace, dadoed to the shell |
| Corner Profile | Square, Down Fire series standard |
| Driver Mounting | 8/32 threaded inserts, stainless machine screws included |
| Terminal Cup | One Proline X ABS and carbon fiber composite, side mounted |
| Internal Wiring | 12 gauge OFC |
| Feet | Included, 1.75 in, shipped uninstalled |
| Damping | Polyfill pre-installed as a light wall lining |
| Carpet | Plush Black |
| Bundle Options | Enclosure only, bring your own P3SD2-10 or P3SD4-10 |
| Warranty | 1 Year Limited |
| Built In | Tullahoma, Tennessee |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
0.927 cu ft against a 14.3 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 8.4 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 40.00 | Hz | free-air resonance |
| Qts | 0.640 | D2 | |
| Vas | 14.30 | L | equivalent compliance |
| Sd | 333.0 | cm² | effective piston area |
| Xmax | 8.4 | mm | one-way linear travel |
| Pe | 300 | W | continuous RMS |
| SPL | 83.0 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by rockfordfosgate.com. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
