Proline X

Performance Optimized Down Fire Sealed 12" Enclosure | ResoNix GUS-12

SKU: PO 12-S DF GUS

QUICK SPECS

Alignment: 0.76 cu ft net — ResoNix's own 0.75 recommendation. Qtc 0.716, F3 36.7 Hz (D4)
Driver: ResoNix GUS-12 D2 or D4, 800W RMS, 20.69mm Klippel-verified Xmax, 14.5 Hz Fs
Mounting Depth: 4.539" — pole vent may be fully blocked (vented rear cone)
Standoffs: Included — ResoNix specifies 60mm from baffle surface to the floor

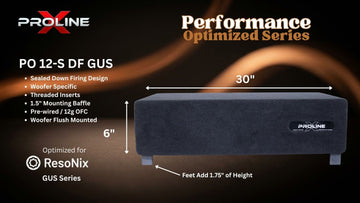

Cabinet: 30"W x 15"D x 6"H in down fire position, square corners

Shipping Included No freight charges at checkout. What you see is what you pay.

Built in Tennessee CNC cut from 3/4" Langboard Elite MDF. V-groove and dado joinery.

Advanced Terminal Cup Built in-house. ABS/Carbon Fiber. Stainless steel hardware. Copper ring terminals.

$ 249.99

In Stock and Ready to Ship

Financing available — choose Shop Pay Installments at checkout.

Performance Optimized Down Fire Sealed 12" Enclosure | ResoNix GUS-12

$ 249.99

Enclosure Type Sealed

External Dimensions 30" W x 15" D x 6" H (measured in down fire position, excludes standoffs)

Net Volume 0.76cu ft

Tuning Frequency N/A (Sealed)

Cutout Diameter Direct Fit

Front Panel Thickness 1.5"

Max Mounting Depth Direct Fit

INSTALLER'S TAKE

A free-air resonance of 14.5 Hz on a driver that mounts in four and a half inches. I have built enclosures for sixteen driver families in this program and nothing else comes close to that number. Most shallow 12s sit in the high 20s or low 30s. Conventional 12s with twice the mounting depth rarely get below 25.

Pair that with a Qts of 0.28 and you have a driver that can be properly damped in three quarters of a cubic foot and still reach into the 30s. That is the whole point of the GUS line and it is not marketing. ResoNix publishes full Klippel LSI and TRF data, commits to doing it for every production batch, and their enclosure recommendations reconcile exactly with their own T/S. Nobody else in this program does all three.

The nice thing about this cabinet is that both coil options land in the same place. D4 gives Qtc 0.716 and F3 36.7, D2 gives 0.668 and 36.8. A tenth of a hertz apart. Pick whichever suits your amplifier and stop thinking about it.

Two build notes. The vented rear cone assembly means the pole vent can be fully blocked with no penalty, so this box does not need the usual clearance allowance behind the motor. And ResoNix requires 60mm from the baffle surface to whatever is in front of the cone, which on a down fire box is the floor. Custom standoffs are included and they are not optional.

800 watts RMS. ResoNix states they do not underrate their drivers and that overpower damage is not warranty work. They also warn these stay composed until they suddenly do not, so respect the number.

Product Details

Proline X PO Down Fire 12" Sealed

Cut and tuned for the ResoNix GUS-12

V-Groove and DadoLangboard Elite MDF0.76 cu ft NetStandoffs Included

0.76cu ft net

0.668-0.716system Qtc

36.7-36.8 HzF3 rolloff

6.0 incabinet height

Built Around the ResoNix GUS-12

Nothing about this cabinet is generic. The baffle is bored to the GUS-12's 283.57mm cutout, the internal height is set by its 4.539 inch mounting depth, and the volume is cut to the figure ResoNix publishes for a 0.707 Qtc alignment.

The parameter that makes this driver remarkable is a free-air resonance of 14.5 Hz paired with a Qts of 0.28. Those are not shallow-driver numbers, and they are barely conventional-driver numbers. A 14.5 Hz Fs on a driver that mounts in four and a half inches is the single most unusual specification in the Down Fire program, and it is why this cabinet reaches 36.7 Hz in three quarters of a cubic foot.

ResoNix publishes full Klippel LSI and TRF data for every GUS driver and commits to doing it for every production batch. Their enclosure recommendations reconcile exactly with their own Thiele Small parameters, which is rarer in this industry than it should be.

Net Volume, Not Gross

We build this cabinet at 0.76 cubic feet net, against ResoNix's published 0.75 for 0.707 Qtc. The volume quoted is true net internal airspace after panel thickness, bracing and the driver's own 0.046 cubic feet of displacement are accounted for.

True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's published displacement, not estimated from external dimensions minus wall thickness.

Both coil configurations land in effectively the same place. The Dual 4-Ohm reaches Qtc 0.716 with F3 at 36.7 Hz; the Dual 2-Ohm reaches Qtc 0.668 with F3 at 36.8 Hz. A tenth of a hertz apart, so choose on amplifier load rather than acoustics.

Down Fire Construction

Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

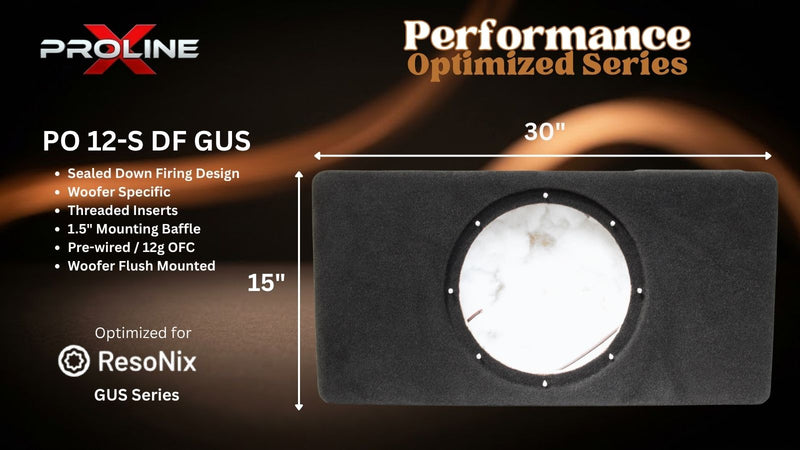

Double Baffle, Flush Recess

The front baffle is 1.5 inches, two bonded 3/4 inch sheets, with the outer layer machined as a flush recess so the driver bolts to the inner layer. That recovers 3/4 inch of internal clearance and keeps the cabinet at 6 inches.

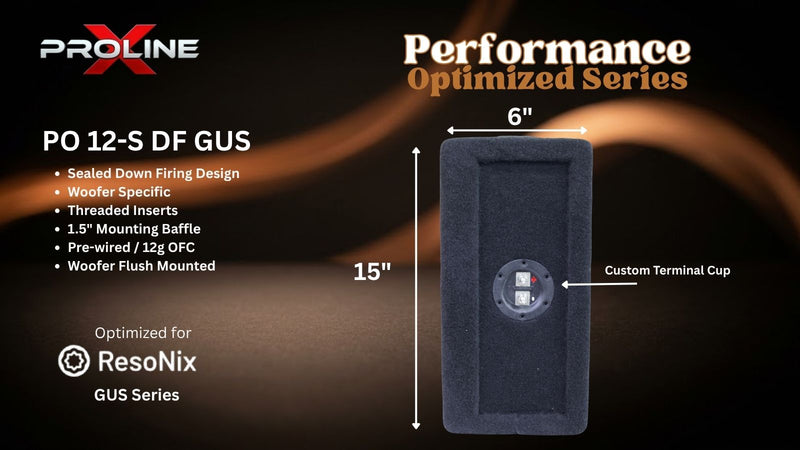

Side-Mounted Terminal Cup

Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC. Side mounted so it stays accessible with the baffle facing the floor.

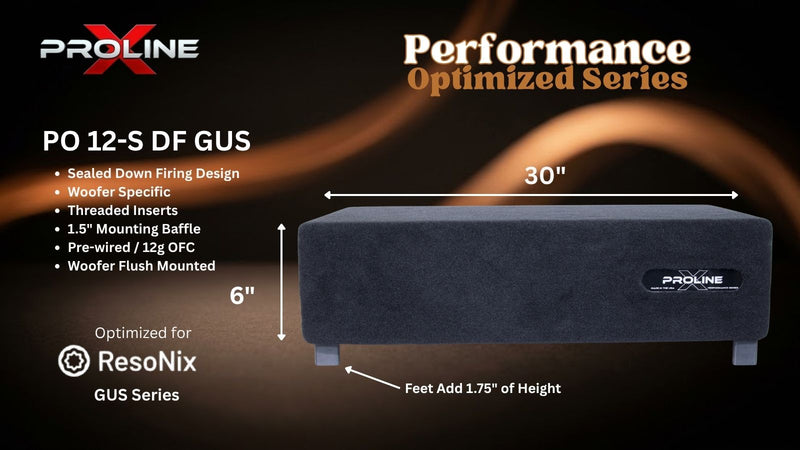

Standoffs Included

ResoNix specifies 60mm minimum from the baffle surface to whatever sits in front of the cone. On a down fire cabinet that is the floor, so custom-fit standoffs ship with every enclosure.

Down Firing, Endorsed by the Manufacturer

ResoNix addresses the orientation question directly in their own documentation: there is very little real world difference in sound between down firing and up firing, and you should choose whichever makes the installation easier, more reliable and easier to service.

The GUS series also uses a vented rear cone assembly attached to the voice coil former, so the pole vent can be completely obstructed with no negative effect. That is what allows this cabinet to be built without the rear motor clearance allowance most drivers require.

Power and Warranty

ResoNix rates the GUS-12 at 800 watts RMS and states plainly that they do not underrate their drivers the way many manufacturers do. Burnt voice coils and damage from bottoming out are not covered under their warranty. They also note these drivers stay composed right up to their limits, so it will not always be obvious when you are pushing too hard.

The enclosure carries a 1 year limited warranty. Bring your own GUS-12 in either coil configuration; the driver is purchased directly from ResoNix Sound Solutions.

Cut for the Driver, Not the Catalog

This enclosure ships with custom-fit standoffs and a 1 year limited warranty, built one at a time in Tullahoma, Tennessee.

Specifications

Series	Proline X Performance Optimized Down Fire
Compatible Driver	ResoNix GUS-12, Dual 2-Ohm or Dual 4-Ohm. Direct fit, no other driver
Enclosure Type	Sealed, down fire, floor coupled
Firing Direction	Downward into the floor. Standoffs included and required
External Width	30 in
External Depth	15 in
External Height	6 in, measured in down fire position, excludes standoffs
Internal Volume, Gross	0.81 cu ft
Internal Volume, Net Acoustic	0.76 cu ft after displacement
ResoNix Target For 0.707 Qtc	0.75 cu ft
ResoNix Minimum / Maximum	0.4 cu ft (Qtc 0.875) / 1.1 cu ft (Qtc 0.60, 500W limit)
System Qtc	0.716 (D4) / 0.668 (D2)
Predicted Fc	37.2 Hz (D4) / 34.6 Hz (D2)
Predicted F3	36.7 Hz (D4) / 36.8 Hz (D2)
Driver Fs	14.54 Hz (D4) / 14.51 Hz (D2)
Driver Qts	0.28, both variants
Driver Qes / Qms	0.28 / 9.08 (D4) · 0.29 / 7.66 (D2)
Driver Vas	119.35 L (D4) / 101.07 L (D2)
Driver Re, Parallel	1.70 ohm (D4) / 1.03 ohm (D2)
Driver BL	13.634 (D4) / 11.436 (D2)
Driver Mms	339.842 g (D4) / 402.797 g (D2)
Driver Sd	490.87 cm²
Driver Xmax at 70% BL	20.69mm, Klippel verified
Driver Xmech	24mm
Driver Displacement	0.046 cu ft, published by ResoNix
Driver Power Handling	800 W RMS. Do not exceed
Driver Cone	Nomex honeycomb core with carbon fiber facing
Driver Voice Coil	3 in copper on titanium former
Driver Motor	Patent pending FEA optimized overhung, full length copper shorting sleeve
Rear Venting	Vented rear cone assembly. Pole vent may be fully obstructed
Mounting Depth	115.3mm / 4.539 in, ResoNix spec
Woofer Opening	283.57mm direct fit
Driver Outer Diameter	330mm with gasket
Min Front Clearance	60mm from baffle surface, ResoNix spec
Standoffs	Custom fit, included
Material	Langboard Elite MDF
Construction	CNC cut, dado and V groove joinery, perimeter cross brace
Panel Thickness	0.75 in
Front Baffle	1.5 in double baffle, outer layer flush recess
Corner Profile	Square, Down Fire series standard
Driver Mounting	8/32 threaded inserts, stainless machine screws included
Terminal Cup	Proline X ABS and carbon fiber composite, side mounted
Internal Wiring	12 gauge OFC

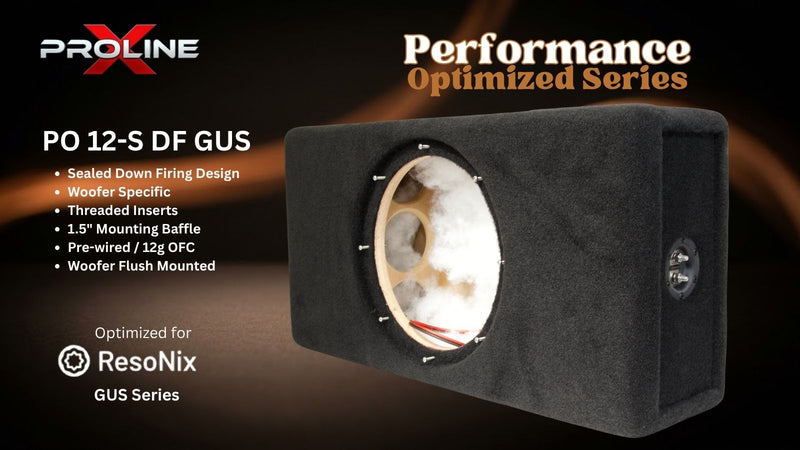

Damping	Polyfill pre-installed
Carpet	Dark gray trunk liner standard, plush black available
Weight	29 lb
Warranty	1 Year Limited
Built In	Tullahoma, Tennessee

Performance Graphs

Net airspace

0.76

cu ft per chamber

System Qtc

0.67–0.72

sealed

Half power

36.7–36.8

Hz · F3

Xmax at

676

W RMS · no filter

With 25 Hz subsonic

1078

W RMS · +60%

Amplifier

800

W RMS recommended

This enclosure holds 0.76 cu ft net per chamber. In it the ResoNix GUS-12 runs a system Qtc of 0.67–0.72 with half power at 36.7–36.8 Hz, and the cone reaches its 20.0 mm travel limit at 676 W, below the driver’s 800 W thermal rating, so travel is what stops you here, not heat. Run a subsonic filter at 25 Hz and that becomes 1078 W — +402 W, or 60 percent more power for the same 20.0 mm of travel.

01Is it a sealed driver?

Efficiency bandwidth product places the motor before anything else is decided.

EBP = Fs ÷ Qes = 50.0–51.9

D2 · EBP 50.0D4 · EBP 51.9

At 50.0–51.9 the GUS-12 sits in the transition band, not the sealed band. That is not a mismatch: a transition motor works in either alignment, and sealed buys a smaller box and a gentler roll-off at the cost of some low-end output. Stage 02 shows what this airspace actually does with it.

02What the box does to it

0.76 cu ft against a 101.1 L Vas.

α = Vas ÷ Vb = 4.70 · Fc = Fs√(α+1) = 35–37 Hz · Qtc = 0.67–0.72

D2 · Qtc 0.67, Fc 35 Hz, F3 36.8 HzD4 · Qtc 0.72, Fc 37 Hz, F3 36.7 Hz

The box lifts resonance from 14.5 Hz free-air to 35–37 Hz and half power lands at 36.7–36.8 Hz, anechoic, before any cabin gain. This enclosure ships without a driver, so both coil variants the maker offers are plotted. They do not load the same box the same way.

03The watts that reach Xmax (in this enclosure)

Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 20.0 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.

P_Xmax = 676–696 W unfiltered → 1078–1255 W with a 25 Hz subsonic

D2 · 696 W, no filterD4 · 676 W, no filterD2 · 1255 W with subsonic at 25 Hz, 24 dB/octD4 · 1078 W with subsonic at 25 Hz, 24 dB/octXmax 20.0 mm one-way

Every trace touches the limit and no further, because each is drawn at the exact power that puts that coil on 20.0 mm. Unfiltered that is 676 W, reached first at 20 Hz. It sits under the 800 W the driver can take thermally, so the enclosure sets the ceiling, not the voice coil. The dashed traces are the same driver behind a subsonic filter at 25 Hz, 24 dB/oct: stopping the cone wasting travel below the passband lets it take 1078 W before hitting the same 20.0 mm. That is 60 percent more amplifier for the price of one filter setting.

Param	Value	Unit	Note
Fs	14.51	Hz	free-air resonance
Qts	0.280 / 0.280		D2 / D4
Vas	101.07 / 119.35	L	equivalent compliance
Sd	490.9	cm²	effective piston area
Xmax	20	mm	one-way linear travel
Pe	800	W	continuous RMS
SPL	82.1	dB	1 W / 1 m, derived from T/S

Driver parameters as published by resonixsoundsolutions.com. Curves computed against this enclosure’s actual net airspace.

Materials

Material

Built From a Spec Sheet, Not a Sales Sheet

Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.

Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.

Specifications

Langboard Elite MDF: Published Mill Data

Property	Value	Why It Matters
Panel Stock	Langboard Elite MDF	Named, verifiable panel source, not generic "high-density MDF"
Thickness	3/4" (18mm)	Industry standard for subwoofer enclosures; panels below this flex under pressure
Density	48.5 lbs/ft³	Higher density = less porosity, better screw retention, reduced resonance
Internal Bond	200 psi	Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet
Modulus of Rupture (MOR)	4,200 psi	Bending strength before the panel breaks, relevant for larger unsupported baffle spans
Modulus of Elasticity (MOE)	410,000 psi	Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance
Face Screw Holding	325 lbs	How firmly the panel surface holds a screw; critical for baffle joint integrity over time
Edge Screw Holding	250 lbs	Panel edge retention, relevant for every joint that isn't face-to-face

Internal Bond

200 psi: The Number That Actually Matters for Enclosures

The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.

Stiffness

410,000 psi MOE: Less Flex, Less Resonance

The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.

Screw Holding

325 lb Face / 250 lb Edge: Joints That Stay Locked

Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.

Sourcing

Named Panel Stock: Not "Premium MDF"

The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.

Why Proline X?

Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.

CNC-Cut to Spec

Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
