Performance Optimized Down Fire Sealed 15" Enclosure | ResoNix GUS-15
SKU: PO 15-S DF GUS
- Alignment: 1.41 cu ft net, ResoNix's own 1.4 recommendation. Qtc 0.690 / F3 32.2 Hz (D2), Qtc 0.675 / F3 35.7 Hz (D4)
- Driver: ResoNix GUS-15 D2 or D4, 1500W RMS, 25mm Klippel verified Xmax, 804.25 cm² Sd, 5.807 in mounting depth
- Wider platform: 17 in deep rather than the 15 in used across the rest of the line, since the GUS-15's 13.972 in cutout will not fit a 15 in cabinet
- Standoffs: Included, ResoNix specifies 65mm minimum from baffle surface to the floor, installed height near 11 in
- Cabinet: 30 in W x 17 in D x 8.25 in H in down fire position, excludes standoffs, square corners
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Sealed 15" Enclosure | ResoNix GUS-15
Proline X PO Down Fire 15" Sealed
Cut and tuned for the ResoNix GUS-15
Built Around the ResoNix GUS-15
Nothing about this cabinet is generic. The baffle is bored to the GUS-15's 354.91mm cutout, 13.972 inches, the internal height is set by its 5.807 inch mounting depth, and the volume lands within a hundredth of the 1.4 cubic feet ResoNix publishes for a 0.707 Qtc alignment. It reaches 32.2 Hz on the Dual 2-Ohm, the deepest single driver figure in the Down Fire line, from a 15 that mounts in less than six inches.
GUS stands for Geometrically Uncompromised Subwoofer, and the engineering behind the name is not marketing language. A patent pending FEA optimized overhung motor with high motor force and very low inductance. Copper and aluminum shorting rings plus a full length copper shorting sleeve positioned outside the gap, which keeps inductance stable across stroke while pulling heat out of the coil. A 4 inch copper voice coil on a titanium former that eliminates eddy current drag and directs heat away from the internal neodymium magnet. A Nomex honeycomb core cone with carbon fiber facing across 804.25 cm² of piston area.
ResoNix publishes the parameter set the way it should be published. Full Thiele Small figures for each coil variant, down to Qes, Qms, BL, Mms and Re. 25mm of Klippel verified one way excursion at 70% BL, a measured number under a stated criterion, with Xmech listed separately at 28mm. That is a manufacturer telling you where the driver stays linear and where it physically stops, rather than blending the two into one number.
Why This One Is 17 Inches Deep
This is the only cabinet in the Proline X Down Fire line that does not use the 15 inch platform, and the reason is geometric rather than stylistic. The GUS-15 mounting diameter is 354.91mm, just under 14 inches. On a 15 inch deep cabinet the internal span is 13.5 inches after panel thickness, so the cutout would be wider than the cavity holding it. That is not a tight fit, it is impossible.
At 17 inches external the internal footprint is 27.5 by 15.5 inches, which leaves roughly three quarters of an inch of baffle material on each side of the cutout. That is the minimum needed for a rigid baffle and a proper seal, and it is what makes a 15 physically possible in this format. Every other Down Fire enclosure stays on the 15 inch platform.
Net Volume, Not Gross
We build this cabinet at 1.41 cubic feet net, out of 1.48 gross, against ResoNix's published 1.4 for a 0.707 Qtc alignment. The volume quoted is true net internal airspace after panel thickness, bracing and the driver's own 0.072 cubic feet of displacement are accounted for. For reference, ResoNix brackets this driver between 0.8 cubic feet, which gives a Qtc of 0.875, and 2.3 cubic feet, which gives 0.60 but carries a 1000 watt limit. Sitting at 1.4 keeps the full 1500 watt rating and a well damped alignment at the same time.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's published displacement, not estimated from external dimensions minus wall thickness.
The Dual 2-Ohm reaches deeper. It measures 14.11 Hz free air with a Qts of 0.31 and 157.94 litres of Vas, and in this cabinet lands at Qtc 0.690 with F3 at 32.2 Hz. The Dual 4-Ohm measures 17.11 Hz with a Qts of 0.34 and 117.47 litres, landing at Qtc 0.675 with F3 at 35.7 Hz, marginally better damped and about three and a half hertz shallower. Impedance is set at the driver: the D2 wired parallel presents 1 ohm at 1500 watts, which is a demanding load that not every 1 ohm rated amplifier handles reliably under continuous use, while the D4 wired parallel gives a far more forgiving 2 ohms. Choose on what your amplifier can actually deliver cleanly.
Down Fire Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. With a 13.972 inch cutout and a 1500 watt driver bolted to it, that rigidity is not optional. Corners are square on Down Fire cabinets.

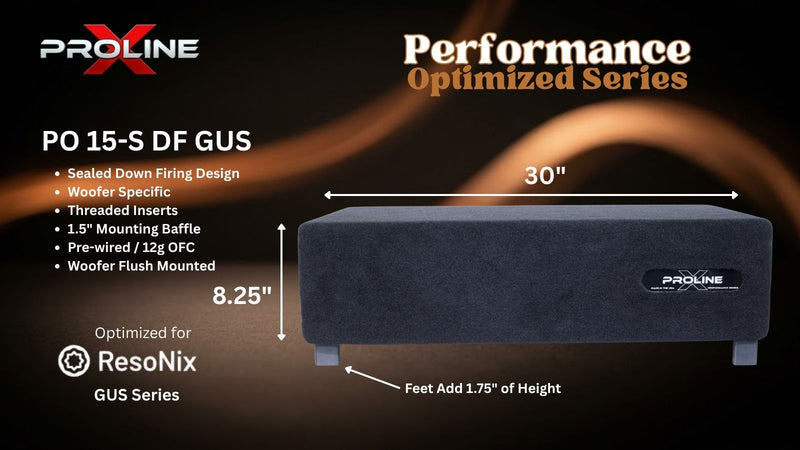

The cabinet measures 30 inches wide by 17 inches deep by 8.25 inches tall, measured in the down fire position and excluding standoffs. Plan the space around the installed height rather than the cabinet height: with the standoffs holding ResoNix's required 65mm under the baffle, installed height lands near 11 inches. This is a cargo floor or rear wall build.

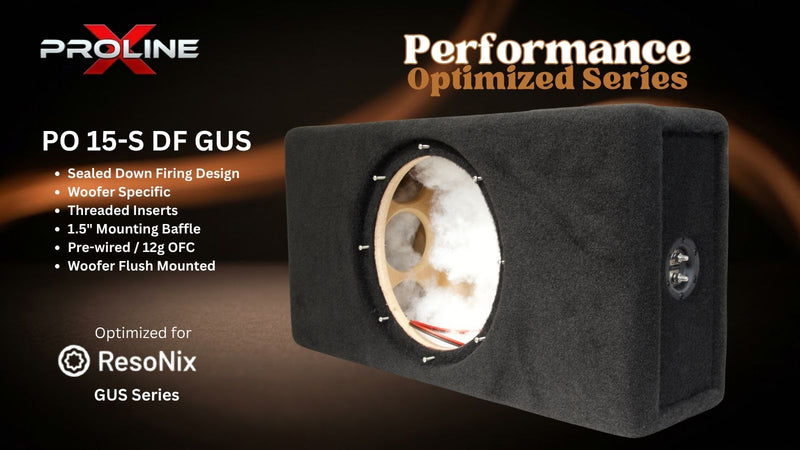

Double Baffle, Flush Recess
The front baffle is 1.5 inches, two bonded 3/4 inch sheets, with the outer layer machined as a flush recess so the driver bolts to the inner layer. That recovers 3/4 inch of internal clearance.

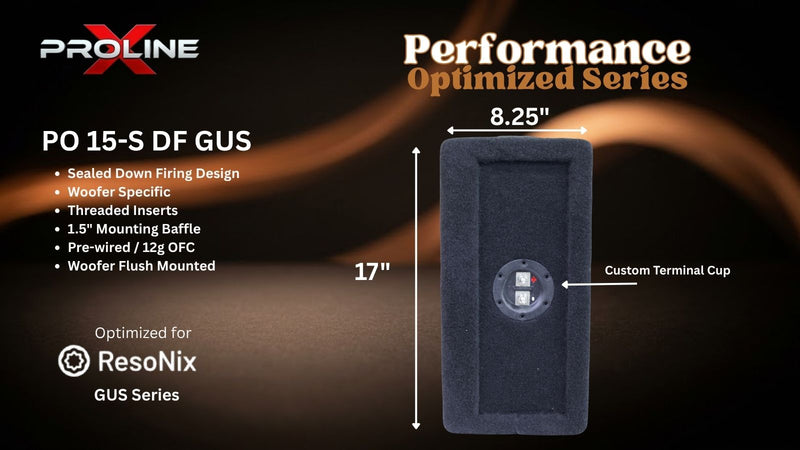

Side-Mounted Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC. Side mounted so it stays accessible with the baffle facing the floor.
Standoffs Included
ResoNix specifies 65mm minimum from the baffle surface to whatever sits in front of the cone, 33mm between the surround and the obstruction. That is the largest clearance requirement in the GUS line, appropriate for 25mm of one way excursion, so custom-fit standoffs ship with every enclosure.

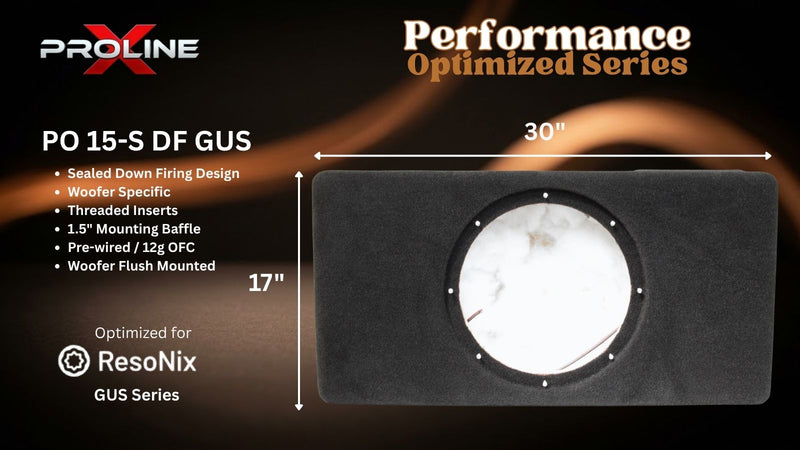

17 Inch Platform
The only Down Fire cabinet built on a 17 inch depth, giving a 27.5 by 15.5 inch internal footprint so the 13.972 inch cutout keeps proper baffle material around it.
Down Firing, Endorsed by the Manufacturer
ResoNix addresses the orientation question directly in their own documentation: there is very little real world difference in sound between down firing and up firing, and you should choose whichever makes the installation easier, more reliable and easier to service. That endorsement comes from the driver's manufacturer rather than from us. The one requirement is maintaining the specified 65mm of clearance in front of the cone, which the included standoffs handle.
The GUS series also uses a vented rear cone assembly attached to the voice coil former, so the pole vent can be completely obstructed with no negative effect. That is what allows this cabinet to be built without the rear motor clearance allowance most drivers require, which is how a 15 inch down fire enclosure stays at 8.25 inches tall despite a 5.807 inch mounting depth.
Power and Warranty
ResoNix rates the GUS-15 at 1500 watts RMS and states plainly that they do not underrate their drivers the way many manufacturers do. Burnt voice coils and damage from bottoming out are not covered under their warranty. At 1500 watts the electrical system matters as much as the amplifier, so plan on a high output alternator, adequate battery capacity, and correctly sized power and ground cable. ResoNix also notes these drivers stay linear and composed right up to their mechanical limits, so it will not always be obvious when you are pushing too hard. Mechanical noise, clacking, or a sudden loss of control are the warning signs.
The enclosure carries a 1 year limited warranty and ships with the standoffs. Bring your own GUS-15 in either coil configuration; the driver is purchased directly from ResoNix Sound Solutions.
Cut for the Driver, Not the Catalog
A 17 inch platform built for one driver, 1.41 cubic feet net, custom-fit standoffs and a 1 year limited warranty, built one at a time in Tullahoma, Tennessee.
| Series | Proline X Performance Optimized Down Fire |
| Compatible Driver | ResoNix GUS-15, Dual 2-Ohm or Dual 4-Ohm. Direct fit, no other driver |
| Enclosure Type | Sealed, down fire, floor coupled |
| Firing Direction | Downward into the floor. Endorsed by ResoNix. Standoffs included and required |
| External Width | 30 in |
| External Depth | 17 in, wider platform, required by the GUS-15 cutout |
| External Height | 8.25 in, measured in down fire position, excludes standoffs |
| Internal Footprint | 27.5 in x 15.5 in |
| Dimension Reference | All external dimensions measured in down fire position, excludes standoffs |
| Internal Volume, Gross | 1.48 cu ft |
| Internal Volume, Net Acoustic | 1.41 cu ft after displacement |
| ResoNix Target For 0.707 Qtc | 1.4 cu ft |
| ResoNix Minimum / Maximum | 0.8 cu ft (Qtc 0.875) / 2.3 cu ft (Qtc 0.60, 1000 W limit) |
| System Qtc | 0.690 (D2) / 0.675 (D4) |
| Predicted F3 | 32.2 Hz (D2), deepest single driver figure in the Down Fire line / 35.7 Hz (D4) |
| Driver Fs | 14.11 Hz (D2) / 17.11 Hz (D4) |
| Driver Qts | 0.31 (D2) / 0.34 (D4) |
| Driver Qes / Qms | 0.32 / 21.7 (D2), 0.34 / 16.45 (D4) |
| Driver Vas | 157.94 L (D2) / 117.47 L (D4) |
| Driver Re, Parallel | 1.10 Ohm (D2) / 1.94 Ohm (D4) |
| Driver BL | 15.01 (D2) / 20.165 (D4) |
| Driver Mms | 731.602 g (D2) / 669.468 g (D4) |
| Driver Sd | 804.25 cm² |
| Driver Xmax at 70% BL | 25mm, Klippel verified |
| Driver Xmech | 28mm |
| Driver Displacement | 0.072 cu ft, published by ResoNix |
| Driver Power Handling | 1500 W RMS. Do not exceed |
| Driver Weight | 22 lb |
| Driver Cone | Nomex honeycomb core with carbon fiber facing |
| Driver Voice Coil | 4 in copper on titanium former |
| Driver Motor | Patent pending FEA optimized overhung, full length copper shorting sleeve, copper and aluminum shorting rings |
| Voice Coil Configuration | Dual voice coil, impedance set at the driver |
| Rear Venting | Vented rear cone assembly. Pole vent may be fully obstructed, ResoNix spec |
| Mounting Depth | 147.5mm / 5.807 in, ResoNix spec |
| Woofer Opening | 354.91mm / 13.972 in, direct fit |
| Driver Outer Diameter | 399mm / 15.71 in with gasket, ResoNix spec |
| Min Front Clearance | 65mm from baffle surface, ResoNix spec |
| Standoffs | Custom fit, included. Maintain the ResoNix required floor clearance |
| Material | Langboard Elite 3/4 in MDF |
| Construction | ShopSabre CNC cut, dado and V groove joinery, perimeter cross brace |
| Panel Thickness | 0.75 in |
| Front Baffle | 1.5 in double baffle, outer layer flush recess, driver mounts to inner layer |
| Corner Profile | Square, Down Fire series standard |
| Driver Mounting | 8/32 threaded inserts, stainless machine screws included |
| Terminal Cup | Proline X ABS and carbon fiber composite, side mounted |
| Internal Wiring | 12 gauge OFC |
| Damping | Polyfill pre-installed |
| Carpet | Dark gray trunk liner standard, plush black available |
| Weight | 42 lb |
| Warranty | 1 Year Limited, enclosure |
| Built In | Tullahoma, Tennessee |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
1.41 cu ft against a 117.5 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 25.0 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 17.11 | Hz | free-air resonance |
| Qts | 0.340 / 0.310 | D4 / D2 | |
| Vas | 117.47 / 157.94 | L | equivalent compliance |
| Sd | 804.2 | cm² | effective piston area |
| Xmax | 25 | mm | one-way linear travel |
| Pe | 1500 | W | continuous RMS |
| SPL | 84.2 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by resonixsoundsolutions.com. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
