Proline X
Performance Optimized Down Fire Sealed Dual 12" Enclosure | ResoNix GUS-12
SKU: PO 12D-S DF GUS
- Alignment: 0.75 cu ft net per chamber, 1.50 cu ft total, ResoNix's own 0.707 target exactly. Qtc 0.716 / F3 36.7 Hz (D4), Qtc 0.668 / F3 36.8 Hz (D2)
- Chambers: Two fully separate sealed chambers, 3/4 in MDF full divider, one shared side mounted terminal cup
- Drivers: Pair of ResoNix GUS-12 D2 or D4, 800W RMS each, 1600W combined, 20.69mm Klippel Xmax, 14.5 Hz Fs, 4.539 in mounting depth
- Standoffs: Included, ResoNix specifies 60mm minimum from baffle surface to the floor, installed height above 11 in
- Cabinet: 30 in W x 15 in D x 9.875 in H in down fire position, excludes standoffs, square corners
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Sealed Dual 12" Enclosure | ResoNix GUS-12
Proline X PO Down Fire Dual 12" Sealed
Cut and tuned for a pair of ResoNix GUS-12
Built Around the ResoNix GUS-12
Nothing about this cabinet is generic. Both baffle positions are bored to the GUS-12's 283.57mm cutout, 11.164 inches, the internal height is set by its 4.539 inch mounting depth, and each chamber lands exactly on the 0.75 cubic feet ResoNix publishes for a 0.707 Qtc alignment.
The parameter that makes this driver worth building around is a free-air resonance of 14.5 Hz paired with a Qts of 0.28. A sealed enclosure always raises the system corner above the driver's own Fs, so a low starting point is what makes deep extension possible in a small box. Most shallow 12s sit in the high 20s or low 30s. This one reaches 36.7 Hz per driver, twice over, from a pair that each mount in four and a half inches.
The motor is a patent pending FEA optimized overhung design with high motor force and very low inductance. Copper and aluminum shorting rings plus a full length copper shorting sleeve positioned outside the gap keep inductance stable across stroke while pulling heat out of the coil. The cone is a Nomex honeycomb core with carbon fiber facing, driven by a 3 inch copper voice coil on a titanium former. Cone area is 490.87 cm² per driver, 981.7 cm² across the pair.
The excursion figures are published the way they should be. ResoNix quotes 20.69mm of Klippel verified one way excursion at 70% BL, a measured number under a stated criterion, and lists Xmech separately at 24mm. That is a manufacturer telling you where the driver stays linear and where it physically stops, rather than blending the two into one marketing figure.
Net Volume, Not Gross
Each driver gets 0.75 cubic feet net, 1.50 cubic feet net across both chambers, out of 1.59 gross. That is ResoNix's own published figure for a 0.707 Qtc alignment, hit on the nose rather than approached. The volume quoted is true net internal airspace after panel thickness, the divider, bracing and each driver's own 0.046 cubic feet of displacement are accounted for.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's published displacement, not estimated from external dimensions minus wall thickness.
Both coil options work here, which is not always the case. The Dual 4-Ohm lands at Qtc 0.716 with F3 at 36.7 Hz per chamber. The Dual 2-Ohm lands at Qtc 0.668 with F3 at 36.8 Hz, a tenth of a hertz apart, because the two variants share a 0.28 Qts and differ only slightly in Fs, 14.54 Hz against 14.51 Hz, and in Vas, 119.35 litres against 101.07. The D2 is the more damped of the two. Pick whichever suits your amplifier rather than the alignment.
Two Drivers, Two Chambers
Two drivers sharing one sealed volume interact acoustically. Each driver's compression phase becomes the pressure environment the other is working against, which smears transient response and blurs the alignment each would have on its own. A full height bonded 3/4 inch MDF divider eliminates that completely. Each GUS-12 gets its own 0.75 cubic feet and its own polyfill. Separate chambers are the standing design rule on every Proline X dual sealed enclosure.
One side mounted terminal cup serves both chambers, pre-wired in 12 gauge OFC to both driver positions in parallel, so you do not run the chambers separately to the amplifier. Final impedance is set at the drivers. Each GUS-12 is dual voice coil: the D2 gives 1 ohm in parallel or 4 in series, the D4 gives 2 ohms in parallel or 8 in series, and the two drivers in parallel through the cup halve that again. A pair of D4 drivers wired parallel presents a 1 ohm load. Wire both drivers identically and confirm the result against your amplifier's minimum stable impedance before powering the system.
Down Fire Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps both chambers airtight under sustained pressure cycling. That matters with two 11.164 inch cutouts and 1600 watts in the same cabinet. Corners are square on Down Fire cabinets.

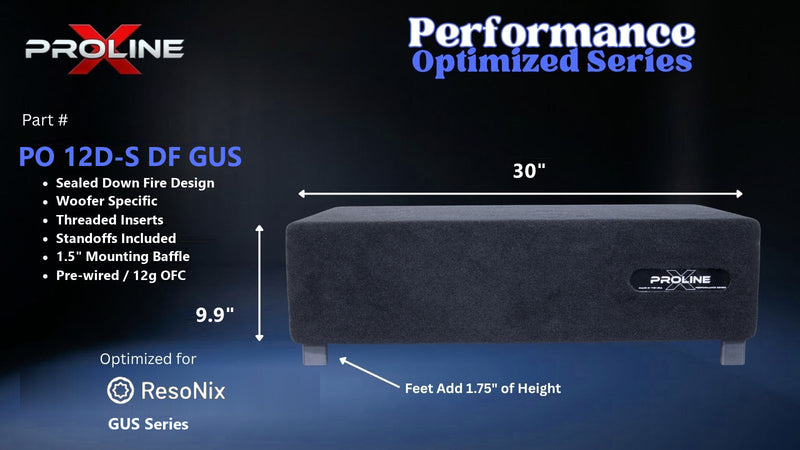

Be realistic about size. The cabinet measures 30 inches wide by 15 inches deep by 9.875 inches tall, measured in the down fire position and excluding standoffs, and the standoffs that hold ResoNix's required 60mm add roughly two and a half inches on top of that. Plan on an installed height above 11 inches. This is a cargo floor or rear wall build rather than an under seat one. The 30 by 15 inch footprint is unchanged, so it takes no more floor area than any other Down Fire cabinet.
Double Baffle, Flush Recess
The front baffle is 1.5 inches at both driver positions, two bonded 3/4 inch sheets, with the outer layer machined as a flush recess so each driver bolts to the inner layer. That recovers 3/4 inch of internal clearance per chamber.

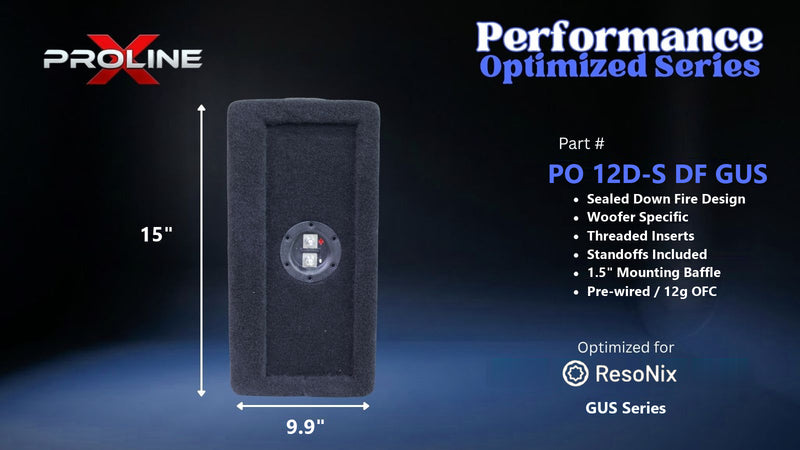

Side-Mounted Terminal Cup
One Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC to both driver positions. Side mounted so it stays accessible with the baffles facing the floor.
Separate Chambers
A full height 3/4 inch MDF panel is bonded in as a divider, so each GUS-12 works against its own 0.75 cubic feet with its own pre-installed polyfill.
Standoffs Included
ResoNix specifies 60mm minimum from the baffle surface to whatever sits in front of the cone, 28mm between the surround and the obstruction. On a down fire cabinet that is the floor, so custom-fit standoffs ship with every enclosure.
Down Firing, Endorsed by the Manufacturer
ResoNix addresses the orientation question directly in their own documentation: there is very little real world difference in sound between down firing and up firing, and you should choose whichever makes the installation easier, more reliable and easier to service.
The GUS series also uses a vented rear cone assembly attached to the voice coil former, so the pole vent can be completely obstructed with no negative effect. That is what allows these chambers to be built without the rear motor clearance allowance most drivers require.
Power and Warranty
ResoNix rates the GUS-12 at 800 watts RMS each, 1600 watts RMS across the pair, and states plainly that they do not underrate their drivers the way many manufacturers do. Burnt voice coils and damage from bottoming out are not covered under their warranty. At 1600 watts the electrical system matters as much as the amplifier, so plan on adequate alternator output, battery capacity, and correctly sized power and ground cable. ResoNix also notes these drivers stay linear and composed right up to their limits, so it will not always be obvious when you are pushing too hard.
The enclosure carries a 1 year limited warranty and ships with the standoffs. Bring your own pair of GUS-12 in either coil configuration; the drivers are purchased directly from ResoNix Sound Solutions.
Cut for the Driver, Not the Catalog
The deepest reaching cabinet in the Down Fire line, two chambers at 0.75 cubic feet each, custom-fit standoffs and a 1 year limited warranty, built one at a time in Tullahoma, Tennessee.
| Series | Proline X Performance Optimized Down Fire |
| Compatible Driver | ResoNix GUS-12, Dual 2-Ohm or Dual 4-Ohm. Pair required, direct fit |
| Enclosure Type | Sealed, dual driver, down fire, floor coupled |
| Chamber Configuration | Two fully separate chambers, full divider, single shared side mounted terminal cup |
| Firing Direction | Downward into the floor, both drivers. Endorsed by ResoNix. Standoffs included and required |
| External Width | 30 in |
| External Depth | 15 in |
| External Height | 9.875 in, measured in down fire position, excludes standoffs |
| Dimension Reference | All external dimensions measured in down fire position, excludes standoffs |
| Internal Volume, Gross | 1.59 cu ft total |
| Internal Volume, Net Acoustic | 0.75 cu ft per chamber, 1.50 cu ft total after displacement |
| ResoNix Target For 0.707 Qtc | 0.75 cu ft per driver, matched exactly |
| System Qtc Per Chamber | 0.716 (D4) / 0.668 (D2) |
| Predicted F3 Per Driver | 36.7 Hz (D4) / 36.8 Hz (D2) |
| Driver Fs | 14.54 Hz (D4) / 14.51 Hz (D2) |
| Driver Qts | 0.28, both variants |
| Driver Vas | 119.35 L (D4) / 101.07 L (D2), each |
| Driver Sd | 490.87 cm² each, 981.7 cm² total |
| Driver Xmax at 70% BL | 20.69mm, Klippel verified |
| Driver Xmech | 24mm |
| Driver Displacement | 0.046 cu ft each, published by ResoNix |
| Driver Power Handling | 800 W RMS each, 1600 W RMS combined. Do not exceed |
| Driver Cone | Nomex honeycomb core with carbon fiber facing |
| Driver Voice Coil | 3 in copper on titanium former |
| Driver Motor | Patent pending FEA optimized overhung, full length copper shorting sleeve, copper and aluminum shorting rings |
| Voice Coil Configuration | Dual voice coil per driver, impedance set at the drivers |
| Rear Venting | Vented rear cone assembly. Pole vent may be fully obstructed, ResoNix spec |
| Mounting Depth | 115.3mm / 4.539 in, ResoNix spec |
| Woofer Opening | 283.57mm / 11.164 in, direct fit, each position |
| Min Front Clearance | 60mm from baffle surface, ResoNix spec |
| Standoffs | Custom fit, included. Maintain the ResoNix required floor clearance |
| Material | Langboard Elite 3/4 in MDF |
| Construction | ShopSabre CNC cut, dado and V groove joinery, perimeter cross brace |
| Panel Thickness | 0.75 in |
| Front Baffle | 1.5 in double baffle at both driver positions, outer layer flush recess |
| Chamber Divider | 3/4 in MDF, full bonded panel |
| Corner Profile | Square, Down Fire series standard |
| Driver Mounting | 8/32 threaded inserts, stainless machine screws included, 2 sets |
| Terminal Cup | One Proline X ABS and carbon fiber composite, side mounted |
| Internal Wiring | 12 gauge OFC, pre-wired in parallel to both driver positions |
| Damping | Polyfill pre-installed per chamber |
| Carpet | Dark gray trunk liner standard, plush black available |
| Weight | 44 lb |
| Warranty | 1 Year Limited, enclosure |
| Built In | Tullahoma, Tennessee |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
0.75 cu ft against a 101.1 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 20.0 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 14.51 | Hz | free-air resonance |
| Qts | 0.280 / 0.280 | D2 / D4 | |
| Vas | 101.07 / 119.35 | L | equivalent compliance |
| Sd | 490.9 | cm² | effective piston area |
| Xmax | 20 | mm | one-way linear travel |
| Pe | 800 | W | continuous RMS |
| SPL | 82.1 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by resonixsoundsolutions.com. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
