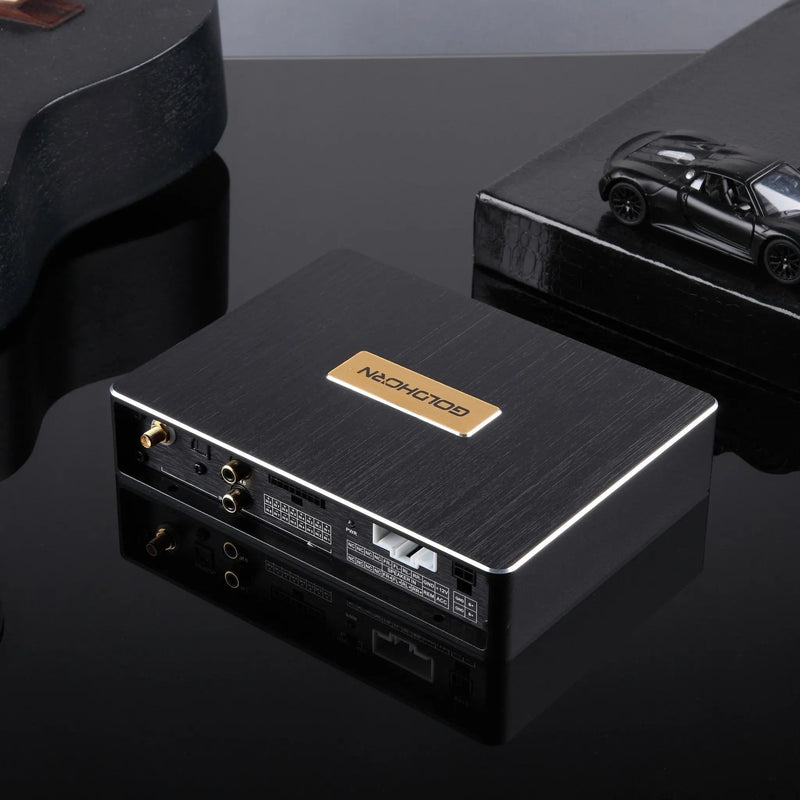

Goldhorn DSP10 | 10-Channel Standalone DSP for Audiophile Sound Quality

ADAU1453 SigmaDSP - Automotive-Qualified Precision

Why ADAU1453 Matters: The DSP10 employs Analog Devices' ADAU1453 chip—a dedicated automotive DSP from the SigmaDSP family. With 10 independent processing channels and 24-channel I/O capability, this chip delivers:

• Dedicated Channel Processing: Each of 10 channels receives full DSP treatment (31-band parametric EQ, active crossover with multiple filter types, 0-20ms time alignment, phase control, individual gain adjustment). Unlike entry-level DSPs with shared processing (where EQ affects multiple channels), DSP10 provides complete independence—tune front tweeters without affecting subwoofers.
• Automotive-Grade Reliability: ADAU1453 rated for -40°C to +105°C operation (extreme temperature stability for dashboard/trunk installations in hot climates or winter conditions). Meets automotive EMI/RFI standards (resists electrical noise from alternators, ignition systems, power windows—critical for noise-free audio in electrically-noisy vehicle environments).
• SigmaStudio Software Integration: Free Windows-compatible graphical DSP programming software from Analog Devices. Drag-and-drop interface for routing, EQ, crossovers. Real-time parameter adjustment while listening (no upload/test cycles—change EQ and hear results instantly). Save unlimited presets (store different tuning profiles for different music genres, passengers, or listening modes).
• Low Latency Processing: <5ms total system latency from input to output (imperceptible delay, critical for maintaining lip-sync when using DSP with video systems or for competition where judges penalize audible delay). ADAU1453's block-based processing architecture minimizes computational delay while maximizing processing power.

Texas Instruments PCM Series - Professional Audio Grade

Why Converter Quality Matters in Standalone DSPs: Standalone DSPs like the DSP10 rely entirely on ADC (analog-to-digital) and DAC (digital-to-analog) conversion quality—there's no amplifier stage to mask converter deficiencies. Poor converters add noise, distortion, and artifacts that external reference amplifiers will faithfully reproduce. The DSP10 employs professional-grade Texas Instruments PCM converters—the same chips used in recording studio equipment and audiophile playback systems.

Dual PCM1840 ADC (Analog-to-Digital Converters):

• 2 × PCM1840 Configuration: Each PCM1840 handles 4 channels (8 total input channels: 2 chips × 4 channels = 8 high-level inputs). Dedicated ADC-per-channel-group prevents crosstalk between input pairs (left/right front stays isolated from left/right rear—preserves stereo imaging).
• 113dB Dynamic Range: High signal-to-noise ratio ensures clean conversion of factory speaker-level signals or aftermarket RCA inputs. Particularly important for OEM integration where factory head units output 1-3V signals with inherent noise from switching amplifiers—PCM1840's 113dB SNR preserves signal integrity while rejecting noise.
• Advanced Digital Filtering: On-chip digital anti-aliasing filters eliminate high-frequency artifacts during conversion. Programmable filter characteristics in SigmaStudio allow matching filter response to source material (sharp roll-off for digital sources, gentle roll-off for analog sources like FM radio).

PCM1691 DAC (Digital-to-Analog Converter):

• 106dB Dynamic Range: Clean output signal to external amplifiers. 106dB SNR means amplifier noise floor (typically 100-105dB) is limiting factor, not DSP—DSP10 doesn't bottleneck system SNR. Critical when using reference amplifiers with <0.001% THD+N specs (Zapco, Arc Audio, Audison)—DSP must match amp quality.
• Advanced Segment DAC Architecture: PCM1691 uses multi-bit delta-sigma topology with 8x oversampling. Reduces quantization noise, improves linearity (amplitude accuracy), minimizes digital artifacts (eliminates "harsh digital sound" complaints from early CD players—smooth, analog-like presentation).
• Low Output Impedance: PCM1691 drives 10 RCA outputs @ 6V simultaneously without voltage sag or distortion increase. Sufficient current capability to drive long RCA cables (10-15 feet from trunk DSP to dashboard amplifiers) without high-frequency roll-off or noise pickup.
• MC33078 Op-Amp Output Stage: Premium operational amplifier (same used in high-end studio equipment) provides low-noise, low-distortion buffering between DAC and RCA outputs. THD+N <0.002% @ 6V output (transparent reproduction—no audible coloration).

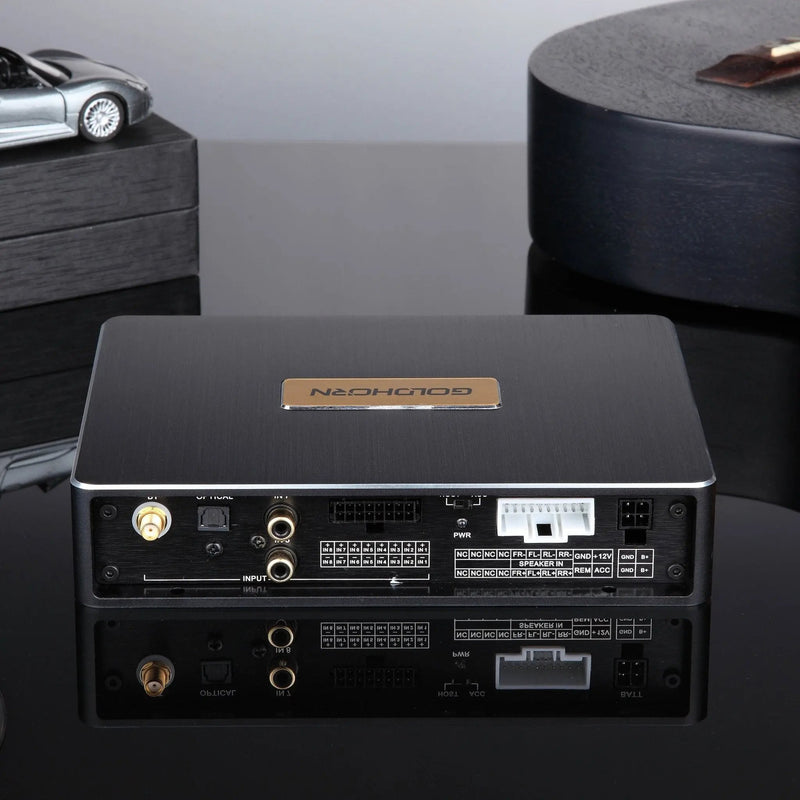

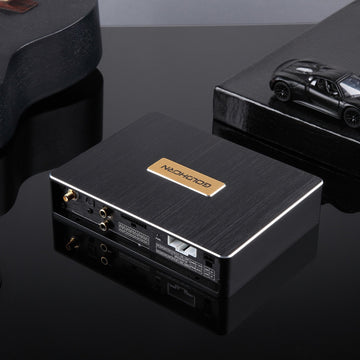

8 High-Level + RCA + Optical + Bluetooth - Maximum Compatibility

Input Configuration (Designed for Real-World Integration):

• 8 High-Level Inputs: Accepts speaker-level signals from factory head units or OEM amplifiers (2-16V input range). Most common OEM integration method—tap factory speaker wires, send to DSP10 high-level inputs, DSP processes signal, outputs clean signal via RCA to external amplifiers. Compatible with 99% of factory systems (works with both standard head units outputting 2-4V and high-power OEM amps outputting 8-16V). Input impedance: 6Ω (high enough not to load factory amp outputs, low enough for noise immunity).
• 1 × Optical Input (TOSLINK): Digital input for aftermarket head units with optical output. Bypasses ADC stage entirely—digital signal from source → DSP processing → DAC → RCA outputs. Advantage: Zero analog noise injection (ground loops, alternator whine, RFI eliminated). Use with: Alpine iLX-W650 (optical output), Sony XAV-AX5500 (optical output), Kenwood Excelon (optical output models), Standalone DAPs (digital audio players like Astell&Kern, FiiO with TOSLINK).
• 1 × AUX Input (RCA Stereo): Standard analog RCA input for aftermarket head units without optical. Input sensitivity adjustable in software (0-3V max—accommodates low-level 0.5V signals from vintage head units or high-level 3V signals from modern units). Shielded input design minimizes noise pickup from alternator/ignition systems.
• Bluetooth 5.0 (Qualcomm Chip): Multi-codec wireless streaming: aptX HD: 24-bit/48kHz (576kbps, near-lossless quality for critical listening), aptX: 16-bit/48kHz (352kbps, better than SBC), AAC: Apple device optimization (iPhone/iPad preferred codec), SBC: Universal fallback (all Bluetooth devices). Practical uses: Tuning convenience (stream test tracks from smartphone during setup without wired connection), Passenger entertainment (rear-seat passengers stream from tablets/phones), Quick diagnostic testing (troubleshoot signal path without disconnecting head unit).

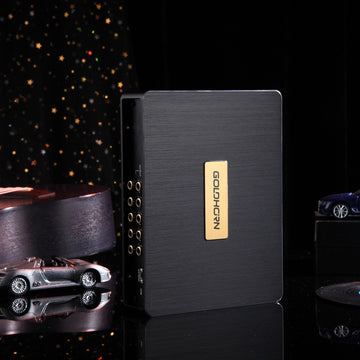

Output Configuration (Reference Amplifier Interface):

• 10 × RCA Pre-Outputs @ 6V: All outputs deliver 6Vrms simultaneously (sufficient voltage to drive most amplifiers to full rated power without clipping). Why 6V matters: Reference amplifiers typically have input sensitivity range 0.2V-8V. 6V output ensures DSP10 can drive any amplifier to full power, even models with low sensitivity (0.2V input sensitivity requires only 0.2V for full power—6V provides 30:1 headroom). Low output impedance (<100Ω) drives long cable runs (10-20 feet from trunk DSP to dashboard/firewall amplifiers) without signal degradation.
• 10-Channel Routing Flexibility: Common configurations: 3-Way Active Front + Subwoofers (6 channels): Ch1-2 (tweeters), Ch3-4 (midrange), Ch5-6 (midbass), Ch7-8 (dual subs or stereo sub), Ch9-10 (rear fill or spare). 2-Way Active Front + Rear + Subwoofer (7 channels): Ch1-2 (front highs), Ch3-4 (front lows), Ch5-6 (rear full-range), Ch7 (mono sub), Ch8-10 (spare for center/height expansion). Full-Range Bi-Amp Front/Rear + Subwoofers (9 channels): Ch1-2 (front left bi-amp), Ch3-4 (front right bi-amp), Ch5-6 (rear left/right), Ch7-8 (dual subs), Ch9-10 (center/height or spare).
• Remote Turn-On Output: Triggers external amplifiers when DSP10 receives signal or remote input. Output: 12V @ 500mA (sufficient to trigger up to 10 amplifiers simultaneously—most amps draw 10-50mA for remote turn-on). Eliminates need for separate relay or distribution block when using multiple amplifiers.

Goldhorn SKYATOM Surround System - Immersive Soundfield

What is SKYATOM? Proprietary surround sound algorithm that creates immersive 3D soundstage from ANY stereo source (no special encoded content required—works with Spotify, Apple Music, FM radio, CD, Bluetooth). Unlike home theater surround (Dolby/DTS) which needs 5.1/7.1 encoded files, SKYATOM processes standard 2-channel stereo and extracts spatial cues to create surround effect.

How SKYATOM Works:

1. Spatial Analysis: Algorithm analyzes stereo signal in real-time, identifying: Center-focused content (vocals, lead instruments with equal left/right amplitude), Ambient content (reverb, background instruments with phase differences), Low-frequency content (bass guitar, kick drum below 150Hz), High-frequency content (cymbals, air, ambience above 8kHz).
2. Channel Extraction & Routing: Separates audio into spatial components: Center channel: Extracted vocals/lead instruments routed to center speaker (eliminates vocal wander from stereo pan fluctuations). Front left/right: Main stereo content with center-focused elements reduced (creates wider soundstage). Rear left/right: Ambient content amplified and delayed 15-30ms (simulates concert hall reflections). Subwoofer: Bass content summed to mono and phase-corrected (eliminates stereo bass cancellation issues). Height/overhead (if available): High-frequency ambient content routed to overhead speakers (creates vertical dimension).
3. Acoustic Correction: Applies vehicle-specific compensation: Adjusts delay relationships for speaker distances, Compensates for cabin reflections (windshield, side windows, rear window), Phase-aligns all channels for coherent soundfield (no cancellation notches).
4. Dynamic Adaptation: Continuously adjusts processing based on source material genre: Rock/pop (emphasis on front stage width and center vocal clarity), Classical/orchestral (emphasis on front-to-back depth and surround ambience), Electronic/EDM (emphasis on sub-bass impact and overhead high-frequency sparkle), Jazz/acoustic (emphasis on natural instrument placement and room simulation).

User-Selectable SKYATOM Modes:

• Front Focus: Prioritizes front soundstage (driver-centric listening). Rear speakers provide subtle ambience only. Best for: Solo driving, critical listening, competition judging.
• All Seats: Balanced soundstage for all passengers. Rear speakers carry more content (not just rear-fill). Best for: Family trips, carpools.
• Theater Mode: Maximum surround effect (rear/overhead speakers emphasized). Best for: Rear-seat entertainment, movie audio.
• Off (Stereo): Bypasses SKYATOM (traditional 2-channel stereo). Best for: Purist listening, competition requiring stereo-only.

Dynamic Loudness Control (DLC) - Volume-Aware Tonal Balance

The Problem DLC Solves: Human hearing perceives bass and treble differently at various volume levels (Fletcher-Munson equal-loudness contours). At low volumes (60-70dB SPL, conversational level), bass below 100Hz and treble above 8kHz sound weak compared to midrange. At high volumes (90-100dB SPL, concert level), bass and treble sound overpowering and cause listening fatigue.

DLC Solution: DSP10 stores multiple EQ profiles for different volume levels, smoothly interpolating as volume changes: Low Volume (Master 0-20): Bass boost +6dB below 100Hz, Treble boost +4dB above 8kHz, Midrange cut -2dB @ 1-3kHz (compensates for ear's reduced sensitivity—music sounds balanced at low SPL). Medium Volume (Master 21-40): Moderate bass +3dB, Treble +2dB (balanced response as ear sensitivity increases). High Volume (Master 41-60): Flat response or slight bass/treble cut -2dB (ear fully sensitive—prevents fatigue from excessive bass/treble at loud SPL).

Separate DLC Curves per Input: Each input source (high-level, optical, AUX, Bluetooth) has independent DLC profile. Why? Different sources have different tonal balance: High-level (factory head unit): May have built-in bass boost (+3dB @ 60Hz)—DLC compensates by reducing boost at low volume to prevent boomy sound. Optical (digital source): Assumes flat source—applies standard Fletcher-Munson curve. Bluetooth (wireless): Accounts for codec limitations (SBC rolls off treble >12kHz)—adds extra treble boost at low volume.

Navigation Mode & Auto Turn-On

Navigation Mode (Audio Ducking): Automatically reduces music volume when GPS navigation announcements play. How it works: DSP10 detects navigation audio (recognizes sudden volume increase on specific input channel), Ducks music volume by user-defined amount (-6dB to -20dB, adjustable in software), Restores music volume 2 seconds after announcement ends. Prevents missing turn instructions due to loud music, eliminates need to manually reduce volume before turns.

Auto Turn-On via Signal Sensing or DC Offset: DSP10 powers on automatically when detecting audio signal or 12V remote input—no manual on/off switch needed. Two detection methods: Signal Sensing: Monitors input channels for audio signal (>50mV threshold). When music starts playing, DSP10 exits standby and begins processing. When music stops for >5 minutes (adjustable timeout), DSP10 enters standby. DC Offset Detection: Monitors high-level inputs for DC voltage offset (factory head units typically output +0.5V to +2V DC offset when powered on). DSP10 detects offset, powers on immediately. More reliable than signal sensing for factory integration (doesn't require music to be playing).

Start-Stop Compatibility: DSP10 detects vehicle start-stop systems (engine auto-off at stoplights for fuel economy). When engine stops: DSP10 enters quick-standby mode (mutes output, reduces power draw to <1W), Retains DSP settings in memory (no reset). When engine restarts: DSP10 resumes processing within 500ms (faster than typical head unit boot time—no audio gap perceived). Critical for 2015+ vehicles with start-stop (Mazda, Honda, BMW, Mercedes, etc.).

Physical Installation (Compact Mounting)

Dimensions: 193mm × 146mm × 41mm (7.6\" × 5.7\" × 1.6\") - One of the most compact 10-channel DSPs available. Smaller than DVD case, fits in tight spaces (under seats, behind dash, in glove box).

Mounting Locations:

• Under-Seat (Recommended): Fits under driver or passenger seat (even with power seat mechanisms). Secure to seat rail or floor pan using included mounting brackets. Advantages: Short cable runs to head unit (reduces noise), easy laptop access for tuning, hidden from view.
• Behind Dashboard: Mount to metal dashboard support structure using zip ties or Velcro. Ensure adequate ventilation (DSP generates minimal heat but needs air circulation). Route USB cable to laptop connection point (center console or glove box). Advantage: Completely hidden, theft-deterrent.
• Trunk/Cargo Area: Mount near amplifiers to minimize RCA cable length. Use mounting board (1/4\" MDF or aluminum plate). Advantage: Centralized system location, easy cable management when multiple amplifiers present.

Wiring Considerations: Power: 12V ACC circuit, <2A draw (fuse: 3A). Ground: Chassis ground or battery negative (<18\" wire length). USB: Type-B connector for laptop tuning (cable included). RCA routing: Use shielded RCA cables (prevents alternator whine). Route away from power wires (opposite side of vehicle or cross at 90°). High-level input wiring: Tap factory speakers at head unit or amp outputs. Maintain polarity (positive to positive, negative to negative—verify with multimeter during bass note test).

SigmaStudio Software Configuration

Initial Setup: Download SigmaStudio from Goldhorn website (Windows 7/8/10/11 compatible). Install USB drivers (included with software). Connect DSP10 to laptop via USB cable. Launch SigmaStudio → File → New Project → Select \"ADAU1453\" from DSP list → Load \"DSP10_Template.dspproj\" (pre-configured with 10-channel routing).

Quick Start Tuning (30 Minutes):

1. Input Gain Adjustment (5 min): Play music at 80% head unit volume → Monitor input level meters in SigmaStudio → Adjust Input Gain until meters peak at -6dB to -3dB (green zone) → Goal: Maximize SNR without clipping.
2. Crossover Configuration (10 min): For each channel, set crossover type/frequency based on speaker: Tweeters HP 3-4kHz LR24, Midrange BP 300Hz-4kHz LR24, Midbass/Full-range LP 80-100Hz (if using subwoofer) or none (if no sub), Subwoofer LP 60-80Hz LR24.
3. Time Alignment (10 min): Measure distance from each speaker to driver's head → Calculate delay: (Farthest distance - Speaker distance) ÷ 13.5 inches/ms → Enter delays in SigmaStudio → Verify by playing mono pink noise (should sound like single point source at windshield center).
4. Basic EQ (5 min): Listen for obvious problems (boomy bass, harsh treble) → Apply gentle corrections: Bass bloat @ 100Hz: Cut -3dB, Q=3. Harsh treble @ 8kHz: Cut -2dB, Q=5. Refine later with RTA measurement.
5. Save Preset: File → Save Project → Name descriptively (\"Daily Driver Tune v1\") → Disconnect USB → Enjoy improved sound!

Advanced Tuning (With RTA Mic, 2-4 Hours): Use calibrated measurement microphone (Dayton iMM-6, miniDSP UMIK-1) at driver's ear position → Play pink noise → Observe RTA display (AudioTools app, REW software) → Identify peaks/dips in frequency response → Apply surgical EQ corrections using 31-band parametric EQ → Target: ±3dB from 63Hz-16kHz (±1.5dB for competition) → Iterate measurements and EQ adjustments until response flat.

Decision Framework: Standalone DSP vs. Integrated DSP/Amp

Choose Goldhorn DSP10 (Standalone) When:

• You Already Own Quality Amplifiers: If you have reference amplifiers (Zapco, Arc Audio, Audison, Mosconi, JL Audio) or competition-grade monoblocks, DSP10 maximizes your investment. Integrated DSP/amps have decent amplification BUT not reference-grade—don't downgrade from standalone amps you already own. DSP10 ($699.99) + your existing amps = best of both worlds.
• You Want Amplifier Flexibility: Standalone DSP allows mixing amplifier brands/types for optimal performance per application. Example: Use Class AB for front stage (warmer sound, lower distortion), Class D for subwoofers (high power, compact size). Integrated DSP/amps lock you into single amplifier topology (all Class D or all Class AB).
• You're Building in Stages: Budget-conscious builds benefit from modular approach. Buy DSP10 first ($699.99), use inexpensive amp temporarily ($200-$400), upgrade amplifiers later without replacing DSP. Integrated DSP/amps require replacing entire unit if you want better amplification—wasteful.
• Space/Heat is NOT a Constraint: If you have trunk space for multiple amplifiers and adequate ventilation, standalone DSP + separate amps is optimal. Integrated DSP/amps save space BUT compromise performance (amplifier sections share power supply and cooling with DSP, limiting max output and thermal headroom).
• You Need >10 Amplified Channels: DSP10 outputs 10 RCA channels—pair with multiple amplifiers for 12+ channel systems. Example: DSP10 + 6-channel amp + 4-channel amp + monoblock = 11 amplified channels. Integrated DSP/amps max out at 8-12 amplified channels (Goldhorn's largest DSPA 2416 Ultra has 24, but costs $2,399.99).

Choose Integrated DSP/Amp (Like Goldhorn DSPA Series) When:

• You Want Simplicity: Single-box solution eliminates multiple amplifier wiring, power distribution, gain matching. Integrated units = fewer failure points, ea
