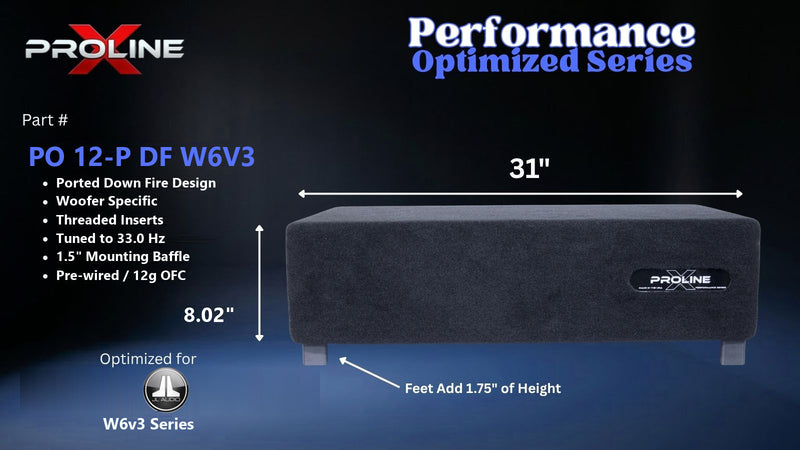

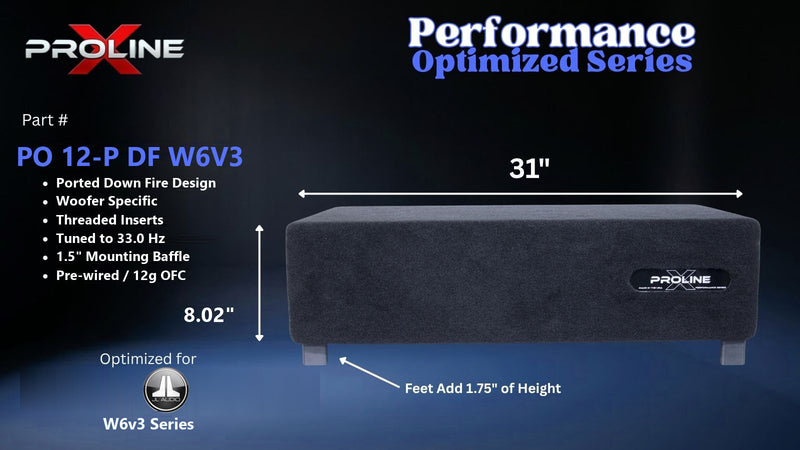

Proline X PO 12-P DF W6V3 ported down fire enclosure, front panel on 1.75 inch feet, 31 by 8.02 inches.

Proline X PO 12-P DF W6V3 ported down fire enclosure, end panel with recessed terminal cup, 17.00 by 8.02 inches.

Proline X

Performance Optimized Down Fire Ported 12" Enclosure | JL Audio 12W6v3

Q: Does this enclosure ship with polyfill?

No, and on this build in particular do not add any. Every sealed Proline X enclosure ships with polyfill pre-installed; a ported one must not, because damping material changes the effective volume the port is tuned against. The port on this cabinet is cut to 28.34 inches of centreline path for 33.0 Hz. Stuff it and you move the tuning without shortening the port, which gives you a mistuned box rather than a bigger-sounding one. The 2.00 dB passband you are paying for depends on it staying dry.

Q: Do I need a subsonic filter?

Yes, at 26 Hz, 24 dB per octave. Below tuning a vented box stops loading the cone and excursion runs away toward DC. With the filter in place this cabinet puts the JL Audio 12W6v3 at 42 percent of its usable travel at full rated power; without it there is no meaningful number to quote, because the excursion curve does not converge. On a sealed build a subsonic filter is an improvement. Here it is required equipment.

Q: How much power can I run?

JL Audio rate the 12W6v3 at 600 W RMS and that is the thermal ceiling. The figures on the Performance Graphs tab are a different quantity: they are mechanical limits, the power at which the cone reaches the end of its linear travel in this specific cabinet. Here the cone sits at 42 percent of usable travel at the driver's own rating, so heat is what stops you, not travel. Final wired impedance and amplifier output are separate questions again.

Q: Would a sealed box be better for me?

Below about 24 Hz, yes. The same cabinet sealed is louder down there by up to 2.7 dB, because a sealed box rolls off gently into the subsonic region where a vented one falls away steeply once it is under tuning. Above that this alignment is the louder of the two for the same power. The Performance Graphs tab plots both at the same 1.45 cubic feet, so the alignment is the only variable and you can see exactly where they cross.

Q: What is the L-wrap port and why does it matter?

It is a slot port formed by one folded wall: a leg down the long side of the cabinet past the woofer ring, one faceted 90 degree bend, and a leg across the end opening through a chamfered corner. On this cabinet that is 28.34 inches of centreline path and 21.2 square inches of channel, exiting a 27.7 square inch mouth. Air leaves at 15.2 metres per second at tuning against a 17.0 threshold, and the channel runs at 50 percent of its turbulence limit. One wall and one bend rather than a serpentine's three means less wall area inside the box, fewer joints to leak, and one place for flow to separate instead of three.

Q: How is this enclosure built?

V-groove and dado joinery in 0.75 inch Langboard Elite MDF with a double-layer 1.5 inch baffle. The driver mounts to a 13.500 inch ring bonded under the baffle in a machined recess, carrying eight #8-32 hurricane nuts so it threads into steel rather than MDF. A windowed brace sits 2.83 inches clear of the cutout edge and 1.59 inches clear of the port terminus; the window is not weight saving, a solid panel there would split the cavity and make the box a bandpass. Walls seat into dados in both the lid and the baffle. Square corners, plush black carpet, side-mounted terminal cup.

Q: Is the 12W6v3 included?

No. This is an enclosure only, cut and folded for the JL Audio 12W6v3 specifically. The 11.024 inch cutout, the 7.520 inch mounting depth allowance and the 1.45 cubic foot alignment all come from JL Audio's published parameters for this exact driver, and the port is sized against its Xmax and power rating. It is not a universal box with a 12 inch hole in it. Bring your own driver.

SKU: PO 12-P DF W6V3

QUICK SPECS

Alignment: 1.45 cu ft net vented at 33.0 Hz. F3 31.2 Hz anechoic, 2.00 dB passband ripple
Driver: JL Audio 12W6v3 -D4, 600 W RMS, 19.0 mm Xmax, 26.90 Hz Fs
Build: Proline X V-groove and dado joinery, L-wrap slot port with a faceted 90 degree bend, double-layer 1.5" baffle, side-mounted terminal cup
Cabinet: 31" W x 17.00" D x 8.02" H measured in down fire position, 9.77" tall installed on its feet, square corners, ships dry

Shipping Included No freight charges at checkout. What you see is what you pay.

Built in Tennessee CNC cut from 3/4" Langboard Elite MDF. V-groove and dado joinery.

Advanced Terminal Cup Built in-house. ABS/Carbon Fiber. Stainless steel hardware. Copper ring terminals.

$ 329.99

In Stock and Ready to Ship

Financing available. Choose Shop Pay Installments at checkout.

Complete Your System

Arc Audio X2 1100.1 Monoblock Subwoofer Amplifier 1100W Class D - Arc Audio Amplifier for car audio systems

Arc Audio Arc Audio X2 1100.1 Monoblock Subwoofer Amplifier | 1100W | Class D $ 758.00

Performance Optimized Down Fire Ported 12" Enclosure | JL Audio 12W6v3

$ 329.99

Enclosure Type Ported

External Dimensions 31" W x 17.00" D x 8.02" H cabinet, 9.77" H installed on feet (measured in down fire position)

Net Volume 1.45cu ft

Tuning Frequency 33.0 Hz

Port Area 21.2 Square Inches

Cutout Diameter Direct Fit

Front Panel Thickness 1.5"

INSTALLER'S TAKE

This is the most driver in the JL set. 19 mm and 600 watts with a 26.9 Hz resonance, which is the combination the W6 series exists for.

What surprises me is how well it behaves. 2.36 dB of in-car spread from a motor this heavy is better than the 10W6v3 manages at 5.14, and better than several much smaller drivers here. The low resonance is doing the work: it means the cone is still contributing where the port takes over, so the handover is not abrupt.

The height is what you have to check. 8.02 inches external against 7.75 for every other JL cabinet in this range, because the motor is 7.52 deep and the cavity has to clear it. On feet that installs at 9.77 inches. Under a cargo floor that quarter inch is the whole decision.

The port runs at 50 percent of its turbulence limit with 15.2 metres per second at the mouth against a 17 threshold. Inside tolerance, working hard, which is what feeding this much displacement costs.

Dual 4 ohm: 2 ohms parallel or 8 ohms series. Subsonic at 26 Hz. Ships dry.

Product Details

Proline X Performance Optimized Down Fire 12" Ported

19 mm and 600 watts, and the only JL cabinet over 7.75 inches tall

1.45 cu ft net Tuned 33.0 Hz F3 31.2 Hz L-wrap slot port Cut for the JL Audio 12W6v3 Built in Tennessee

1.45cu ft net

33.0Hz tuning

31.2Hz F3 anechoic

21.2sq in port area

Why this driver is vented at 33.0 Hz

The 12W6v3 is JL's flagship twelve: 19 mm of one-way travel, 600 watts, and a 26.9 Hz free-air resonance. It is the most capable driver of the fifteen JL cabinets here, and the only one whose motor forces the box above the line's standard 7.75 inch height.

1.45 cubic feet vented at 33.0 Hz reaches an anechoic F3 of 31.2 Hz while holding 2.36 dB of in-car spread, which is a genuinely good result for a driver with this much displacement. Low resonance plus heavy motor is a combination that usually costs curve shape; here it mostly does not.

The port is the product

A ported cabinet is easy to get wrong and the failure is audible. This one uses an L-wrap slot port: a single folded wall running down the long side of the box past the woofer ring, turning once through a faceted 90 degree bend, and opening through a chamfered corner. One wall, one bend, 28.34 inches of centreline path.

The channel is 3.25 inches wide by 6.52 tall, 21.2 square inches, and it exits through a 27.7 square inch mouth. Air leaves at 15.2 metres per second at the tuning frequency, against the 17.0 metre per second threshold where a slot port starts to chuff. The bend is faceted rather than square because the inner corner of a 90 degree turn is where flow separates, and a sharp corner there is what you hear.

This enclosure ships dry. Polyfill goes in every sealed Proline X cabinet we build. It does not go in this one. Damping material in a vented box changes the effective volume the port is tuned against, which moves the tuning frequency away from the 33.0 Hz the port length was cut for. Adding it does not make a ported box sound like a bigger ported box; it makes it a mistuned one.

Run a subsonic filter

This is not optional advice on a vented enclosure. Below tuning the port stops loading the cone and excursion climbs without limit toward DC, so a 26 Hz high-pass at 24 dB per octave is part of the specification rather than a refinement of it. Set it and the same cabinet takes substantially more power for the same cone travel. Leave it out and the driver runs out of suspension on material you cannot hear.

Every wattage on the Performance Graphs tab is a mechanical limit, not an electrical one: it is the power at which the cone reaches the end of its linear travel in this box. What the voice coil can dissipate as heat is a separate ceiling set by JL Audio, not by the cabinet.

Cut for this driver, not for a catalogue

Mounting

Cut to JL Audio's published 11.024 inch cutout with a 13.500 inch ring bonded under the baffle. The ring drops into a machined recess so it self-centres, and it roughly doubles the glue area over a butt joint.

Threaded, not screwed

Eight #8-32 hurricane nuts are driven into the ring before it is bonded, so the driver mounts into steel rather than into MDF and survives being unbolted more than once. The ring is cut with sixteen positions so the driver can be clocked to whatever orientation the install needs; eight are fitted.

Braced

A windowed brace sits between the woofer cutout and the port terminus, 2.83 inches clear of the cutout edge. The window is not weight saving: a solid panel there would split the cavity and turn the cabinet into a bandpass.

Joinery

V-groove and dado throughout, 0.75 inch material, double-layer 1.5 inch baffle. The walls seat into dados in both the lid and the baffle rather than butting against them.

Power, wiring and warranty

JL Audio rate the 12W6v3 at 600 W RMS. Terminal cup is side mounted, as on every Performance Optimized cabinet. If you are running a dual 2 ohm driver, note that parallel wiring presents 1 ohm, which many amplifiers are not stable into; series at 4 ohm is the safe default unless yours is rated for it.

Performance Optimized carries a 1-year warranty. The enclosure is built to order in Tullahoma, Tennessee, and the driver is not included.

Cut, folded and finished for the JL Audio 12W6v3. Nothing on this page is a rule of thumb: the alignment, the port geometry and the power figures all come from JL Audio's published parameters run through our own solver.

Specifications

Series	Proline X Performance Optimized Down Fire
Driver-Specific Fitment	JL Audio 12W6v3 -D4 (Dual 4 Ohm)
Enclosure Type	Ported \| Down Fire Geometry \| Floor-Coupled
Baffle Configuration	Down Firing - Driver Fires Toward Floor
External Width	31 Inches
External Depth	17.00 Inches
External Height	8.02 Inches (Cabinet Only)
Feet	Included - 1.75 Inch Standoff, Required For Down Fire Operation
Installed Height	9.77 Inches (8.02 Cabinet Plus 1.75 Feet) - MEASURE AGAINST THIS, NOT THE CABINET HEIGHT
Dimension Reference	All External Dimensions Measured In Down Fire Position
Internal Volume (Gross)	1.67 Cubic Feet
Internal Volume (Net After Displacement)	1.45 Cubic Feet
Port Type	L-Wrap Slot \| One Folded Wall \| Single Faceted 90 Degree Bend
Port Tuning (Fb)	33.0 Hz
Port Channel	3.25 x 6.52 Inches (21.2 Square Inches)
Port Path Length	28.34 Inches (Centreline)
Port Mouth Area	27.7 Square Inches (3.00 Inch Corner Chamfer)
Port Air Velocity	15.2 m/s At Tuning (17.0 m/s Chuff Threshold)
Predicted F3	31.2 Hz (Anechoic)
Passband Ripple	2.00 dB (Anechoic)
Subsonic Filter	26 Hz High-Pass, 24 dB/Octave - REQUIRED On A Vented Enclosure
Driver Fs	26.90 Hz
Driver Qts	0.460
Driver Qes / Qms	0.490 / 9.370
Driver Vas	54.400 Liters / 1.921 Cubic Feet
Driver Sd	486.0 Square Centimeters
Driver Mms	216.00 g
Driver BL	22.10
Driver Re	6.5 Ohm
Driver Xmax	19mm (One-Way)
Driver Displacement	0.10 Cubic Feet (Published by JL Audio)
Driver Sensitivity	85.2 dB
Driver Power Handling	600 Watts RMS
Driver Overall Diameter	12.520 Inches (JL Audio Spec)
Mounting Depth Required	7.520 Inches (JL Audio Spec)
Cutout Diameter	11.024 Inches (JL Audio Spec)
Woofer Ring	13.500 Inch OD, Bonded Under The Baffle In A Machined Recess
Material	Langboard Elite 3/4" MDF
Construction	ShopSabre CNC / Windowed Brace Between Cutout And Port Terminus
Joinery	V-Groove and Dado (CNC-Cut)
Front Baffle Construction	Double-Layer 1.5" MDF \| Outer Layer Flush Recess, Driver Mounts To Inner Layer
Corner Profile	Square (Down Fire Series Standard)
Mounting Hardware	8 x #8-32 Hurricane Nuts Fitted (16 Positions Cut For Driver Orientation) \| Stainless Steel Machine Screws Included
Voice Coil Configuration	Dual 4 Ohm
Terminal Cup	Proline X ABS/Carbon Fiber Composite \| Side Mounted \| 12g OFC Pre-Wired
Damping	None - Ships Dry. Polyfill Detunes A Ported Enclosure
Recommended Power	420-600 Watts RMS (JL Audio Rated: 600W RMS)
Carpet Finish	Plush Black
Bundle Options	Enclosure Only (Bring Your Own JL Audio 12W6v3)
Warranty	1-Year Limited (Enclosure)
Manufactured	Tullahoma, Tennessee, USA

Performance Graphs

Net airspace

1.45

cu ft

Tuning

33.0

Hz · Fb

Half power

31.2

Hz · F3, anechoic

Xmax at

3390

W RMS · 26 Hz subsonic

With NO filter

550

W RMS · unfiltered

Port

15.2

m/s at the mouth

01Is this driver right for a ported box?

Efficiency bandwidth product places the motor before anything else is decided.

EBP = Fs ÷ Qes = 54.9

JL Audio 12W6v3-D4 · EBP 54.9

Between 50 and 100 a driver takes either load, and the choice becomes one of priorities rather than of physics. The JL Audio 12W6v3-D4 reads 54.9. Ported buys output and low-end reach around tuning; sealed buys a shallower rolloff below it. This cabinet takes the first trade.

02What the box does to it

1.45 cu ft net against a 54.4 L Vas, vented at 33.0 Hz.

Fb = 33.0 Hz · F3 = 31.2 Hz · passband ripple 2.00 dB

JL Audio 12W6v3-D4 · Fb 33.0 Hz, F3 31.2 Hz

Anechoic, before any cabin gain, with the 26 Hz subsonic filter already applied. The vent takes over below 33 Hz and the cone stops doing the work there, which is what holds travel down at the bottom of the passband.

03Perceived Ported vs Sealed

The same cabinet, the same 1.45 cu ft, changing only the alignment.

Ported Fb 33.0 Hz · the same box sealed would run Qtc 0.70, Fc 41 Hz

Ported · 1.45 cu ft, Fb 33.0 HzSealed · the same 1.45 cu ft, Qtc 0.70

Shaded blue is where the ported alignment is louder for the same power, orange where the sealed one is. Across 25 to 60 Hz the vent is worth 4.4 dB at its widest and 3.2 dB on average. This is the anechoic picture, which is not what you hear in a car.

04Real World Ported vs Sealed

The same two curves with cabin gain applied, 45 Hz corner, 18 dB ceiling.

Flatness across 25–60 Hz: ported 2.3 dB spread, the same box sealed 3.3 dB

Ported, in-car · 2.3 dB spreadSealed, in-car · 3.3 dB spread

Cabin gain lifts both alignments by the same amount, so the gap between them does not change: what changes is the shape each one ends up with. A car pressurises below roughly 45 Hz, which fills in the sealed box's shallower rolloff and over-drives it where the ported box is already flat. Across 25 to 60 Hz, the band kick and bass fundamentals occupy, this alignment holds 2.3 dB of spread against 3.3 dB for the same cabinet sealed. Flatter is the whole point of tuning this high. Note where the curves cross. Below about 24 Hz the sealed alignment becomes the louder of the two and stays louder all the way down, by up to 2.7 dB: a sealed box rolls off gently into the subsonic region where a vented one falls away steeply once it is below tuning and the vent stops contributing. If the content you are chasing lives below 24 Hz, a sealed alignment reaches further down than this one does. Cabin gain here is a house assumption, not a measurement of your vehicle.

05The watts that reach Xmax (in this enclosure)

Travel scales with the square root of power, so there is one wattage that puts the cone exactly on JL Audio's published 19.0 mm. The two traces are the same cabinet with the subsonic filter switched on and switched off.

P_Xmax = 3390 W with a 26 Hz subsonic · 550 W with none → the filter is worth 6.2×

3390 W · subsonic at 26 Hz, 24 dB/oct550 W · no subsonic filterXmax 19.0 mm one-way, published

Each trace touches the limit and no further, because each is drawn at the exact power that puts the cone on 19.0 mm. With a 26 Hz subsonic that takes 3390 W, reached first at 47 Hz. Take the filter away and the same cabinet reaches 19.0 mm on 550 W — the filter is worth 6.2× the safe power. A vent unloads the cone below tuning, so there is nothing holding it once the box stops loading: on a sealed build a subsonic filter is an improvement, here it is required equipment. The unfiltered trace is still rising where this chart stops at 20 Hz, so treat 550 W as a bound rather than a floor. Every wattage on this page is a MECHANICAL limit, not an electrical one. It is the power at which the cone runs out of linear travel in this cabinet, and nothing more. What the voice coil can dissipate as heat is a separate ceiling set by the driver, not by the box — JL Audio rate this one at 600 W RMS, and that is the number that binds first here: heat stops you before travel does, so treat 600 W as the ceiling and the travel figures above as headroom. Final wired impedance, amplifier output and how long you hold the level are all electrical questions this graph does not answer.

Materials

Material

Built From a Spec Sheet, Not a Sales Sheet

Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.

Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.

Specifications

Langboard Elite MDF: Published Mill Data

Property	Value	Why It Matters
Panel Stock	Langboard Elite MDF	Named, verifiable panel source, not generic "high-density MDF"
Thickness	3/4" (18mm)	Industry standard for subwoofer enclosures; panels below this flex under pressure
Density	48.5 lbs/ft³	Higher density = less porosity, better screw retention, reduced resonance
Internal Bond	200 psi	Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet
Modulus of Rupture (MOR)	4,200 psi	Bending strength before the panel breaks, relevant for larger unsupported baffle spans
Modulus of Elasticity (MOE)	410,000 psi	Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance
Face Screw Holding	325 lbs	How firmly the panel surface holds a screw; critical for baffle joint integrity over time
Edge Screw Holding	250 lbs	Panel edge retention, relevant for every joint that isn't face-to-face

Internal Bond

200 psi: The Number That Actually Matters for Enclosures

The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.

Stiffness

410,000 psi MOE: Less Flex, Less Resonance

The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.

Screw Holding

325 lb Face / 250 lb Edge: Joints That Stay Locked

Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.

Sourcing

Named Panel Stock: Not "Premium MDF"

The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.

Why Proline X?

Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.

CNC-Cut to Spec

Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
