Performance Optimized Down Fire Ported 10" Enclosure | Prodigy NB2-10

Tuned to 35.0 Hz the NB2-10 reaches an anechoic F3 of 30.3 Hz, which is deeper than either of the twelve-inch IDQ builds manage. A ten inch cone in a properly vented box outreaching a twelve in a bigger one is not a trick; it is what happens when the alignment matches the motor instead of the badge. Tuning is chosen for in-car response rather than for an anechoic curve: a vehicle adds roughly 12 dB per octave below about 45 Hz, so a box tuned very low reinforces a region the cabin is already reinforcing and leaves 40 to 60 Hz thin. In this cabinet that lands at 4.3 dB of in-car spread across 25 to 60 Hz, which is where kick and bass fundamentals live.

No, and on this build in particular do not add any. Every sealed Proline X enclosure ships with polyfill pre-installed; a ported one must not, because damping material changes the effective volume the port is tuned against. The port on this cabinet is cut to 27.63 inches of centreline path for 35.0 Hz. Stuff it and you move the tuning without shortening the port, which gives you a mistuned box rather than a bigger-sounding one. The 2.18 dB passband you are paying for depends on it staying dry.

Yes, at 28 Hz, 24 dB per octave. Below tuning a vented box stops loading the cone and excursion runs away toward DC. With the filter in place this cabinet puts the Prodigy NB2-10 at 58 percent of its usable travel at full rated power; without it there is no meaningful number to quote, because the excursion curve does not converge. On a sealed build a subsonic filter is an improvement. Here it is required equipment.

Prodigy rate the NB2-10 at 350 W RMS and that is the thermal ceiling. The figures on the Performance Graphs tab are a different quantity: they are mechanical limits, the power at which the cone reaches the end of its linear travel in this specific cabinet. Here the cone sits at 58 percent of usable travel at the driver's own rating, so heat is what stops you, not travel. Final wired impedance and amplifier output are separate questions again.

Below about 24 Hz, yes. The same cabinet sealed is louder down there by up to 4.1 dB, because a sealed box rolls off gently into the subsonic region where a vented one falls away steeply once it is under tuning. Above that this alignment is the louder of the two for the same power. The Performance Graphs tab plots both at the same 1.18 cubic feet, so the alignment is the only variable and you can see exactly where they cross.

It is a slot port formed by one folded wall: a leg down the long side of the cabinet past the woofer ring, one faceted 90 degree bend, and a leg across the end opening through a chamfered corner. On this cabinet that is 27.63 inches of centreline path and 18.8 square inches of channel, exiting a 22.1 square inch mouth. Air leaves at 14.1 metres per second at tuning against a 17.0 threshold, and the channel runs at 42 percent of its turbulence limit. One wall and one bend rather than a serpentine's three means less wall area inside the box, fewer joints to leak, and one place for flow to separate instead of three.

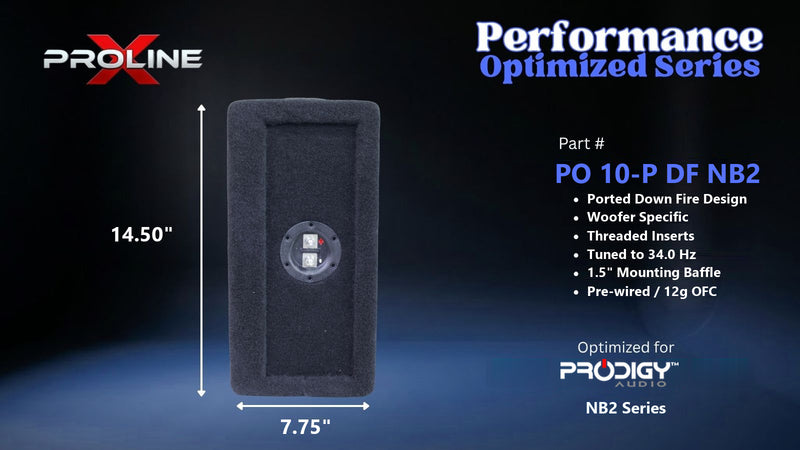

V-groove and dado joinery in 0.75 inch Langboard Elite MDF with a double-layer 1.5 inch baffle. The driver mounts to a 11.250 inch ring bonded under the baffle in a machined recess, carrying eight #8-32 hurricane nuts so it threads into steel rather than MDF. A windowed brace sits 3.41 inches clear of the cutout edge and 2.35 inches clear of the port terminus; the window is not weight saving, a solid panel there would split the cavity and make the box a bandpass. Walls seat into dados in both the lid and the baffle. Square corners, plush black carpet, side-mounted terminal cup.

No. This is an enclosure only, cut and folded for the Prodigy NB2-10 specifically. The 9.125 inch cutout, the 5.625 inch mounting depth allowance and the 1.18 cubic foot alignment all come from Prodigy's published parameters for this exact driver, and the port is sized against its Xmax and power rating. It is not a universal box with a 10 inch hole in it. Bring your own driver.
