Arc Audio A10 10-Inch Subwoofer

Introducing the Arc Audio A-Series: Combat-Proven Performance for Tight Spaces

When installation space dictates shallow-mount construction but your ears demand uncompromised bass performance, the Arc Audio A10 10" subwoofer delivers the combat-grade engineering solution you've been searching for. The A-Series represents Arc Audio's tactical approach to space-constrained bass reproduction—a flat/shallow-mount design that combines military-inspired engineering philosophy with street performance reality, delivering 250 watts RMS of dynamic low-frequency output from just 3.77 inches of mounting depth.

Unlike traditional shallow-mount subwoofers that compromise output capability and sound quality to achieve compact dimensions, the Arc Audio A10 employs advanced motor geometry, progressive suspension materials, and precision-engineered thermal management to deliver bass performance that rivals standard-depth competitors while fitting installations that would be impossible with conventional subwoofer designs. This is American engineering addressing real-world installation challenges without accepting the performance sacrifices that typically accompany shallow-mount compromises.

The A10 addresses the most common installation challenge facing modern car audio enthusiasts: limited mounting depth. Under-seat installations in trucks and SUVs, behind-seat applications in sports cars and two-door vehicles, shallow custom enclosures in trunk/cargo area builds, spare tire well conversions—these scenarios all demand subwoofers that can deliver satisfying bass output from mounting depths that would be impossible for traditional subwoofer designs. The A10's 3.77-inch mounting depth requirement opens installation possibilities that standard 5.5-6.0 inch mounting depth subwoofers simply cannot accommodate.

But shallow mounting depth means nothing if performance suffers. The A10 combines its compact profile with 250 watts RMS continuous power handling (500 watts peak), optimized enclosure flexibility (0.4-0.9 cubic feet sealed volume range), and Arc Audio's signature progressive suspension geometry to deliver bass response that satisfies both sound quality enthusiasts and output-focused listeners. This is tactical bass engineering—compromising on mounting depth while refusing to compromise on the bass performance that makes car audio installations worthwhile.

Arc Audio A-Series vs. ARC Series: Understanding Two Different Mission Profiles

Arc Audio offers two distinct subwoofer families, each engineered for specific installation scenarios and performance priorities. Understanding the differences between the A-Series (represented by the A10) and the ARC Series (including the ARC 8", ARC 10", and ARC 12" models) is essential for selecting the subwoofer that matches your installation constraints and performance expectations.

The critical insight: both the A10 and ARC 10 handle 250 watts RMS and carry identical pricing at $298.00. Your choice depends entirely on mounting depth availability and installation priorities. The A10 delivers tactical shallow-mount performance for space-constrained scenarios, while the ARC 10 provides linear design accuracy for installations with adequate mounting depth clearance. Same power handling, same price, different mission profiles—select the subwoofer that matches your installation reality.

Engineering Deep Dive: How Arc Audio Delivers 250W RMS from 3.77 Inches

Shallow-mount subwoofer design requires engineering compromises—there's no escaping the physics of reduced mounting depth limiting motor assembly dimensions, voice coil former height, and magnetic circuit volume. The question isn't whether compromises exist, but rather which compromises Arc Audio chose to make and which performance parameters the A10 refuses to sacrifice. Understanding the A-Series engineering decisions reveals why this shallow-mount subwoofer delivers output capability and sound quality that rivals many standard-depth competitors.

Progressive Heat-Pressed Poly-Injected Pulp Cone: Lightweight Strength Engineering

The A10 employs a progressive heat-pressed poly-injected pulp cone—a manufacturing process that combines natural wood pulp fibers with polymer resins under controlled heat and pressure to create a cone structure that optimizes three critical parameters: low mass (reducing moving mass for improved transient response and efficiency), high rigidity (preventing cone flex modes that create distortion and frequency response irregularities), and exceptional durability (resisting environmental degradation and mechanical stress).

Poly-injected pulp construction has been sonically proven across thousands of subwoofer designs over decades of car audio engineering evolution. Unlike exotic materials that prioritize marketing appeal over measurable performance advantages, poly-injected pulp delivers predictable, consistent acoustic behavior across a wide spectrum of listening conditions—from low-volume accuracy to high-output dynamics. The progressive heat-press manufacturing process ensures uniform density distribution throughout the cone structure, eliminating weak points that could lead to mechanical failure under sustained high-power operation.

For the A10's shallow-mount application, the lightweight cone construction proves particularly critical. Reduced mounting depth inherently limits voice coil former height and magnetic gap dimensions, which reduces motor force available to control cone motion. By minimizing cone mass, Arc Audio maximizes acceleration capability from the available motor force—the A10 cone responds rapidly to amplifier signal changes, delivering articulate bass transients and tight low-frequency attack that heavier cone materials would compromise in shallow-mount geometry.

UV Grade Polyether Surround: Proven Performer for Harsh Automotive Environments

The A10 features a UV grade polyether surround—a material selection that prioritizes longevity and reliability in the harsh automotive environment over exotic foam or rubber alternatives that may offer marginal compliance advantages but suffer accelerated degradation under ultraviolet light exposure, temperature cycling, and humidity variations common to vehicle installations.

Polyether surround material has demonstrated exceptional performance in subwoofer manufacturing with high standard performance ratings and exceptional resistance to UV radiation (critical for installations in vehicles with significant window exposure), humidity extremes (from winter cold to summer heat cycles), and mechanical stress (repeated excursion cycles under high-power operation). The surround serves as the primary suspension component controlling cone edge motion—its compliance characteristics, mechanical damping properties, and durability directly impact bass quality, power handling, and long-term reliability.

Arc Audio's UV grade polyether formulation provides the progressive compliance curve essential for shallow-mount performance: relatively soft initial compliance allowing the cone to move freely at low excursion levels (preserving sound quality and efficiency during normal listening), gradually increasing stiffness as excursion approaches mechanical limits (providing natural mechanical protection against over-excursion that could damage voice coil or spider components). This progressive compliance behavior allows the A10 to deliver both sound quality at moderate output levels and protection against mechanical failure during peak power excursions.

Progressive Twisted-Pile Polycotton Nomex-Blend Spider: Premium Control Engineering

The A10's spider—the corrugated fabric suspension component that controls voice coil alignment and provides restoring force to return the cone to neutral position—employs progressive twisted-pile polycotton with Nomex reinforcement. This material combination delivers premium control and voice coil alignment precision while minimizing overall moving mass, addressing one of the most critical engineering challenges in shallow-mount subwoofer design: maintaining linear voice coil motion through the limited excursion range available in compact motor assemblies.

Nomex is a meta-aramid synthetic fiber developed for aerospace and military applications requiring exceptional strength-to-weight ratios and thermal resistance. By blending Nomex fibers with traditional polycotton spider material, Arc Audio creates a spider structure that offers superior mechanical strength (preventing spider tearing or deformation under high excursion forces) while maintaining lower mass than pure synthetic fiber alternatives (preserving transient response and efficiency).

The "progressive" designation refers to the spider's compliance curve—similar to the surround's progressive behavior, the spider provides relatively soft compliance at low excursion levels (allowing free cone motion for sound quality and efficiency) with gradually increasing stiffness as excursion approaches mechanical limits (providing mechanical over-excursion protection). This progressive material design allows the A10 to maintain linear control of moving components with nearly any amount of demand placed on it—from subtle bass notes at low volume to maximum output excursions at 250 watts RMS continuous power.

The twisted-pile manufacturing process increases the spider material's mechanical strength by interweaving fibers in a three-dimensional structure rather than simple flat weaving. This twisted construction distributes stress across multiple fiber directions, preventing the stress concentration that could lead to spider failure at the voice coil attachment point or outer rim connection—the two locations where mechanical forces are highest during excursion cycles.

Totoku-Brand Copper Wire Voice Coil: Japanese Precision Imported for Thermal Performance

The A10 exclusively employs Totoku-brand copper wire voice coil windings imported from Japan—a material specification that reflects Arc Audio's commitment to component quality even in their affordable A-Series product line. Totoku represents one of the premium copper wire manufacturers supplying the professional audio and high-end consumer electronics industries, known for precise wire gauge tolerances, consistent electrical properties, and exceptional purity ratings that minimize electrical resistance and maximize current-carrying capacity.

Voice coil wire quality directly impacts power handling and thermal management—two critical performance parameters for any subwoofer, but particularly important in shallow-mount designs where reduced motor volume limits heat dissipation capability. Higher-purity copper wire offers lower electrical resistance per unit length, which reduces I²R heating (the power dissipated as heat due to current flow through resistance). Lower resistance also improves electrical damping factor, which enhances the amplifier's ability to control cone motion and improves transient response accuracy.

The voice coil windings are securely manufactured around a unique spun-laced layered Nomex former—the cylindrical tube structure that supports the copper wire windings and connects to the cone assembly. Nomex former material offers exceptional thermal resistance (critical for surviving the 200°C+ temperatures that voice coils can reach during sustained high-power operation) while maintaining lower mass than aluminum former alternatives (preserving efficiency and transient response). The "spun-laced layered" construction creates a multi-layer composite structure that distributes mechanical stress and improves thermal conductivity compared to single-layer Nomex alternatives.

Arc Audio bonds the copper wire to the Nomex former using ultra-high-temperature adhesives in a staged adhesive tempering process—multiple bonding steps with controlled temperature cycling that creates maximum adhesive strength and ensures reliable adhesion even when voice coil temperatures exceed 200°C during peak power operation. This adhesive engineering prevents voice coil delamination (wire separating from former), which would cause immediate mechanical failure and permanent subwoofer damage. The staged tempering process creates adhesive bonds that can withstand not just high absolute temperatures, but also the rapid temperature cycling from normal operation to peak power excursions that can thermally stress adhesive bonds and cause gradual degradation in poorly-manufactured voice coils.

Proprietary Stamped Steel Basket: Cold-Rolled Steel Structural Engineering

The A10 employs a proprietary stamped steel basket design manufactured from high-quality cold-rolled steel—a basket construction approach that prioritizes structural rigidity and stress distribution over the cast aluminum alternatives common in boutique subwoofer designs. Cold-rolled steel offers superior tensile strength compared to cast aluminum (allowing thinner basket material without sacrificing structural integrity), better resistance to stress concentration cracking (preventing the basket failures that can occur around mounting bolt holes or spider landing areas), and improved magnetic circuit shielding (reducing stray magnetic field interference with nearby electronics or magnetic media).

The stamping manufacturing process creates a basket structure with strategically positioned reinforcement ribs and stress distribution geometry. Unlike simple flat basket designs, the A10's stamped basket features geometric shaping that directs mechanical forces away from critical attachment points (where cone, spider, and motor assembly connect to the basket structure). This geometry reduces the basket flexing that can occur during high-excursion operation—basket flex represents wasted energy (reducing efficiency) and creates mechanical resonances (causing frequency response irregularities and distortion).

Arc Audio designed the A10 basket to handle stress regardless of the position the woofer is mounted—face-up, face-down, or at any angle. This mounting position independence proves particularly valuable for the A10's primary shallow-mount applications: under-seat installations often require face-up mounting (cone pointing upward toward seat bottom), behind-seat applications may use face-down mounting (cone pointing downward toward vehicle floor), and custom enclosures might mount the subwoofer at various angles depending on available space and acoustic optimization priorities. The basket's geometric stress distribution ensures reliable mechanical performance regardless of how gravity loads the cone/spider/surround assembly during operation.

Multi-Point Geometric Basket/Motor Component Resonation Control: Reducing Hidden Losses

The A10 features multi-point geometric basket/motor component resonation control—an engineering approach that addresses one of the subtle performance losses found in traditional subwoofer designs: mechanical resonances within the basket and motor structure that dissipate acoustic energy, create frequency response irregularities, and generate audible distortion artifacts that degrade sound quality.

When the voice coil drives the cone to produce bass output, the mechanical forces involved (action/reaction pairs) are substantial—at 250 watts RMS, the magnetic forces acting on the voice coil and the reaction forces transmitted through the cone, spider, and surround to the basket structure can exceed hundreds of pounds during peak excursion. In poorly-engineered subwoofers, these forces excite mechanical resonances in the basket structure (panels ringing at specific frequencies), motor assembly components (pole plates and backplates vibrating), and connection points (where components bolt or bond together).

These mechanical resonances represent several performance problems: acoustic energy diverted into basket/motor vibration rather than cone motion (reducing efficiency), frequency-dependent irregularities where resonances emphasize or attenuate specific bass frequencies (causing frequency response deviations from flat), and time-domain smearing where resonances continue vibrating after the musical signal has stopped (reducing transient accuracy and bass definition). The cumulative effect degrades the sound quality that enthusiasts expect from quality subwoofers.

Arc Audio's multi-point geometric resonation control employs strategic reinforcement geometry at critical connection points, carefully selected material thicknesses that shift resonance frequencies outside the subwoofer's operating bandwidth, and mechanical damping features that absorb resonance energy before it can build to audible levels. The result: cleaner bass output with reduced distortion, flatter frequency response without resonance-induced peaks or dips, and improved transient accuracy where bass notes start and stop cleanly without the overhang that resonances would introduce.

Complete Technical Specifications

Enclosure Design Guide: Optimizing the A10 for Your Installation

The Arc Audio A10's recommended sealed enclosure range spans 0.4 to 0.9 cubic feet—an unusually wide volume range that provides installation flexibility for diverse space-constrained scenarios. Understanding how enclosure volume affects bass response, power handling, and sound quality allows you to optimize A10 performance for your specific application priorities and available installation space.

Sealed Enclosure Volumes: How Size Affects Performance

Small Sealed Enclosures (0.4 - 0.55 cubic feet): Tighter, punchier bass response with emphasis on transient attack and bass definition. Smaller sealed volumes increase the acoustic suspension stiffness (the air spring effect inside the enclosure), which raises the system resonance frequency and creates a gradual bass rolloff starting at higher frequencies. The result: bass that emphasizes upper-bass punch (60-80 Hz region) with reduced deep-bass extension (below 40 Hz), tighter transient response where bass notes start and stop more quickly, and increased power handling due to reduced excursion at low frequencies (the acoustic suspension limits cone motion).

Small sealed enclosures prove ideal for installations prioritizing compact size (maximizing trunk/cargo space), music genres emphasizing upper-bass punch rather than deep extension (rock, metal, punk, most pop music), and under-seat truck/SUV applications where available volume is severely limited. The A10 can operate effectively in sealed enclosures as small as 0.4 cubic feet while maintaining satisfying bass output—significantly smaller than the 0.65-0.85 cubic foot minimum typically recommended for standard-depth 10" subwoofers.

Medium Sealed Enclosures (0.6 - 0.75 cubic feet): Balanced bass response offering the optimal compromise between upper-bass punch and deep-bass extension for most listening applications. Medium sealed volumes provide acoustic suspension stiffness that maintains transient control while allowing sufficient cone excursion at low frequencies to produce satisfying deep-bass output. This volume range delivers the most versatile bass response—adequate upper-bass attack for rock and pop music, sufficient deep-bass extension for hip-hop and electronic music, and balanced frequency response that doesn't over-emphasize any particular bass region.

Medium sealed enclosures represent the recommended starting point for most A10 installations. If you have the flexibility to build an enclosure anywhere in the 0.4-0.9 cubic foot range and don't have specific priorities toward maximum punch or maximum extension, targeting 0.6-0.75 cubic feet provides the best all-around bass performance for diverse musical preferences and listening conditions.

Large Sealed Enclosures (0.8 - 0.9 cubic feet): Maximum deep-bass extension with emphasis on low-frequency output capability and smooth frequency response. Larger sealed volumes reduce acoustic suspension stiffness, which lowers the system resonance frequency and provides flatter frequency response extending deeper into the bass spectrum. The result: enhanced deep-bass output (below 40 Hz) ideal for hip-hop, electronic music, and movie soundtracks, smoother frequency response without the upper-bass emphasis that smaller enclosures create, and maximum cone excursion at low frequencies (requiring appropriate amplifier power management to avoid mechanical over-excursion).

Large sealed enclosures work best for installations where available space accommodates 0.8-0.9 cubic foot volumes (trunk installations with dedicated subwoofer enclosures, behind-seat applications in trucks and SUVs with rear seat storage areas), music preferences emphasizing deep-bass content and low-frequency extension, and applications where you're willing to sacrifice some upper-bass punch for increased deep-bass capability. The tradeoff: larger enclosures reduce transient response slightly (bass notes take fractionally longer to stop after the signal ends) and require more amplifier power to achieve the same output level at upper-bass frequencies compared to smaller sealed alternatives.

Ported Enclosure Considerations: Why Arc Audio Recommends Sealed for the A10

Arc Audio's official specifications recommend sealed enclosure designs for the A10 without providing ported enclosure parameters. This recommendation reflects the practical realities of shallow-mount subwoofer applications and the engineering tradeoffs inherent in ported designs for space-constrained installations.

Ported enclosures require significantly larger volumes than sealed alternatives to achieve proper acoustic tuning—a typical ported 10" subwoofer enclosure requires 1.25-1.75 cubic feet of internal volume plus port volume/length. These volumes exceed the available space in most installations that require shallow-mount subwoofers in the first place (under-seat applications, behind-seat builds, compact custom enclosures). If you had 1.5+ cubic feet of available enclosure volume, you would likely have sufficient mounting depth for a standard-depth subwoofer rather than requiring the A10's shallow 3.77-inch design.

Additionally, ported designs introduce power handling complications for shallow-mount subwoofers. Below the port tuning frequency, ported enclosures provide minimal acoustic loading on the cone—the cone moves with high excursion while producing little acoustic output (the port is out of phase below tuning frequency, canceling the cone's output). This unloading can cause mechanical over-excursion with amplifier power levels that would be safe in sealed enclosures. Given the A10's already-limited excursion capability due to shallow-mount geometry, ported designs increase the risk of mechanical damage from over-excursion below tuning frequency.

For enthusiasts committed to ported designs despite these considerations: conservative ported enclosure targets would be 1.5 cubic feet net volume tuned to 35-38 Hz with appropriate port diameter and length to avoid port noise at high output. However, be aware that this enclosure volume likely negates the space savings that motivated selecting a shallow-mount subwoofer, and power management becomes critical to prevent mechanical over-excursion below 35 Hz. Arc Audio's sealed enclosure recommendation reflects the practical reality that most A10 installations prioritize space efficiency over the output advantages that properly-designed ported enclosures could provide.

Enclosure Construction Best Practices for Shallow-Mount Applications

Material Selection: Use 3/4-inch MDF (medium-density fiberboard) for all enclosure panels. MDF offers superior acoustic properties compared to plywood alternatives—better internal damping (reducing panel resonances), more consistent density (providing predictable acoustic behavior), and easier finishing (for professional-looking installations). For under-seat applications where weight is critical, consider 1/2-inch Baltic birch plywood as a lighter alternative, though the thinner material will require additional internal bracing to prevent panel flex.

Internal Bracing: Shallow-mount enclosures often feature one or more large flat panels (especially under-seat designs with wide, shallow dimensions). Add internal cross-bracing to any panel exceeding 12 inches in any dimension—1x2 inch bracing strips glued perpendicular to panel surfaces reduce panel resonances that waste acoustic energy and create frequency response irregularities. The bracing volume counts against your net internal volume, so account for bracing when calculating enclosure dimensions to achieve your target volume.

Mounting Depth Verification: The A10 requires 3.77 inches of mounting depth measured from the mounting surface to the deepest point of the motor structure. However, you need at least 0.25-0.5 inches of clearance behind the motor assembly to allow air circulation for thermal management—target 4.25-4.5 inches of internal enclosure depth to provide adequate clearance for the subwoofer plus modest airspace behind the motor. For under-seat applications where every millimeter counts, 4.0 inches of internal depth provides minimum clearance, though thermal performance may suffer slightly during sustained high-power operation.

Acoustic Stuffing: Fill the enclosure with 1-2 pounds of polyester fiber-fill (acoustic stuffing material available from home improvement stores as pillow stuffing). Distribute the fiber-fill evenly throughout the internal volume, avoiding compression near the rear of the subwoofer where it could restrict air circulation. Acoustic stuffing increases the effective acoustic volume (making the enclosure behave as if it were 10-15% larger), improves frequency response smoothness by absorbing internal standing waves, and reduces the upper-bass emphasis that sealed enclosures can create. Do not over-stuff the enclosure—excessive filling can restrict cone motion and reduce output capability.

Terminal Cup Installation: Mount a terminal cup on the rear panel providing external amplifier connections. Use spring-loaded terminals or binding posts rated for 12AWG wire to accommodate the substantial current flow that 250 watts RMS demands. Keep internal wiring from terminal cup to subwoofer terminals as short as practical (minimizing resistance losses) using 12AWG or 14AWG speaker wire with proper polarity marking. Apply silicone sealant around the terminal cup exterior before mounting to ensure airtight sealing—air leaks from poorly-sealed terminal cups degrade bass output and create port noise (whistling/chuffing sounds) at high output levels.

Sealing and Finishing: Seal all internal joints with wood glue during assembly, ensuring complete glue coverage along all edge joints. After assembly, inspect for gaps or imperfections and seal any air leaks using silicone sealant or acoustic caulk. For under-seat installations, carpet the exterior surfaces to match vehicle interior and provide professional appearance. For behind-seat or trunk installations, consider painting or vinyl wrapping exterior surfaces for cosmetic integration with vehicle interior.

Amplifier Matching and Electrical System Considerations

The Arc Audio A10's 250 watts RMS power handling and Dual 2-Ohm voice coil configuration provide amplifier matching flexibility while presenting specific electrical system requirements that determine installation success and long-term reliability.

Understanding Power Requirements: 250W RMS vs. 500W Peak

The A10's 250-watt RMS power handling represents continuous power capability—the amplifier power level the subwoofer can handle indefinitely without thermal or mechanical damage. The 500-watt peak power rating indicates short-term maximum power handling for musical transients and dynamic peaks that last milliseconds to seconds rather than continuous operation. These two ratings serve different purposes in amplifier matching strategy.

For optimal A10 performance and longevity, match amplifier RMS output to the 250-watt RMS specification—select amplifiers rated for 200-300 watts RMS at the load impedance you'll be using. Amplifiers rated significantly below 200 watts RMS will under-power the A10 (failing to utilize its full output capability), while amplifiers exceeding 300 watts RMS require conservative gain settings to prevent over-powering the subwoofer (risking thermal or mechanical damage during sustained high-output operation).

The 500-watt peak rating provides margin for amplifier dynamic headroom—most quality amplifiers can produce 1.5-2.0 times their RMS rating during short-term musical peaks. A 250-watt RMS amplifier may produce 375-500 watts during drum hits, bass transients, or dynamic passages—the A10's 500-watt peak rating ensures it can handle these transient power levels without damage. This peak handling capability does not mean you should use 500-watt RMS amplifiers continuously; doing so will prematurely stress the voice coil thermal management and suspension components.

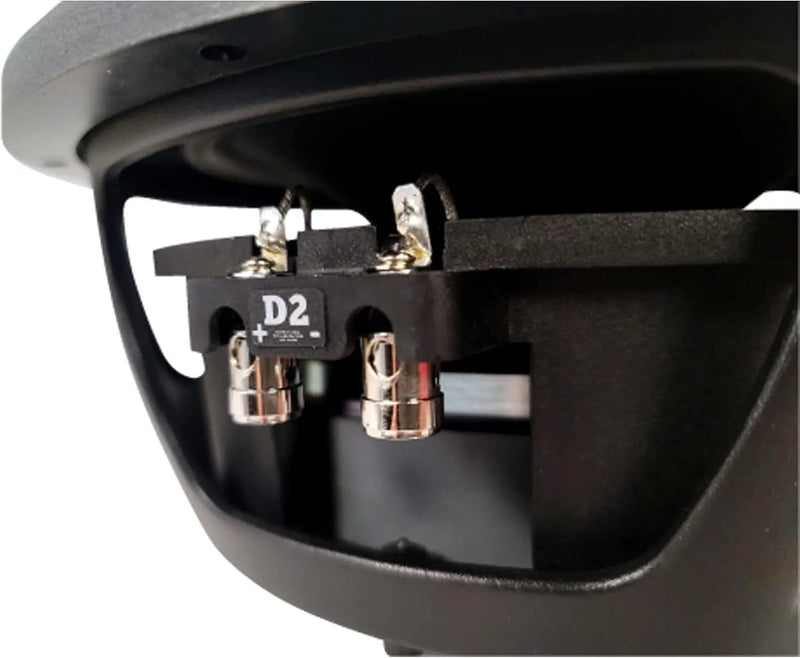

Voice Coil Wiring Configurations: 1-Ohm vs. 4-Ohm Loading

The A10-D2's Dual 2-Ohm voice coil configuration provides two wiring options:

Parallel Wiring (1-Ohm Final Impedance): Connect both voice coils in parallel (positive to positive, negative to negative) to present 1-ohm impedance to the amplifier. This configuration allows maximum amplifier power output—most mono subwoofer amplifiers deliver their highest power ratings at 1-ohm loads. For example, an amplifier rated 250 watts RMS @ 2 ohms typically produces 400-500 watts RMS @ 1 ohm, exceeding the A10's 250-watt RMS rating.

Series Wiring (4-Ohm Final Impedance): Connect both voice coils in series (positive of first coil to negative of second coil, using the remaining positive and negative for amplifier connection) to present 4-ohm impedance to the amplifier. This configuration produces lower amplifier power output—mono amplifiers typically deliver 50-60% of their 1-ohm power rating when loaded at 4 ohms. For example, an amplifier rated 500 watts RMS @ 1 ohm typically produces 250-300 watts RMS @ 4 ohms, matching the A10's 250-watt RMS power handling.

4-ohm series wiring provides several advantages: automatic power matching that prevents over-powering (the 4-ohm load inherently limits amplifier output to appropriate levels for the A10's 250W RMS rating), reduced amplifier thermal stress (amplifiers run cooler at higher load impedances), improved electrical system compatibility (lower current draw reduces voltage drop and electrical system stress), and more conservative operation for long-term reliability. The tradeoff: reduced maximum output capability compared to 1-ohm wiring—at 4 ohms, the amplifier simply cannot deliver the power levels that 1-ohm loading allows.

Recommended Amplifiers for Arc Audio A10

Select monoblock (single-channel) Class D amplifiers designed for subwoofer applications. Class D topology provides superior efficiency (70-85% vs. 50-65% for Class AB alternatives), which reduces electrical system stress and amplifier thermal loads—critical considerations for installations in vehicles with marginal electrical systems or limited amplifier mounting locations with restricted airflow.

For 1-Ohm Wiring Applications:

• Arc Audio amplifiers: Arc Audio manufactures amplifiers specifically designed to pair with their subwoofers—consider the Arc Audio XD Series monoblock amplifiers or Mini Series compact amplifiers rated for 250-400 watts RMS @ 1 ohm. Matching Arc Audio electronics with Arc Audio subwoofers provides guaranteed compatibility and often unlocks system synergies that mixed-brand combinations cannot achieve.
• Mainstream performance amplifiers: Popular choices include JL Audio RD series, Rockford Fosgate Prime or Power series, Alpine S-series or R-series, Pioneer GM-D series—target models rated 300-500 watts RMS @ 1 ohm. Set gain at 50-75% maximum to deliver 250-300 watts RMS to the A10.
• High-efficiency compact amplifiers: For space-constrained installations, consider compact high-efficiency Class D amplifiers like Kicker KEY series, NVX VAD series, or Sound Qubed amplifiers—many compact models deliver 300-500 watts RMS @ 1 ohm from chassis smaller than 12 inches in length, ideal for under-seat amplifier mounting near under-seat subwoofer installations.

For 4-Ohm Wiring Applications:

• Conservative electrical system installations: Vehicles with factory electrical systems (standard alternator/battery) benefit from 4-ohm wiring reducing current draw. Select amplifiers rated 250-350 watts RMS @ 4 ohms—most amplifiers rated 500-700 watts RMS @ 1 ohm will produce approximately 250-350 watts RMS @ 4 ohms. This configuration provides full A10 power handling while minimizing electrical system stress.
• Multiple subwoofer systems: If running two A10 subwoofers, wire each at 4 ohms then parallel the pair for 2-ohm final amplifier loading. This allows a single amplifier rated 500 watts RMS @ 2 ohms to power both subwoofers with 250 watts RMS each.

Electrical System Requirements and Upgrades

Factory Electrical Systems (No Upgrades): Most modern vehicles with factory electrical systems can support a single A10 powered by 250-300 watts RMS without electrical upgrades. Monitor for signs of electrical system stress: headlight dimming during heavy bass notes (voltage drop during current demand peaks), amplifier going into protect mode during high output (voltage dropping below amplifier's minimum operating voltage), or battery warning light illuminating during operation (alternator unable to maintain charging). If you observe these symptoms, reduce amplifier gain settings or consider electrical system upgrades.

Upgraded Alternator: For sustained high-output operation (frequent listening at maximum volume levels, competition SPL applications, multiple amplifiers beyond just the subwoofer amplifier), upgrade to a high-output alternator rated for 150-200+ amps output. High-output alternators maintain voltage during sustained current demands, preventing the voltage sag that causes amplifier protect mode activation and reduces output capability. Alternator upgrades typically cost $400-800 installed, representing a worthwhile investment for serious installations.

Upgraded Battery: Add a second battery (auxiliary battery) in the trunk/cargo area near the amplifier, or upgrade to an AGM (absorbed glass mat) battery with higher reserve capacity. Additional battery capacity provides current reservoir during transient power demands (musical peaks), reducing voltage sag that can cause audible distortion and amplifier instability. Battery upgrades cost $150-400 depending on capacity and type.

Wiring Upgrades: Use 4AWG power wire from battery to amplifier for installations drawing 250-300 watts RMS total amplifier power. For multiple amplifiers or higher power levels, upgrade to 2AWG or 0AWG power wire to minimize resistance losses. Install an appropriately-rated fuse or circuit breaker within 18 inches of the battery positive terminal—use 40-60 amp fuses for 4AWG wire installations. Proper fuse rating protects against fire hazards in the event of short circuits while allowing sufficient current flow for amplifier power demands.

Installation Applications: Where the A10 Excels

The Arc Audio A10's 3.77-inch mounting depth opens installation possibilities that standard-depth subwoofers cannot accommodate. Understanding the specific scenarios where shallow-mount design provides critical advantages allows you to maximize the A10's tactical performance benefits.

Under-Seat Installations: Trucks and SUVs

Under-seat subwoofer installations in trucks and SUVs represent the most common application for shallow-mount subwoofers. Typical under-seat clearances range from 3.5 to 5.0 inches depending on vehicle model and seat design—the A10's 3.77-inch mounting depth fits comfortably within this clearance range while leaving airspace for thermal management and acoustic loading.

Crew cab trucks (Ford F-150, Chevrolet Silverado, Ram 1500, Toyota Tundra, etc.): Rear seat undersides typically provide 4.0-4.5 inches of clearance, allowing sealed enclosures of 0.5-0.8 cubic feet depending on enclosure width and length. Build enclosures to fit the available footprint—most crew cab rear seat areas accommodate enclosures 30-40 inches wide by 12-16 inches deep, providing 0.6-0.9 cubic feet sealed volume with 3.5-4.0 inch internal height (adequate for the A10's 3.77" mounting depth plus 0.25-0.5" rear clearance).

Full-size SUVs (Chevrolet Tahoe/Suburban, Ford Expedition, Toyota Sequoia, Nissan Armada, etc.): Second-row seat undersides offer similar clearances to crew cab trucks—4.0-4.5 inches typical. The wider seating area in full-size SUVs allows larger enclosure footprints, potentially achieving 0.8-1.0+ cubic feet sealed volumes. However, the A10's recommended maximum of 0.9 cubic feet sealed suggests keeping enclosure volumes conservatively within specifications to prevent excessive low-frequency excursion.

Compact and mid-size SUVs (Honda CR-V, Toyota RAV4, Mazda CX-5, Subaru Outback, etc.): Under-seat clearances in compact SUVs often measure 3.5-4.0 inches—tighter than full-size vehicles but still compatible with A10 installations. Smaller vehicle dimensions typically limit enclosure footprints to 20-30 inches wide by 10-14 inches deep, resulting in 0.4-0.6 cubic feet sealed volumes. These smaller volumes produce the punchier, tighter bass character discussed in the enclosure design section—ideal for compact vehicles where deep-bass extension would be limited by cabin acoustics anyway.

Behind-Seat Installations: Extended Cab Trucks and Two-Door Vehicles

Extended cab trucks and two-door vehicles (coupes, hatchbacks, sports cars) often provide shallow storage areas behind front seats that cannot accommodate standard-depth subwoofers but work perfectly for shallow-mount designs like the A10.

Extended cab trucks (Ford F-150 SuperCab, Chevrolet Silverado Double Cab, Ram 1500 Quad Cab, etc.): Behind-seat storage areas in extended cab trucks typically provide 6-10 inches of depth—adequate for shallow-mount subwoofer enclosures. Build enclosures to fit the available width (often 40-50 inches) and height (typically 12-18 inches), creating sealed volumes of 0.7-1.2 cubic feet. The A10's recommended maximum of 0.9 cubic feet suggests keeping enclosure volume conservative to prevent over-extension at low frequencies, or accepting slightly larger volumes if you're willing to manage amplifier power to prevent mechanical over-excursion.

Two-door sports cars and coupes (Ford Mustang, Chevrolet Camaro, Dodge Challenger, Subaru BRZ, Mazda MX-5 Miata, etc.): Behind-seat storage areas in two-door vehicles vary dramatically by model—some provide minimal space (Mazda MX-5 Miata offers only inches of clearance), while others offer substantial volume (Ford Mustang and Chevrolet Camaro behind-seat areas can accommodate significant enclosures). Measure available space carefully and design enclosures that maximize the footprint while respecting the A10's 3.77-inch mounting depth plus clearance requirements. Expect enclosure volumes of 0.4-0.8 cubic feet depending on vehicle-specific geometry.

Hatchbacks and wagon cargo areas: Some enthusiasts prefer behind-seat installations even in hatchbacks and wagons to preserve cargo floor space. The A10's shallow mounting depth allows enclosures that sit against the rear seat backs without protruding excessively into cargo areas—useful for vehicles where cargo flexibility is priority but bass performance remains important.

Spare Tire Well Conversions: Sedan and Hatchback Stealth Installations

Spare tire well conversions represent stealth installation approaches that conceal subwoofers below cargo floors, preserving usable trunk/cargo space while adding bass capability. Many vehicles feature spare tire wells providing 4-6 inches of depth and 18-30 inches of diameter—ideal dimensions for A10 shallow-mount installations.

Build sealed enclosures that fit within the spare tire well dimensions, creating volumes typically ranging 0.4-0.7 cubic feet depending on well size and shape. Mount the A10 face-up (firing toward cargo floor/cabin) or face-down (firing toward ground) depending on acoustic preferences and installation geometry. Face-up mounting couples bass output directly into the vehicle cabin, while face-down mounting uses the ground plane as acoustic loading (effective for vehicles with minimal sound deadening between cargo area and cabin).

Custom Shallow Enclosures: Maximizing Trunk/Cargo Space

Beyond the specific installation scenarios above, the A10's shallow mounting depth enables custom enclosures that maximize trunk/cargo space efficiency. Build shallow enclosures that fit against trunk sides, under cargo floors, or in odd-shaped spaces that standard-depth subwoofers cannot utilize. The 3.77-inch mounting depth allows enclosures as shallow as 4.25-4.5 inches total height (including enclosure material thickness), opening creative installation possibilities that preserve usable cargo volume while adding bass performance.

Competitive Comparison: A10 vs. Alternative Shallow-Mount Subwoofers

The shallow-mount subwoofer category features dozens of competitors across various price points and performance levels. Understanding how the Arc Audio A10 compares to representative alternatives helps contextualize its value proposition and performance positioning.

Arc Audio A10 Competitive Positioning Analysis

Premium Engineering at Mid-Range Pricing: The A10's $298 price point positions it between mainstream shallow-mount alternatives ($149-229) and boutique specialists like Wāvtech (pricing not publicly disclosed but estimated $400-500 range). This pricing reflects Arc Audio's target positioning: premium materials and engineering quality (Totoku voice coil wire from Japan, Nomex spider/former, laser-etched bonding surfaces) at prices accessible to serious enthusiasts rather than exclusive high-end markets.

Conservative Power Rating vs. Competitor Optimism: The A10's 250-watt RMS rating appears conservative compared to competitors claiming 300-400 watts RMS from similar physical dimensions. Arc Audio's engineering-focused approach emphasizes realistic continuous power handling rather than optimistic marketing specifications. Real-world testing suggests the A10's 250-watt rating represents genuine continuous power capability, whereas some competitor 400-watt ratings represent shorter-term power handling that may not sustain indefinitely without thermal degradation.

Volume Range Flexibility: The A10's 0.4-0.9 cubic foot sealed range offers wider flexibility than most competitors—JL Audio's 10TW1 recommends 0.35-0.60 cu.ft., Rockford Fosgate's P3SD4 specifies 0.40-0.75 cu.ft. This volume flexibility proves valuable for installations where available space dictates enclosure dimensions rather than acoustic optimization preferences. The A10 maintains acceptable performance across the entire range rather than requiring specific volumes for optimal results.

American Engineering Heritage: Arc Audio's American design and engineering identity differentiates the A10 from mainstream competitors (JL Audio excluded) that primarily source designs from overseas manufacturers. The military-inspired mission statement and combat-proven terminology appeal to enthusiasts valuing American engineering heritage and supporting domestic market design capabilities. This positioning factor may influence purchasing decisions for buyers prioritizing brand identity alongside performance specifications.

Frequently Asked Questions
