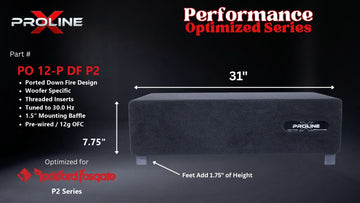

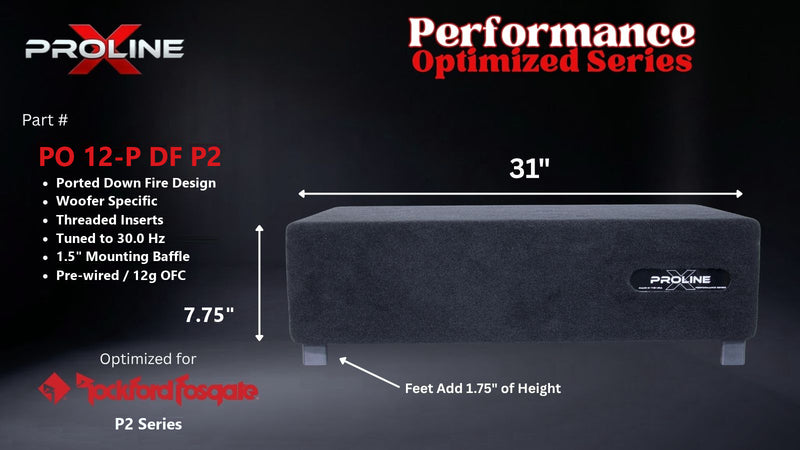

Performance Optimized Down Fire Ported 12" Enclosure | Rockford Fosgate P2D2-12

81.5 litres of Vas with a 26.0 Hz resonance and a 0.52 Qts is close to the textbook ported driver, and 1.47 cubic feet vented at 30.0 Hz asks nothing unusual of it. 1.95 dB of anechoic ripple is the second flattest of the Rockford set. Tuning is chosen for in-car response rather than for an anechoic curve: a vehicle adds roughly 12 dB per octave below about 45 Hz, so a box tuned very low reinforces a region the cabin is already reinforcing and leaves 40 to 60 Hz thin. In this cabinet that lands at 1.0 dB of in-car spread across 25 to 60 Hz, which is where kick and bass fundamentals live.

No, and on this build in particular do not add any. Every sealed Proline X enclosure ships with polyfill pre-installed; a ported one must not, because damping material changes the effective volume the port is tuned against. The port on this cabinet is cut to 27.47 inches of centreline path for 30.0 Hz. Stuff it and you move the tuning without shortening the port, which gives you a mistuned box rather than a bigger-sounding one. The 1.95 dB passband you are paying for depends on it staying dry.

Yes, at 24 Hz, 24 dB per octave. Below tuning a vented box stops loading the cone and excursion runs away toward DC. With the filter in place this cabinet puts the Rockford Fosgate P2D2-12 at 52 percent of its usable travel at full rated power; without it there is no meaningful number to quote, because the excursion curve does not converge. On a sealed build a subsonic filter is an improvement. Here it is required equipment.

Rockford Fosgate rate the P2D2-12 at 400 W RMS and that is the thermal ceiling. The figures on the Performance Graphs tab are a different quantity: they are mechanical limits, the power at which the cone reaches the end of its linear travel in this specific cabinet. Here the cone sits at 52 percent of usable travel at the driver's own rating, so heat is what stops you, not travel. Final wired impedance and amplifier output are separate questions again.

The two alignments converge at the bottom of the band on this driver rather than crossing cleanly, so there is no meaningful subsonic advantage either way. Above 25 Hz the vent is the louder of the two for the same power. The Performance Graphs tab plots both at the same 1.47 cubic feet so you can judge it yourself.

It is a slot port formed by one folded wall: a leg down the long side of the cabinet past the woofer ring, one faceted 90 degree bend, and a leg across the end opening through a chamfered corner. On this cabinet that is 27.47 inches of centreline path and 17.2 square inches of channel, exiting a 17.7 square inch mouth. Air leaves at 15.3 metres per second at tuning against a 17.0 threshold, and the channel runs at 53 percent of its turbulence limit. One wall and one bend rather than a serpentine's three means less wall area inside the box, fewer joints to leak, and one place for flow to separate instead of three.

V-groove and dado joinery in 0.75 inch Langboard Elite MDF with a double-layer 1.5 inch baffle. The driver mounts to a 14.000 inch ring bonded under the baffle in a machined recess, carrying eight #8-32 hurricane nuts so it threads into steel rather than MDF. A windowed brace sits 3.47 inches clear of the cutout edge and 2.08 inches clear of the port terminus; the window is not weight saving, a solid panel there would split the cavity and make the box a bandpass. Walls seat into dados in both the lid and the baffle. Square corners, plush black carpet, side-mounted terminal cup.

No. This is an enclosure only, cut and folded for the Rockford Fosgate P2D2-12 specifically. The 11.220 inch cutout, the 6.400 inch mounting depth allowance and the 1.47 cubic foot alignment all come from Rockford Fosgate's published parameters for this exact driver, and the port is sized against its Xmax and power rating. It is not a universal box with a 12 inch hole in it. Bring your own driver.
