Stereo Integrity
Stereo Integrity HST-18 | 18 Inch Subwoofer
SKU: SI-HST18-D1
$ 1,399.99
QUICK SPECS
- Type: 18 in high-excursion subwoofer, sold individually
- Excursion: 40 mm one-way linear, 102 mm total peak
- Motor: 250 mm triple stacked, three shorting rings
- Impedance: Dual 1 ohm or dual 2 ohm
Stereo Integrity HST-18 | 18 Inch Subwoofer
Includes Shipping
On orders to the lower 48
Full Warranty
Factory Backed
Expert Support
Real Installers
INSTALLER'S TAKE
Product Details
Specifications
Enclosures
FAQs
Related Video
Stereo Integrity
HST-18

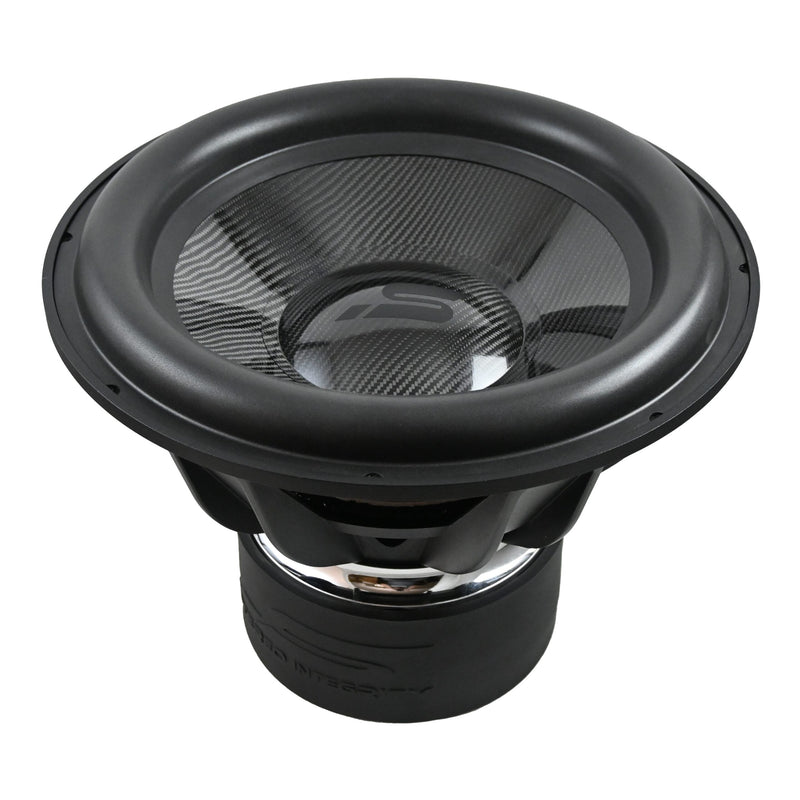

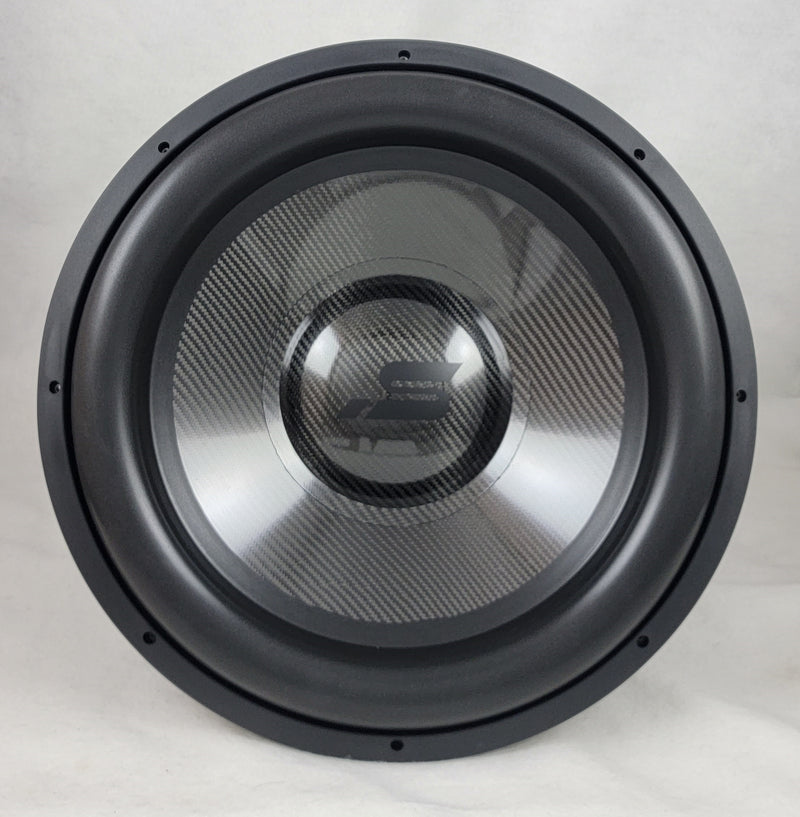

18 Inch High-Excursion Subwoofer | Sold Individually
40 mm One-Way Linear Travel 102 mm Peak Excursion Triple Stacked 250 mm Motor Carbon Fiber Cone Dual 1 or Dual 2 Ohm
Massive Bass From a Small Enclosure
The HST series is Stereo Integrity's answer to a common problem: getting very large amounts of bass out of a very small enclosure. The HST-18 does it with long stroke and high motor force. Its bifilar copper voice coil is capable of 40 mm of one-way linear travel, which works out to 80 mm of total linear travel and 102 mm of total peak excursion.
Stereo Integrity hand-builds its HST subwoofers in North Carolina.
Engineering Highlights
Triple Stacked Motor
A large 250 mm triple stacked motor structure with three shorting rings supplies the force needed to control a long-throw 18 inch cone.
Bifilar Copper Voice Coil
The bifilar copper coil is capable of 40 mm of one-way linear travel, and the shorting rings in the motor work to hold inductance down across that stroke.
Linear Suspension
A wide soft foam surround and a three layer, 10 inch natural Nomex spider keep compliance flat and linear. Sewn-on flat voice coil leads eliminate lead tap.
Carbon Fiber Sandwich Cone
A carbon fiber sandwich cone and dust cap provide very high cone stiffness, carried by a high-clearance cast aluminum frame with large 4 AWG push terminals.
Choosing Your Version
The HST-18 is offered in dual 1 ohm and dual 2 ohm. Dual 1 ohm coils wire to 0.5 ohm in parallel or 2 ohms in series, and dual 2 ohm coils wire to 1 ohm in parallel or 4 ohms in series.
Planning note: Stereo Integrity's product page does not list a Thiele-Small parameter set, power rating, or mounting dimensions for the HST-18. Call us before you plan an enclosure and we will help you work through the details.
Ordering
Each HST-18 is hand-built to order and ships separately. Stereo Integrity lists a 90 pound shipping weight, so call 931-563-5151 before you order for current lead time and delivery options.
Authorized Stereo Integrity Dealer
Audio Intensity is an authorized Stereo Integrity dealer, and we build enclosures around their drivers.
Call 931-563-5151 to plan an HST-18 build.
| Specifications | |
|---|---|
| Model | HST-18 |
| Size | 18 in |
| Voice Coil Options | Dual 1 ohm or dual 2 ohm |
| Voice Coil | Bifilar copper |
| Motor | 250 mm triple stacked, three shorting rings |
| Spider | Three layer, 10 in natural Nomex with sewn-on flat leads |
| Surround | Wide soft foam |
| Cone | Carbon fiber sandwich cone and dust cap |
| Frame | High-clearance cast aluminum |
| Terminals | Large 4 AWG push |
| Listed Shipping Weight | 90 lb |
| Published Excursion | |
| Linear Excursion (Xmax) | 40 mm one-way |
| Total Linear Travel | 80 mm |
| Total Peak Excursion | 102 mm |
| Figures as published by Stereo Integrity, which does not list a Thiele-Small parameter set, power rating, or mounting dimensions for the HST-18. | |
See every Stereo Integrity subwoofer box and enclosure, each cut for a specific Stereo Integrity driver.
No video available for this product yet.
Check back soon, or reach out and we'll walk you through it: 931-563-5151
