Performance Optimized Wedge Ported 10" Enclosure | Image Dynamics IDQ10 V4
SKU: PO 10-P W IDQ BB
- Alignment: 1.31 cu ft net vented at 35.5 Hz. F3 35.3 Hz anechoic, 2.28 dB passband ripple
- Driver: Image Dynamics IDQ10 V4, 250 W RMS, 14.5 mm Xmax, 42.00 Hz Fs

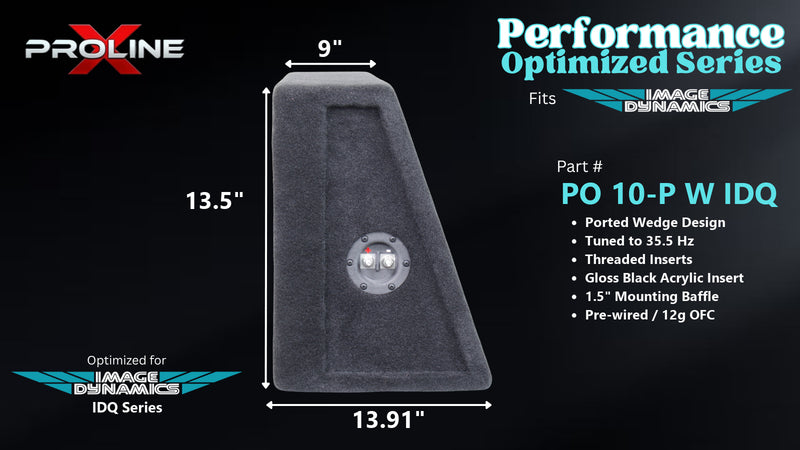

- Build: Rear-firing wedge, 20 degree rear rake, V-groove and dado joinery, triangular side-exit slot port with a 1/2" rounded mouth, double 1.5" baffle, side-mounted terminal cup
- Cabinet: 30.00" W x 13.50" H x 13.91" D at base tapering to 9.00" D at top, 14.2 sq in port, ships dry
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Wedge Ported 10" Enclosure | Image Dynamics IDQ10 V4
Proline X Performance Optimized Wedge 10" Ported
A 42 Hz motor vented at 35.5 Hz in 1.31 cubic feet, 2.20 dB in the car
Why this driver is vented at 35.5 Hz
The IDQ10 V4 resonates at 42 Hz on a 0.80 Qts, a driver that sets a floor on any cabinet's reach, and the wedge gives it 1.31 cubic feet net vented at 35.5 Hz through a 14.2 square inch port. The cabinet is 30 inches wide, 13.5 tall, 9.00 inches at the top and 13.91 at the base.
A high Qts wants volume rather than a low tuning, and 1.31 cubic feet at 35.5 Hz reads 2.20 dB of in-car spread across 25 to 60 Hz on 2.28 dB of anechoic ripple, with an F3 of 35.3 Hz. It does not reach as low as the NB2-10 in this line, which gets to 29.7 Hz from a 34 Hz motor; both are honest tens and they are not the same product. The port needs only 17.57 of the 25.77 inches available and runs at 17.7 metres per second in the channel against an 18.2 limit, 10.4 at the mouth.
Trunk-load wedge, explained
The 20 degree face is the seat side
A factory rear seat back leans about 20 degrees off vertical. The wedge's raked rear panel matches that lean and tucks against it, so the cabinet uses the triangle of trunk floor a square box wastes.
The driver fires rearward
The baffle stays vertical and faces the trunk opening. The trunk acts as the acoustic extension into the cabin; nothing about the driver is angled.
13.91 inches at the base, 9.00 at the top
Deeper than tall by four tenths, 13.91 at the base against 13.5, and the depth is airspace: the port panel would clear the motor at 8.68 inches of top depth and the cabinet runs to 9.00 for volume with the width at 30. 5.41 inches of flat floor stay clear in front of the panel.
30.00 inches wide
Width is the wedge's free dimension and it buys two things at once here: airspace, and port length, because the port runs the full width of the box.
The port is the product
The port is a triangular slot in the bottom-rear corner. The floor and the raked back wall are two of its three sides; the third is a single panel bevelled to sit flush against both. It runs across the cabinet, opens into the box at the far end and exits through the side panel: a straight run with no bend, 17.57 inches of centreline path.
The channel is an isosceles triangle with 5.50 inch legs, 14.2 square inches, running at 17.7 metres per second at the tuning frequency. The mouth is that same triangle cut through the side panel with its three edges rounded over at 1/2 inch, so the opening at the face is 24.2 square inches and air leaves it at 10.4 metres per second, against the 17.0 metre per second threshold where a slot port starts to chuff. The panel's throat end carries a 3/8 inch roundover for the same reason.
This enclosure ships dry. Polyfill goes in every sealed Proline X cabinet we build. It does not go in this one. Damping material changes the effective volume the port is tuned against, which moves the tuning away from the 35.5 Hz the port was cut for.
Run a subsonic filter
Below tuning the port stops loading the cone and excursion climbs without limit toward DC, so a 28 Hz high-pass at 24 dB per octave is part of the specification. Set it and the same cabinet takes substantially more power for the same cone travel.
Every wattage on the Performance Graphs tab is a mechanical limit, the power at which the cone reaches the end of its linear travel in this box. What the voice coil can dissipate as heat is a separate ceiling set by Image Dynamics.
Cut for this driver, not for a catalogue
Mounting

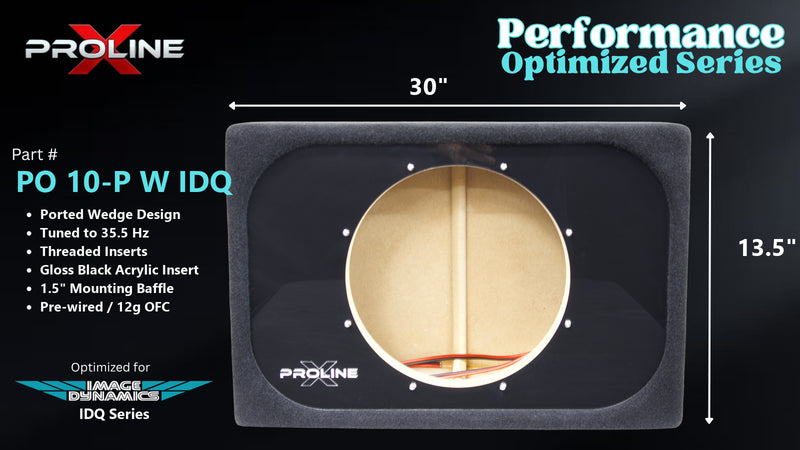

Cut to Image Dynamics's published 9.570 inch cutout through a double-layer 1.5 inch baffle, with a cosmetic front layer routed for the acrylic insert. Threaded inserts at every mounting location.
Clearance
250 watts is the ceiling and the cone uses 6.8 of its 14.5 mm at that power with the subsonic filter set. 5.81 inches of mounting depth clears the panel with margin. We also build this driver as a 1.00 cubic foot sealed wedge, and the graphs tab compares the two.
Braced
Two windowed C braces run the cabinet profile at the third points of the width and seat on the port panel; the windows keep the cavity one chamber.
Joinery
V-groove and dado throughout, 0.75 inch Langboard Elite MDF, the shell folded from one strip with the sides dropped into dados and the port panel seated in dados of its own.
Power, wiring and warranty
Image Dynamics rate the IDQ10 V4 at 250 W RMS. Terminal cup is side mounted on the side opposite the port mouth. A dual 2 ohm driver wired parallel presents 1 ohm, which many amplifiers are not stable into; series at 4 ohm is the safe default unless yours is rated for it.
Performance Optimized carries a 1-year warranty. Built to order in Tullahoma, Tennessee. The driver is not included.
Cut, folded and finished for the Image Dynamics IDQ10 V4. The alignment, the port geometry and the power figures all come from Image Dynamics's published parameters run through our own solver.
| Series | Proline X Performance Optimized Wedge |
| Driver-Specific Fitment | Image Dynamics IDQ10 V4 |
| Enclosure Type | Ported | Rear-Firing Trunk Wedge |
| Baffle Configuration | Vertical Baffle - Driver Fires Rearward Into The Trunk |
| Wedge Angle | 20 Degrees On The Rear (Seat-Side) Panel |
| External Width | 30.00 Inches |
| External Height | 13.50 Inches |
| Top Depth | 9.00 Inches |
| Base Depth | 13.91 Inches |
| Internal Volume (Gross) | 1.62 Cubic Feet |
| Internal Volume (Net After Displacement) | 1.31 Cubic Feet |
| Port Type | Triangular Slot | Bottom-Rear Corner | Straight, No Bend | Side Exit |
| Port Geometry | Isosceles, 5.50 Inch Legs, 14.2 Square Inches, 17.57 Inches Long, Side Mouth |
| Port Tuning (Fb) | 35.5 Hz |
| Port Mouth | Triangle Through Side A, 1/2 In Roundover On All Three Edges, 24.2 Square Inches At The Face |
| Port Throat | Open Far End, 10.68 In Gap To Side B, 3/8 In Roundover On The Panel End |
| Port Air Velocity | 17.7 m/s In The Channel, 10.4 m/s At The Flared Mouth (17.0 m/s Chuff Threshold) |
| Predicted F3 | 35.3 Hz (Anechoic) |
| Passband Ripple | 2.28 dB (Anechoic) |
| Subsonic Filter | 28 Hz High-Pass, 24 dB/Octave - REQUIRED On A Vented Enclosure |
| Driver Fs | 42.00 Hz |
| Driver Qts | 0.797 |
| Driver Qes | 0.992 |
| Driver Vas | 24.300 Liters / 0.858 Cubic Feet |
| Driver Sd | 380.1 Square Centimeters |
| Driver Xmax | 14mm (One-Way) |
| Driver Displacement | 0.10 Cubic Feet (Published by Image Dynamics) |
| Driver Power Handling | 250 Watts RMS |
| Driver Overall Diameter | 11.040 Inches (Image Dynamics Spec) |
| Mounting Depth Required | 5.807 Inches (Image Dynamics Spec) |
| Cutout Diameter | 9.570 Inches (Image Dynamics Spec) |
| Material | Langboard Elite 3/4" MDF |
| Construction | ShopSabre CNC / Two Windowed C Braces At The Third Points, Seated On The Port Panel |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Front Baffle Construction | Double-Layer 1.5" MDF | Cosmetic Front Layer Routed For The Acrylic Insert |
| Mounting Hardware | Threaded Inserts At Every Mounting Location | Stainless Steel Machine Screws Included |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | Side Mounted, Opposite The Port | 12g OFC Pre-Wired |
| Damping | None - Ships Dry. Polyfill Detunes A Ported Enclosure |
| Recommended Power | 175-250 Watts RMS (Image Dynamics Rated: 250W RMS) |
| Carpet Finish | Plush Black |
| Weight | 45 lb |
| Bundle Options | Enclosure Only (Bring Your Own Image Dynamics IDQ10 V4) |
| Warranty | 1-Year Limited (Enclosure) |
| Manufactured | Tullahoma, Tennessee, USA |
