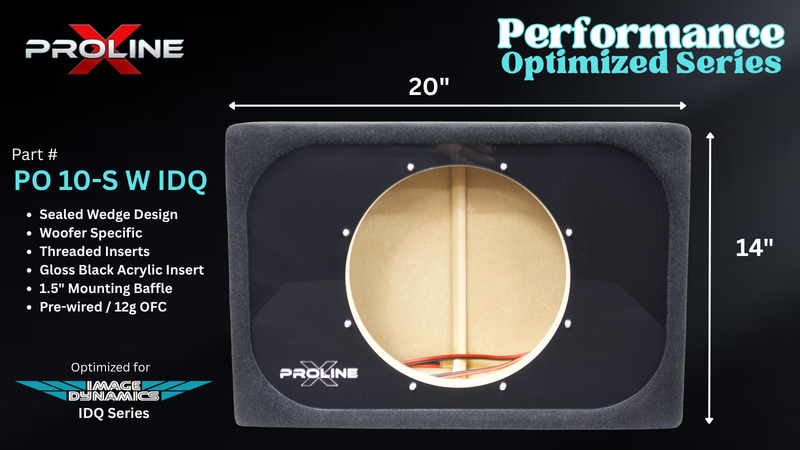

Proline X PO 10-S W IDQ sealed wedge enclosure, front baffle with gloss black insert and pre-wired leads, 20 by 14 inches. Optimized for Image Dynamics IDQ.

Proline X

Performance Optimized Wedge Sealed 10" Enclosure | Image Dynamics IDQ 10

Q: What size enclosure does the Image Dynamics IDQ10 V4 need?

The Image Dynamics IDQ10 V4 has three published sealed alignments: 0.60 cubic feet (Compact), 1.10 cubic feet (Universal), and 1.60 cubic feet (Audiophile). The Audio Intensity Performance Optimized Wedge Sealed 10 for IDQ delivers 1.0 cubic feet of airspace. Dialed between Compact and Universal for a balanced Qtc target with tight transient response and strong low-end extension.

Q: What are the dimensions of the Performance Optimized Wedge Sealed 10 for the IDQ10?

The Performance Optimized Wedge Sealed 10 for the Image Dynamics IDQ10 V4 measures 20" wide x 14" tall externally, with a wedge-shaped depth of 8.4" at the top and 13.5" at the bottom. The angled front baffle sits approximately 20 degrees back from vertical, designed to follow the geometry of typical sedan and coupe trunk interiors.

Q: Why choose a wedge enclosure instead of a rectangular cabinet for the IDQ10?

A wedge enclosure fits trunks that rectangular cabinets can't. The angled seat-side face (8.4" at top, 13.5" at bottom) matches the natural lean of most factory rear seat backrests, tucking against the seat with no wasted gap. The woofer mounts on the vertical trunk-lid-side face and fires rearward into the trunk cavity, using the trunk itself as an acoustic loading chamber for smoother, less-localized bass. The wedge geometry also reduces internal standing waves by eliminating parallel walls.

Q: How much power can the Image Dynamics IDQ10 V4 handle?

The Image Dynamics IDQ10 V4 handles 250 watts RMS nominal and 500 watts peak. Maximum power handling varies by enclosure alignment: 450 watts in the 0.60 cu ft Compact alignment, approximately 350 watts in this 1.0 cu ft wedge alignment, 350 watts in the 1.10 cu ft Universal alignment, and 250 watts in the 1.60 cu ft Audiophile alignment. Aim for a clean 250 to 350 watts RMS at your chosen impedance.

Q: What impedance options are available for the Image Dynamics IDQ10 V4?

The Image Dynamics IDQ10 V4 is available in two dual voice coil impedance configurations: Dual 2-ohm (D2) and Dual 4-ohm (D4). A Dual 2-ohm IDQ10 wired in parallel presents a 1-ohm load or wired in series presents 4 ohms. A Dual 4-ohm IDQ10 wired in parallel presents 2 ohms or wired in series presents 8 ohms. Pick the impedance version based on what your amplifier is stable at.

Q: What is the mounting depth of the Image Dynamics IDQ10 V4?

The Image Dynamics IDQ10 V4 has a 5.81-inch mounting depth with a 9.57-inch cutout diameter and 11.04-inch outer diameter. The Performance Optimized Wedge Sealed 10 enclosure's tapered depth profile (8.4" top to 13.5" bottom) provides comfortable internal clearance for the IDQ10's motor structure and adequate magnet ventilation.

Q: What mounting hardware does the Performance Optimized Wedge Sealed 10 for IDQ10 include?

The Performance Optimized Wedge Sealed 10 for Image Dynamics IDQ10 includes 8/32 threaded inserts pressed into the vertical trunk-lid-side woofer baffle and stainless steel mounting screws sized for the IDQ10 V4. The enclosure also includes a Proline X ABS/carbon fiber composite terminal cup pre-wired with 12-gauge OFC and stainless steel input hardware accepting spade or banana terminations.

Q: Where is the Performance Optimized Wedge Sealed 10 for IDQ10 manufactured?

The Performance Optimized Wedge Sealed 10 for Image Dynamics IDQ10 is manufactured in Tullahoma, Tennessee, USA. Each enclosure is CNC-cut from Langboard Elite 3/4" MDF on ShopSabre routers and hand-assembled at Audio Intensity's Tennessee facility. Build time is 2 to 5 business days from order placement.

SKU: PO 10-S W IDQ BB

QUICK SPECS

Best For: IDQ10 V4 Trunk-Fit Builds | SQ-Oriented Systems
Net Volume: 1.0 cu ft Sealed Airspace
Driver Match: Image Dynamics IDQ10 V4 (D2 or D4)
Construction: Wedge Geometry | V-Groove/Dado | Threaded Inserts

Shipping Included No freight charges at checkout. What you see is what you pay.

Built in Tennessee CNC cut from 3/4" Langboard Elite MDF. V-groove and dado joinery.

Advanced Terminal Cup Built in-house. ABS/Carbon Fiber. Stainless steel hardware. Copper ring terminals.

$ 269.99

Acrylic Insert Color

In Stock and Ready to Ship

Financing available. Choose Shop Pay Installments at checkout.

Complete Your System

Image Dynamics Image Dynamics IDQ10 V4 10 inch Subwoofer $ 238.99

Performance Optimized Wedge Sealed 10" Enclosure | Image Dynamics IDQ 10

Enclosure Type Sealed

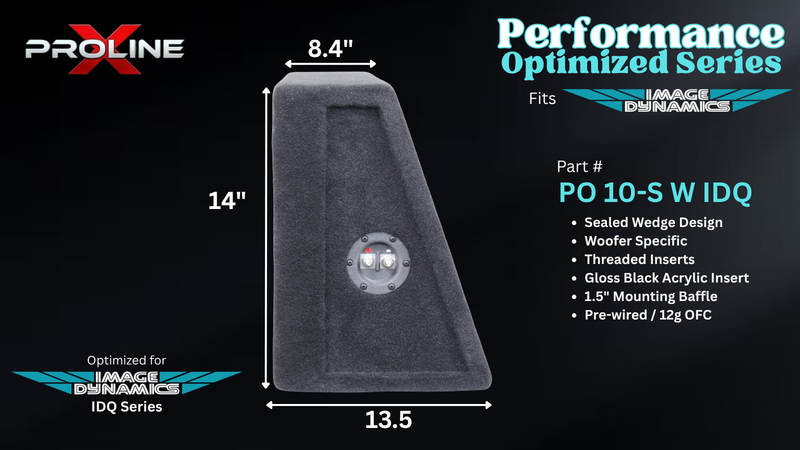

External Dimensions 20" W x 14" H x 13.5" D at base tapering to 8.4" D at top

Net Volume 1.0cu ft

Tuning Frequency NA

Cutout Diameter Direct Fit

Front Panel Thickness 1.5"

Max Mounting Depth Direct Fit

INSTALLER'S TAKE

INSTALLER'S TAKE

Trunk-load wedges are one of the oldest tricks in the SQ playbook, and they still work as well as they ever did. The idea is simple: mount the woofer on the vertical face that faces the trunk lid, angle the opposite face to match the lean of the rear seat back, and let the trunk cavity load the driver. Done right, you get smoother low-end integration into the cabin, a system that doesn't localize behind the listener, and a cabinet that tucks into the trunk shelf area without stealing usable cargo space.

For the IDQ10 V4 specifically, this cabinet is a great fit. Image Dynamics publishes three sealed alignments: 0.60 Compact, 1.10 Universal, and 1.60 Audiophile. The 1.0 cubic foot volume in this wedge lands between Compact and Universal, dialed closer to Universal so you get most of the low-end reach that alignment delivers while keeping the tighter Qtc and slightly higher power handling that comes from a somewhat smaller cabinet. Approximately 350 watts maximum in this alignment. Not the deepest possible IDQ10 build, but the best balance of extension, control, and power handling for a single-driver system.

The geometry is what makes this design work in real vehicles. The 8.4 inch top to 13.5 inch bottom depth difference on the seat-side face creates a 20 degree lean back from vertical, the same angle as most factory rear seat backrests within a couple degrees. When you push the wedge back against the rear seat, the angled seat-side face sits flush against the seat back, with no wasted gap eating trunk space. The vertical trunk-lid-side face is where the woofer mounts, firing rearward toward the trunk lid.

Why fire the woofer rearward instead of into the cabin? Two reasons. First, it uses the trunk cavity as an acoustic loading chamber, the trunk itself becomes part of the low-frequency reproduction path. Bass energy transmits into the passenger cabin through the rear deck, seat back, and side boundaries rather than firing directly at the listener. The result is a smoother, less localized bass presentation. Second, it lets the wedge sit against the seat without any air path or firing obstruction on the front side of the box. If you tried to fire the woofer forward through the seat back, you'd need clearance in front of the driver, and the whole point of the wedge shape is that you don't have that clearance.

The 20 x 14 footprint is the same as our rectangular PO 10-S IDQ box. Same trunk floor real estate, but the wedge shape effectively preserves more usable cargo space because the top portion of the wedge is hidden behind the rear seat.

Wiring is standard IDQ10. Dual 2 ohm gets you 1 ohm parallel or 4 ohms series. Dual 4 ohm gets you 2 ohms parallel or 8 ohms series. 250 to 350 watts RMS at your chosen impedance is the target. Don't cheap out on the amp, the IDQ is a driver that rewards clean power.

If you're building an SQ-oriented single 10 system in a trunk and you want the smoother acoustic loading that a trunk-fired wedge delivers, this is the answer.

-Scott

Product Details

Performance Optimized Wedge | Image Dynamics IDQ 10

Single 10" Sealed Wedge Enclosure | Rear-Firing Trunk-Load Design for the IDQ10 V4

1.0 ft³ AirspaceRear-Firing WedgeDriver-Specific20" × 14" × 8.4/13.5"V-Groove / DadoBuilt in Tennessee

The IDQ10 V4 in a Trunk-Load Wedge

The Image Dynamics IDQ10 V4 is the reference-standard SQ 10" subwoofer, 250 watts RMS nominal, 14.5mm linear Xmax, a 180 oz Extended Y-35 motor, and a field-replaceable cone assembly used in sound quality competition for over a decade. The IDQ10 needs a properly sized sealed cabinet that actually fits in real trunks.

The Performance Optimized Wedge Sealed 10 for IDQ is that cabinet. Woofer mounts on the vertical trunk-lid-side face and fires rearward into the trunk cavity. The angled face on the opposite side tucks against the rear seat back, matching the natural lean of most factory rear seats.

1.0 cubic feet of internal airspace. Sitting between Image Dynamics' 0.60 cu ft Compact and 1.10 cu ft Universal sealed alignments. Tuned for tight, controlled response with strong low-end extension and 350W maximum power handling.

Trunk-Load Wedge Design Explained

This wedge is not a front-firing enclosure. Woofer mounted on the vertical face at the back of the box fires rearward into the trunk cavity. The angled face on the opposite side tucks against the rear seat back.

Seat-Side Face Matches Seat Lean

Most factory rear seats lean ~20 degrees from vertical. The angled face (8.4" top, 13.5" bottom) matches that lean.

Trunk-Lid-Side Face Fires the Woofer

The vertical face (20" × 14") is where the IDQ10 mounts. Cone fires rearward toward the trunk lid.

Trunk Cavity Loading

Uses the trunk itself as acoustic extension. Low frequencies transmit into the cabin through the rear deck, seat back, and cabin boundaries.

Preserves Trunk Cargo Space

Wedge tucks against seat back. Cargo space in front of the wedge stays usable.

Engineered Around the IDQ10 V4's Parameters

Image Dynamics specifies three sealed alignments: 0.60 cu ft (Compact, 450W max), 1.10 cu ft (Universal, 350W max), 1.60 cu ft (Audiophile, 250W max). The PO Wedge delivers 1.0 cu ft, between Compact and Universal, dialed toward tighter, more controlled response while still delivering meaningful low-end extension.

Volume Selection

1.0 cu ft is the sweet spot for an IDQ10 build wanting transient tightness without giving up low-end weight. Delivers Qtc near the SQ target with 350W max power handling.

Mounting Geometry

Vertical trunk-lid-side baffle CNC-cut to the IDQ10's exact 9.57" cutout. 5.81" mounting depth fits comfortably. 8/32 threaded inserts pressed into baffle backside.

Performance Series Construction, Driver-Specific Tuning

Langboard Elite MDF

Premium 3/4" MDF panels milled to documented spec.

V-Groove and Dado Joinery

CNC-cut V-grooves let the wedge fold with maximum glue surface. Dado joints lock panels into side walls.

8/32 Threaded Inserts

Threaded inserts accept stainless steel mounting screws. No stripped pilot holes.

Pre-Wired Terminal Cup

Proline X ABS/carbon-fiber terminal cup, 12g OFC pre-wired.

Customize Your Build

Carpet Finish

Dark Gray Trunkliner standard; Plush Black +$10.

Acrylic Insert Color

Black, Blue, Red, or White. Skip insert entirely for -$40.

Box-Only or Loaded

Add a Dual 2Ω or Dual 4Ω IDQ10 V4 driver directly to your order and we'll ship the loaded system.

Wiring the IDQ10 V4 to Your Amplifier

IDQ10 V4 is dual voice coil in D2 or D4. D2 parallel = 1Ω, D2 series = 4Ω. D4 parallel = 2Ω, D4 series = 8Ω. Aim for 250-350W RMS clean at your chosen impedance. The IDQ rewards clean power.

Built in Tennessee, Backed by Audio Intensity

CNC-cut, assembled, and finished in Tullahoma, TN. 2-5 business day build window. 1-year limited warranty.

The IDQ10 in a Trunk-Load Wedge

Wedge geometry against the rear seat back, driver-specific 1.0 cu ft airspace, Performance Series V-groove and dado construction. Woofer fires rearward into the trunk cavity.

Specifications

Enclosure Type	Sealed \| Wedge Geometry
Driver-Specific Fitment	Image Dynamics IDQ10 V4 (Dual 2Ω or Dual 4Ω)
Internal Airspace	1.0 Cubic Feet
Material	Langboard Elite 3/4" MDF
Joinery	V-Groove and Dado (CNC-Cut)
Construction	ShopSabre CNC / Angled Baffle Compound Cuts
External Width	20 Inches
External Height	14 Inches
External Depth (Top)	8.4 Inches
External Depth (Bottom)	13.5 Inches
Baffle Angle	~20° From Vertical
Mounting Hole Diameter	9.57 Inches
Mounting Hardware	8/32 Threaded Inserts \| Stainless Steel Screws Included
Terminal Cup	Proline X ABS/Carbon Fiber Composite \| 12g OFC Pre-Wired
Damping	Polyfill Pre-Installed
Recommended Power	250-350 Watts RMS (250W Nominal / 350W Max in This Alignment)
Carpet Finish	Dark Gray Trunkliner (Standard) or Plush Black (+$10)
Acrylic Insert	Black, Blue, Red, White, or None (-$40)
Bundle Options	Box Only \| Add a Dual 2Ω Driver \| Add a Dual 4Ω Driver
Warranty	1-Year Limited (Enclosure)
Manufactured	Tullahoma, Tennessee, USA

Performance Graphs

Net airspace

1.00

cu ft per chamber

System Qtc

1.09–1.15

sealed

Half power

41.5–43.5

Hz · F3

Xmax at

539

W RMS · no filter

With 25 Hz subsonic

545

W RMS · +1%

Amplifier

250–500

W RMS recommended

This enclosure holds 1.00 cu ft net per chamber. In it the Image Dynamics IDQ10 V4 runs a system Qtc of 1.09–1.15 with half power at 41.5–43.5 Hz, and the cone reaches its 14.5 mm travel limit at 539 W, above the driver’s 500 W thermal rating, so heat stops you before travel does. Run a subsonic filter at 25 Hz and that becomes 545 W — +6 W, or 1 percent more power for the same 14.5 mm of travel.

01Is it a sealed driver?

Efficiency bandwidth product places the motor before anything else is decided.

EBP = Fs ÷ Qes = 38.1–42.3

D2 · EBP 42.3D4 · EBP 38.1

EBP under 50 means a motor that wants a sealed load. The IDQ10 V4 sits at 38.1–42.3, inside that band, which is why this is a sealed build rather than a ported one.

02What the box does to it

1.00 cu ft against a 24.3 L Vas.

α = Vas ÷ Vb = 0.86 · Fc = Fs√(α+1) = 56–57 Hz · Qtc = 1.09–1.15

D2 · Qtc 1.09, Fc 57 Hz, F3 43.5 HzD4 · Qtc 1.15, Fc 56 Hz, F3 41.5 Hz

The box lifts resonance from 42.0 Hz free-air to 56–57 Hz and half power lands at 41.5–43.5 Hz, anechoic, before any cabin gain. This enclosure ships without a driver, so both coil variants the maker offers are plotted. They do not load the same box the same way.

03The watts that reach Xmax (in this enclosure)

Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 14.5 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.

P_Xmax = 539–559 W unfiltered → 545–565 W with a 25 Hz subsonic

D2 · 539 W, no filterD4 · 559 W, no filterD2 · 545 W with subsonic at 25 Hz, 24 dB/octD4 · 565 W with subsonic at 25 Hz, 24 dB/octXmax 14.5 mm one-way

Every trace touches the limit and no further, because each is drawn at the exact power that puts that coil on 14.5 mm. Unfiltered that is 539 W, reached first at 44 Hz. It sits above the 500 W the driver can take thermally, so the voice coil gives up before the suspension does. The dashed traces are the same driver behind a subsonic filter at 25 Hz, 24 dB/oct: stopping the cone wasting travel below the passband lets it take 545 W before hitting the same 14.5 mm. That is 1 percent more amplifier for the price of one filter setting.

Param	Value	Unit	Note
Fs	42.00	Hz	free-air resonance
Qts	0.797 / 0.868		D2 / D4
Vas	24.30 / 21.32	L	equivalent compliance
Sd	380.1	cm²	effective piston area
Xmax	14.5	mm	one-way linear travel
Pe	500	W	continuous RMS
SPL	84.4	dB	1 W / 1 m, derived from T/S

Driver parameters as published by imagedynamicsusa.net. Curves computed against this enclosure’s actual net airspace.

Materials

Material

Built From a Spec Sheet, Not a Sales Sheet

Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.

Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.

Specifications

Langboard Elite MDF: Published Mill Data

Property	Value	Why It Matters
Panel Stock	Langboard Elite MDF	Named, verifiable panel source, not generic "high-density MDF"
Thickness	3/4" (18mm)	Industry standard for subwoofer enclosures; panels below this flex under pressure
Density	48.5 lbs/ft³	Higher density = less porosity, better screw retention, reduced resonance
Internal Bond	200 psi	Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet
Modulus of Rupture (MOR)	4,200 psi	Bending strength before the panel breaks, relevant for larger unsupported baffle spans
Modulus of Elasticity (MOE)	410,000 psi	Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance
Face Screw Holding	325 lbs	How firmly the panel surface holds a screw; critical for baffle joint integrity over time
Edge Screw Holding	250 lbs	Panel edge retention, relevant for every joint that isn't face-to-face

Internal Bond

200 psi: The Number That Actually Matters for Enclosures

The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.

Stiffness

410,000 psi MOE: Less Flex, Less Resonance

The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.

Screw Holding

325 lb Face / 250 lb Edge: Joints That Stay Locked

Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.

Sourcing

Named Panel Stock: Not "Premium MDF"

The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.

Why Proline X?

Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.

CNC-Cut to Spec

Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
